Why Ethernet Wire Order Actually Matters More Than You Think

Most people plug in an Ethernet cable and never think twice about what is happening inside that little plastic connector. But the arrangement of those eight tiny wires — twisted pairs running from one end to the other — is genuinely one of the foundational decisions behind how well your network performs. It is one of those things that looks invisible until something breaks. The wire order inside an Ethernet cable follows standardized pinout configurations that determine how data signals travel, how interference is managed, and whether two devices can even talk to each other at all. Understanding this setup helps explain why Ethernet has evolved the way it has, and why the cables you choose today are not the same as the ones from a decade ago.

The Basics of Ethernet Wire Order and Pinout Standards

Inside every standard Ethernet cable, you will find eight wires arranged into four twisted pairs. Those pairs are color-coded — blue, orange, green, and brown — each with a solid and a striped variant. The two dominant wiring standards that govern how these wires connect to RJ45 connectors are T568A and T568B, both defined by the TIA/EIA-568 cabling standard. T568B is the more widely used configuration in commercial and residential installations across North America. T568A is commonly found in government and some legacy installations. The actual pin positions differ between the two, specifically in how the orange and green pairs are arranged. This matters because mixing standards between the two ends of a cable creates what is known as a crossover cable — which was essential in early networking to connect two computers directly, but is largely obsolete today thanks to auto-MDI/X technology built into modern switches and routers.

How Twisted Pairs Reduce Interference and Improve Signal Quality

Here is something worth slowing down on. The reason those wires are twisted is not arbitrary. Each pair is twisted at a specific rate — a different number of twists per inch — which creates a natural cancellation effect against electromagnetic interference and crosstalk. When two wires carrying equal and opposite signals are twisted together, external noise affects both in the same way and cancels out when the signals are combined at the receiving end. The tighter and more consistent the twist, the better the cable performs at higher frequencies. This principle has remained consistent across every generation of Ethernet cabling, even as data rates have climbed from 10 Mbps in the early days to 10 Gbps and beyond in modern deployments. The physics behind twisted pair design is the same — what has changed is precision, materials, and shielding.

The Evolution of Ethernet Cable Categories Over the Years

Ethernet cabling has not stood still. From the thick coaxial cables of early 10BASE5 networks to the slender, highly engineered cables of today, the progression has been driven by demand for faster speeds and more reliable connections. Cat3 cables supported 10 Mbps and were once used for telephone lines. Cat5 brought 100 Mbps capability. Then Cat5e came along and addressed some of the crosstalk issues that Cat5 struggled with at higher speeds, making it the reliable workhorse of home networks for years. Cat6 pushed things further with tighter tolerances and a physical spline separator inside the cable that reduces internal interference, supporting up to 1 Gbps over longer distances and 10 Gbps over shorter runs. Cat6A extended that 10 Gbps capability to the full 100-meter distance while also introducing augmented shielding. More recently, Cat8 has entered the conversation for data centers and high-performance environments, capable of 25 Gbps and 40 Gbps at shorter distances. Each generation has refined the wire order precision, insulation quality, and shielding options.

Shielded vs. Unshielded Cables and When Each Makes Sense

One of the more practical decisions when choosing an Ethernet cable is whether to go shielded or unshielded. Unshielded Twisted Pair, commonly called UTP, is the standard for most home and small office environments. It is flexible, affordable, and performs well when interference sources are not a major concern. Shielded Twisted Pair, or STP, adds a foil or braided shield around the wire pairs — and sometimes around the entire cable jacket — to guard against stronger electromagnetic interference. This becomes relevant in industrial settings, near heavy electrical equipment, or in environments with dense wireless traffic. The tradeoff is cost and installation complexity, since shielded cables require proper grounding to be effective. For most home users, unshielded Cat6 or Cat6A handles everything from streaming to gaming to video calls without issue. For commercial installations or challenging environments, shielding is worth the investment.

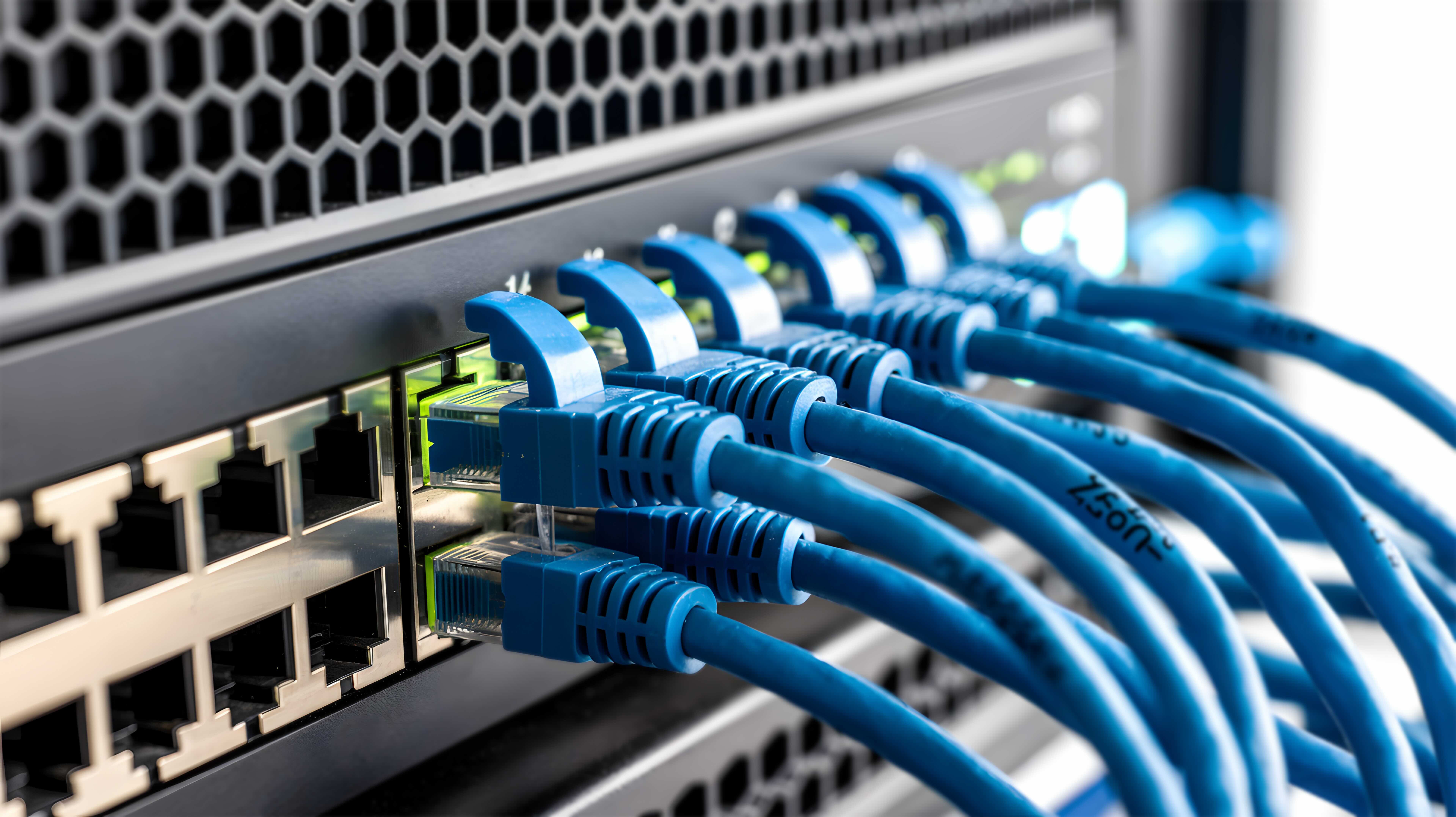

How Wire Order Affects Consumer Electronics and Home Networking

Consumer electronics have increasingly moved toward wired connections for reliability, particularly for smart TVs, gaming consoles, NAS drives, and streaming devices. The wire order inside the Ethernet cable directly affects compatibility and performance at the hardware level. A properly terminated cable following T568B or T568A standards ensures that signals hit the correct pins on each device's RJ45 port, allowing the auto-negotiation process to work correctly and establish the highest mutually supported speed. Cables that are improperly terminated — even with wires only slightly out of position — can cause link failures, reduced speeds, or intermittent drops. This is why quality and precision in manufacturing matters, not just the cable category on the label. A well-built Cat5e cable will outperform a poorly made Cat6 cable every time.

Practical Tips for Choosing the Right Ethernet Cable

Selecting an Ethernet cable does not need to be complicated, but a few factors are worth considering before buying. Here is a quick breakdown of what to evaluate based on your use case:

• For home streaming, gaming, and general internet use, Cat6 UTP is the reliable and cost-effective choice.
• For longer cable runs exceeding 50 meters, Cat6A handles signal integrity better over distance.
• For environments near electrical panels, industrial equipment, or dense wireless access points, consider shielded Cat6 or Cat6A.
• For data centers or high-performance server applications, Cat8 supports the bandwidth needed at shorter distances.
• For patch cables between devices and switches, Cat6 in standard lengths handles virtually any home or small office need.
• When in doubt about your environment, going one category higher than you think you need is a reasonable approach.

Beyond the category, pay attention to conductor material. Bare copper conductors perform better than copper-clad aluminum over longer runs and under sustained load. Jacket type also matters — plenum-rated jackets are required in certain commercial installations where air circulation through walls and ceilings demands fire-resistant materials.

Common Mistakes People Make With Ethernet Cabling

Even with the right cable, installation errors can undermine performance. One of the most common mistakes is exceeding the bend radius during installation, which can damage the twisted pairs inside and introduce signal loss. Another is running Ethernet cables in parallel with electrical wiring over long distances, which introduces interference even in unshielded environments — keeping cables perpendicular when they must cross electrical lines helps. Terminating connectors incorrectly, untwisting too much wire before crimping, and using low-quality connectors are also frequent issues. And then there is the basic mistake of assuming a cable works just because the link light comes on — link establishment and actual throughput are different things. A flawed cable can establish a connection at a lower speed than the hardware supports, and users often never notice unless they run a speed test.

Why Monoprice Is the Right Choice for High-Performance Ethernet Cables

When it comes to Ethernet cabling that delivers on both quality and value, Monoprice has built a reputation that professionals and home users can rely on. The engineering behind every Monoprice cable reflects a genuine understanding of what proper wire order, conductor quality, and precision termination mean for real-world network performance. Whether you are wiring a single room or outfitting an entire building, Monoprice offers the right cable for the job — Cat5e, Cat6, Cat6A, and beyond — each manufactured to meet or exceed industry standards. Explore the full range of high-performance Ethernet cables and networking solutions from Monoprice to find cables built for reliability, signal integrity, and long-term value. The confidence behind every Monoprice product is not marketing language — it is the result of consistent quality control and a commitment to making premium networking accessible without the premium markup. For anyone serious about getting their network right, Monoprice is the practical, value-driven answer.

Frequently Asked Questions About Ethernet Wire Order and Cable Standards

What is the standard wire order for Ethernet cables?

The two standard pinout configurations are T568A and T568B, both defined by the TIA/EIA-568 standard. T568B is the most commonly used in North American commercial and residential installations. Both standards define the specific arrangement of the eight wires inside an RJ45 connector, and consistency between both ends of a cable is essential for proper function.

Does it matter whether I use T568A or T568B?

What matters most is consistency. As long as both ends of the cable use the same standard, the cable will function correctly as a straight-through patch cable. Mixing T568A on one end with T568B on the other creates a crossover cable, which has a specific use case but is not appropriate for standard device-to-switch connections.

What is the difference between Cat5e, Cat6, and Cat6A?

Cat5e supports up to 1 Gbps over 100 meters and is suitable for most home use. Cat6 supports 1 Gbps over 100 meters and 10 Gbps over shorter distances, with better crosstalk performance. Cat6A supports 10 Gbps over the full 100-meter distance and includes enhanced shielding options, making it more suitable for demanding commercial environments.

Why are the wires inside Ethernet cables twisted?

The twisting of wire pairs creates a cancellation effect against electromagnetic interference and crosstalk. Each pair is twisted at a different rate, which prevents the pairs from interfering with each other. This principle is fundamental to the performance of twisted pair cabling across all Ethernet standards.

Can a bad wire order cause network problems?

Yes. Incorrect wire termination can result in failed connections, reduced data speeds, or intermittent signal drops. Even minor wiring errors — such as untwisting too much wire before crimping — can degrade performance, particularly at higher speeds where signal integrity tolerances are tighter.

What is the maximum length for an Ethernet cable run?

The standard maximum length for a single Ethernet cable segment is 100 meters, or approximately 328 feet. This applies to most categories including Cat5e, Cat6, and Cat6A. Exceeding this length without a switch or repeater will result in signal degradation and connection issues.

Do I need a shielded Ethernet cable for my home network?

For most home environments, unshielded Cat6 cable is sufficient. Shielded cables are more appropriate in settings with significant electromagnetic interference, such as near industrial equipment, electrical panels, or dense wireless infrastructure. If you are experiencing unexplained interference in a typical home setup, other factors are more likely the cause.

What does Cat8 Ethernet cable offer that Cat6A does not?

Cat8 supports data rates of 25 Gbps and 40 Gbps, but only over shorter distances of up to 30 meters. It is primarily designed for data center and server environments rather than general home or office use. For most users, Cat6A offers more than adequate performance at a lower cost and over longer runs.

Is there a visual way to verify correct Ethernet wire termination?

Yes. A network cable tester is the most reliable tool for verifying correct termination. These devices check each pin-to-pin connection and confirm that wires are mapped correctly from one end to the other. Visual inspection of the wire order through a clear RJ45 connector is also helpful during the crimping process, but a tester provides definitive confirmation.

Why do some Ethernet cables say they are CCA instead of bare copper?

CCA stands for copper-clad aluminum, which uses an aluminum core with a thin copper coating. These cables are generally less expensive but perform worse than pure bare copper over longer distances and under sustained electrical load. For reliable, long-term performance — especially in permanent installations — bare copper conductors are the recommended choice.
