What Is RJ45 Cable Order and Why Does It Actually Matter

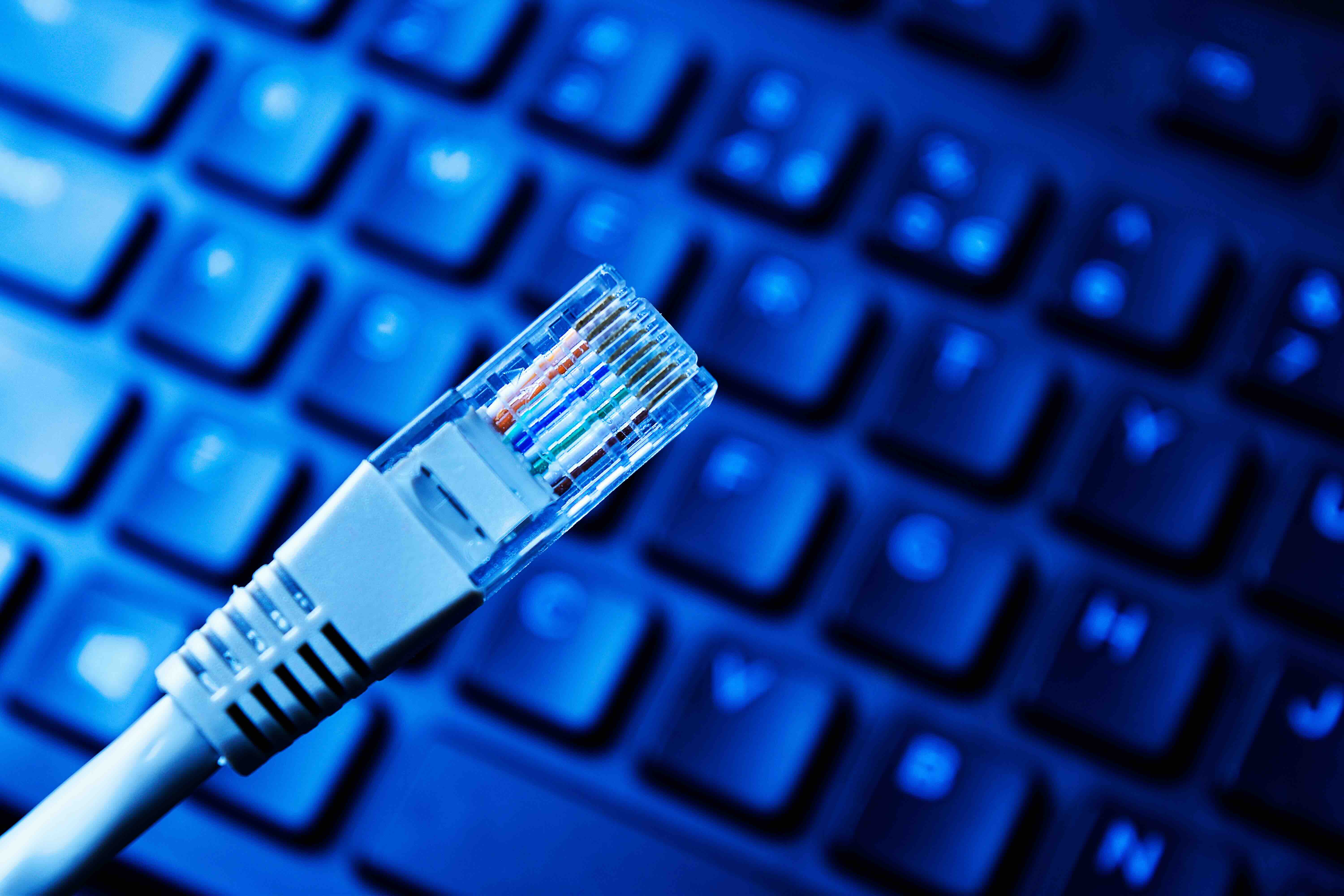

If you have ever plugged in a network cable and wondered why there are eight tiny colored wires inside that clear plastic connector, you are already halfway to understanding what RJ45 cable order is all about. The RJ45 connector is the standard interface used in Ethernet networking -- that familiar plug at the end of the cable connecting your router, switch, computer, or IP camera. Inside every Ethernet cable are eight individual wires, each twisted into pairs, and each one has to land in a very specific position inside the RJ45 connector to carry data correctly. That sequence of wire placement is what the industry refers to as the RJ45 wiring order or pinout. Get it right and you have a working network connection. Get it wrong and you have... nothing. Or worse, intermittent signal issues that are incredibly difficult to diagnose later.

The Two Wiring Standards You Need to Know: T568A vs T568B

There are two recognized wiring standards for RJ45 cables, defined by the Telecommunications Industry Association under the TIA/EIA-568 specification. They are called T568A and T568B, and the difference between them comes down to how pairs 2 and 3 are arranged within the connector. Both are technically valid. Both will deliver the same performance when used consistently. The confusion happens when you mix them -- more on that in a moment. The T568B standard is used far more commonly in commercial and enterprise networking environments across North America. T568A tends to appear more often in government installations and residential wiring, particularly where compatibility with older USOC phone wiring is relevant. Knowing which one you are working with matters a lot, especially during installation or troubleshooting in an existing network infrastructure.

T568A Wire Order (Left to Right, Pin 1 to Pin 8)

• White/Green
• Green
• White/Orange
• Blue
• White/Blue
• Orange
• White/Brown
• Brown


T568B Wire Order (Left to Right, Pin 1 to Pin 8)

• White/Orange
• Orange
• White/Green
• Blue
• White/Blue
• Green
• White/Brown
• Brown


Straight-Through vs Crossover Cables: What the Wiring Order Determines

Here is where the practical impact of RJ45 cable order becomes really clear. When both ends of a cable use the same wiring standard -- T568A on both ends, or T568B on both ends -- you have a straight-through cable. This is the most common cable type and is used to connect different types of devices, like a computer to a switch or a router to a patch panel. When one end follows T568A and the other follows T568B, that is a crossover cable. Crossover cables were historically used to connect two similar devices directly -- like two computers communicating without a switch in between. Most modern network equipment supports Auto-MDI/MDIX, which automatically detects and adjusts for cable type, so crossover cables are less critical today. But in legacy environments or certain specialized setups, knowing the difference is essential.

How to Crimp an RJ45 Connector in the Right Order

The process of terminating a cable with an RJ45 connector is called crimping, and it requires attention to detail. First, strip back about an inch of the cable jacket without nicking the individual wires. Then untwist the wire pairs just enough to work with them. Arrange the wires flat and in the correct order for your chosen standard -- T568A or T568B. Trim them evenly so all eight are the same length, roughly half an inch. Slide them into the RJ45 connector, keeping them in order and making sure each wire reaches the end of the connector's channel. Then use a crimping tool to press the connector's pins down through the wire insulation and lock everything in place. A cable tester is essential after this step -- it verifies each pin is connected correctly and that you have not introduced any wiring errors.

Common Mistakes When Wiring RJ45 Connectors

Even experienced technicians make mistakes here. One of the most common is failing to maintain wire order after inserting into the connector -- the wires shift slightly and you end up with one or two pins out of sequence. Another frequent error is mixing T568A on one patch panel port and T568B on the other end of the same run, creating an unintentional crossover. Cutting the wires too short before insertion means they may not reach the pins inside the connector, resulting in a failed crimp. Not using a cable tester after termination is another issue. The test takes seconds and can save hours of troubleshooting later. It is also worth noting that using the wrong category of RJ45 connector for your cable -- say, a Cat5e connector on a Cat6 cable -- can cause insertion issues or degrade performance.

Does Cable Category Change the Wiring Order

This is a question that comes up often. The answer is no -- the RJ45 pinout order is the same regardless of whether you are working with Cat5e, Cat6, Cat6A, or Cat8 cable. What changes between categories is the physical construction of the cable itself: tighter twists, larger conductors, additional shielding, or a spline separator in the case of Cat6. The T568A and T568B wiring standards apply universally across all these cable types. A Cat8 cable running at 40 Gbps still uses the same eight-pin RJ45 sequence as a Cat5e cable running at 100 Mbps. The category determines performance ceiling; the wiring order determines whether it works at all.

When to Use T568A vs T568B: Making the Practical Choice

For most people setting up or expanding a home or business network from scratch, T568B is the safe default. It is the dominant standard in commercial installations throughout North America, and most pre-terminated patch cables you will encounter are wired to T568B. If you are adding to an existing infrastructure, match whatever standard is already in place. Mixing standards in the same run is never acceptable. If you are working on a government contract or in an environment where the specifications explicitly call for T568A, follow those instructions. The key principle is consistency: pick one standard and apply it end to end throughout the installation. That discipline is what separates a clean, high-performance network from one that creates ongoing headaches.

Tools and Testing Equipment That Make a Difference

Getting the RJ45 cable order right is partly knowledge, partly technique, and partly having the right tools. A quality crimping tool that properly seats the connector pins is non-negotiable. Using a cheap or worn-out crimper is one of the fastest ways to produce a connection that looks fine but tests poorly. A cable tester -- even a basic continuity tester -- will confirm pin-to-pin continuity across all eight wires and alert you to crossed pairs, split pairs, or open circuits. For professional installations, a more advanced tester that measures cable performance parameters like attenuation and near-end crosstalk is worth the investment. Wire strippers designed specifically for data cable help avoid nicking the conductors during jacket removal, which can introduce signal problems down the line.

Why Monoprice Is the Right Choice for RJ45 Cables and Networking Supplies

When it comes to building reliable network infrastructure, the quality of your cables and connectors is not something to compromise on. Monoprice has spent years earning the trust of IT professionals, AV integrators, and serious home network builders by offering precisely engineered cables, connectors, and tools at pricing that actually makes sense for both individual projects and large-scale deployments. Whether you are running a single patch cable or terminating hundreds of drops in a commercial installation, the components you use have a direct impact on the performance and longevity of your network. Monoprice products are built to meet industry specifications -- not just get close to them -- which means you can terminate your cables with confidence and get consistent, test-verified results every time. If you are looking for high-performance RJ45 Ethernet cables and professional networking supplies that deliver real value without unnecessary cost, Monoprice is where that search ends. From bulk Cat6 cable on a spool to pre-terminated patch cables in a range of lengths and colors, the inventory is deep and the quality is dependable. That combination is exactly what infrastructure professionals need when the job has to be done right.

Frequently Asked Questions About RJ45 Cable Order

What is the standard RJ45 wiring order?

The two recognized standards are T568A and T568B, both defined by TIA/EIA-568. T568B is the most widely used in commercial North American networking environments. Both use eight wires arranged in a specific color-coded sequence within the RJ45 connector.

What happens if the RJ45 wiring order is wrong?

An incorrect wiring order will typically result in no network connection, intermittent connectivity, or significantly reduced performance. A cable tester will identify wiring errors quickly, including crossed pairs and open pins.

Is T568A or T568B better for home networks?

T568B is the recommended default for home networks in North America because it aligns with the majority of commercially available pre-terminated cables and installed infrastructure. Either standard works as long as it is applied consistently on both ends of the cable.

Can I mix T568A and T568B in the same network?

You cannot mix the two standards within a single cable run. However, different runs in the same network can use different standards as long as each individual cable is wired the same on both ends. Consistency within each run is the critical requirement.

What is the difference between a straight-through and a crossover cable?

A straight-through cable uses the same wiring standard on both ends and connects different device types, like a computer to a switch. A crossover cable uses T568A on one end and T568B on the other and is used to connect two similar devices directly.

Does Cat6 or Cat6A use a different RJ45 pin order than Cat5e?

No. The RJ45 pinout is the same across Cat5e, Cat6, Cat6A, and Cat8 cables. The cable category affects performance specifications and physical construction, but the wiring sequence inside the RJ45 connector remains identical.

What tools do I need to wire an RJ45 connector correctly?

You need a quality crimping tool, a wire stripper designed for data cable, RJ45 connectors rated for your cable category, and a cable tester to verify continuity and pin sequence after termination.

How do I know which wiring standard is already used in my building?

Use a cable tester or tone probe to check existing terminations. You can also visually inspect the color order at a patch panel or keystone jack. The wire arrangement will match either the T568A or T568B sequence if the installation was done correctly.

Can I use RJ45 connectors for Cat8 cables?

Yes, but you need RJ45 connectors specifically rated for Cat8 to handle the larger 22 or 23 AWG conductors and maintain the performance specifications for 40 Gbps transmission. Standard Cat5e or Cat6 connectors are not suitable for Cat8 cable.

What is a split pair error in RJ45 wiring?

A split pair error occurs when wires from different twisted pairs are incorrectly grouped together inside the connector. The cable may pass a basic continuity test but will fail performance testing because the pair twisting that reduces crosstalk has been disrupted. A quality cable tester with pair verification will catch this error.
