What Is the Lightning USB Pinout and Why Does It Matter?

If you have ever plugged an iPhone into a charger and wondered what is actually happening inside that small, elegant connector, you are not alone. The Lightning connector, introduced by Apple in 2012, replaced the older 30-pin dock connector and changed how millions of people thought about charging and data transfer. Understanding the Lightning USB pinout gives you a clearer picture of how the technology works, why it performs the way it does, and what its real limitations are. Whether you are a tech enthusiast, an IT professional managing a fleet of Apple devices, or someone who just wants to know why their cable stopped working, the pinout is where the answers begin.

A Brief History of the Lightning Connector

Apple launched the Lightning connector alongside the iPhone 5 in September 2012. It was a significant departure from what came before. The 30-pin connector it replaced was bulky, directional, and honestly showing its age. Lightning came in smaller, reversible, and far more durable by design. The connector uses an 8-pin interface on a compact, symmetrical form factor, which is why you can plug it in either way without fumbling. That single feature alone was a genuine quality-of-life improvement. At the time, it felt almost futuristic compared to the micro-USB cables most Android devices were still using. Apple designed Lightning as a proprietary standard, which has always meant tighter quality control on one side and higher accessory costs on the other.

Breaking Down the Lightning USB Pinout

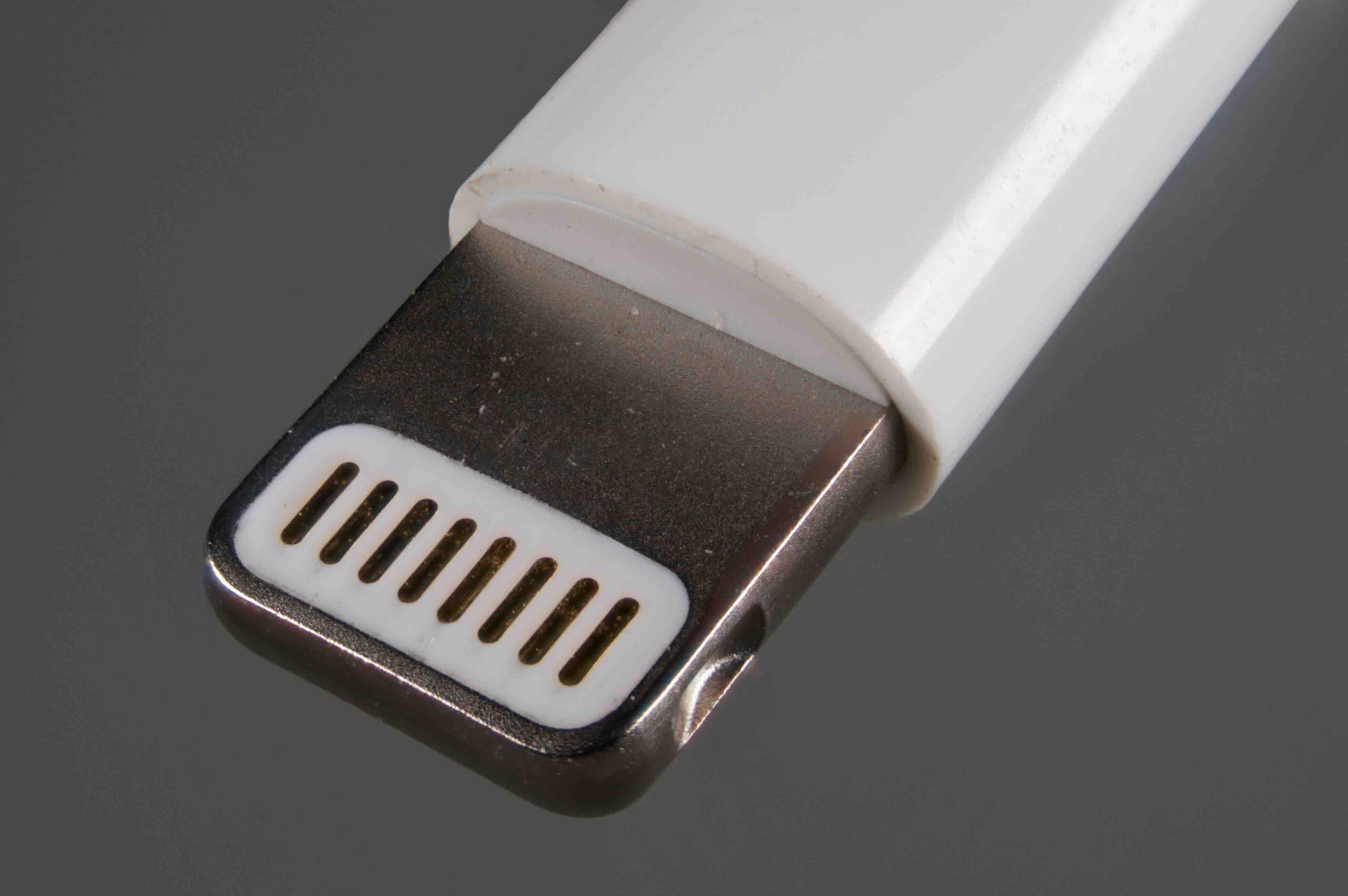

The Lightning connector has 8 pins on each side of the plug, but here is the part that surprises a lot of people: the connector is electrically symmetrical. That means the same 8 pins appear on both faces of the plug, but they carry the same signals regardless of orientation. The Lightning cable itself contains a small authentication chip that communicates with the device to verify the cable and accessory. Now, when we talk about the actual pinout, the 8 pins are typically mapped like this:

• GND (Ground)
• L0p and L0n (LVDS pair for data)
• L1p and L1n (second LVDS pair)
• ID0 and ID1 (accessory identification)
• PWR (Power, up to 12W on standard cables)


The controller chip embedded in the Lightning plug negotiates the pin assignments dynamically, which is part of why the connector is reversible without confusion. The device essentially figures out which way the cable is inserted and adjusts signal routing accordingly. It is a clever piece of engineering that required both hardware and firmware cooperation to pull off correctly.

How Lightning Transfers Data and Power

In terms of raw data throughput, Lightning supports USB 2.0 speeds, which tops out at around 480 Mbps. That is not particularly fast by modern standards, and it is a limitation that became more noticeable as file sizes grew and USB 3.x became common on competing platforms. On the power delivery side, standard Lightning cables support up to 12 watts, though Apple later introduced USB-C to Lightning cables that enabled faster charging by pairing a USB-C power brick with a Lightning-terminated cable. The cable itself still acts as the bottleneck in many configurations. The authentication chip inside the cable also plays a role in power negotiation, which is why third-party cables that lack proper MFi certification sometimes fail to deliver consistent charging or trigger warnings on the device.

Key Advantages of the Lightning Connector

Despite being a proprietary standard with real technical limitations, Lightning has several genuine strengths that kept it relevant for over a decade in Apple's ecosystem.

• Reversible insertion eliminates fumbling and reduces wear on the port
• Compact form factor fits thin device profiles without compromise
• Authentication chip provides a layer of quality and safety control
• Durable design with internal spring contacts reduces physical degradation
• Wide ecosystem of accessories built around a single standard
• Consistent user experience across a long product lifespan


The reversibility alone was something USB-A never offered, and it mattered more than people give it credit for. Micro-USB ports were notoriously fragile. Lightning held up better in daily use, partly because the contacts are on the plug rather than the receptacle, which means the port on the device itself sustains less wear over time.

Common Drawbacks and Technical Limitations

No connector standard is perfect, and Lightning has real drawbacks that are worth being clear about. The USB 2.0 speed ceiling is the most significant technical limitation. In a world where professionals transfer large video files or back up extensive photo libraries, 480 Mbps feels genuinely outdated. Beyond speed, the proprietary nature of Lightning means cables cost more than comparable USB-C options. MFi certification, which stands for Made for iPhone, adds licensing costs to accessory manufacturers, and those costs get passed to consumers. There is also the obvious compatibility issue: if you own a mix of Apple and non-Apple devices, you likely carry multiple cables, which is friction that USB-C largely eliminates. Apple itself recognized this and has been migrating its product line to USB-C, starting with the iPad Pro and eventually moving the iPhone 15 lineup to USB-C in 2023.

Lightning vs. USB-C: What the Pinout Difference Means in Practice

USB-C operates on a 24-pin configuration and supports significantly more functionality out of the box, including USB 3.2, Thunderbolt 4 on compatible hardware, and USB Power Delivery up to 240 watts under the latest specification. The Lightning pinout, at 8 pins, simply cannot match that bandwidth or power ceiling. That said, for everyday charging and syncing tasks, most users will not notice the speed difference in casual use. Where it matters is in professional workflows, high-resolution video transfers, or situations where fast charging is critical. The transition away from Lightning is the right call from an engineering perspective, even if it creates short-term inconvenience for people who have invested in Lightning accessories.

What to Know When Buying Lightning Cables and Accessories

If you are still using Lightning devices and need reliable cables or accessories, a few things are worth keeping in mind. MFi certification is the baseline standard of quality assurance for Lightning accessories. Non-certified cables may work intermittently but can cause charging errors, fail to deliver full power, or stop working after a firmware update. Cable construction matters too. Braided nylon or reinforced jackets significantly extend cable lifespan compared to bare rubber coatings, especially at the stress points near the connector ends. For longer cable runs in a home or office setup, make sure the cable is rated for the full power delivery capacity you need. A cable that is technically Lightning-compatible but under-spec for current handling will charge slowly and may run warm.

Why Monoprice Is the Smart Choice for Lightning and USB Accessories

When it comes to outfitting a home, office, or enterprise environment with reliable cables and connectivity accessories, value and dependability are non-negotiable. Monoprice has built a reputation across both consumer and professional markets for delivering exactly that. Every product in the lineup is engineered to meet real-world performance demands without the inflated pricing you find at retail stores. For anyone navigating the Lightning ecosystem or making the transition to USB-C, having a trusted supplier matters. You can explore the full range of certified, high-performance charging and connectivity solutions from Monoprice Lightning and USB cable accessories for Apple devices to find exactly what fits your setup. From braided MFi-certified Lightning cables to USB-C alternatives built for speed and durability, the catalog covers every use case with practical, budget-conscious options that do not cut corners where it counts.

Frequently Asked Questions About the Lightning USB Pinout

How many pins does the Lightning connector have?

The Lightning connector has 8 pins on each face of the plug, totaling 8 active electrical contacts. The connector is symmetrical, so the same pin layout appears on both sides, allowing for reversible insertion.

What data transfer speed does Lightning support?

Lightning supports USB 2.0 data transfer speeds, which max out at approximately 480 Mbps. This is significantly slower than USB-C connections that support USB 3.2 or Thunderbolt protocols.

Why is the Lightning connector reversible?

The Lightning connector is reversible because its 8-pin layout is electrically symmetrical on both faces. An internal controller chip in the plug detects the orientation and routes signals accordingly, so either direction works the same way.

What is MFi certification and does it matter for Lightning cables?

MFi stands for Made for iPhone, iPad, and iPod. It is Apple's licensing program for third-party accessory manufacturers. MFi-certified Lightning cables include an authentication chip that Apple devices recognize, ensuring reliable charging and data transfer without compatibility warnings.

How much power can a Lightning cable deliver?

A standard Lightning cable supports up to 12 watts of power delivery. Using a USB-C to Lightning cable paired with a USB-C Power Delivery charger can enable faster charging speeds on compatible Apple devices.

What replaced the Lightning connector on iPhones?

Apple transitioned the iPhone lineup from Lightning to USB-C starting with the iPhone 15 series in 2023. USB-C offers faster data speeds, higher power delivery, and broader cross-device compatibility.

Why do non-certified Lightning cables sometimes stop working?

Non-MFi-certified Lightning cables lack the authentication chip that Apple devices verify during connection. Apple's firmware updates can detect and block non-certified accessories, resulting in charging failures or error messages on screen.

Can Lightning cables carry video output signals?

Lightning does not natively carry video output in the same way USB-C or Thunderbolt does. Video output from Lightning devices typically requires an Apple Lightning Digital AV Adapter, which handles the signal conversion externally.

Is it worth buying Lightning accessories in 2024 and beyond?

If you own older Apple devices that use Lightning and do not plan to upgrade soon, investing in quality MFi-certified Lightning cables and accessories is still practical. For new device purchases, USB-C is the more future-proof standard.

What is the difference between Lightning and micro-USB pinouts?

Micro-USB uses a 5-pin configuration and is directional, meaning it can only be inserted one way. Lightning uses an 8-pin symmetrical design that supports reversible insertion, dynamic signal routing, and a more durable physical contact system.
