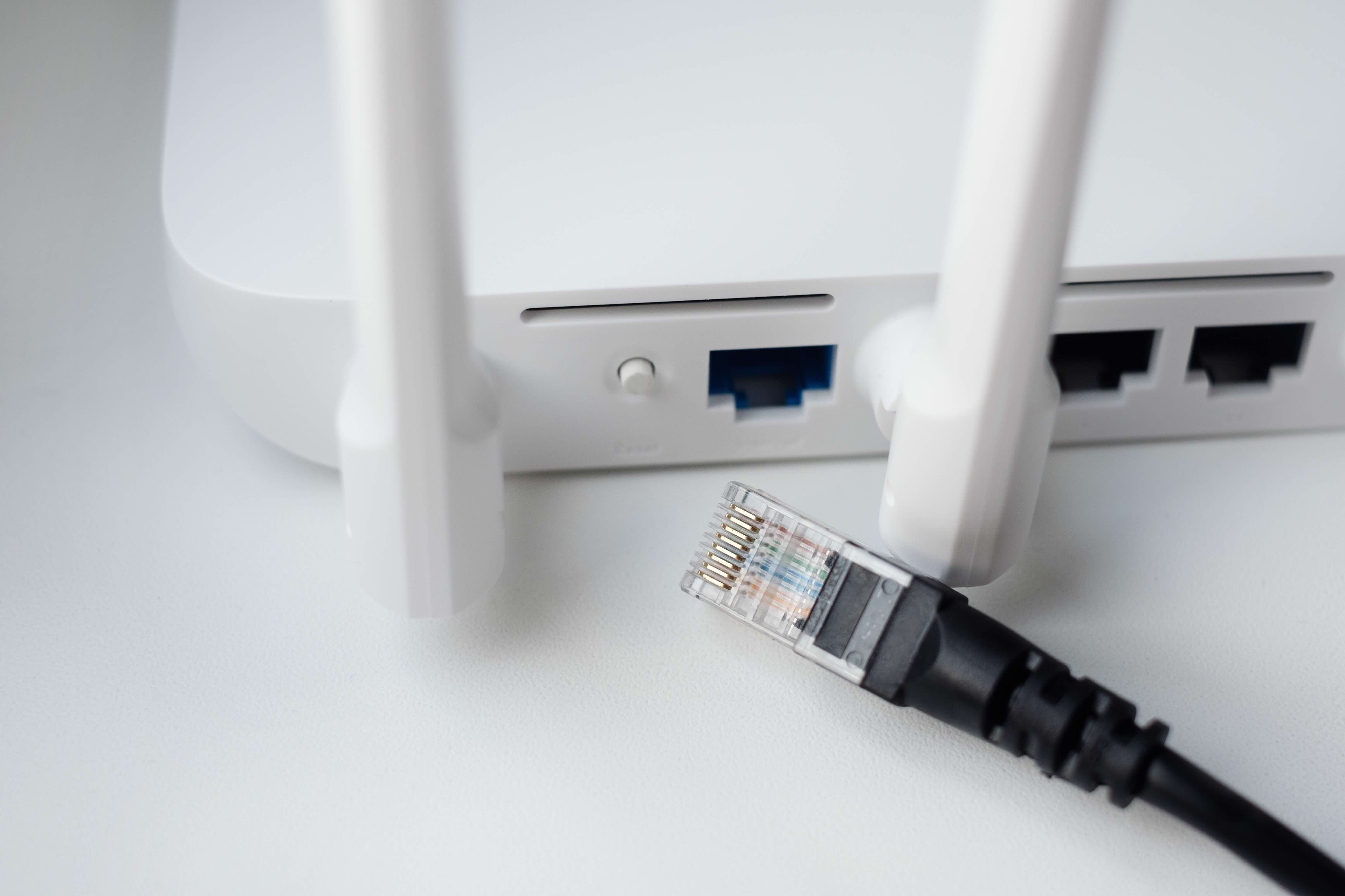

How to Wire an Ethernet Jack: A Complete Step-by-Step Guide for Reliable Network Connections

Wiring an Ethernet jack is one of those skills that sounds intimidating until you actually sit down and do it. And then -- honestly -- it clicks pretty fast. Whether you are running a home network for the first time or you are a technician pulling cable through a wall for the fifth time this week, understanding how to properly terminate an Ethernet jack is foundational knowledge. Done right, it means faster speeds, fewer dropped connections, and a clean installation that holds up over time. Done wrong, and you are chasing ghost problems for days. This guide walks through everything you need to know -- the wiring standards, the tools, the steps, and the things people consistently get wrong the first time around.

What Is an Ethernet Jack and Why Does It Matter

An Ethernet jack -- also called an RJ45 keystone jack or wall jack -- is the termination point where your network cable connects to a wall plate, patch panel, or surface-mount box. It is the endpoint of your structured cabling run, and it is what lets you plug in a laptop, desktop, smart TV, or any other wired device using a standard patch cable. The jack itself contains a series of internal contacts that, when terminated correctly, complete the electrical circuit and allow data to pass cleanly between devices. The quality of that termination determines the quality of your connection. A loose pair, a poor punchdown, or a wiring error at the jack level can degrade signal, introduce crosstalk, or kill the link entirely -- even if the rest of your cable run is perfect.

Understanding Wiring Standards: T568A vs T568B

Before you touch a wire, you need to understand the two dominant wiring standards used in Ethernet installations: T568A and T568B. Both are defined by the TIA/EIA-568 standard, and both work. The difference is in the pin order of two specific wire pairs. T568B is more commonly used in commercial and residential installations across North America. T568A is often specified in government and some international contexts. What matters most is consistency -- whichever standard you choose, you need to use it on both ends of the cable run. Mixing standards creates a crossover cable, which has its own use case, but is not what you want in a standard network drop. Most installers default to T568B, and if you are wiring a new space without an existing standard already in place, T568B is a safe and practical choice.

Tools and Materials You Will Need

Getting your tools together before you start saves a lot of frustration. Here is what you will need to wire an Ethernet jack correctly:

• Ethernet cable (Cat5e, Cat6, or Cat6A depending on your speed requirements)
• Keystone jack (make sure it matches your cable category)
• 110 punchdown tool or a flat-head screwdriver for impact-free jacks
• Cable stripper or utility knife
• Wire cutters or scissors
• Patch panel or wall plate with keystone opening
• Label maker or permanent marker
• Cable tester (strongly recommended)


The punchdown tool is probably the most important piece of equipment here. A proper impact punchdown tool seats the wire into the jack contact and trims the excess in one motion. Using a screwdriver works in a pinch but increases the chance of a bad connection. If you are doing more than a handful of jacks, the tool is worth having.

Step-by-Step: How to Wire an Ethernet Jack

Now for the actual process. Start by stripping about one inch of the outer jacket from the end of the Ethernet cable. Be careful not to nick the inner wire pairs -- a cable stripper set to the right depth helps a lot here. Once the jacket is removed, you will see four twisted pairs of wire inside. Untwist each pair just enough to separate the individual wires for placement into the jack contacts. Do not untwist more than necessary -- maintaining the twist as close to the termination point as possible is critical for minimizing crosstalk, especially at higher frequencies in Cat6 and Cat6A cable.

Next, locate the wiring diagram printed directly on the jack. Most keystone jacks have both T568A and T568B color codes labeled right on the body. Choose your standard -- T568B in most cases -- and begin seating each wire into its corresponding slot. The color sequence for T568B from pin 1 to pin 8 is: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Use your punchdown tool to press each wire firmly into the insulation displacement contact, which cuts through the wire insulation and makes the electrical connection. Work through all eight wires, then trim the excess. Snap the cover onto the jack if it has one, seat the jack into your wall plate or patch panel, and label it clearly.

Common Wiring Mistakes and How to Avoid Them

A few things go wrong more often than others, especially for first-timers. Untwisting pairs too far from the jack is probably the most common error -- it directly impacts performance on Cat6 and above. Mixing T568A and T568B on a single run is another one that causes confusion and connectivity failures. Using the wrong category jack for your cable is also a mistake worth flagging -- terminating Cat6A cable on a Cat5e jack defeats the purpose of the higher-rated cable. Always match the jack category to the cable category. And always test. A basic cable tester will confirm that all eight pins are wired correctly and that there are no opens, shorts, or miswired pairs. It takes about thirty seconds and can save hours of troubleshooting.

T568A vs T568B: Which One Should You Use

This question comes up constantly, so it is worth addressing directly. For most residential and commercial installations, T568B is the standard you will encounter and the one most installers default to. It became the more widely adopted option in North American commercial construction and is what most pre-made patch cables are wired to. If you are adding drops to an existing network, check what standard is already in use and match it. If you are starting fresh, pick one -- T568B is a reasonable default -- and stick with it throughout the entire installation. The only real rule is consistency. Both standards deliver identical electrical performance.

When to Use Keystone Jacks vs Inline Couplers

Keystone jacks are the right choice for permanent, structured cabling installations -- wall plates, patch panels, and floor boxes. They give you a clean termination point and are designed to handle the demands of fixed network infrastructure. Inline couplers, which connect two patch cables end to end, are a quick and temporary solution. They introduce additional connection points and can degrade signal on longer runs or high-speed installations. For any installation where performance and longevity matter, terminate to a proper keystone jack. It is the professional approach and the one that will serve you better over time, especially as network speeds continue to increase.

Cable Category Selection: Cat5e, Cat6, and Cat6A Explained

The cable you choose sets the ceiling for your network performance, and the jack you choose should match it. Here is a quick breakdown to help you decide:

• Cat5e supports speeds up to 1 Gbps at distances up to 100 meters and is still suitable for many standard home and small office environments
• Cat6 supports up to 10 Gbps at shorter distances (up to 55 meters) and offers better crosstalk protection than Cat5e
• Cat6A supports 10 Gbps at the full 100-meter distance and is the recommended choice for new installations and forward-looking infrastructure
• Cat8 is emerging for data center use but is not typically needed in standard commercial or residential cabling


For most new installations, Cat6 is the practical baseline and Cat6A is worth the modest additional investment if you want to build infrastructure that will not need to be replaced as bandwidth demands grow. Match your keystone jack to your cable rating and you are set.

Why Monoprice Is the Right Source for Your Ethernet Wiring Needs

When it comes to building reliable network infrastructure, the quality of your components matters just as much as the quality of your workmanship. Monoprice has spent years earning a reputation as a trusted supplier of networking components that perform at a professional level without the inflated price tags. From Cat6 and Cat6A bulk cable to keystone jacks, wall plates, patch panels, and punchdown tools, everything you need to complete a clean and code-compliant installation is available in one place. If you are ready to get started or need to stock up for a larger deployment, explore the full range of professional Ethernet wiring supplies and networking components at Monoprice and see why integrators, IT professionals, and network-savvy homeowners consistently choose Monoprice for value-driven infrastructure builds. The combination of component quality, category-rated performance, and accessible pricing makes Monoprice the logical choice whether you are wiring a single drop or a multi-room structured cabling system.

Frequently Asked Questions About Wiring an Ethernet Jack

What is the difference between T568A and T568B wiring standards?

T568A and T568B are two wiring configurations for Ethernet jacks that differ in the pin order of two wire pairs. Both perform identically in terms of electrical characteristics. T568B is more commonly used in North American commercial and residential installations. The key rule is to use the same standard on both ends of any given cable run.

Can I use a Cat5e jack with Cat6 cable?

Technically you can terminate Cat6 cable to a Cat5e jack, but the connection will only perform to Cat5e specifications. To take full advantage of Cat6 performance and certification, you need to use a Cat6-rated keystone jack throughout the entire channel.

How much of the cable jacket should I strip before terminating?

Strip approximately one inch of the outer jacket. This gives you enough wire to work with while minimizing the length of untwisted pairs exposed before the jack contacts. Keeping untwisted length as short as possible reduces crosstalk, especially important for Cat6 and Cat6A.

Do I need a punchdown tool to wire a keystone jack?

A 110 punchdown tool is the recommended tool for terminating keystone jacks. It seats the wire into the insulation displacement contact and trims the excess cleanly. Some jacks are designed for tool-free or screwdriver termination, but a proper impact punchdown tool delivers more reliable and consistent results.

How do I test a wired Ethernet jack after installation?

Use a basic cable tester that checks all eight pins for continuity and correct pin mapping. Insert one end of the tester into the jack and the other into the corresponding patch cable or cable end. The tester will indicate any opens, shorts, or miswired pairs, allowing you to catch and fix errors before closing up the wall.

What causes a wired Ethernet jack to not work after installation?

Common causes include miswired pairs, mixed wiring standards on opposite ends of the run, wires not fully seated in the jack contacts, excessive untwisting of pairs, or a damaged cable. Always test with a cable tester after termination to identify and isolate the problem.

Is Cat6A worth it over Cat6 for a home network?

Cat6A supports 10 Gbps at the full 100-meter distance and provides better shielding against alien crosstalk. For new installations, Cat6A is a forward-looking investment that future-proofs your infrastructure as home network demands continue to grow. The cost difference over Cat6 is modest relative to the long-term benefit.

Can I wire an Ethernet jack without prior experience?

Yes. Wiring an Ethernet jack is a learnable skill that most people can master with the right tools, a clear wiring diagram, and careful attention to detail. The color codes are printed directly on most keystone jacks, and a cable tester will confirm your work before you finalize the installation.

What is a keystone jack and how does it differ from an RJ45 plug?

A keystone jack is a fixed termination point designed for installation in a wall plate, patch panel, or surface-mount box. An RJ45 plug is a field-terminated connector crimped onto the end of a cable to create a patch cord. Keystone jacks are used for permanent infrastructure; RJ45 plugs are used for patch cables that connect devices to that infrastructure.

How many twists should I unwind when terminating a keystone jack?

Untwist each pair only as much as necessary to seat the individual wires into the jack contacts -- typically no more than half an inch. Maintaining the twist as close to the termination point as possible is critical for meeting performance specifications, particularly for Cat6 and Cat6A installations.
