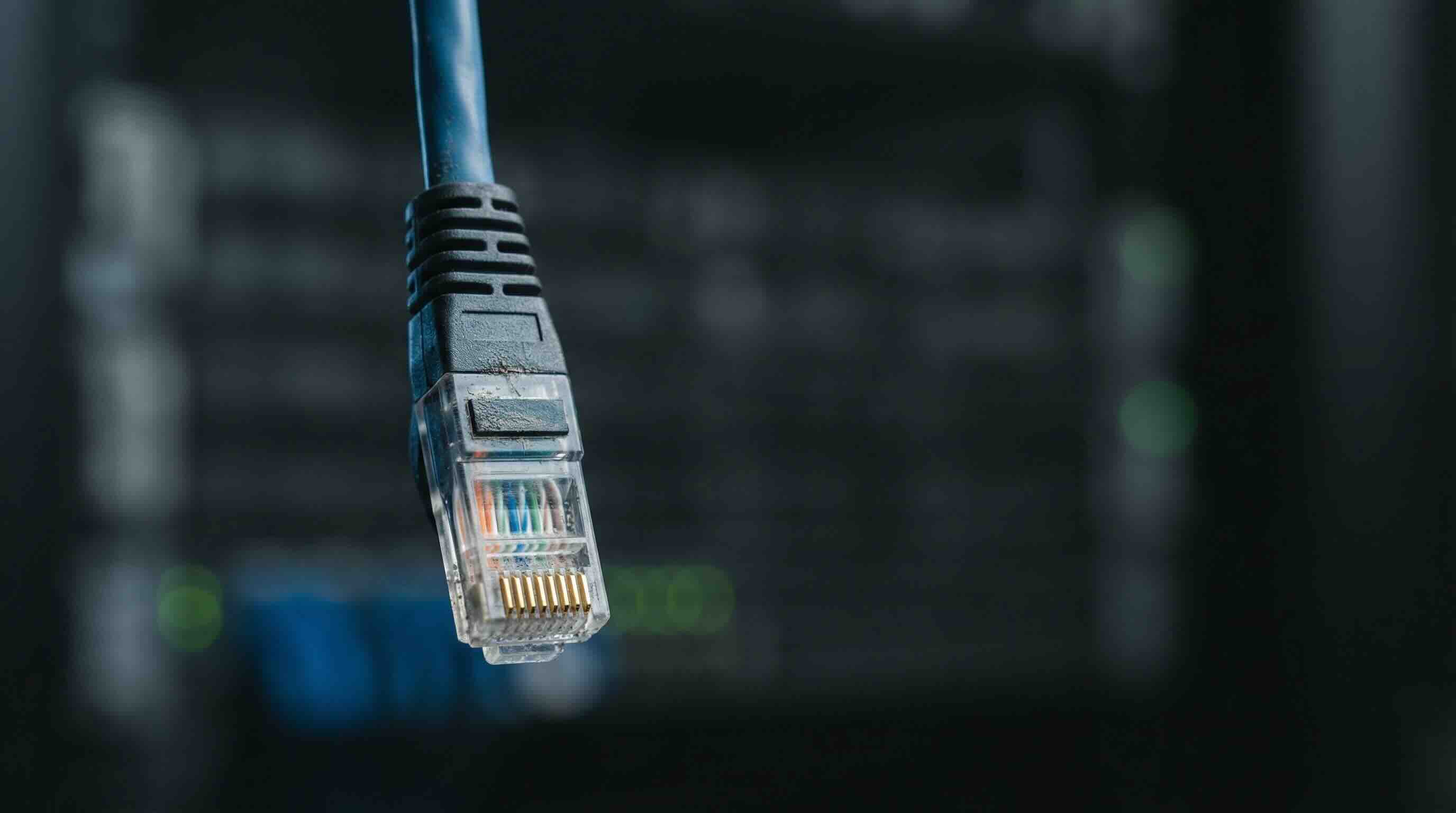

Understanding Ethernet Cable Wire Order: A Complete Guide to T568A and T568B Standards

If you have ever cracked open an ethernet cable or attempted to terminate one yourself, you already know there are eight wires inside, and their order matters more than most people expect. The arrangement of those wires determines whether your network performs at full speed or drops packets like it has somewhere else to be. This guide breaks down exactly what the wire order is, why it exists, and what it means for anyone setting up a home network, a commercial installation, or anything in between. Ethernet wiring standards are not complicated once you understand the logic behind them, and that is precisely what this article is here to do.

What Is Ethernet Cable Wire Order and Why Does It Matter

Ethernet cables use twisted pair wiring, typically four pairs of copper conductors, each pair twisted together at a specific rate to reduce electromagnetic interference. The wire order refers to the sequence in which those eight conductors are arranged inside the RJ45 connector. Get the sequence wrong and the cable either does not work at all or operates far below its rated speed. The two dominant wiring standards used today are T568A and T568B, both defined by the TIA/EIA-568 specification. These standards were not invented arbitrarily. They exist to ensure interoperability across devices, manufacturers, and entire infrastructure ecosystems. Whether you are punching down a patch panel or terminating a field connector, following the correct wire order is non-negotiable if you want the network to function reliably.

Breaking Down T568A Wire Order

The T568A standard arranges the wires in a specific color-coded sequence when viewed from the front of the RJ45 connector with the clip facing down. The order from left to right is as follows:

• White/Green
• Green
• White/Orange
• Blue
• White/Blue
• Orange
• White/Brown
• Brown


T568A was the originally preferred standard by the U.S. government and is still widely used in residential new construction and certain government installations. The pairing structure keeps the green pair on pins 1 and 2 and the orange pair on pins 3 and 6, which aligns with older telephone wiring conventions. If you are working in a building that was wired with T568A, staying consistent with that standard throughout the installation is critical. Mixing standards within the same run creates what is known as a rollover or miswired cable, which will not pass standard ethernet signaling correctly.

Breaking Down T568B Wire Order

T568B is the more commonly used standard in commercial environments across North America. It simply swaps the positions of the green and orange pairs compared to T568A. The wire order for T568B from left to right is:

• White/Orange
• Orange
• White/Green
• Blue
• White/Blue
• Green
• White/Brown
• Brown


Most pre-made patch cables you purchase from any reputable supplier will follow T568B termination on both ends. The majority of commercial infrastructure, data centers, and office environments default to T568B. The important thing is not which standard you choose, but rather that you commit to one standard and use it consistently throughout your entire installation. Consistency is what keeps networks clean, traceable, and maintainable over time. Technicians who come behind you to troubleshoot or expand the network will thank you for that discipline.

Straight-Through Cables vs. Crossover Cables Explained

A straight-through cable uses the same wiring standard on both ends, either T568A on both ends or T568B on both ends. This is the type of cable used for the vast majority of ethernet connections, including connecting a computer to a switch, a switch to a router, or a patch panel to network hardware. A crossover cable, on the other hand, uses T568A on one end and T568B on the other. This arrangement crosses the transmit and receive pairs, allowing two similar devices to communicate directly without a switch in between. Modern network equipment includes a feature called Auto-MDIX, which automatically detects and corrects for cable type, so crossover cables are far less necessary than they once were. Still, knowing the difference is valuable when working with older hardware or troubleshooting legacy infrastructure.

Color Coding and Pair Assignments Across Categories

The color coding in ethernet cables is standardized and consistent across Cat5e, Cat6, Cat6A, and Cat8 cabling. Each twisted pair carries a signal that operates as a balanced differential pair, meaning both wires in a pair must remain physically twisted together as close to the point of termination as possible. Untwisting too much of the cable during termination introduces crosstalk, which is signal interference between adjacent pairs. The maximum allowable untwist is typically half an inch for Cat5e and a quarter inch or less for Cat6 and Cat6A. Higher category cables are increasingly sensitive to termination quality, which is why proper technique matters as much as proper wire order. A cable that is wired in the correct sequence but terminated sloppily can still fail certification testing.

Common Mistakes When Wiring Ethernet Connectors

Even experienced installers occasionally make errors that result in cables that look correct but test poorly. The most frequent issues include reversing a wire pair, misidentifying the white-striped wires under poor lighting, and not seating wires fully to the front of the RJ45 connector before crimping. Another common problem is pulling the cable too tightly around corners or through conduit, which can deform the pairs and change their electrical characteristics. A quality cable tester is not optional for professional work. It should be used on every terminated cable to verify pin-to-pin continuity, pair integrity, and in some environments, performance characteristics like return loss and insertion loss. Catching errors at termination is far easier and less costly than diagnosing a network problem after everything is installed.

Choosing the Right Ethernet Cable Category for Your Application

Wire order is the same regardless of cable category, but the category you select determines the performance ceiling of your network. Cat5e supports up to 1 Gbps at 100 meters and remains the baseline for most basic networking applications. Cat6 supports 10 Gbps at shorter distances up to 55 meters and offers improved crosstalk rejection. Cat6A extends 10 Gbps performance to the full 100-meter channel length and is the current recommendation for new commercial installations. Cat8 supports 25 Gbps and 40 Gbps at distances up to 30 meters, making it relevant primarily for data center spine connections and high-density server environments. Selecting the right category from the start protects your infrastructure investment and prevents costly re-cabling projects as bandwidth demands inevitably increase.

Practical Tips for Proper Ethernet Cable Termination

Terminating ethernet cable correctly is a skill that improves with repetition, but a few practical habits make a significant difference from the start. Always strip only as much jacket as necessary, typically about an inch to an inch and a quarter. Fan out the pairs, untwist them only as much as required, and arrange them in the correct T568A or T568B sequence before straightening and trimming to a uniform length. Insert the wires firmly into the RJ45 connector and confirm each conductor reaches the front contact before crimping. For keystone jacks and patch panels, use the correct 110-style punch-down tool and follow the color chart printed directly on the jack. Slow down on the first few terminations and the technique becomes second nature quickly. Rushing terminations is how avoidable errors get built into an infrastructure that is then difficult to trace.

Why Monoprice Is the Right Choice for Your Ethernet Cabling Needs

When it comes to building reliable, high-performance network infrastructure, the quality of your cabling components matters as much as your termination technique. Monoprice has spent years earning a reputation as a trusted supplier for both professional integrators and everyday users who refuse to overpay for quality hardware. The product line covers everything from bulk ethernet cable across multiple categories to pre-terminated patch cables, keystone jacks, patch panels, and the tools needed to do the job right. Every product is built to meet or exceed industry standards, which means the wire order, pair assignments, and conductor specifications are exactly where they need to be before the cable ever leaves the warehouse. For anyone looking to source high-quality ethernet cables and networking infrastructure components without the inflated price tags that come from brand name premiums, Monoprice delivers consistent performance at a price point that makes sense for both single-room setups and large-scale commercial deployments. The confidence behind every product is backed by real engineering, not marketing language, and that is the kind of value that makes a difference when your network has to perform.

Frequently Asked Questions About Ethernet Cable Wire Order

What is the standard wire order for ethernet cables?

The two standard wire orders are T568A and T568B, both defined by the TIA/EIA-568 specification. T568B is the most commonly used in North American commercial environments, while T568A is preferred in some residential and government installations.

Does it matter whether I use T568A or T568B?

What matters most is consistency. Both standards work equally well for ethernet, but you must use the same standard on both ends of a straight-through cable and throughout an entire installation to avoid wiring mismatches.

What happens if I wire an ethernet cable in the wrong order?

A cable terminated with incorrect wire order will either fail to pass data entirely or will create a miswired condition that prevents reliable communication. A cable tester will identify the fault and indicate which pins are out of sequence.

What is the difference between a straight-through and a crossover cable?

A straight-through cable uses the same wiring standard on both ends and connects different types of devices such as a computer to a switch. A crossover cable uses T568A on one end and T568B on the other, allowing two similar devices to connect directly.

How many wires are inside an ethernet cable?

Standard ethernet cables contain eight conductors arranged as four twisted pairs. All eight wires are used for gigabit and higher speed connections, while older 100 Mbps connections used only four of the eight wires.

Which ethernet cable category should I install for a new home or office?

Cat6A is the current recommended standard for new installations because it supports 10 Gbps at the full 100-meter channel length and provides headroom for future bandwidth demands without requiring re-cabling.

How much should I untwist ethernet wire pairs during termination?

Keep untwisting to an absolute minimum. For Cat5e, the maximum is approximately half an inch. For Cat6 and Cat6A, aim for a quarter inch or less. Excess untwisting introduces crosstalk that degrades signal integrity.

Can I mix T568A and T568B in the same network?

You should not mix standards across the same cable run, as this creates a crossover condition. However, different cable runs within the same network can technically use different standards as long as each individual run is internally consistent.

What tool do I need to terminate ethernet cables correctly?

For RJ45 connectors you need a proper crimping tool. For keystone jacks and patch panels you need a 110-style punch-down tool. A cable tester should always be used after termination to verify correct wiring and continuity.

Is the wire color order the same for Cat5e, Cat6, and Cat6A?

Yes, the color coding and pair assignments follow the same T568A or T568B standard regardless of cable category. The category affects performance specifications and construction quality, not the color sequence of the conductors.
