Monoprice Cat6 RJ45 Toolless 180-Degree Keystone Jack for 22-24AWG Solid Wire, White
Product # 15656
UPC # 889028037614
$3.99
*Affirm is not available for business or international orders
Qty: 1
$3.99
Qty: 2-9
$3.91
Qty: 10-19
$3.83
Qty: 20-49
$3.76
Qty: 50+
$3.68
Customers Also Shopped For
Questions and Answers
Do not include HTML, links, references to other stores, pricing or contact info.
My question is about:
If your question is about more than one item, click + to add them.
Browse 34 questions
Browse 34 questions
and 40 answers
For Stranded or Solid CAT6 cable?
New User U
on Jan 5, 2017
BEST ANSWER: Given that it has a punch-down connection, stranded would not work very well, if at all.
- Reply
- Inaccurate
- Taylor P on Jan 6, 2017
- Purchased on Oct 24, 2016
BEST ANSWER: Given that it has a punch-down connection, stranded would not work very well, if at all.
- Reply
- Inaccurate
- Taylor P on Jan 6, 2017
- Purchased on Oct 24, 2016
For solid cable in my case. Worked very well on first try.
- Reply(1)
- Inaccurate
- Barry D on Jan 5, 2017
- Purchased on Nov 16, 2016
Does that mean that it wouldn't work well for stranded?
- Reply
- New User U on Jan 5, 2017
I used with solid. May work with stranded too.
- Reply
- Inaccurate
- Nicholas W on Jan 5, 2017
- Purchased on Nov 28, 2016
Vote for the best answer above!
how is this tooless if it is a 110 punchdown style?
Larry S
on Jan 24, 2017
BEST ANSWER: You lay the wires in and the push on connector locks them in. you will have to have a knife to cut the sheathing off cable to expose wire and trim extra wire once you have it clamped down.
- Reply
- Inaccurate
- Truck on Jan 25, 2017
- Purchased on Aug 19, 2016
BEST ANSWER: You lay the wires in and the push on connector locks them in. you will have to have a knife to cut the sheathing off cable to expose wire and trim extra wire once you have it clamped down.
- Reply
- Inaccurate
- Truck on Jan 25, 2017
- Purchased on Aug 19, 2016
Vote for the best answer above!
How is the width on these (ID: 15656)? I had a problem with the Toolless Cat5e jack (ID: 310) being too wide for the 24-port panel plate (ID: 7260). Will I have the same problem with these?
Stephen C
on Jan 30, 2017
Monoprice Cat6 RJ45 Toolless 180-Degree Keystone Jack for 22-24AWG Solid Wire, White
Monoprice Cat5e RJ45 Toolless Keystone Jack for 22-24AWG Solid Wire, White
Monoprice 24-port Keystone Jack Panel
BEST ANSWER: Thank you for your question. The PID 15656 keystone jacks will fit the PID 7260 patch panel no problem. They will not be as wide as the PID 310 keystone jacks were. I hope this helps.
- Reply
- Inaccurate
- Mark P Staff on Mar 30, 2017
BEST ANSWER: Thank you for your question. The PID 15656 keystone jacks will fit the PID 7260 patch panel no problem. They will not be as wide as the PID 310 keystone jacks were. I hope this helps.
- Reply
- Inaccurate
- Mark P Staff on Mar 30, 2017
Vote for the best answer above!
can I fit 4 of these side by side in one 4 holed keystone wall plate?
Mike
on Feb 22, 2017
Monoprice Cat6 RJ45 Toolless 180-Degree Keystone Jack for 22-24AWG Solid Wire, White
Monoprice 1-Gang Wall Plate for Keystone, 4-Port, White, 4.5"x2.75"x0.2", w/Screws (White Coated Screw Head)
BEST ANSWER: Thank you for your question. These Cat6 keystone jacks will fit no problem side by side in the 4 hole wall plate.
- Reply
- Inaccurate
- Mark P Staff on Mar 31, 2017
BEST ANSWER: Thank you for your question. These Cat6 keystone jacks will fit no problem side by side in the 4 hole wall plate.
- Reply
- Inaccurate
- Mark P Staff on Mar 31, 2017
Vote for the best answer above!
need for reg phone 4 wire
both size done
not for ethernet??
both size done
not for ethernet??
A shopper
on Nov 21, 2018
BEST ANSWER: Thank you for your question.
This would only be for RJ-45 cables, you cannot get RJ-11 cable with this.
This would only be for RJ-45 cables, you cannot get RJ-11 cable with this.
- Reply
- Inaccurate
- Tyler C Staff on Aug 8, 2019
BEST ANSWER: Thank you for your question.
This would only be for RJ-45 cables, you cannot get RJ-11 cable with this.
This would only be for RJ-45 cables, you cannot get RJ-11 cable with this.
- Reply
- Inaccurate
- Tyler C Staff on Aug 8, 2019
Vote for the best answer above!
Will 6 of these work in your 6 hole wall plate or will they be too big? If they won't work, what toolless RJ-45 keystone will?
New User U
on Mar 7, 2019
BEST ANSWER: Thank you for your question.
Yes, these would fit in our 6 hole wall plates side by side.
Yes, these would fit in our 6 hole wall plates side by side.
- Reply
- Inaccurate
- Tyler C Staff on May 29, 2019
BEST ANSWER: Thank you for your question.
Yes, these would fit in our 6 hole wall plates side by side.
Yes, these would fit in our 6 hole wall plates side by side.
- Reply
- Inaccurate
- Tyler C Staff on May 29, 2019
Vote for the best answer above!
do you have to trim the wires flush?
A shopper
on Oct 14, 2019
BEST ANSWER: not completely flush but pretty close. even though it's toolless I use a 110 punchdown tool to trim them
- Reply
- Inaccurate
- New User U on Oct 7, 2020
BEST ANSWER: not completely flush but pretty close. even though it's toolless I use a 110 punchdown tool to trim them
- Reply
- Inaccurate
- New User U on Oct 7, 2020
Vote for the best answer above!
3 hole wall plate 6729 and mounting bracket 7013 can't be used with keystones 5384. The keystone will not clear the bracket, preventing the wall plate from being screwed in place. Monoprice product supports says that either keystone 1044 or keystone 15656 will work. Hope this saves some frustration for someone.
?
?
Jonathan D
on Sep 21, 2020
Monoprice Cat6 RJ45 Toolless 180-Degree Keystone Jack for 22-24AWG Solid Wire, White
Monoprice Cat6 RJ45 Toolless Keystone Jack for 22-24AWG Solid Wire, White
Monoprice Cat6 Punch Down Keystone Jack for 22-24AWG Solid Wire, White
Monoprice 1-Gang Low Voltage Mounting Bracket
Monoprice 1-Gang Wall Plate for Keystone, 3-Port, White, 4.5"x2.75"x0.2", w/Screws (White Coated Screw Head)
What is the maximum diameter cable this keystone supports? Will it support 7.5mm ?
Eric B
on Dec 13, 2021
Questions For Similar Products
Reviews
4.3 / 5.0
45 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
32
4
2
3
4
Rated 1 out of 5
Multiple failed after 3 years

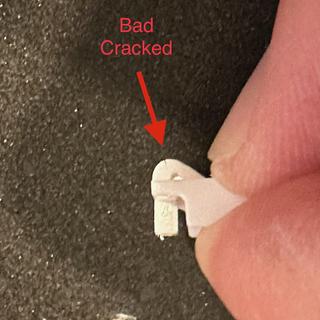

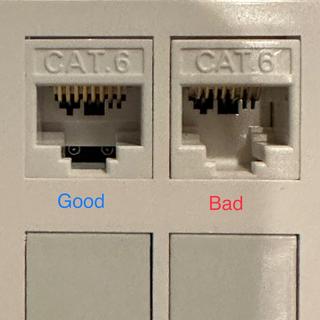

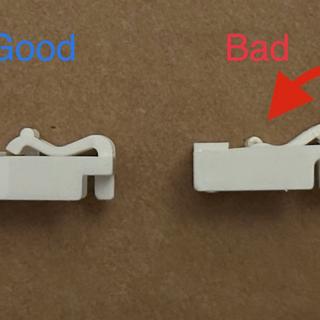

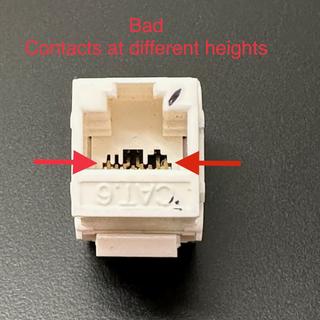

3 years after wiring my entire house with these keystones, multiple connections were reduced to 100mbps, down from the 1gbps. This was after minimal plugging and unplugging of cables, probably < 10 times total, some maybe only once. A few wasted hours later, I tracked the problem down to these broken keystones. The plastic plate that supports the metal contact cracked allowing the contacts to bend and therefore make poor contact. Unfortunately I didn't figure this out until after replacing a few. Stupid me thought it would be a good idea to order the exact same ones as replacements, albeit off of Amazon, but with the same part number. It looks like the internal design may have changed a little, but I'm going to avoid these going forward. These are just not worth the wasted time.
- Was this review helpful? Yes (8) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (8) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Worked great
They worked great. Easy to use and fit fine in a 4 keystone plate.
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Excellent product, easy to use
I got the white toolless keystone to match the white gang plate. Wiring was easy, no special tools required (a snip to remove excess wire is needed). It did take me a moment to understand the configuration, and a reasonable amount of hand strength is necessary to push things together, but overall, the product worked beautifully. Also, despite any notes to the contrary, these easily fit side-by-side in a 4-gang plate, so don't worry about that.
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Epic Easy & Quick!
do not ever stop selling these...these things are frigging sweet! So easy to install too. God these things are the best things invented since ethernet wire lol
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Best purchase I have ever had
Ordered a bunch of the Cat6 RF-45 Tooless jacks. Thought it would be difficult to put the cables on, so I ordered 3 extra ones just in case I screw things up. After doing about 20 of them, none was bad at all according to my simple network tests.This is one of the best purchase I have ever had. Will be more from Monoprice.com again. Thanks a lot for keeping the price so low.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Rated 3 out of 5
Could Be Better
Maybe I just got some weird ones, but out of 6 or so that I ordered, 3 of the keystone clips broke. And I wasn't rough with them. They were useless at that point. I'll stick with traditional punch down style from now on.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Great!
I am extremely satisfied with these.
Installed 200 of these with zero re work.
All 200 tested fine with a Fluke.
In fact, I pulled a handful of Leviton ones and replaced with these.
Worked fine with Cat 5 as well.
Installed 200 of these with zero re work.
All 200 tested fine with a Fluke.
In fact, I pulled a handful of Leviton ones and replaced with these.
Worked fine with Cat 5 as well.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Quick and easy
No tools required make these quick and easy to install. And they just clip into faceplates.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
