What Is an RS232C SVC Only Port and Why Does It Matter in AV Installations?

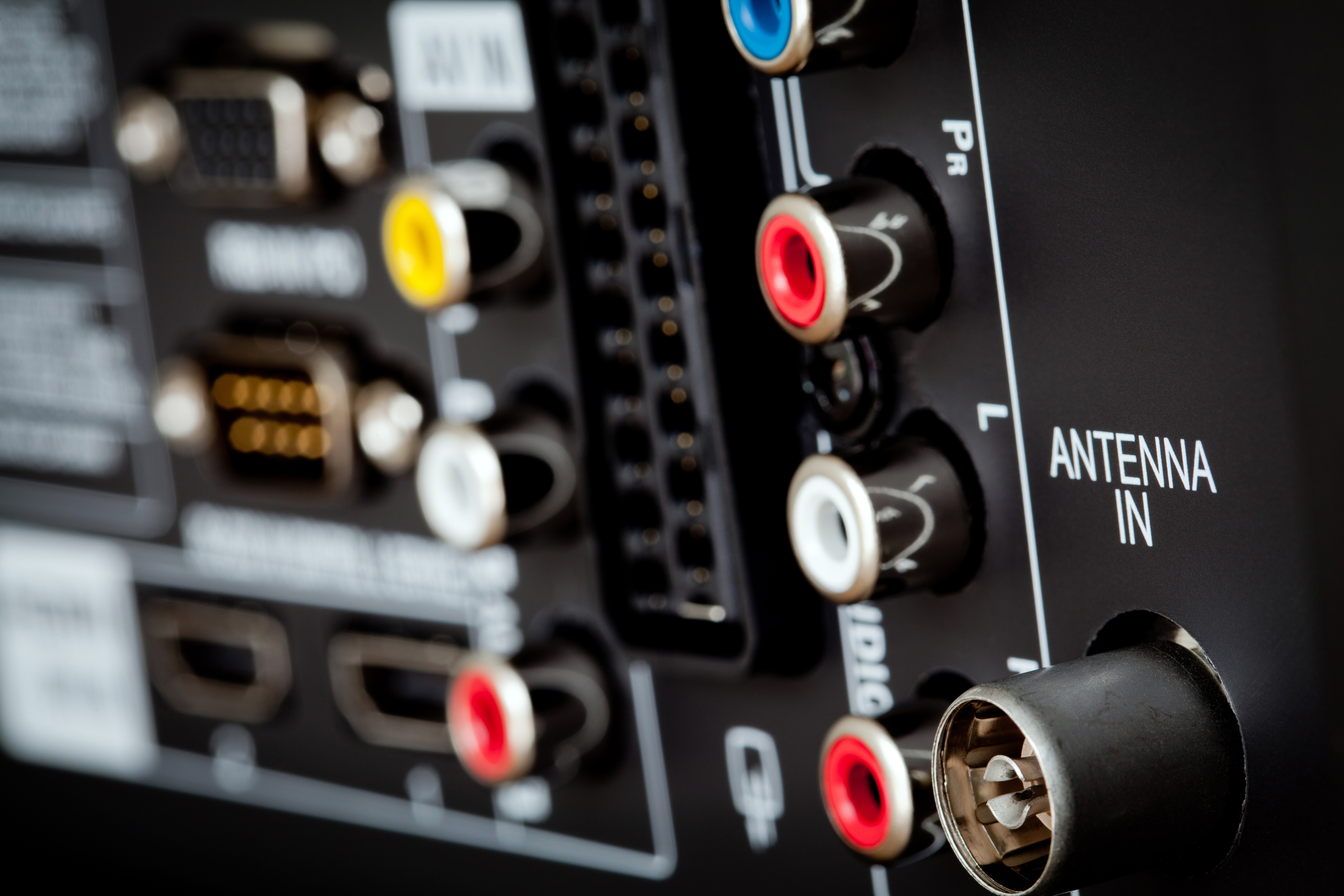

If you have spent any time digging through the back panel of a professional AV receiver, display, or matrix switcher, you have probably come across a small port labeled RS232C or sometimes just RS-232 SVC Only. It looks almost identical to a standard serial port, but the label stops a lot of installers in their tracks. So what exactly is it, and why should AV integrators care about it? The short answer is that it is a dedicated service and control interface that gives you reliable, low-overhead command access to a device without routing through a network or relying on consumer-facing IR control. For professional integrators and budget-conscious installers, that distinction is more significant than it might initially appear. Understanding this port fully can influence how you spec out a job, how you manage a room system long-term, and honestly, how much time you save on callbacks and troubleshooting.

The Basics of RS232C Communication in AV Equipment

RS232C is a serial communication standard that has been around since the early 1960s. Right, that is not a typo. It is old. But old in the technology world does not always mean obsolete, and this is a good example of that. The standard defines how data is transmitted between two devices using voltage levels, timing, and a relatively simple command structure. In AV equipment, RS232C connections allow a control system, a PC, or a dedicated processor to send text-based commands directly to a device, telling it to power on, change input, adjust volume, or pull diagnostic data. The SVC Only designation on certain ports simply means that the manufacturer has configured that particular port specifically for service technicians and system integrators, rather than for everyday end-user interaction. It tends to support the full command set of the device, which is actually more useful in many professional scenarios than a standard user-accessible port might be.

SVC Only vs Standard RS232C Ports: What Is Actually Different?

This is where things get a little more nuanced, and it is worth slowing down here. A standard RS232C port on a piece of AV gear is typically intended for full integration with third-party control systems like Crestron, AMX, or Control4. It may have documented command sets available publicly and is designed to be part of a permanent installation. An SVC Only port, by contrast, is primarily intended for manufacturer service access, firmware updates, diagnostics, and sometimes configuration changes that are outside the scope of normal operation. However, and this is important, many integrators have successfully used SVC Only ports for ongoing control in permanent installations when the standard control port is unavailable, occupied, or simply not present on a lower-cost model. The command sets are often identical. The key distinction is more about intent and manufacturer support than actual hardware capability.

How RS232C SVC Only Ports Work in Practice

Getting a working connection through an RS232C SVC Only port is fairly straightforward if you know what you are doing. You connect your control device, whether that is a laptop for service purposes or a dedicated control processor for permanent installation, using a standard DB9 serial cable or a USB-to-serial adapter. From there, you open a terminal application or load your control system driver, configure the baud rate, data bits, stop bits, and parity settings to match what the device manufacturer specifies, and start sending ASCII commands. Most AV devices using this interface communicate at 9600 or 19200 baud with 8 data bits, no parity, and one stop bit, though you should always verify against the product documentation. Once the handshake is established, you have direct, deterministic control over the device. No network latency, no IP address conflicts, no Wi-Fi drops. Just clean, reliable serial communication that has been working in AV systems for decades.

Key Advantages of Using RS232C SVC Only for AV Control

There are several reasons why integrators keep coming back to RS232C control even as IP-based and wireless alternatives have expanded. Each of these points is worth considering when you are evaluating how to wire up a room.

Deterministic response times with no network dependency Low system overhead compared to TCP/IP control implementations Highly reliable in environments where network infrastructure is inconsistent or unavailable Full device command access, including service-level diagnostics not available through other interfaces No licensing fees or middleware required for basic control implementation Works well with budget-friendly equipment that may lack robust IP control capabilities Easier to troubleshoot than network-based control failures

For integrators working on smaller commercial installs or cost-sensitive residential projects, these advantages translate directly into faster commissioning and fewer service calls. When a display needs to power on reliably at 8 AM every single morning, a properly configured RS232C connection delivers that without drama.

Common Drawbacks and Limitations to Know Before You Commit

No technology is without trade-offs, and RS232C is no exception. The cable length limitation is real and worth planning around. Standard RS232C spec tops out at about 50 feet, though in practice you can often push further with quality cable and lower baud rates. Multi-drop configurations are not supported natively, meaning each device needs its own dedicated serial run back to the control system, which can add cabling costs in larger installations. Additionally, since SVC Only ports are not officially designated for permanent integration use, manufacturer support for using them in that capacity may be limited or nonexistent. If something changes in a firmware update and a command stops working through the SVC port, you may be on your own. It is also worth noting that newer equipment sometimes omits RS232C ports entirely in favor of LAN-based control, so this approach has a shelf life in some product lines.

Practical Tips for Integrators Working with RS232C SVC Ports

If you are going to use an RS232C SVC Only port in a professional installation, there are some straightforward best practices that will save you headaches down the road. Document your serial settings meticulously. Baud rate mismatches are one of the most common causes of failed RS232C connections and they can burn hours of troubleshooting time. Always test command sets before finalizing a control program, since SVC ports occasionally have slightly different command mappings than standard control ports on the same device. Invest in quality serial cabling with proper shielding, especially in environments where electrical noise is a factor. And whenever possible, try to get written confirmation from the manufacturer or the device documentation that SVC port control is a supported use case, even informally. That documentation protects you professionally if questions arise during a service call.

RS232C in the Context of Modern AV System Design

It would be easy to write off RS232C as legacy technology and move on. But the reality in the AV integration world is more complicated than that. A significant portion of installed commercial AV equipment still relies on RS232C as its primary or only control interface. Matrix switchers, projectors, commercial displays, audio processors, and signal extenders from numerous manufacturers continue to ship with RS232C ports because the standard works, it is cost-effective to implement, and the installer base knows how to use it. For integrators building systems around value-driven product selections, RS232C control remains an entirely viable, sometimes even preferable, approach. The SVC Only variant of that port simply extends the usefulness of that infrastructure, particularly when budget constraints or equipment availability push you toward models where the SVC port is the most accessible serial interface available.

Why Monoprice Should Be Your First Stop for RS232C-Compatible AV Solutions

When you are speccing out an AV installation that depends on reliable serial control, every component in the signal chain matters, and the value equation has to make sense for the client. That is exactly where Monoprice fits into the picture. Monoprice has built a well-earned reputation as a trusted source for integrators who need high-performance AV infrastructure without inflated costs. Whether you need the cabling, adapters, matrix switchers, or display solutions that support RS232C control interfaces, the catalog is deep and the pricing reflects a genuine commitment to keeping professional-grade installations accessible. Integrators managing tight project budgets will find that sourcing through Monoprice RS232C compatible AV control solutions delivers the kind of cost-to-performance ratio that clients appreciate and that repeat business is built on. The product quality holds up in real installations, the specifications are clearly documented, and the support structure is there when you need it. For integrators who value precision, reliability, and honest value, that combination is hard to argue with.

Frequently Asked Questions About RS232C SVC Only Ports

What does SVC Only mean on an RS232C port?

SVC Only stands for service only, indicating that the manufacturer designed the port primarily for technician access, firmware updates, and diagnostics rather than standard end-user control integration.

Can I use an RS232C SVC Only port for permanent AV control system integration?

Many integrators do use SVC Only ports for permanent control in installations where no standard control port is available. The command sets are often identical, though manufacturer support for this use case may be limited, so testing and documentation are essential before finalizing the installation.

What cable do I need to connect to an RS232C SVC Only port?

You typically need a DB9 serial cable or a USB-to-RS232 serial adapter, depending on your control system or laptop. Always verify pin configurations and whether a straight-through or null modem cable is required for your specific device.

What are the typical serial settings for RS232C AV device communication?

Most AV devices communicate at 9600 or 19200 baud, with 8 data bits, no parity, and 1 stop bit. Always confirm the exact settings in the device's technical documentation before attempting to establish a connection.

How far can an RS232C cable run in an AV installation?

The RS232C specification supports cable runs up to approximately 50 feet under standard conditions. In practice, lower baud rates and high-quality shielded cable can extend that range, but exceeding 50 feet without signal conditioning is not recommended.

Is RS232C control still relevant in modern AV systems?

Yes. RS232C remains widely used in commercial AV installations because it offers deterministic, reliable control without network dependency. Many current AV devices including projectors, displays, and matrix switchers still include RS232C ports as a primary control interface.

What is the difference between RS232C and IP-based AV control?

RS232C uses a direct point-to-point serial connection with no network infrastructure required, offering predictable response times and simpler troubleshooting. IP-based control operates over a network and supports longer distances and multi-device management but introduces network complexity and potential latency.

Can firmware be updated through an RS232C SVC Only port?

In some cases, yes. Manufacturers often use the SVC port specifically for firmware updates and diagnostic procedures. Whether firmware update capability is available through this port depends on the specific device and manufacturer implementation.

Does using an RS232C SVC Only port void the device warranty?

Using the SVC port for integration purposes rather than service diagnostics may fall outside the intended use case defined by the manufacturer. It is advisable to review the warranty terms and consult the manufacturer before using the SVC port in a permanent installation context.

What control systems support RS232C communication for AV integration?

Most professional AV control systems including Crestron, AMX, Extron, and Control4 support RS232C serial communication natively. Many also provide driver libraries and command sets for popular AV devices to simplify the integration process.
