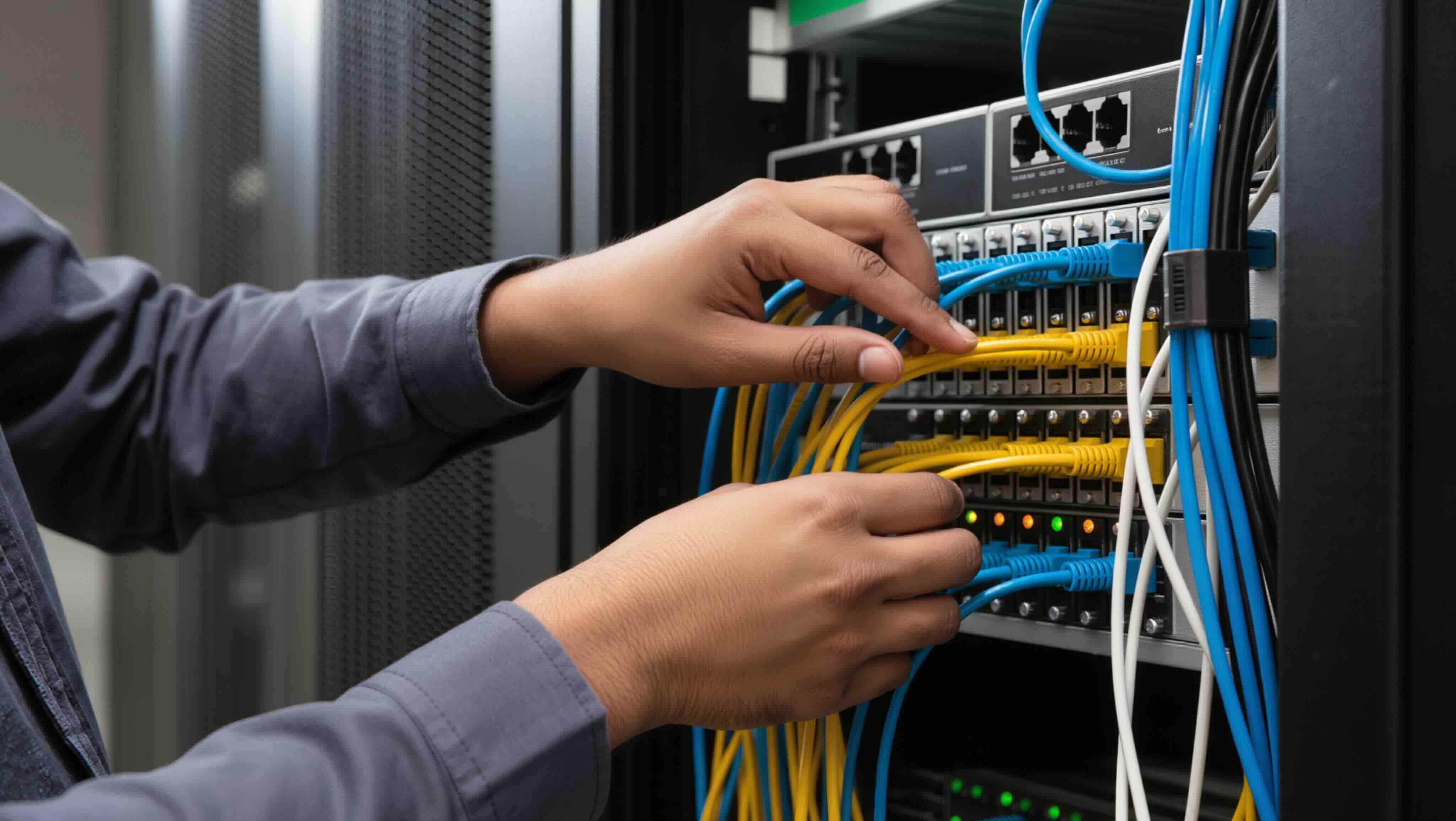

How to Wire a Patch Panel: A Complete Guide for Clean, Reliable Network Infrastructure

If you have ever stared at a rack full of cables and wondered how anyone keeps it all organized, patch panels are the answer. They are the unsung backbone of almost every structured cabling setup, from small office networks to large enterprise environments. Wiring a patch panel correctly is one of those skills that pays off every single time, whether you are building out a brand-new network or cleaning up a legacy mess that somebody else left behind. It is not complicated, but it does require attention to detail, the right tools, and a basic understanding of what you are doing and why.

What Is a Patch Panel and Why Does It Matter

A patch panel is a passive piece of hardware, typically mounted in a network rack or enclosure, that serves as a central point for managing and connecting network cables. Think of it as a switchboard. Each port on the front of the panel connects to a cable that runs through your walls or ceiling to a wall jack or device. On the back, those cables are punched down and terminated to complete the circuit. The front ports then accept short patch cables that connect to your switch or router. This arrangement makes it dramatically easier to reconfigure connections, troubleshoot problems, and keep things labeled and documented. Without a patch panel, you would have raw cables plugged directly into your switch, which gets messy fast and makes moves and changes a real headache.

Tools and Materials You Need Before You Start

Getting the right tools together before you begin saves a lot of frustration. Here is what you will need on the table before anything else:

• A punch-down tool, preferably with both 110 and Krone blade options
• Cat5e, Cat6, or Cat6A cable, depending on your network standards
• A patch panel rated to match your cable category
• A cable stripper or utility knife
• A network cable tester
• Cable management panels or D-rings for the rack
• Labels or a label maker


The punch-down tool is the most critical piece of gear here. A good impact punch-down tool seats the wire firmly into the IDC contacts and trims the excess in one motion. Cheap tools or using a screwdriver as a substitute will lead to unreliable terminations, intermittent connectivity, and a lot of callbacks you do not want.

Understanding T568A vs T568B Wiring Standards

Before you punch down a single wire, you need to decide which wiring standard you are following: T568A or T568B. Both are recognized by the TIA/EIA standard, but T568B is by far the more common choice in commercial and enterprise environments in North America. The difference is in the pin pair arrangement, specifically which pairs occupy which positions. What matters most is consistency. You cannot mix standards across the same run. If you terminate one end as T568B, the other end, whether that is the patch panel port or the wall jack, must also be T568B. Most patch panels print the color-coded diagrams right on the housing, which takes a lot of the guesswork out of it.

Step-by-Step: How to Wire a Patch Panel

Wiring a patch panel is a methodical process. Taking your time on each step is what separates a solid installation from one that causes problems later. Work through it like this:

• Feed your cable through the back of the patch panel or cable management ring and leave yourself about 12 inches of slack to work with
• Strip back the outer jacket approximately one inch, being careful not to nick the pairs inside
• Untwist each pair only as much as needed, which is typically no more than half an inch, to maintain crosstalk performance
• Lay each wire into the correct IDC slot according to the color code printed on the patch panel housing
• Use your punch-down tool to seat each wire firmly and trim the excess
• Repeat for every port in the panel, keeping your cable runs organized and labeled as you go
• Test every terminated port with a cable tester before closing up the rack


That last step matters more than people often realize. Testing catches wiring errors, reversed pairs, split pairs, and shorts before they become live network problems. It is always faster to fix a bad termination at the bench than to troubleshoot it after everything is installed and active.

Key Advantages of Using a Patch Panel

There is a reason patch panels are standard in professional network installations. The benefits stack up quickly. Moves, adds, and changes become as simple as swapping a short patch cable rather than rerouting a run through the wall. Troubleshooting is faster because each port maps to a documented location. Your switch stays protected from physical stress because the patch cables absorb the wear and tear instead of the switch ports themselves. And the overall appearance of the rack stays clean and professional, which matters both practically and aesthetically when clients, IT auditors, or new staff are looking at the infrastructure.

Common Mistakes and How to Avoid Them

Even experienced installers run into issues when wiring patch panels, and most of the problems are predictable. Untwisting pairs too much is one of the most common errors and degrades performance, particularly on Cat6 and Cat6A. Mixing wiring standards across a single run creates a crossed pair that looks fine on a visual inspection but fails under load. Not labeling ports during the install is another one, and it seems minor until someone else is trying to trace a connection three years later with no documentation to reference. Finally, skipping the cable test is almost always something people regret. A tester that flags a reversed pair at termination time saves hours of troubleshooting after deployment.

Patch Panel Types: Keystone vs. Fixed vs. Angled

Not all patch panels are the same, and knowing the differences helps you choose the right one for your application. Standard fixed patch panels come pre-terminated with 110-style punch-down ports on the rear and are the most widely used option for general structured cabling. Keystone patch panels accept modular keystone jacks, which snap into the front of the panel. This makes them more flexible since you can mix different port types, including RJ45, fiber, and even HDMI or USB in some configurations. Angled patch panels are designed to improve cable routing and reduce stress on patch cables in high-density environments. If you are running a dense rack with a lot of active connections, an angled panel often makes cable management significantly cleaner.

How to Maintain and Manage Your Patch Panel Over Time

A well-wired patch panel is only as useful as it is well-documented and maintained. Label every port at installation time, both on the panel and at the corresponding wall jack or outlet. Keep a physical or digital cross-reference chart that maps panel ports to room locations and device types. Use patch cables in consistent color codes to differentiate network segments or VLANs at a glance. Velcro cable ties work better than zip ties for patch cable management because they are reusable and do not damage cables when adjusted. Revisit the panel periodically to remove unused patch cables, which are a common source of confusion and unnecessary clutter in active racks.

Why Monoprice Is the Smart Choice for Patch Panel Wiring Projects

When it comes to building out reliable, cost-effective network infrastructure, the quality of your hardware matters as much as the skill of the installer. Monoprice has spent years earning the trust of IT professionals, network integrators, and facilities managers who need dependable structured cabling products without overpaying. From high-quality Cat6 and Cat6A bulk cable to keystone patch panels, punch-down tools, and cable management solutions, everything you need to execute a professional installation is available in one place. If you are planning a new network build or upgrading an existing one, exploring the full lineup of professional-grade patch panels and structured cabling solutions from Monoprice is a practical starting point that delivers real value at every tier of the project. The performance holds up, the pricing makes sense, and the product range covers everything from a single-rack home lab to a multi-room enterprise deployment.

Frequently Asked Questions About How to Wire a Patch Panel

What type of cable should I use when wiring a patch panel?

For most modern installations, Cat6 is the standard minimum recommendation. Cat6A is preferred for runs that need to support 10 Gigabit Ethernet over longer distances. The patch panel and cable category should always match to maintain rated performance across the entire channel.

Do I need a special tool to wire a patch panel?

Yes. A punch-down tool is required to properly seat wires into the IDC contacts on the back of the patch panel. An impact-style punch-down tool with a 110 blade is the most common type used for standard Cat5e, Cat6, and Cat6A terminations.

What is the difference between T568A and T568B wiring?

Both are valid wiring standards that define the pin-pair arrangement for RJ45 terminations. T568B is more commonly used in commercial environments in North America. The most important rule is to use the same standard on both ends of every cable run consistently.

How many ports does a standard patch panel have?

Patch panels commonly come in 12-port, 24-port, and 48-port configurations. The right size depends on how many runs you need to terminate and how much rack space is available. 24-port panels are the most commonly deployed in small to medium business environments.

Can I reuse an existing patch panel when upgrading my network?

It depends on the category rating of the existing panel. If you are upgrading from Cat5e to Cat6, you should replace the patch panel as well to avoid introducing a performance bottleneck. Mixing categories in the same channel limits the entire run to the lowest-rated component.

How do I test a patch panel after wiring it?

Use a network cable tester that supports channel or link testing. Connect one end to the patch panel port and the other to the corresponding wall jack or far-end termination. The tester will flag wiring errors including open pairs, reversed pairs, short circuits, and split pairs.

What is a keystone patch panel and when should I use one?

A keystone patch panel accepts modular keystone jacks rather than having fixed rear punch-down connections. It offers more flexibility because you can mix port types, including Ethernet, fiber, or multimedia jacks, within a single panel. It is a good choice for environments with diverse connectivity needs.

How long can a single cable run from a wall jack to a patch panel be?

The TIA/EIA standard specifies a maximum channel length of 100 meters for structured cabling, which includes the horizontal cable run plus patch cables at both ends. The horizontal run from the wall jack to the patch panel should generally not exceed 90 meters to leave room for patch cable allowances.

Why should I use a patch panel instead of plugging cables directly into a switch?

A patch panel protects switch ports from physical wear, simplifies moves and changes by reducing the need to reroute cable runs, supports better documentation and labeling, and keeps the overall rack installation cleaner and easier to manage over time.

What is the best way to organize cables behind a patch panel?

Use horizontal cable management panels above or below the patch panel to guide cables cleanly from the rear termination points to the sides of the rack. Velcro ties are preferred over zip ties for patch cable management because they allow for adjustments without damaging the cable jacket or internal conductors.
