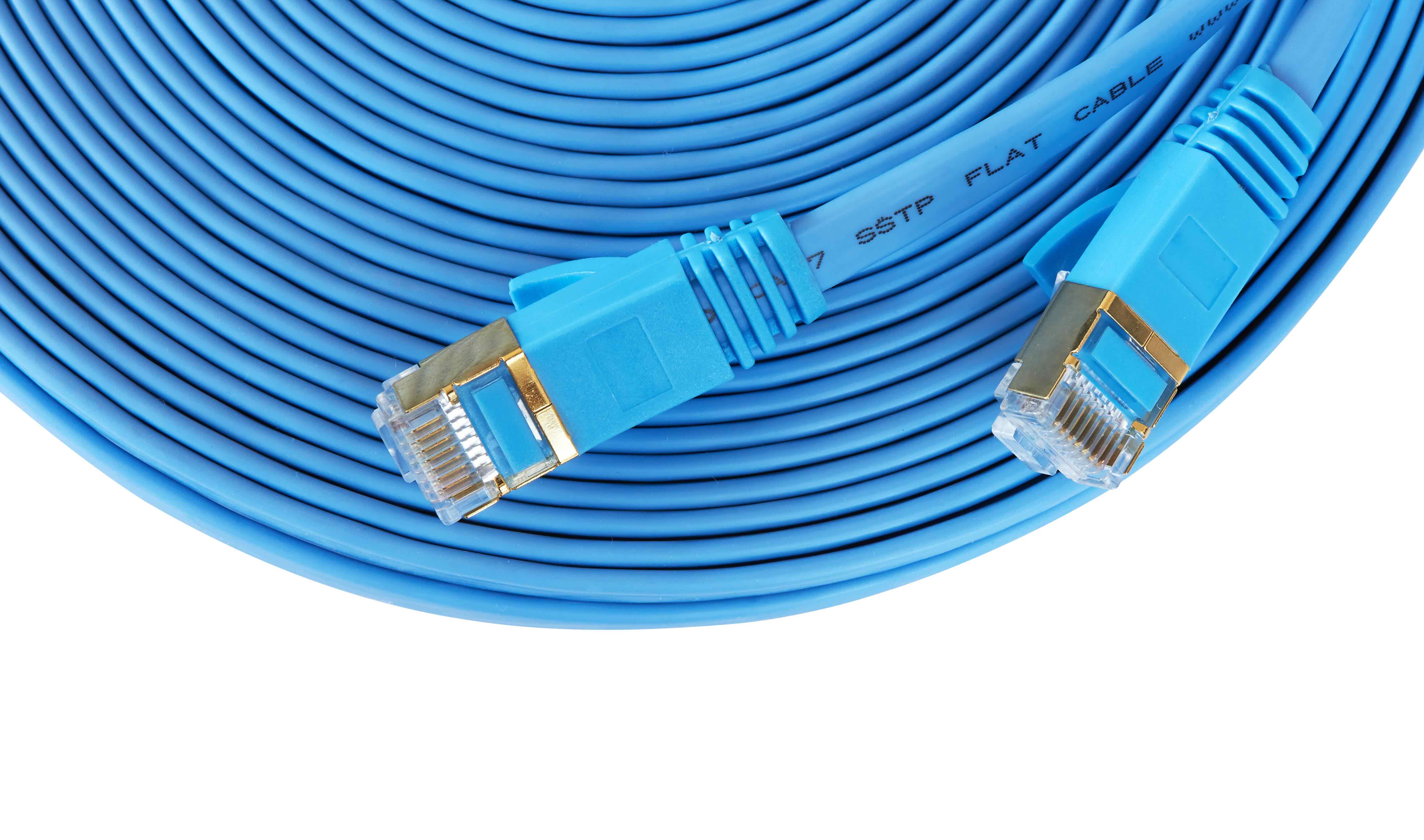

How to Wire a Cat6 Cable: A Complete Guide to Running Ethernet the Right Way

If you've ever tried to figure out how to wire a Cat6 cable and ended up in a Wikipedia rabbit hole at midnight, you're not alone. It's one of those tasks that looks simple on paper but has just enough technical nuance to trip people up. Whether you're setting up a home network, upgrading an office, or running cable for a full infrastructure build, knowing how to do this correctly saves you from a lot of frustrating troubleshooting later. So let's actually break it down, step by step, without overcomplicating it.

What Is Cat6 Cable and Why Does It Matter

Cat6, short for Category 6, is a standardized twisted pair cable used for Ethernet networking. It supports data transfer speeds up to 10 Gbps over distances up to 55 meters and up to 1 Gbps over the standard 100-meter run. Compared to older Cat5e cabling, Cat6 offers tighter twisting of the internal wire pairs, reduced crosstalk, and better overall signal integrity. The internal construction typically includes four twisted pairs of copper wire, often with a plastic spline or separator running through the center to maintain pair separation and reduce interference. For anyone building or upgrading a wired network today, Cat6 is essentially the baseline standard worth installing. Going below it is, honestly, leaving performance on the table for not much in savings.

Tools and Materials You Need Before You Start

Getting the right tools together before you start makes everything go smoother. Nothing's worse than getting halfway through a termination and realizing you're missing something basic. Here's what you'll need:

• Cat6 bulk cable (plenum or riser rated depending on your installation environment)
• RJ45 Cat6 keystone jacks or pass-through connectors
• RJ45 crimp tool or punch-down tool
• Wire stripper
• Cable tester
• Patch panel (for structured installations)
• Cable staples or J-hooks for routing
• Fish tape or pull string for running through walls


The punch-down tool and crimp tool are the two you'll use most. If you're terminating to a keystone jack, you need the punch-down. If you're making patch cables with RJ45 connectors directly, that's where the crimp tool comes in. Don't skip the cable tester -- seriously, it saves hours of guessing when something isn't working after the fact.

Understanding T568A vs T568B Wiring Standards

This is where a lot of people get tripped up, and honestly it's worth spending a minute on. There are two wiring standards used for Cat6 termination: T568A and T568B. Both are recognized by the TIA/EIA standards body, and both work perfectly fine for standard network connections. The difference is purely in the pin-out arrangement of the wire colors. T568B is the more commonly used standard in commercial and residential North American installations. T568A is often specified in government and some international environments. The most critical rule is this: pick one standard and use it consistently on both ends of every cable run. Mixing them creates a crossover cable, which has specific use cases but won't work as a standard patch cable in most modern setups. Most installers default to T568B, and that's a reasonable choice for the majority of installations.

Step-by-Step: How to Wire a Cat6 Cable

Now for the actual process. Whether you're terminating to a keystone jack or an RJ45 plug, the fundamentals are the same. First, use your wire stripper to remove approximately one inch of the outer jacket from the end of the cable. Be careful not to nick the individual wire insulation inside -- that introduces signal problems. Once the jacket is removed, you'll see four twisted pairs. Untwist them only as far as necessary. For Cat6, maintaining as much twist as possible right up to the termination point is important for preserving crosstalk performance. Then arrange the wires according to your chosen standard (T568A or T568B), making sure they're in the correct sequence before cutting them to length. For a keystone jack, press each wire into the appropriate IDC slot and use the punch-down tool to seat and trim them cleanly. For an RJ45 plug, align the wires into the connector and crimp firmly with the crimp tool. After termination, test both ends with your cable tester to confirm continuity and correct pin mapping.

Common Wiring Mistakes and How to Avoid Them

Even experienced installers run into issues sometimes. These are the mistakes that show up most often:

• Untwisting wire pairs too far from the termination point, which increases crosstalk and degrades performance
• Nicking individual wire conductors during jacket stripping
• Using the wrong wiring standard on one end, creating an unintentional crossover cable
• Not seating wires fully into RJ45 connectors before crimping
• Bending cable at sharp angles during installation, which can damage the internal wire geometry
• Skipping the cable test after termination and assuming everything worked


The untwisting issue is probably the most common performance killer that nobody talks about enough. Cat6 is sensitive to it. Keep those pairs twisted as close to the jack or connector as the termination physically allows.

Plenum vs Riser vs PVC: Choosing the Right Cat6 Jacket

The jacket type matters more than most people realize, and it's not just about performance. It's about building codes and safety. PVC-jacketed Cat6 is fine for open desktop runs or patch cables in non-plenum spaces. Riser-rated cable (CMR) is designed for vertical runs between floors and has fire-retardant properties to prevent flames from traveling upward through a building. Plenum-rated cable (CMP) is required in air-handling spaces like the area above drop ceilings or below raised floors where air circulates. Plenum cable produces less toxic smoke in the event of a fire and is required by code in those spaces. Using the right jacket type isn't optional in a commercial installation -- it's a code compliance issue, and inspectors will flag it.

Structured Cabling vs Point-to-Point Runs: Which Approach Is Right

For most home installations, running a point-to-point cable directly from a switch to a device works perfectly fine. It's straightforward and requires less hardware. For office environments, data centers, or any installation with more than a handful of drops, structured cabling is the smarter approach. Structured cabling means running all your horizontal cables back to a central termination point -- usually a patch panel in a networking closet -- where they're organized, labeled, and managed. From there, short patch cables connect to your switch. This approach makes moves, changes, and troubleshooting dramatically easier over time. The upfront investment in a patch panel and proper cable management pays off quickly in any environment where the network needs to grow or change.

Testing and Certifying Your Cat6 Installation

A basic cable tester confirms continuity and correct pin mapping. That's sufficient for most home and small office installs. For commercial or enterprise environments, certification testing using a device like a Fluke tester validates that the cable meets the full Cat6 performance specification, including tests for insertion loss, return loss, NEXT (near-end crosstalk), and propagation delay. Certification testing generates a report you can provide to a client or keep on file for warranty purposes. It's also the only way to confidently know that a cable run will actually deliver Cat6-grade performance rather than just being wired with Cat6 cable. There's a difference between using the right cable and having a properly performing Cat6 link.

Why Monoprice Is the Right Source for Your Cat6 Networking Needs

When you're sourcing cable for a real installation, the quality of the cable itself matters as much as the technique. Cheap bulk cable with inconsistent twist rates, thin conductors, or substandard jacket materials will undermine a perfectly executed termination. Monoprice has built a well-earned reputation for delivering professional-grade networking infrastructure at prices that make sense for both individual installers and large-scale procurement teams. From bulk Cat6 cable in multiple jacket ratings to keystone jacks, patch panels, crimp tools, and patch cables, the full range of what you need to do this job right is available in one place. For anyone who wants to build a reliable, high-performance wired network without overpaying for it, exploring Cat6 Ethernet cables and professional networking solutions from Monoprice is a straightforward decision that delivers real value from the first order. The products are spec-accurate, the pricing is honest, and the selection covers everything from a single patch cable to a full structured cabling build-out.

Frequently Asked Questions About Wiring Cat6 Cable

What is the maximum length for a Cat6 cable run?

Cat6 cable supports Gigabit Ethernet up to 100 meters and 10 Gigabit Ethernet up to 55 meters. Beyond these distances, signal degradation becomes significant and a switch or access point should be used to extend the network.

Do I need special tools to terminate Cat6 cable?

Yes. You need either a punch-down tool for keystone jacks or a crimp tool for RJ45 connectors, along with a wire stripper and a cable tester. Using the correct tools ensures proper termination and reliable performance.

What is the difference between T568A and T568B wiring?

Both are valid wiring standards that differ only in the arrangement of wire pair colors at the termination point. T568B is more common in North American commercial installations. The key rule is to use the same standard consistently on both ends of every cable.

Can I use Cat6 cable with older Cat5e hardware?

Yes. Cat6 is backward compatible with Cat5e and Cat5 equipment. The cable will simply operate at the speed and specification of the lower-rated equipment or interface it connects to.

What is the difference between plenum and riser Cat6 cable?

Plenum-rated cable is required in air-handling spaces like above drop ceilings and produces less toxic smoke in a fire. Riser-rated cable is for vertical runs between floors. Using the correct jacket type is required by building codes in commercial environments.

How do I know if my Cat6 cable is wired correctly?

Use a cable tester after termination to verify continuity and correct pin mapping on both ends. For higher-stakes installations, a certification tester validates that the link meets full Cat6 performance specifications.

Is shielded Cat6 cable necessary for home networks?

Shielded Cat6, also called STP or F/UTP, is generally not necessary for residential use. It becomes relevant in environments with significant electrical interference, such as near industrial equipment, HVAC systems, or high-density commercial spaces.

What is the center spline inside Cat6 cable for?

The plastic cross-shaped spline separates the four wire pairs inside the cable to reduce crosstalk and maintain signal integrity. It is a defining feature of many Cat6 cables and contributes to improved performance over Cat5e.

Can Cat6 cable carry Power over Ethernet?

Yes. Cat6 cable is compatible with PoE and PoE+ standards, which allow network switches to deliver electrical power to devices like IP cameras, wireless access points, and VoIP phones over the same cable that carries data.

What is the difference between solid and stranded Cat6 cable?

Solid conductor Cat6 is designed for permanent horizontal runs inside walls and ceilings and offers lower resistance over longer distances. Stranded conductor Cat6 is more flexible and better suited for patch cables and short moveable runs between devices and patch panels.
