What Are Composite Video Cable Colors and Why Do They Still Matter?

So, composite video cables. You have probably seen them a hundred times without really thinking about it -- those three-pronged cable ends with the yellow, red, and white connectors that seemed to be everywhere throughout the late 1980s, all through the 1990s, and honestly well into the 2000s. They connected VCRs, early DVD players, gaming consoles, and televisions across millions of households worldwide. Even now, in an era where HDMI and DisplayPort dominate the conversation, composite cables remain relevant in specific applications -- legacy equipment, older broadcast monitoring setups, retro gaming rigs, and budget AV configurations. Understanding what those colors mean, what each one does, and when to actually use them is practical knowledge that still holds real value today.

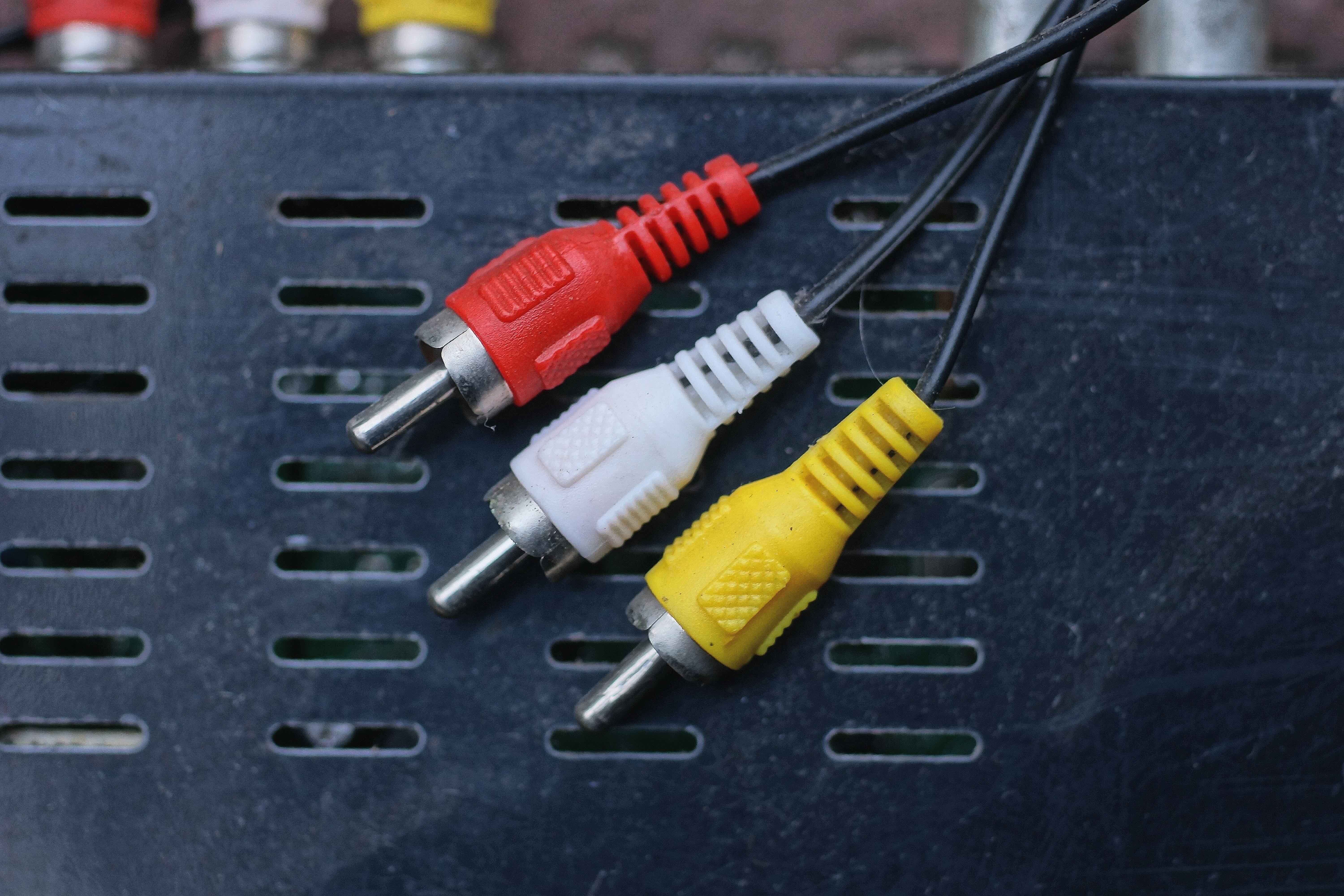

Breaking Down the Three Composite Cable Colors

Each color in the composite cable system carries a distinct signal, and the color coding exists purely for practical identification -- plug the wrong connector into the wrong port and your setup simply will not work correctly. Here is what each color actually does and why it matters for your connection.

• Yellow -- Composite Video Signal
  The yellow connector carries the composite video signal itself. It combines all video information -- luminance, chrominance, and synchronization data -- into a single analog signal. This is a fairly compressed way of transmitting picture data, which is why composite video quality is noticeably softer than component or HDMI. The signal tops out at a resolution of 480i for standard definition, which is entirely acceptable for certain use cases but falls short by modern display standards.
  ‍
• Red -- Right Audio Channel
  The red connector handles the right stereo audio channel. This is a standard RCA audio signal, unbalanced and analog. It carries the right-channel audio information from the source device to your display or receiver. The signal is clean enough for casual listening and home theater setups that do not require audiophile-grade fidelity.
  ‍
• White -- Left Audio Channel
  The white connector is the left stereo audio channel, the mirror of the red. Together, the red and white connectors deliver standard stereo audio -- simple, functional, and reliable for the vast majority of consumer entertainment applications.


How Composite Video Signals Actually Work

Here is where it gets mildly technical, but it is worth walking through. Composite video works by encoding the entire picture signal -- brightness information (luma) and color information (chroma) -- into one combined waveform. This is different from component video, which splits those signals across three separate cables for better quality, or S-Video, which at least separates luma from chroma. The all-in-one approach of composite was designed for simplicity and cost efficiency. The tradeoff is signal interference between the luma and chroma components, which can produce visual artifacts like color bleeding, dot crawl, and slightly blurry edges -- all known characteristics of the format. For standard definition content, most users simply do not notice or mind. The format works, it is easy to set up, and the cables are widely available at genuinely low cost.

Key Advantages of Composite Video Cables

There are real reasons composite cables persisted for decades and still see consistent use today. These are not legacy quirks -- they are genuine functional advantages depending on the application.

• Universal Compatibility
  Virtually every piece of consumer AV equipment produced between the mid-1980s and the early 2010s includes composite video ports. Connecting legacy devices requires no adapters, no converters, and no configuration.
  ‍
• Low Cost of Entry
  Composite cables are among the most affordable AV cables available. For budget-conscious installations or temporary setups, the value-to-functionality ratio is hard to beat.
  ‍
• Simple Plug-and-Play Setup
  The color-coded system eliminates guesswork. Yellow to yellow, red to red, white to white -- the system is self-explanatory and does not require any technical knowledge to operate.
  ‍
• Reliable Performance for Standard Definition
  For 480i content -- VHS tapes, retro consoles, older security cameras -- composite video delivers entirely adequate picture quality without any signal processing overhead.
  ‍
• Wide Cable Availability
  Replacement cables are easy to source, inexpensive, and available through virtually every electronics retailer, making maintenance and replacement straightforward.


Common Drawbacks Worth Knowing Before You Buy

Being honest about limitations is part of making informed decisions. Composite video cables have real constraints, and for certain applications, those constraints matter significantly. The merged luma-chroma signal is the primary source of quality degradation -- it is a fundamental design limitation of the format, not a manufacturing defect. This makes composite video a poor choice for anything requiring sharp, high-resolution imagery. Modern displays often struggle to process composite signals cleanly because their internal scalers are optimized for digital inputs, which can actually make the picture look worse on a contemporary flat panel than it did on a CRT television from 1995. Additionally, composite cables carry no digital audio, no high-definition video, and no copy protection compatibility, which limits their usefulness in modern home theater environments. Long cable runs can also introduce signal degradation and interference, especially without proper shielding.

Composite vs. Component vs. HDMI: Knowing When to Use What

Context matters here. Composite video is not trying to compete with HDMI -- it never was, and it does not need to. Component video, which uses red, green, and blue connectors for video along with separate red and white audio connectors, delivers significantly better picture quality and can support up to 1080i or even 1080p in some implementations. HDMI delivers full digital video and audio over a single cable with support for 4K, 8K, HDR, and beyond. For any modern AV installation, HDMI is the correct default choice. But when the source device only outputs composite -- an old game console, a VCR, a legacy training video system -- composite is exactly the right tool. The format is purpose-built for a specific tier of equipment and content, and within that context, it performs precisely as intended.

Practical Tips for Getting the Most Out of Composite Cables

If you are working with composite cables, a few practical guidelines go a long way toward optimizing your experience. Use quality cables with proper shielding to reduce interference, especially over cable runs longer than six feet. Avoid routing composite cables alongside power cables or other signal cables that could introduce electromagnetic interference. If you are connecting a retro console to a modern display that lacks composite inputs, look for a composite-to-HDMI upscaler -- these are widely available and relatively inexpensive. Always verify that both the source device and the destination display support composite video before purchasing. And never stretch or kink the cables at sharp angles, as this can damage the internal conductors and degrade signal quality over time.

Who Still Uses Composite Video Cables Today?

More people than you might expect. Retro gaming communities actively use composite connections for original hardware like the NES, Super Nintendo, Sega Genesis, and PlayStation 1, either directly to CRT televisions for authentic visual output or through upscalers for modern displays. Video production professionals sometimes use composite for monitoring legacy tape formats. Security and surveillance systems built before the IP camera era often rely on composite connections. Educational institutions and nonprofits with aging AV equipment continue to depend on composite infrastructure. And broadcast facilities occasionally retain composite-capable equipment for archival or quality control monitoring purposes. The format is mature, not obsolete -- there is a meaningful distinction between those two things.

Why Monoprice Is the Right Source for Your Composite Video Cables

When you need reliable, well-built composite video cables without overpaying for a brand name, Monoprice delivers. The product lineup covers everything from standard three-connector RCA composite cables to longer runs with gold-plated connectors and enhanced shielding -- all engineered for consistent performance and priced to reflect genuine value rather than marketing overhead. For integrators sourcing cables in volume, the cost efficiency is immediately apparent. For home users connecting legacy equipment or building out a retro gaming setup, the quality holds up without the unnecessary premium. If you are serious about getting dependable AV connectivity at a price that makes sense, explore the full range of composite video cables and RCA AV connection solutions at Monoprice and see exactly why the brand has built a trusted reputation among both professionals and enthusiasts. The quality is real, the pricing is fair, and the selection covers what you actually need.

Frequently Asked Questions About Composite Video Cable Colors

What does the yellow composite video cable connector do?

The yellow connector carries the composite video signal, which includes all picture information -- luminance, chrominance, and sync -- combined into a single analog waveform. It is responsible for the visual output on your display.

Can I use a composite video cable with a modern 4K television?

Many modern 4K televisions do not include composite input ports. If your TV lacks a composite input, you will need a composite-to-HDMI converter or upscaler to connect older composite-output devices.

Why are there red and white connectors on a composite cable if it is a video cable?

Composite cable sets typically include two audio connectors alongside the video connector. Red carries the right stereo audio channel and white carries the left stereo audio channel, providing a complete audio-video connection in one bundled set.

Is composite video the same as component video?

No. Composite video combines all video information into one signal carried by a single yellow connector. Component video separates the signal across three connectors -- red, green, and blue -- delivering significantly better picture quality and supporting higher resolutions.

What resolution does composite video support?

Composite video supports standard definition resolutions, primarily 480i in North America and 576i in regions using the PAL broadcast standard. It does not support HD, 4K, or any other high-definition format.

Why does composite video look blurry or have color bleeding?

Composite video encodes brightness and color information into a single combined signal. This creates interference between the two types of data, resulting in visual artifacts like color bleeding, dot crawl, and softened edges -- all inherent characteristics of the format.

Can composite cables carry digital audio?

No. The red and white audio connectors on a composite cable set carry standard analog stereo audio only. They do not support digital audio formats such as Dolby Digital, DTS, or any other surround sound encoding.

How long can a composite video cable run be before signal quality degrades?

For most applications, composite cables perform reliably up to approximately 25 feet. Beyond that, signal degradation can become noticeable, particularly without proper shielding. For longer runs, use a signal amplifier or distribution amplifier to maintain quality.

Are composite video cables still manufactured today?

Yes. Composite video cables remain in active production and are widely available from multiple manufacturers. Demand continues from retro gaming enthusiasts, legacy equipment users, and certain professional AV applications.

Do gold-plated composite cable connectors actually improve signal quality?

Gold plating primarily provides corrosion resistance rather than direct signal improvement for analog connections. Over time, corrosion-resistant connectors maintain better contact integrity, which can help preserve signal quality, particularly in humid or frequently connected and disconnected environments.
