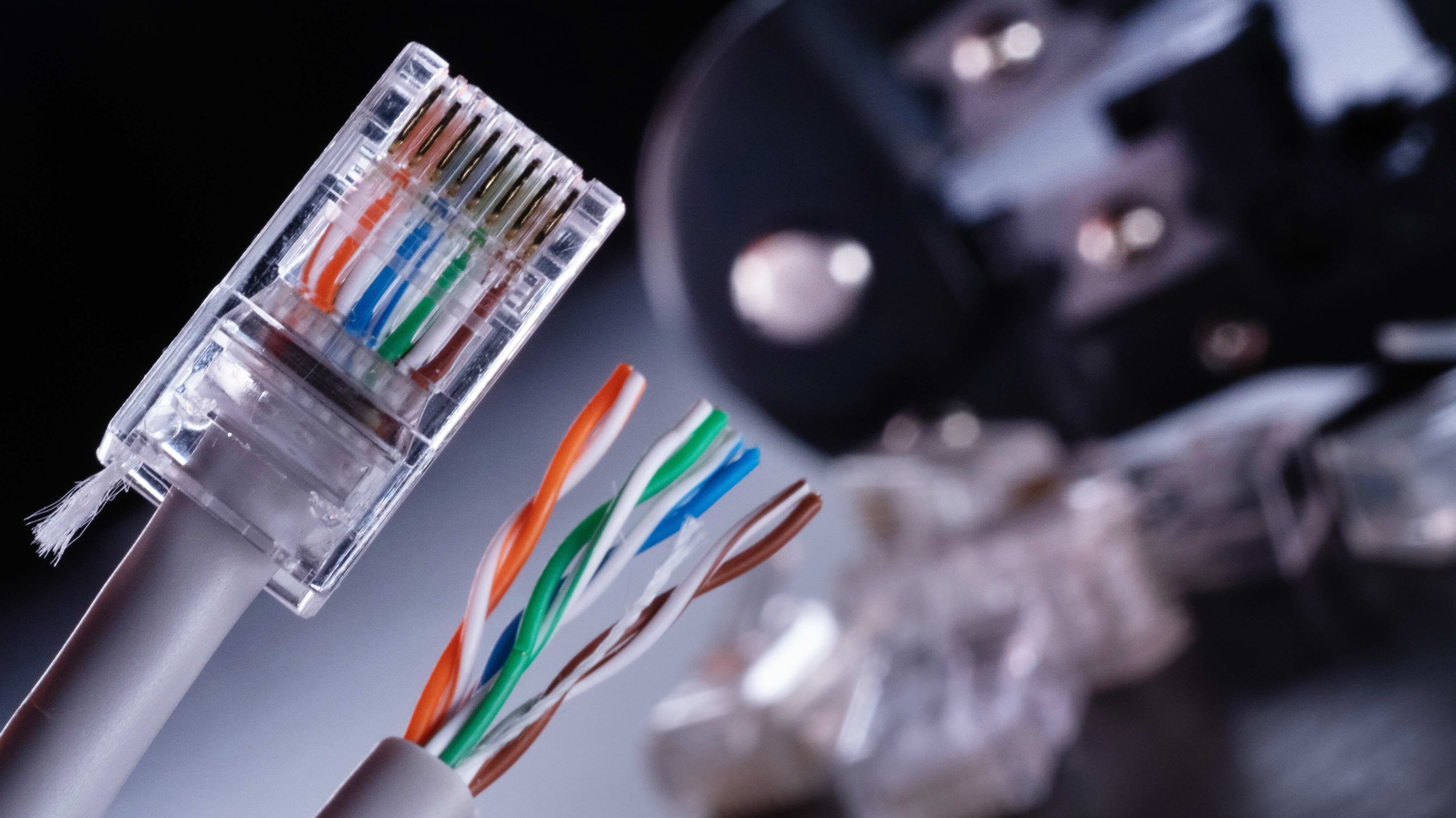

What Is the Cat6 Wire Order and Why Does It Matter for Your Network?

If you have ever tried to terminate a Cat6 cable yourself, you have probably stared at eight tiny colored wires and wondered which one goes where. It is a fair question, and honestly, it trips up a lot of people who are otherwise technically competent. The Cat6 wire order, also called the pinout or wiring sequence, is a standardized arrangement of those eight conductors inside the cable. Getting it right is not just about following rules for the sake of it. It directly affects whether your network performs at full speed, stays reliable under load, and meets the specifications that Cat6 is actually rated for. Whether you are setting up a home office, wiring a commercial space, or building out a structured cabling infrastructure, understanding this pinout is one of those foundational things you genuinely cannot afford to skip.

The Two Wiring Standards: T568A vs T568B Explained

There are two recognized wiring standards for Cat6 cables, both defined by the TIA/EIA-568 specification. They are called T568A and T568B, and they differ only in the arrangement of two wire pairs. T568B is by far the most common standard used in commercial and residential installations across North America. T568A is often used in government projects and some international applications. The critical thing to understand is that neither standard is electrically superior to the other. What matters is consistency. Use the same standard on both ends of a cable and you get a straight-through cable, which is the type used for connecting devices to switches, routers, and patch panels. Use different standards on each end and you create a crossover cable, which has specific use cases like direct device-to-device connections, though those scenarios are increasingly rare with modern auto-sensing network equipment.

The Cat6 T568B Wire Order: Position by Position

Since T568B is the dominant standard in most professional installations, it makes sense to walk through it in detail. When you are looking at an RJ45 connector with the clip facing away from you and the pins facing up, the wire positions from left to right are as follows:

• Pin 1 - Orange/White
• Pin 2 - Orange
• Pin 3 - Green/White
• Pin 4 - Blue
• Pin 5 - Blue/White
• Pin 6 - Green
• Pin 7 - Brown/White
• Pin 8 - Brown


That sequence might look arbitrary at first, but it is designed with signal integrity in mind. The twisted pairs are kept together in specific configurations to reduce crosstalk and electromagnetic interference, both of which become significant concerns at the higher frequencies that Cat6 is built to handle. Cat6 is rated for up to 250 MHz, compared to Cat5e at 100 MHz, and that headroom depends heavily on proper pair integrity throughout the entire cable run, including at the termination points.

How Cat6 Cables Are Built and Why the Twist Matters

Cat6 cables contain four twisted pairs of conductors, each pair twisted at a different rate to minimize interference between pairs, a phenomenon known as crosstalk. Many Cat6 cables also include a plastic spline or separator running down the center of the cable, which physically separates the pairs and further reduces alien crosstalk from adjacent cables. This internal construction is part of what differentiates Cat6 from earlier categories. When you terminate a Cat6 cable, maintaining the twist as close to the connector as possible is essential. Untwisting more than half an inch before the connector can degrade performance significantly. That detail alone causes a surprising number of failed cable certifications in professional installations.

Cat6 vs Cat6A: Understanding the Difference Before You Wire

While Cat6 supports Gigabit Ethernet at up to 100 meters and 10-Gigabit Ethernet at shorter distances of around 37 to 55 meters, Cat6A extends 10-Gigabit support to the full 100-meter distance. Cat6A cables are larger in diameter, often shielded, and require compatible connectors and patch panels. The wire color order itself follows the same T568A or T568B standards, but the termination process requires more precision because the cable is stiffer and the tolerances are tighter. If you are planning a network that needs future-proof performance, particularly in environments with dense cable runs or near power lines and other interference sources, Cat6A is worth the additional investment upfront rather than rewiring later.

Common Mistakes When Terminating Cat6 Cables

Even experienced installers make termination errors that affect performance. Here are some of the most frequent ones worth knowing about before you start crimping:

• Untwisting pairs too far from the connector end
• Using Cat5e connectors on Cat6 cable, which can cause fit and performance issues
• Mixing T568A and T568B on a straight-through cable
• Not seating the wires fully into the connector before crimping
• Failing to test cables after termination with a proper cable tester
• Bending cables too sharply, which stresses the internal conductors and affects impedance


A cable tester is genuinely one of the most practical investments you can make if you are terminating any meaningful number of cables. It will catch wiring errors, opens, and shorts immediately, saving hours of troubleshooting later.

Straight-Through vs Crossover: When Does It Actually Come Up?

Most modern switches and network adapters support auto-MDI/MDIX, which means they automatically detect and correct cable polarity. In practical terms, crossover cables are rarely needed anymore for typical network setups. However, in legacy equipment environments, industrial networking applications, or certain direct console connections, knowing how to make a crossover cable using T568A on one end and T568B on the other is still a useful skill. For anyone building structured cabling with patch panels, straight-through cables are the standard, and color-coding consistency across the entire installation is important for long-term maintainability.

Practical Tips for a Clean and Compliant Cat6 Installation

Getting the wire order right is only one piece of a proper Cat6 installation. The overall quality of your infrastructure depends on a few other factors that are easy to overlook but hard to fix after the fact. Use a quality punch-down tool for keystone jacks rather than improvising. Label every cable at both ends immediately, not later. Keep cable runs away from fluorescent lighting fixtures, electrical panels, and high-voltage conduit wherever possible. Follow the 90-meter horizontal run recommendation, leaving 10 meters for patch cables to stay within the 100-meter total. These details compound over time in ways that either make your network rock-solid or create intermittent issues that are frustratingly hard to diagnose.

Why Monoprice Is the Right Partner for Your Cat6 Networking Needs

When you are putting together a networking project, whether it is a single room or a multi-floor commercial deployment, the quality of your cabling components makes a measurable difference in long-term reliability and performance. Monoprice has built a well-earned reputation among IT professionals, AV integrators, and infrastructure teams for delivering exactly that quality without the inflated price tags that often come with it. The product line covers everything from bulk Cat6 and Cat6A cable to RJ45 connectors, keystone jacks, patch panels, and cable management solutions, all designed to meet or exceed TIA/EIA standards. If you are looking for high-performance Cat6 networking cables and infrastructure components that hold up in real-world installations, Monoprice delivers the reliability and value that both budget-conscious buyers and enterprise procurement teams can get behind. It is the kind of sourcing decision that makes your job easier and your network better, without burning through your project budget.

Frequently Asked Questions About Cat6 Wire Order and Termination

What is the correct wire order for a Cat6 cable using T568B?

The T568B wire order from pin 1 to pin 8 is: Orange/White, Orange, Green/White, Blue, Blue/White, Green, Brown/White, Brown. This is the most commonly used standard in North American commercial and residential networking installations.

Is T568A or T568B better for Cat6 wiring?

Neither is electrically superior. Both are valid TIA/EIA standards. T568B is more widely used in commercial environments in North America, while T568A is preferred in some government and international applications. Consistency across your installation is what matters most.

Can I use Cat5e connectors on Cat6 cable?

No, this is not recommended. Cat6 cable has a larger diameter and different construction than Cat5e, and using Cat5e connectors can result in poor fit, failed terminations, and degraded signal performance. Always use connectors rated specifically for Cat6.

How much of the twist can I unwind when terminating a Cat6 cable?

You should untwist no more than half an inch of each pair when terminating. Maintaining the twist as close to the connector or jack as possible preserves signal integrity and helps the cable meet Cat6 performance specifications.

What is the maximum run length for Cat6 cable?

Cat6 supports a maximum horizontal cable run of 90 meters, with a total channel length of 100 meters when patch cables are included. For 10-Gigabit Ethernet, the distance is reduced to approximately 37 to 55 meters depending on cable quality and installation conditions.

What is the difference between Cat6 and Cat6A in terms of wiring?

Both use the same T568A or T568B pinout standards. The difference is in the cable construction and performance. Cat6A supports 10-Gigabit Ethernet at the full 100-meter distance and operates at up to 500 MHz, compared to Cat6 at 250 MHz. Cat6A cables are thicker and often shielded.

Do I need a crossover cable for modern network equipment?

In most cases, no. Modern switches and network adapters support auto-MDI/MDIX, which automatically handles cable polarity. Crossover cables are mainly relevant for legacy equipment or specific direct-connection scenarios.

How do I make a crossover Cat6 cable?

To create a crossover cable, terminate one end using the T568A standard and the other end using the T568B standard. This swaps the transmit and receive pairs, allowing two like devices to communicate directly without a switch.

Why is my Cat6 cable not reaching Gigabit speeds after termination?

Common causes include incorrect wire order, excessive untwisting of pairs at the connector, using undersized or mismatched connectors, cable runs exceeding recommended distances, or physical damage to the cable. Testing with a dedicated cable certifier will identify the specific fault.

Should I use shielded or unshielded Cat6 cable?

Unshielded Cat6, known as UTP, is sufficient for most standard environments. Shielded Cat6, known as STP or FTP, is recommended in environments with significant electromagnetic interference, such as near heavy electrical equipment, industrial machinery, or dense cable runs in commercial spaces.
