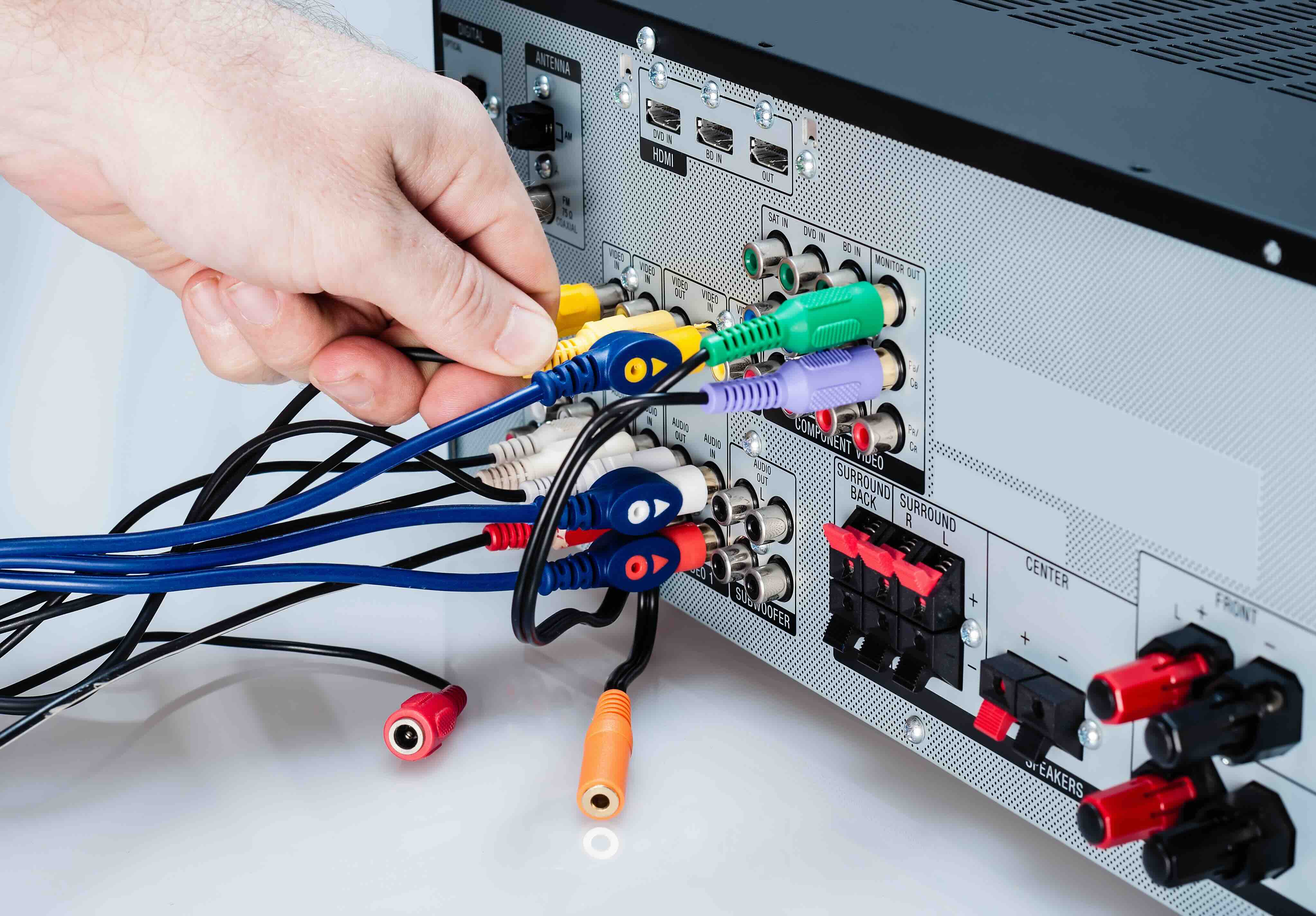

AV Cable Colors Explained: What Every Color Means and Why It Matters

If you have ever stared at the back of a TV, receiver, or older game console and found yourself genuinely confused by a cluster of color-coded ports and plugs, you are not alone. AV cable color coding is one of those things that seems obvious once you know it, but until someone actually walks you through it, it can feel like deciphering a wiring schematic. The good news is that the system is pretty logical once you break it down. These colors are standardized conventions designed to take the guesswork out of connecting audio and video components, and understanding them can save you a lot of frustration during setup.

What Are AV Cables and Why Do Color Codes Exist

AV stands for audio and video. AV cables are analog connection cables used to transmit audio and video signals between devices like televisions, DVD players, gaming consoles, VCRs, cameras, and projectors. The color coding system on these cables was developed to create a universal, easy-to-follow standard. Instead of reading labels or guessing which plug goes where, you match colors. Red goes to red, white goes to white, yellow goes to yellow. Simple enough in theory. The convention became widely adopted across consumer electronics manufacturers in the late 1980s and carried forward through the DVD and early HD era, which means there is a massive installed base of equipment that still relies on this system today.

Breaking Down the Standard AV Cable Colors

The most familiar configuration is the composite AV cable setup, which uses three connectors. These are sometimes called RCA cables after the Radio Corporation of America, which developed the connector type. Here is what each color means in this standard setup:

• Yellow: Composite video signal, carrying the full picture in a single channel
• Red: Right channel audio, typically the stereo right or surround channel
• White or Black: Left channel audio, carrying the mono or stereo left signal


That three-cable bundle, yellow, red, and white, was essentially the standard definition home entertainment connection for about two decades. You will find it on VHS players, early DVD players, standard definition cable boxes, and older gaming consoles. It is a remarkably durable standard for what it was designed to do.

Component Video Cables and the Expanded Color System

Then came component video, which took things a step further. Component video splits the video signal into three separate channels to deliver better image quality than composite. This is where the color palette expands. A component video cable set uses five connectors total, and the colors work like this:

• Green (Y): Carries the luminance signal, which is essentially the brightness and detail of the image
• Blue (Pb or Cb): Carries the blue color difference signal
• Red (Pr or Cr): Carries the red color difference signal
• Red (Audio Right): Still red for right channel audio
• White (Audio Left): Still white for left channel audio


One thing that trips people up here is that the red connector does double duty. In a component setup, you will have a red connector for the video signal and a separate red connector for the right audio channel. The video red, labeled Pr or Cr, and the audio red look identical as physical connectors but serve completely different functions. Always check the label on the device port if you are uncertain.

S-Video and the Occasional Outlier Colors

S-Video cables are a slightly different animal. They use a single multi-pin connector rather than individual RCA plugs, so color coding is less of a factor there. However, some older home theater and AV receiver setups used additional RCA connections that came in colors like orange or black. Orange was commonly used for digital coaxial audio, specifically SP/DIF connections for delivering compressed surround sound from a DVD player or digital cable box to a receiver. Black, while less standardized, sometimes represented a second subwoofer output or a secondary audio feed depending on the manufacturer. These were never as universally standardized as the core yellow, red, and white configuration, which is worth keeping in mind if you run into them on older gear.

Key Advantages of the AV Color Code System

The real strength of the color coding system is simplicity and accessibility. You do not need to read a manual to make a basic AV connection. The visual cue removes a layer of friction that could otherwise make home theater setup feel intimidating. For installers, technicians, and integrators working across multiple devices in a single day, the color system speeds up workflow and reduces errors. There is also a strong argument for durability and compatibility, because RCA connections are passive and carry analog signals, meaning there is no handshake protocol, firmware version, or encryption standard to worry about. Plug it in and it works.

Common Drawbacks and Limitations to Know

The limitations are real, though. Composite video, which is that single yellow cable, bundles all the color and luminance information together into one signal. The result is a softer, lower quality image compared to component video or digital connections. You will see color bleeding, reduced sharpness, and visible artifacts on composite, especially on larger screens. Component video is significantly better but still tops out around 1080i, which is fine for standard and early high definition content but falls well short of 4K and modern HDR formats. Additionally, analog cables are susceptible to interference, signal degradation over long runs, and connector wear over time. For any application involving 4K, HDR, or high frame rate content, HDMI or DisplayPort is the appropriate connection standard.

Practical Tips for Working With AV Cables

A few things worth knowing when you are dealing with AV cables in any real setup. First, always match connector colors to port colors and double-check against the device labeling, especially in component configurations where red appears twice. Second, cable length matters with analog signals. Longer runs introduce more signal loss and potential interference. For anything over about 25 feet, invest in higher quality shielded cable. Third, gold-plated connectors offer better conductivity and corrosion resistance over time. They are not magic, but they are a reasonable quality upgrade for connections that will not be moved frequently. Fourth, if you are connecting older equipment to a newer display, you may need a converter, because many modern televisions have dropped composite and component inputs entirely in favor of HDMI only.

When AV Cables Still Make Sense Today

It would be easy to dismiss AV cables as obsolete, but that is not quite the full picture. Retro gaming is a serious hobby with a passionate and growing user base, and original console hardware, whether that is an NES, Super Nintendo, Sega Genesis, or PlayStation 2, outputs composite or component video natively. For those applications, quality AV cables are not just nostalgic, they are required. Classic broadcast equipment, security camera systems from older installations, and certain industrial video monitoring setups also continue to rely on these analog standards. Understanding the color codes is genuinely useful, not just historically interesting.

Why Monoprice Is the Right Source for AV Cables and Beyond

When it comes to sourcing AV cables that actually perform, build quality and value both matter. Monoprice has spent years building a reputation as a trusted supplier for both consumers and professional integrators who need reliable connections without overpaying. Whether you are outfitting a retro gaming station, integrating legacy equipment into a modern AV rack, or just trying to make sense of a pile of old cables, Monoprice carries a range of RCA, component, and composite cable solutions built to deliver consistent signal quality. The brand is direct about specs, straightforward on pricing, and backs products with solid warranties. If you are looking for high-quality AV cables and audio video connectivity solutions that cover everything from basic composite setups to more complex component configurations, Monoprice is a smart place to start and a reliable source to keep coming back to.

Frequently Asked Questions About AV Cable Colors

What does the yellow AV cable do?

The yellow cable carries the composite video signal. It transmits the entire picture, including both color and brightness information, through a single channel. It is standard definition only and is the most common video connector found on older consumer electronics.

Can I plug the yellow cable into a red or white port by mistake?

Physically you can, since all RCA connectors have the same form factor. Functionally, it will not work correctly. The device expects a specific signal type on each color-coded port, so mismatching will result in no picture, no audio, or a distorted signal depending on what gets crossed.

What is the difference between composite and component video cables?

Composite video uses a single yellow cable and carries all video information in one signal, resulting in lower image quality. Component video splits the signal across three cables, green, blue, and red, delivering significantly better resolution and color accuracy, up to 1080i on supported devices.

What does the orange RCA cable mean?

An orange RCA cable typically indicates a digital coaxial audio connection, used for SP/DIF digital audio output. It carries compressed surround sound formats like Dolby Digital and DTS from a source device to an AV receiver. It is not part of the standard three-color composite bundle.

Are AV cables and RCA cables the same thing?

RCA refers to the connector type, named after the Radio Corporation of America. AV cables is a broader term describing cables used to carry audio and video signals. Most consumer AV cables use RCA connectors, so the terms are often used interchangeably in everyday conversation, though technically they are not identical concepts.

Do modern TVs still have AV cable inputs?

Many newer televisions have removed composite and component inputs entirely in favor of HDMI. Some budget and mid-range models retain a composite input, sometimes through a combination jack. If you need to connect older AV equipment to a modern TV, a converter or adapter may be necessary.

Does cable quality affect the picture when using AV cables?

Yes, cable quality has a measurable effect on analog AV signal performance. Poorly shielded cables are more susceptible to interference, and thin conductors can introduce signal loss, especially over longer runs. Gold-plated connectors also help maintain a cleaner contact point over time compared to unplated alternatives.

Can AV cables carry HD or 4K video?

Composite AV cables are limited to standard definition video. Component video cables can support up to 1080i in high definition but cannot carry 4K, HDR, or high frame rate formats. For modern HD and 4K content, HDMI or DisplayPort are the appropriate connection standards.

Why does my component cable have two red connectors?

In a component video plus stereo audio setup, one red connector carries the Pr or Cr color difference video signal, while the other red connector carries the right stereo audio channel. They are the same physical connector type but serve different signal purposes. Always reference the port labels on your device to confirm which is which.

Are AV cables still worth buying for retro gaming setups?

Absolutely. Original gaming consoles from the 8-bit through early HD era output analog video natively. Composite and component AV cables are the correct, native connection method for these systems. Using quality cables on retro hardware ensures you are getting the cleanest analog signal the console can produce, which matters especially when connecting to a CRT or using upscaling hardware.
