    Akitio Node - Thunderbolt™ 3 eGPU macOS High Sierra and Windows compatible
    Product # 24732
    In Stock This item should ship today (2/22/2018) if ordered within 7 hours 1 minute

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $288.99
    Qty: 2-9 $288.99
    Qty: 10-19 $288.99
    Qty: 20-49 $288.99
    Qty: 50+ $288.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business


    Akitio Node - Thunderbolt™ 3 eGPU macOS High Sierra and Windows compatible

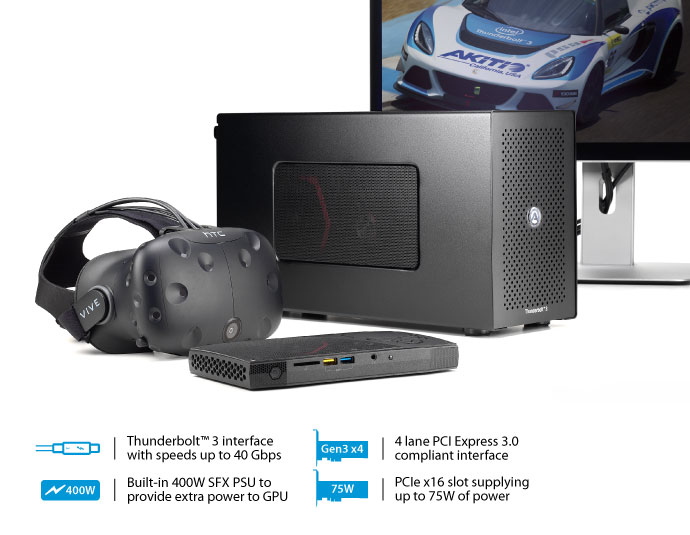

    AKiTiO Node

    The Thunderbolt™ 3 eGXF box is a low cost expansion chassis designed to house an external graphics card. Connected to the computer via Thunderbolt 3, the additional GPU power instantly upgrades a regular laptop or a mini PC and makes it possible to do things that would normally require a high-end workstation or gaming computer. For video editors and colorists, the dedicated GPU reduces the time it takes to render the footage, a computer that was not powerful enough for a VR headset is now potentially VR ready and for those that like to play games, these can now run at much higher frame rates than before.


    • Thunderbolt™ 3 for lightning fast transfer speeds up to 40 Gbps
    • 1 PCIe (x16) slot supporting full-length, full-height, double-width cards
    • Spacious enclosure for use with standard and large sized graphics cards
    • Built-in 400W SFX power supply to provide extra power to GPU
    • PCIe x16 slot supplying up to 75W of power
    • 4 lane PCI Express 3.0 compliant interface
    • Removable back panel for double-width cards
    • Carry handle to easily transport the device

    4 Lane PCI Express 3.0 Compliant Interface

    AKiTiO Node

    Supports standard and large sized PCIe Gen3 x4 cards

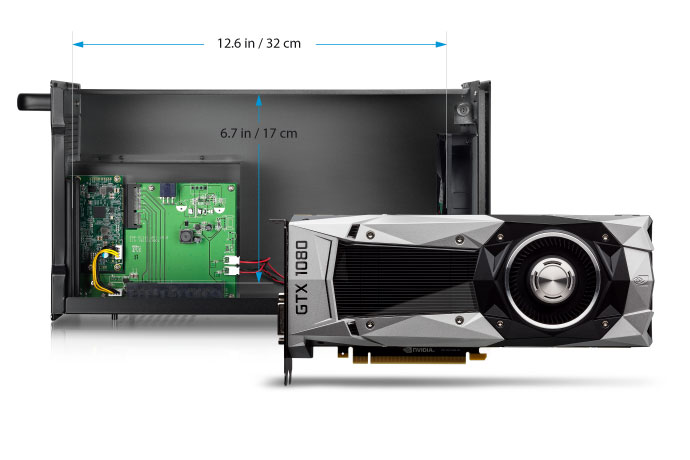

    The PCIe (x16) slot accepts full-length, full-height, double-width cards with enough space available inside the enclosure for both standard and large sized graphics cards. The four PCIe Gen3 lanes and the Thunderbolt 3 interface are capable of transfer rates up to 40Gbps, providing enough bandwidth even for the most demanding PCIe cards.

    Extra power for graphics cards

    AKiTiO Node

    400W SFX PSU

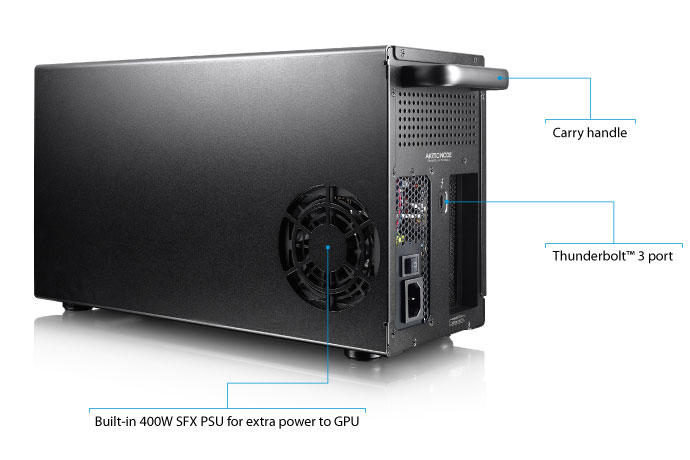

    The built-in power supply provides enough power for the AKiTiO Node (~10W) as well as for graphics cards. If the standard 75W through the PCIe slot is insufficient, two extra pairs of 8-pin (6+2 pin) power connectors are available inside the AKiTiO Node that can be connected to the GPU, providing a total of about 390W.

    The power of external GPUs

    AKiTiO Node

    Thunderbolt™ 3

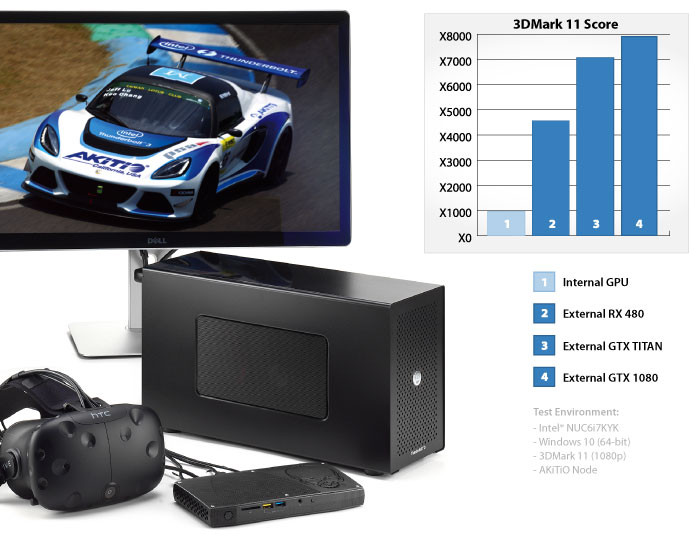

    Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device. In combination with the AKiTiO Node, this makes it possible to instantly upgrade your regular laptop or Mini-PC and achieve a performance that usually requires high-end workstations or specialized gaming computers.

    Model AKiTiO Node (24732)
    Case Material SECC sheet metal
    Data Transfer Rate Thunderbolt™ 3 up to 40 Gbps
    Fan Noise Level 29.6 dB(A)
    Input Power 100 ~ 240 VAC, 50/60 Hz
    Operating Temperature +41 ~ +95°F (+5 ~ +35°C)
    Storage Temperature -4 ~ +140°F (-20 ~ +60°C)
    Operating Humidity 5 ~ 95% RH, non-condensing
    Dimensions 16.9" x 5.7" x 8.9" (42.8 x 14.5 x 22.7 cm)
    Certifications CE, FCC, VCCI, Thunderbolt™ technology
    Warranty Manufacturer's 2-year limited warranty

    Support Files:

    Thunderbolt™ and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and other countries.

    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 5 answers
    Is it compatible with Mac OS X?
    A shopper on Jun 5, 2017
    BEST ANSWER: It looks like MacOS High Sierra (to be released this fall 2017) will support external graphics processors to the Mac for the first time. I've found work-arounds for other MacOS, but it looks like the official support will come this fall with the new MacOS. This was just announced at WWDC 2017.
    Will this work for Macbook Pro 13 Retina Late-2013 using thunderbolt 2 to thunderbolt 3 adapter?
    A shopper on Aug 2, 2017
    BEST ANSWER: The Akitio Node is only compatible with Thunderbolt 3 Computers, and it will not work using a Thunderbolt 2 to Thunderbolt 3 Adapter. Please note that Thunderbolt 2 does not support the necessary bandwidth to run an external eGPU.
    Would this work with usb type c?
    Jonathan S on Oct 3, 2017
    BEST ANSWER: Though USB-C is the correct connector, The system has to support Thunderbolt 3 over USB-C, one is the connector, one is the protocol.
    Does this unit provide 90watts of power for charging the laptop?
    Jeff C on Jul 10, 2017
    BEST ANSWER: This unit would only provide power to the GPU. It would be unable to provide power to a laptop.
    Would this be compatible with Thunderbolt and Thunderbolt 2 enabled computers?
    A shopper on Jun 5, 2017
    BEST ANSWER: No. Thunderbolt 3 is not backwards compatible.
    5.0 / 5.0
    1 Review
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    It works
    I'm actually using this with a PCIe RAID card, because who doesn't need to connect 24 HDD's to their laptop?
    October 11, 2017
