    BitPath AV 4K HDMI Wireless Transmitter & Receiver Kit, 200m
    Product # 16223
    $399.99
    Out of Stock ETA: TBD

    Note:

    Due to limited supply, all products are sold on a first-come first-serve basis.  Auto Notification does not guarantee either availability or price. All prices are subject to change without notice.

    *Your information will only be used to notify you when this item becomes available.

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $399.99
    Qty: 2-9 $394.99
    Qty: 10-19 $388.88
    Qty: 20-49 $384.99
    Qty: 50+ $349.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

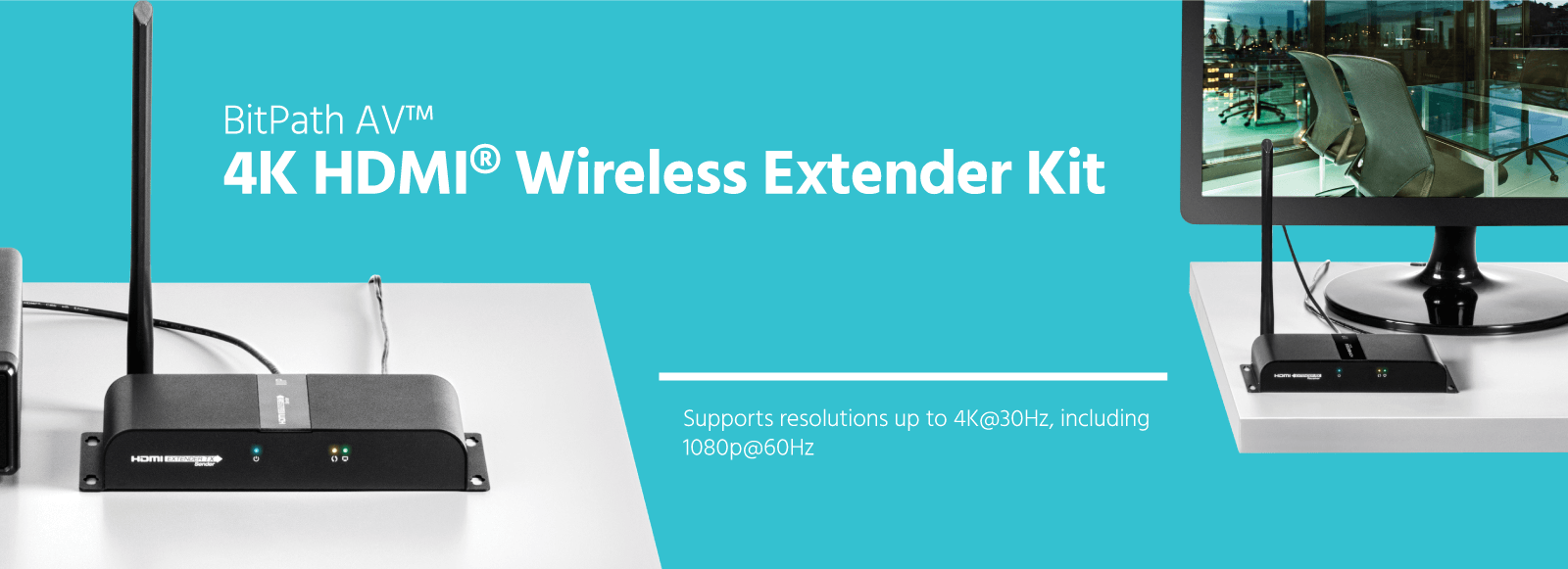

    BitPath AV 4K HDMI Wireless Transmitter & Receiver Kit, 200m

    4K HDMI Wireless Extender Kit


    The Monoprice BitPath AV™ Wireless 4K HDMI® Extender Kit allows you to wirelessly transmit 4K@30Hz or 1080p@60Hz HDMI video to distances up to 656 feet (200 meters). A true Plug & Play solution, the kit requires no complicated setup, configuration, or software. Simply connect an HDMI video source to the transmitter and an HDMI display to the receiver, then power it on. It includes a dual band IR repeater, so you can control your video source device using its infrared remote control from the remote location.






    Wireless Extender
    Plug & Play
    Dynamic Scaling
    Wireless Extender
    Plug & Play
    Dynamic Scaling


    Wireless Extender: The BitPath AV™ Wireless Extender uses superior wireless algorithms and transmitter power to wirelessly extend a 4K HDMI® signal to distances up to 656 feet (200 meters).

    Plug & Play: This wireless extender is a true Plug & Play device, requiring no complicated setup, configuration, or software. Simply connect an HDMI video source to the transmitter and an HDMI display to the receiver, then power it on.

    Dynamic Scaling: The BitPath AV Wireless Extender continually monitors signal strength and available bandwidth, dynamically scaling the video to produce the best possible video resolution without signal loss or interference.

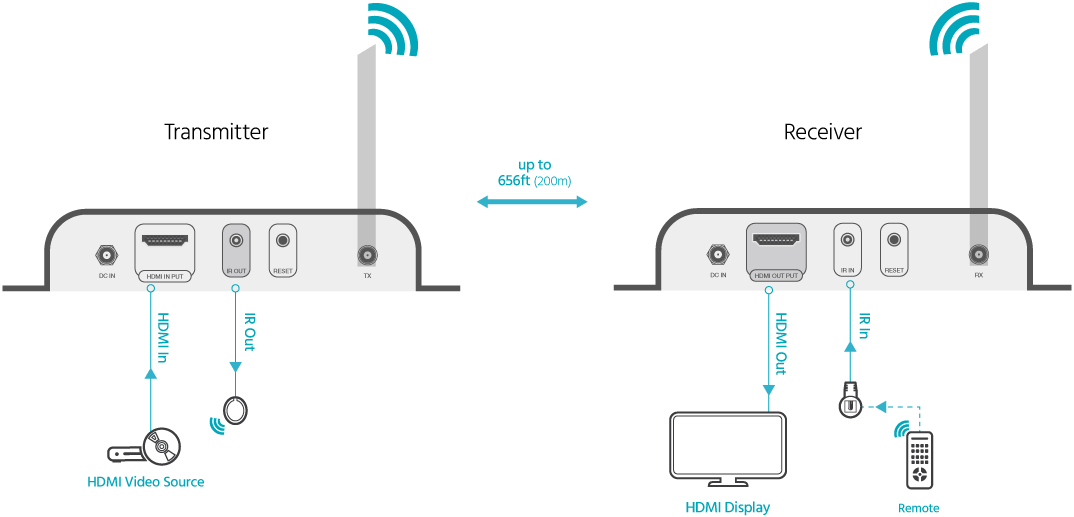

    Connection Diagram



    4K HDMI Wireless Extender Kit




    Applications



    4K HDMI Wireless Extender Kit





    1 Year Warranty

    Buy with Confidence

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    4K HDMI Wireless Extender Kit
    Model 16223
    Video Standard HDMI® with HDCP support
    Maximum Video Resolution 4K@30Hz, including 1080p@60Hz
    Transmission Protocol BitPath AV™
    Maximum Transmission Distance up to 656 feet (200 meters)
    IR Extender Bandwidth 20 ~ 60 kHz
    Maximum Power Consumption (each) 15 watts
    Power Source 5 VDC, 3.5A AC power adapters
    Operating Temperature +32 ~ +140°F (0 ~ +60°C)
    Dimensions (each) 7.7" x 5.4" x 1.3 (195 x 137 x 32mm)
    Weight (each) 19.8 oz. (560g)



    Support Files:



    Bit-Path AV™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 14 questions Browse 14 questions and 11 answers
    The Troubleshooting section of the User's Manual indicates that if there's interference to, "Ensure there are no other wireless devices transmitting on the 2.4GHz and 5.8 GHz bands". That's 802.11 Wi-Fi frequencies, so how reliable is this device in Wi-Fi saturated environments?
    A shopper on Jan 11, 2017
    Are separate receivers available so it can stream to more than one device at a time?
    Gareth J on Jan 11, 2017
    BEST ANSWER: Hello, thank you for your question. Unfortunately we do not carry the receivers by themselves and this transmitter unit can only connect to one receiver at a time so you will not be able to stream to more than one device wirelessly without purchasing a second kit. I apologize for the inconvenience
    What kind of latency will this have between a camera and a display? I would consider using this for streaming live events with multiple cameras (wired and wireless), and want to know if they would match up or will the wireless be behind the action.
    A shopper on Mar 15, 2017
    BEST ANSWER: Hi guest, There is a .6 second latency between transmitter and receiver. Regards.
    Can more than one unit be used in the same environment? If I want to broadcast two independent channels within my store, do the units have some handshake agreement so that they do not knock each other out?
    John W on Feb 21, 2017
    BEST ANSWER: Thank you for your inquiry. Theoretically you can use multiple kits within the same area. However, since they would be using the same frequency bands, they can interfere with each other and cause issues. I hope this helps.
    Will this unit support 4K HDR content?
    A shopper on Sep 17, 2017
    Does this support HDCP 2.2 for transmitting HDR?
    Patrick L on Mar 2, 2017
    BEST ANSWER: Thank you for your question. This unit will not support HDCP 2.2.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    What is the latency?
    Robert H on Apr 20, 2017
    BEST ANSWER: duplicatesourceoriginalPer Wikipedia: Audio latency is the delay between when an audio signal enters and when it emerges from a system. Potential contributors to latency in an audio system include analog-to-digital conversion, buffering, digital signal processing, transmission time, digital-to-analog conversion and the speed of sound in air.

    Video processing is very similar to audio processing.

    I purchased and use this product and latency was not a concern . I was unable to detect any latency, between the original source and transmitted duplicate signal.
    Being that a TV operates at 240 Hz would there be losses if this unit operates at 30 Hz for 4K content?
    A shopper on Feb 7, 2017
    BEST ANSWER: The two frequencies cited are not related. 1) content is delivered at a particular resolution and rate. ie. 4k/30Hz, 1080p/60Hz. 2) This is the internal refresh rate of the TV/monitor's LCD panel. The higher the rate here, the better for minimizing motion blur in the image. The TV takes the content rate (24/30/60Hz) and interpolates up to a higher refresh rate (120/240Hz)
    Does this need wifi signal to operate? Will it work in an open field with no wifi? Does it need line of sight or will it work through walls?
    A shopper on Mar 6, 2017
    BEST ANSWER: WiFi Required: No
    Open Field Operation: yes
    Line of Sight Required: No
    Will this work for a cable box to monitor?
    A shopper on Feb 21, 2017
    BEST ANSWER: Thank you for your question. Yes, you would be able to connect a cable box to the transmitter then have a the receiver unit connected to your monitor/display.
    Does the BitPath AV 4K HDMI Wireless Transmitter support 5.1 surround sound?
    Patrick P on Jun 14, 2017
    I have one of these but I want to put an antenna outside. Will any outdoor wifi antenna work?
    Bryce R on Jul 24, 2017
    BEST ANSWER: The units are sold as pairs a transmitter and a receiver both units have an antenna attached. No additional antennas are necessary. From the looks of the existing antenna, once unscrewed a cable could "Theoretically" be used to extend the locations of either antenna.
    Does this transmit audio as well? I don't see audio specs anywhere, which leads me to believe this is transmitting video only.
    A shopper on Nov 1, 2017
    Can this unit drive a HDMI A/V display at both the transmitter (local loopback) and receiver ends ?
    A shopper on Aug 28, 2017
    3.5 / 5.0
    2 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    1
    0
    0
    1
    0
    Well worth the $
    I'd tried an off-brand solution for my client's conference room and it gave us nothing but headaches. Losing connectivity, rebooting each component, etc. it was NEVER a good solution. This unit is like furniture; plug it in and you've got what you need; HDMI wirelessly across the room.
    June 13, 2017
    Purchased
    6 months ago
    Did not work with 4k feed
    The range was great on 1080P but this product did not work for my 4k feed. I called to troubleshoot and they were helpful but no luck on getting it to broadcast a 4k signal
    April 4, 2017
    Purchased
    9 months ago
