Z-Wave Plus Plug In Power Monitor
    Product # 15903
    $34.99
    In Stock This item should ship today (9/19/2017) if ordered within 1 hour 49 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $34.99
    Qty: 2-9 $34.49
    Qty: 10-19 $34.88
    Qty: 20-49 $33.49
    Qty: 50+ $32.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

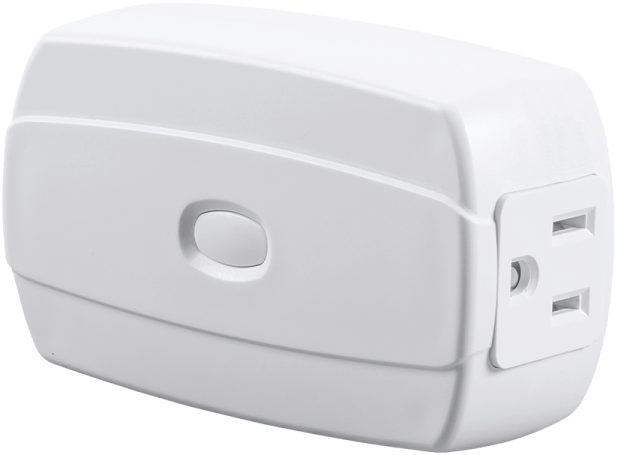

    Z-Wave Plus Plug In Power Monitor

    Plug In Power Monitor


    This Plugin can be operated remotely, using the Z-Wave® controller, or directly, using the Program Switch on the device. It plugs into a standard NEMA 5-15 power outlet and includes both a Z-Wave controlled outlet and standard, unswitched outlet. It is designed so that when it is plugged into a standard two-plug wall outlet, it will not block the other power socket. In addition to controlled switching, it monitors energy consumption and can report consumption values in several common energy scales. As an AC powered Z-Wave device, this Plugin will act as a Z-Wave repeater (supporting FLiRS).




    Remote Operation
    Easy to Install
    Energy Monitoring

    Remote Operation
    Easy to Install
    Energy Monitoring


    Remote Operation: This Plugin can be operated remotely, using the Z-Wave controller, or directly, using the Program Switch on the device.

    Easy to Install: It plugs into a standard NEMA 5-15 power outlet and includes both a Z-Wave controlled outlet and standard, unswitched outlet. It is designed so that when it is plugged into a standard two-plug wall outlet, it will not block the other power socket.

    Energy Monitoring: It monitors energy consumption and can report consumption values in several common energy scales.




    Low Power


    Z-Wave Plus is a low power mesh networking communications technology that allows Z-Wave Plus enabled devices to communicate with each other and to distribute Z-Wave Plus messages throughout the network.



    Low Power

    Backwards Compatible


    Z-Wave Plus products are fully backward compatible with classic Z-Wave products. Z-Wave Plus has longer battery life, faster operation, better RF coverage, and easier installation.



    Backwards Compatible

    Features

    • Includes a Z-Wave® controlled grounded NEMA 5-15 power outlet and an unswitched grounded NEMA 5-15 pass-through outlet
    • Z-Wave and manually controlled on/off switching plus energy monitoring
    • Multicolor LED indicates current usage
    • Z-Wave controlled reporting of energy consumption in kilowatt hours (kWh), kilovolt-ampere hours (kVAh), wattage (W), voltage (V), amperes (A), and power factor
    • Supports over-the-air firmware updating
    • Features automatic shutoff overload protection when current usage exceeds 15.5 amperes
    • Functions as a Z-Wave repeater for the Z-Wave mesh network
    • Uses the latest backward compatible revision of Z-Wave technology
    • Z-Wave Plus® provides 50% more power than previous generations
    • Z-Wave Plus provides 67% improvement in transmission range
    • Z-Wave Plus offers Plug-n-Play inclusion network wide




    RBoy Apps Compatibility



    This Monoprice Z-Wave® product supports the Smart Apps iOS® and Android™ applications developed by RBoy Apps (http://www.rboyapps.com). Smart Apps and the accompanying Device Handlers work in combination with the Samsung SmartThings™ hub to interact with devices around your home, such as this and the other Z-Wave devices we sell.

    • Allows Monoprice Smart Home products to work with SmartThings. (Not all devices are currently supported by the platform).
    • Allows SmartThings to automatically recognize new devices and select the correct device handlers
    • Allows users to access/utilize all of the device functions (e.g. multi-function sensors)
    • Allows users to configure the advanced parameters for the devices
    • Creates a user friendly interface for the SmartThings platform for Monoprice Smart Home products
    • RBoy Apps allows users to create a hands free automation environment that's customized to their needs
    • RBoy Apps allows multiple Monoprice Smart Home products to come together to create a whole home automation experience (one-stop-shop)

    *RBoy Apps is an optional add-on and would require a subscription fee to activate.

    What's Included

    • 1x Z-Wave Plus® plug-in power monitor
    • 1x User's manual







    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    Z-Wave® and Z-Wave Plus® are registered trademarks of Sigma Designs and its subsidiaries in the United States and other countries.

    SmartThings™ is a trademark of Samsung Electronics Co., Ltd.



    Protocol Z-Wave® (ZM5202)
    Operating Frequency 908.42 MHz
    Operating Voltage 100 ~ 240 VAC
    Operating Range up to 100 feet line of sight

    Operating Temperature +14 ~ +104°F (-10 ~ +40°C)
    Data Rate up to 9.6k/40k/100kbps
    Maximum Load 110 VAC/15A/1600W (resistive),
    220 VAC/15A/3200W (resistive)



    Support Files:



    Z-Wave® and Z-Wave Plus® are registered trademarks of Sigma Designs and its subsidiaries in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 9 questions Browse 9 questions and 13 answers
    Does it support load sensing? This could turn the z-wave switch on by toggling the switch on the appliance off and then on again. Please advise.
    New User U on Mar 8, 2017
    Does the energy monitoring feature report on both outlets or only the switched outlet?
    Alexander G on Feb 28, 2017
    BEST ANSWER: Only on the switched outlet. I'm not away of any z-wave plugs that monitor power user on unswitched outlets
    Anyone get this running with SmartThings? I get a "Unhandled: SecurityMessageEncapsulation" error, and wondering if I just got a lemon. Thanks.
    Kevin W on Feb 13, 2017
    BEST ANSWER: Yes it works reliably once I installed elasticdev's Aeon Labs Smart Energy Switch handler. It didn't consistently work with the default handler.
    Does this work with Wink/Wink2?
    Anthony R on Jun 29, 2017
    How do you get this device to communicate power and energy info to a SmartThings Hub?
    A shopper on May 2, 2017
    BEST ANSWER: Contacted SmatThings support. This is the SmatThings response: "Monoprice devices aren't officially compatible with SmartThings, and likely won't be able to be connected or work properly."
    Buyer beware if you have a SmartThings system.
    Is this UL/CSA approved?
    A shopper on Mar 18, 2017
    BEST ANSWER: Thank you for your question. This item would not be UL/CSA certified.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Does it switch on/off or only monitors power consumption?
    A shopper on Aug 6, 2017
    BEST ANSWER: The device has a button that allows you to turn on/off one plug. That same plug can also be controlled remotely.
    Has anyone used this with Veraplus? Mine gets added but control and energy usage aren't working. Any ideas?
    Carlos L on Apr 15, 2017
    BEST ANSWER: Thank you for your question. Unfortunately we would not have information regarding function of Veraplus. I would recommend un-pairing the unit and re-pairing it to see if it will assist with the issue.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Does this device work with Openhab?
    Douglas M on Jun 29, 2017
    3.3 / 5.0
    10 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    3
    1
    3
    2
    1
    Updated Review 2/1/2017
    I previously rated the power meter poorly prematurely. The unit would not pair with my Vera Lite using User Interface version 5 (UI5). I upgraded my Vera Lite from UI5 to UI7 and the power meter now pairs with my Z-Wave network.
    The power meter has two sockets. The first is a pass-thru and is not switchable and, unfortunately, power used with this socket is NOT monitored. The second socket has the Z-Wave symbol next to it and is controllable (On and Off only, no dimming) via Z-Wave commands. The second socket IS monitored for power and reportable via Z-Wave.
    There is only one button on the device. Pressing it once will turn the Z-Wave socket on or off. The button is also used to pair and unpair with the Z-Wave network by pressing it 3 times within 2 seconds. The manual implies you should press the button once to unpair (exclude). My experience has been that 3 presses in under 2 seconds are needed to unpair the device.
    The watts reported are within 5 watts of what a KIL-A-WATT power meter reports. After successfully getting my first power meter to work I ordered nine more power monitors.
    January 28, 2017
    Purchased
    8 months ago
    Poor range
    The range with these was pretty poor compared to other zwave devices I have. Could not reach to my Vera Plus controller from 20+ feet through a couple walls. Tried multiple locations and positions. Other zwave devices communicating much longer distances.
    February 21, 2017
    Works well on a short distance from the hub
    Picked one up as this zwave device had a good price, However the max range that I can put this away from the hub, is about 18 ft.
    June 8, 2017
    Purchased
    4 months ago
    SmartThings - Limited to OnOff Control
    Setup successful with SmartThings Hub. On/Off works but no power monitoring with initial SmartThings setup.
    May 1, 2017
    Purchased
    4 months ago
    Works well with Smartthings
    Good price for a good product. Had no issues pairing with Smartthings
    August 12, 2017
    Purchased
    2 months ago
    Great zwave plug
    Pairs easy and works like a champ. No issues so far.
    June 8, 2017
    Purchased
    4 months ago
    minor hiddup
    Works fine most of the time. However, using the button to cycle a lamp on/off resulted in the system hanging. Had to unplug the plug back in to get it to start working again. Don't have the problem if using the software to turn it on/off
    August 6, 2017
    Purchased
    2 months ago
    Mediocre at best
    This is my first z-wave device, so my only basis of comparison for this sort of thing is Insteon. Compared to the Insteon modules, the range/reliability on this is poor. It is located about 10 feet away from the central controller and yet about 10% of the commands are missed. Additionally, the power measurement feature is a bit suspect; the instantaneous power reading (i.e. watts) is in agreement with my kill-a-watt, however the cumulative reading is low. Since I'm using this on a fixed schedule timer, I know that 130 watts * 9 hours / day should be 1.17 KWH / day and yet the device reports about a third of this usage on the KWH readout.
    March 29, 2017
    Purchased
    6 months ago
    Works ok, at times, not
    I have the plug connected to my Smartthings setup. I had to use some custom code to get the power monitoring to work along with the on/off. There are times where Smartthings will issue a command and it will not respond for several minutes. I have not determined yet if it is the device or the Smartthings system. I don't have issues with the regular Smartthings plugs so I am guessing it is the former.

    For the price, I can't complain too much.
    June 29, 2017
    Purchased
    4 months ago
    Very poor range
    This unit has much poorer range than some of the similar units I've tried. It won't see nodes a couple of feet away as neighbors. In the month I've used it it's also just dropped off the network once and had to be deleted and readded to get working again. Otherwise ok.
    August 6, 2017
    Purchased
    2 months ago
