Z-Wave Plus PIR Multi Sensor, Temperature - Humidity - Light
    Product # 15902
    $34.99
    In Stock This item should ship today (9/25/2017) if ordered within 5 hours 54 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $34.99
    Qty: 2-9 $34.49
    Qty: 10-19 $33.99
    Qty: 20-49 $32.49
    Qty: 50+ $29.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

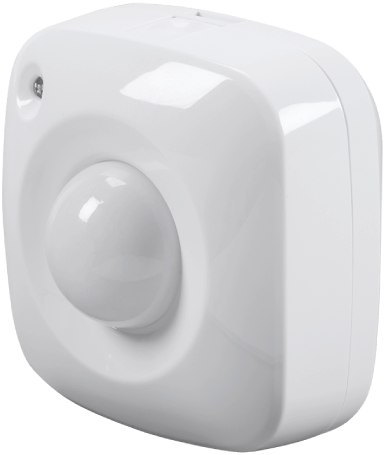

    Z-Wave Plus PIR Multi Sensor, Temperature - Humidity - Light

    PIR Multi Sensor


    This passive infrared (PIR) sensor detects motion and sends a Z-Wave® trigger signal to the network. It also features temperature, humidity, and light sensors, which will automatically report changes in the conditions and will report the absolute values when queried. It has a tamper-proof switch, which will trigger a Z-Wave signal when the cover is removed. These trigger signals can be used to activate various other devices and perform preprogrammed tasks. This is a security enabled Z-Wave Plus® product and a security enabled Z-Wave gateway/controller must be used to fully utilize this sensor.

    Motion Detection
    Temperature Detection
    Humidity Detection
    Light Detection
    Motion Detection
    Temperature Detection
    Humidity Detection
    Light Detection


    Motion Detection: This device uses a passive infrared sensor and sends a Z-Wave Plus® signal when motion is detected within its detection range. It can detect moving objects within line of sight at distances up to 32 feet, away with a field of view up to 120°. This trigger signal can then be used to activate various other devices and perform preprogrammed tasks.

    Temperature Detection: The sensor will automatically report the measured temperature whenever it changes by a particular amount. By default, it reports every time the temperature changes by 1°C.

    Humidity Detection: The sensor will automatically report the measured humidity level whenever it changes by a particular amount. By default, it reports every time the humidity level changes by 10%.

    Light Detection: The sensor will automatically report the measured light level whenever it changes by a particular amount. By default, it reports every time the light level changes by 10%. Additionally, the sensor will automatically report the light level for every 10% decrease from 100%.




    Low Power


    Z-Wave Plus is a low power mesh networking communications technology that allows Z-Wave Plus enabled devices to communicate with each other and to distribute Z-Wave Plus messages throughout the network.



    Low Power

    Backwards Compatible


    Z-Wave Plus products are fully backward compatible with classic Z-Wave products. Z-Wave Plus has longer battery life, faster operation, better RF coverage, and easier installation.



    Backwards Compatible

    Features

    • Four smart sensors in a single small device
    • Seven selectable levels of motion sensitivity
    • Three different methods of reporting motion detection and temperature changes
    • Tamper sensor sends an alert to the controller if the sensor is tampered with
    • A report is automatically sent when the battery level is low
    • Multicolor LED indicates temperature ranges at a glance
    • Uses the latest backward compatible revision of Z-Wave® technology

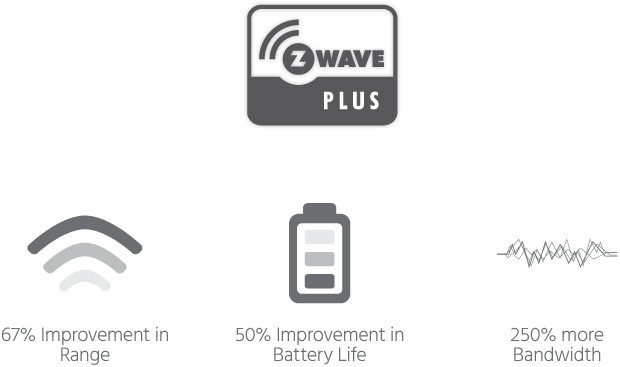

    • Z-Wave Plus® provides 50% more power than previous generations
    • Z-Wave Plus provides 67% improvement in transmission range
    • Z-Wave Plus offers Plug-n-Play inclusion network wide





    RBoy Apps Compatibility



    This Monoprice Z-Wave® product supports the Smart Apps iOS® and Android™ applications developed by RBoy Apps (http://www.rboyapps.com). Smart Apps and the accompanying Device Handlers work in combination with the Samsung SmartThings™ hub to interact with devices around your home, such as this and the other Z-Wave devices we sell.

    • Allows Monoprice Smart Home products to work with SmartThings. (Not all devices are currently supported by the platform).
    • Allows SmartThings to automatically recognize new devices and select the correct device handlers
    • Allows users to access/utilize all of the device functions (e.g. multi-function sensors)
    • Allows users to configure the advanced parameters for the devices
    • Creates a user friendly interface for the SmartThings platform for Monoprice Smart Home products
    • RBoy Apps allows users to create a hands free automation environment that's customized to their needs
    • RBoy Apps allows multiple Monoprice Smart Home products to come together to create a whole home automation experience (one-stop-shop)

    *RBoy Apps is an optional add-on and would require a subscription fee to activate.

    What's Included

    • 1x 4-in-1 motion sensor
    • 1x Adhesive tape
    • 2x AAA batteries
    • 1x User's manual







    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!







    Z-Wave® and Z-Wave Plus® are registered trademarks of Sigma Designs and its subsidiaries in the United States and other countries.

    SmartThings™ is a trademark of Samsung Electronics Co., Ltd.



    Protocol Z-Wave® (ZM5202)
    Operating Frequency 908.42 MHz
    Operating Range up to 100 feet line of sight

    Operating Temperature +14 ~ +104°F (-10 ~ +40°C)
    Battery 2x AAA



    Support Files:



    Z-Wave® and Z-Wave Plus® are registered trademarks of Sigma Designs and its subsidiaries in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 18 questions Browse 18 questions and 31 answers
    will this work with wink?
    Evert D on Nov 30, 2016
    BEST ANSWER: I wish this was true but most of the z-wave devices I have purchased from monoprice do not work with my Wink (original version) controller. I just tried to add this 4 in 1 sensor using the generic "Zwave sensor" and it was not recognized. I blame wink, not Monoprice. I am able to configure under my Universal Devices ISY-994 hub.
    This device seems to link up with Wink 2. However, motion sensor does not show up on the wink as an option. Does this device act as a motion sensor on the wink?
    New User U on May 7, 2017
    BEST ANSWER: Unfortunately we would not have a list of compatible Z-Wave hubs. I would recommend un-pairing then re-pairing the sensor to see if it will pick it up. If it does not show up it may just not be compatible with Wink.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Is there a SmartThings Device Handler in the works for this product? It currently does not report Lux/Light nor Humidity properly with any of the Aeon Labs or generic Device Handlers (as of 12.25.16). Thanks.
    Dan L on Dec 25, 2016
    BEST ANSWER: UPDATE: this handler for smartthings seems to work much better: zooz-zse40-4-in-1-sensor I can not insert links here so you'll have to search github or google for appropriate groovy file.
    steps to make it work:
    1) install new handler from groovy file
    2) assign new handler to multisensors via smartthings IDE
    3) remove all sensors from 2) from smartthings(yes I had to do it otherwise sensors were not reporting motion)
    4) re-assosiate sensors with smartthings hub - this time the hub will offer correct handler that was installed in 1) .
    Can this be used outdoors (e.g. on the side of a house?)
    David S on Nov 30, 2016
    BEST ANSWER: I have one working well outside, but unde4r a protective overhang. I also have one outside in an unprotected area that I have sealed the seams on with tape and wrapped in one layer of saran wrap. That unit works and has survived a few showers and some dew for several weeks, but I can't say if it will survive long-term.
    what's the delay on motion sensing for this unit? other monoprice zwave motion sensor took 4-6 seconds to trigger, and I would have left the room by then before it trigger make it useless for automate light turn on
    A shopper on Dec 17, 2016
    BEST ANSWER: Running through a smartthings hub, mine has less than 1s delay. I have it set to, within certain hours, turn on the bedroom lamp if motion is detected.
    Has anyone used this with HomeSeer and, if so, how compatible is it?
    William C on Apr 29, 2017
    BEST ANSWER: Thank you for your question. Unfortunately we would not have a list of compatible Z-Wave Hubs. If you wished to purchase the unit to try it out you are welcome to. We do offer a 30 day return policy. You would be able to return it should it not work.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Will this interface with the Ecobee 3?
    Matthew K on Aug 25, 2017
    BEST ANSWER: I don't believe it interfaces directly. Ecobee 3 uses its own proprietary room sensors.

    You could, however, leverage a platform such as smartthings, vera, openhab, etc. and get them to 'talk' that way. In my use case, I use the sensor to sense occupancy / temperature...and then feed commands to my thermostat via smartthings.
    Anyone know if this will work with a GE/Interlogix Simon XTi security system?
    A shopper on Jul 3, 2017
    BEST ANSWER: No. While it pairs with the Simon XTi (model 600-1054-95R-12), it registers as "Z-Wave Unknown". The device does not know how to communicate with the panel
    LEDs don's Flash as per the user manual. I tried 2 different units but same behavior. Any suggestions? Also, has any gotten the motion sensor to work?
    A shopper on Apr 10, 2017
    BEST ANSWER: Use a pin to reset the sensor. There's a tiny hole in the bottom. The inside switch is for tamper sensing. I spent 2 months scratching my head on the same dang problem. The Smart hub found it immediately after I did this.
    How accurate is the humidity sensor?
    Richard W on Feb 9, 2017
    BEST ANSWER: Mine is within one percentage point of my two Acurite weather stations when placed in the same room. Also the temperature reporting is in close agreement with the Acurites.
    Is there a parameter to set temperature offset? Seems no one can make an accurate Temp sensor.
    Shawn M on Apr 14, 2017
    BEST ANSWER: You could do this with a custom device handler for SmartThings but I haven't seen native offset control. As far as its accuracy, I put this near my wall thermostat and left it for a while to acclimate (it's not a quick read meat thermometer and the updates only get sent to the hub on defined change parameters to save battery). This device was .5 degrees away from the wall thermostat reading which is close enough for my needs and definitely could be attributed to the fact that they are a couple inches apart. Anyway, seems accurate enough for my uses.
    Can this be powered via an adapter or is it batter only?
    Aaron C on Mar 28, 2017
    BEST ANSWER: Battery only.
    how big is this?
    New User U on Mar 1, 2017
    BEST ANSWER: It's about 2 x 2 x 1.5 inches.
    Can the motion sensor detect 360? Or does it only sense down and away (from the led light on top). The manual is a little confusing. Thanks,
    Pei L on Jul 7, 2017
    BEST ANSWER: It has 4 sensors, motion, temp, humidity and illuminance. The top led like thing toward the edge is the illuminance sensor while the bigger center sensor is motion sensor and it lights up also in different color depending upon the state. Motion, at most is detected in 270 degree cone in front of the motion sensor. Hope this helps.
    Will this work with an Aeotec Z-Stick?
    Steve N on Jul 5, 2017
    BEST ANSWER: Yes, I have an Aeotec Z-Stick Gen5 that it works with running Home Assistant w/openzwave
    Has anyone gotten these to report the battery %? I have 3 of these and none of them do (but all the other sensor values come through fine; this is with OpenHAB). I also have 2 of the Zooz ones that are basically identical, and those both DO report battery %. Odd...
    Ben M on May 5, 2017
    BEST ANSWER: Yes. My sensor reports battery % in addition to humidity %, light %.
    What is the coldest temp this sensor can report?
    A shopper on Sep 16, 2017
    Is this compatible with Piper?
    Edmond B on Jul 20, 2017
    3.6 / 5.0
    30 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    11
    7
    4
    4
    4
    Great sensor; but!
    Monoprice needs to update the directions!! I RMA'd 2 of these because I couldn't get them to work, turns out there's 2 buttons! one inside the battery compartment, and another paper clip hole on the bottom! the paper clip hole controls the inclusion and whatnot, the battery compartment button is only for tamper detection apparently. this is NOT called out in the instructions.
    December 22, 2016
    UPDATE THE MANUAL
    Like the other reviewer mentions, The zwave button in the tiny circle on the bottom of the senor. Use a paperclip and it will pair right away. The manual for the ZOOZ ZSE40 has a photo if you need more help.
    December 22, 2016
    Purchased
    9 months ago
    Works well with Smartthings
    Works well with smartthings after installing the custom device handler. Good battery life (90% remaining after 3-4 weeks of use).
    June 15, 2017
    Purchased
    4 months ago
    Watch compatibility
    Does not work with wink 1 or 2. Only compatible with devices that support multi sensors.

    Works good if your device supports it.
    February 5, 2017
    Purchased
    9 months ago
    Great for the price, can't set motion sensor retrigger time
    I had this sensor for several months and its working great in a protected outdoor location. I've successfully changed the temp readings to Fahrenheit via the configuration parameters but can't get the motion sensor retrigger time below 3 minutes. I've set it to 1 and can read it back and see it's set to 1 but the retrigger time is still 3 minutes.
    February 1, 2017
    Purchased
    9 months ago
    Great off the price.
    Works well on Smartthings with a Zooz 4-in-1 device handler. Includes Instructions are not good at all. Google the Zooz instructions and use those. Responds to motion quicker than a GoControl Motion but slow met than the Iris Motion.
    January 8, 2017
    Purchased
    9 months ago
    Take Note When Adding Sensor to Your Controller
    As others have noted, the instructions are not clear on how to include this sensor. For Vera, select generic z-wave device and have a small pin handy. There is a tiny hole on the outside of the sensor. Carefully insert the pin until you feel the end of a small microswitch. It is easy miss the switch but you will know when you feel the switch click with slight pressure applied. The sensor will flash. Be sure to be within a few feet of the controller or you will get strange errors. Otherwise the sensor has performed as expected once it was successfully included. Great price compared to the competition.
    April 21, 2017
    Purchased
    5 months ago
    Good choice!
    It was very easy to integrate to my Domoticz (on Raspberry Pi 3) environment. It works great!
    May 7, 2017
    Purchased
    5 months ago
    Price is good, device is finicky
    For the price, the feature list is outstanding. Where else can you buy a 4-in-1 Z-Wave multi sensor for under $50? It is compatible with the ZooZ device type in SmartThings, too, so it can work out of the box. I say "can work" on purpose because it doesn't necessarily work out of the box, and the setup instructions aren't blindingly obvious.

    I bought two. It took a while to figure out that the button to put the sensor in pairing mode is actually on the bottom of the device and needs to be pressed with a straightened paperclip. It's *not* the "Z2" switch inside the device next to the batteries. That would be much too convenient! The switch inside the device is merely a tamper detection switch as far as I can tell.

    Setup with SmartThings is easy enough. Put the device in pairing mode by quickly depressing the button on the bottom of the device by using a paperclip, and SmartThings will pick it up a few seconds later. That's where the easy stuff ends.

    One of my sensors worked great and keeps on working great. It has been running with SmartThings for a couple weeks now without issue. The other one paired fine and sent it's initial data to SmartThings, but stopped responding after the initial sensor reading. I had to reset it 4 times before I could get it to work reliably and continue reporting status updates to the hub. I'm still not entirely convinced that it is working correctly.

    So. The price is good. The setup is a bit confusing. And it might take some fussing with the sensor to ensure a trouble-free connection. All in all, it's just okay.

    The Aeon multi sensor, while expensive, is considerably better. If cost is your main concern, buy this (or the apparently identical ZooZ multi sensor). If reliability and ease of use is your primary concern, look elsewhere (Fibaro and Aeon are good alternatives).
    April 29, 2017
    Purchased
    5 months ago
    Poor installation instructions and not all features worked
    I received the unit on time as confirmed. However the include instruction were incomplete. Had to do web research to set up the unit. Also, two of its features, light andm oisture did not work with Samsung Smarthings hub
    May 30, 2017
    Purchased
    4 months ago
