Stage Right StreamLine 800W Column Array Sound System with 2-Channel Mixer
Product # 604810
Volume Pricing (Log In to see Member Pricing)
|Main Drivers||4x 3.5" cone with 1" voice coil|
|Main Driver Amplifier||400 watts class D|
|Subwoofer Driver||1x 10" cone with 2.5" voice coil|
|1x 10" cone with 2.5" voice coil||400 watts class D|
|Overall Frequency Response||50 Hz ~ 20 kHz, -6dB|
|Main Driver Frequency Response||160 Hz ~ 20 kHz, -6dB|
|Subwoofer Frequency Response||50 Hz ~ 500 Hz, -6dB|
|Crossover Frequency||500 Hz, 24dB/octave|
|Inputs||2x combination XLR/1/4" jacks, 2x RCA jacks, 1x NL4 speaker|
|Outputs||1x NL4 speaker, 1x XLR line|
|Protection Circuits||Thermal DC, Overload, Digital Compressor, Limit|
|Input Power||100 ~ 120 VAC, 50/60 Hz or 220 ~ 240 VAC, 50/60 Hz, switchable|
|Horizontal Dispersion (main driver)||100°|
|Main Driver Nominal Impedance||8 ohms|
|Main Driver Mounting||2" pole or 2x M8 hanging points|

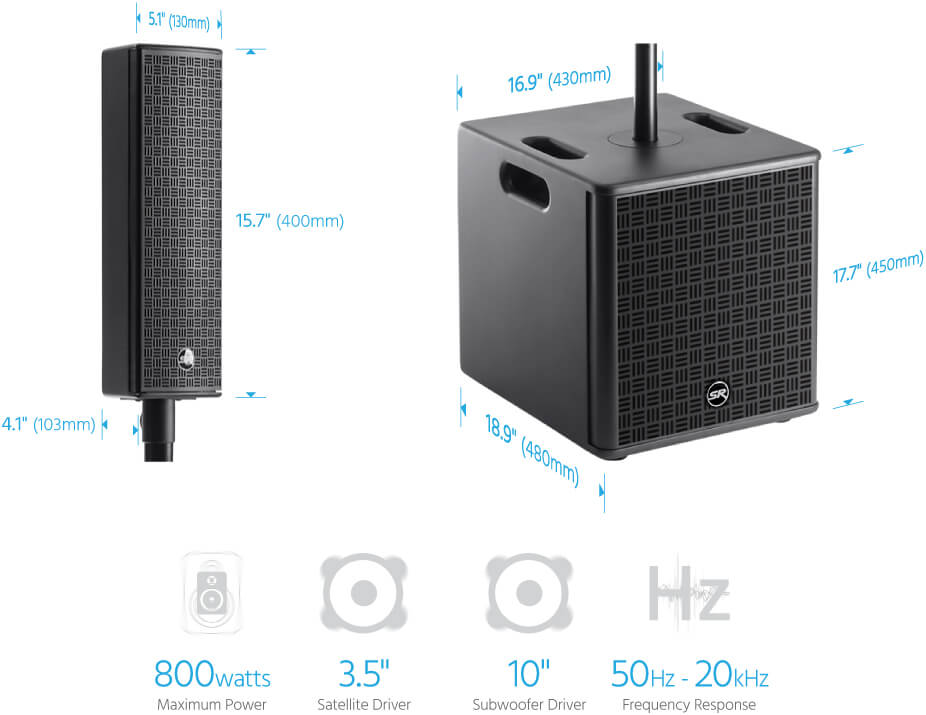

|Dimensions (main driver)||5.1" x 15.7" x 4.1" (130 x 400 x 103 mm)|
|Dimensions (subwoofer)||16.9" x 17.7" x 18.9" (430 x 450 x 480 mm)|
|Dimensions (overall)||16.9" x 18.9" x 68.5" (430 x 480 x 1740 mm)|
|Weight (main driver)||8.2 lbs. (3.7 kg)|
|Weight (subwoofer)||45.2 lbs. (20.5 kg)|
|Weight (overall)||53.4 lbs. (24.2 kg)|
- User's Manual (Jul 19, 2016)
Questions and Answers
Browse 6 questions Browse 6 questions and 6 answers
Would one be sufficient enough to run karaoke for about 100 people and still be able to hear it in the back of the room?
BEST ANSWER: Yes, the StreamLine will work very well for that.
Is this system designed to eliminate the need for stage monitors as other well-known column array systems? Is its audio field wide enough so that audience and performers hear the same thing?
BEST ANSWER: Yes, the StreamLine has a 100° coverage pattern.
when will you have it on display?
BEST ANSWER: The StreamLine Column Array will be in the Will Call Store by Jan 2018.
Are there any carrying bags to the pole and top speaker?
BEST ANSWER: No, the system comes with no bags.
Does this unit have phantom power on the mic channel?
BEST ANSWER: Thank you for your interest in this Column Array system. No, the XLR inputs do not carry phantom power.
What is the total height of the assembled product?
BEST ANSWER: Thank you for your interest in this Column Array sound system. The product page has a spec tab that shows that the assembled height of the system - Dimensions (overall) 16.9" x 18.9" x 68.5" (430 x 480 x 1740 mm)
