1000FT 24AWG Cat5e 350MHz STP Solid, In-Wall Rated (CM), Bulk Ethernet Bare Copper Cable - Gray
1000FT Cat 6 Bulk Bare Copper Ethernet Network Cable STP, Solid, In-Wall Rated (CMG), 550MHz, 24AWG - Gray
IP PoE 1080P HD IP66 Waterproof Infrared Bullet Camera with 4mm Fixed Lens
This outdoor bullet camera is designed to connect to your Network Video Recorder or IP Based CCTV System. Monoprice's full featured video monitoring system is compatible with PCs running Microsoft Windows® XP or later (32- or 64-bit) and Apple Mac® computers running OS X®. The camera connects to the network using either Cat5e/Cat6 cabling or wirelessly over a Wi-Fi® connection. It supports Power over Ethernet (PoE), so there is no need for a separate power adapter when using a wired PoE connection.
This camera features a 4mm F2.0 Fixed Lens, which provides a viewing angle of 85°. It utilizes a 1/2.8" progressive scan CMOS sensor with a maximum resolution of 1920 x 1080 (2 megapixels) and bit rates from 32kbps ~ 8Mbps. It can capture color images in light conditions as low as 0.028 lux (with AGC on) and black and white images in 0 lux conditions to distances up to 98 feet (30 meters) using the built in infrared (IR) LEDs.

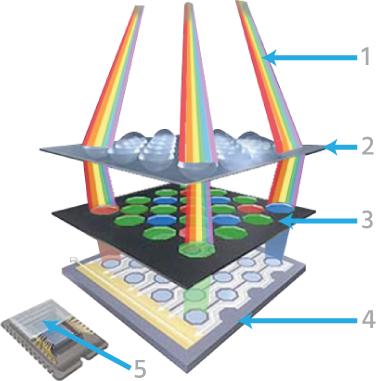

1. Incoming visible light
2. Visible light passes through the IR-blocking filter
3. Color filters control the color of light reaching the sensors
4. Color blind sensors convert the light into electronic signals
5. Millions of individual light sensors
Complementary Metal-oxide Semiconductor: The CMOS image sensor utilizes newer technologies to better record HD resolutions and fast-moving activities.

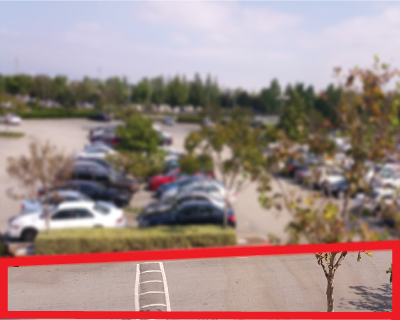

Region of Interest: ROI allows you to configure one or more areas of a given camera's field of view for additional scrutiny. For each defined ROI, the camera will create a seperate video substream, which can be viewed or captured seperately from the main Field of View. The effect is to provide multiple views and capture feeds using only a single camera.

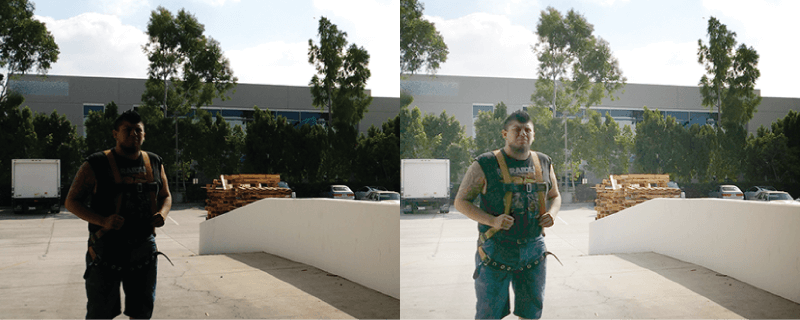

Back Light Compensation: BLC reduces silhouetting, so you can see foreground subjects clearly when positioned in front of a bright background. The BLC circuitry adjusts the exposure so that the subject is properly illuminated and clearly visible.

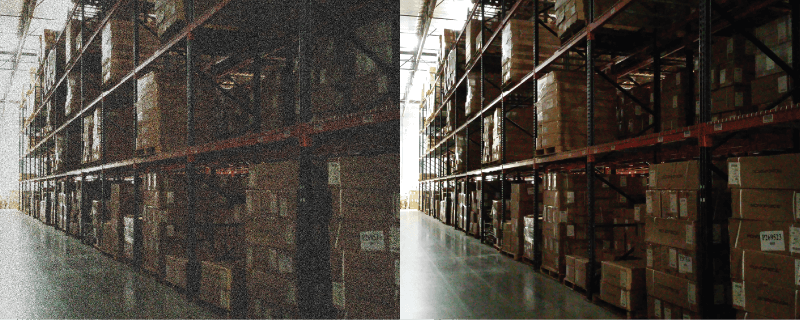

Digital Noise Reduction: Image noise can come from a variety of sources, but is most often associated with low-light conditions, resulting in a "grainy" image. This noise not only interferes with the ability to clearly distinguish individual image elements, but also increases the storage space required for any given image. The DNR circuitry uses a digital comb filter to remove this noise.

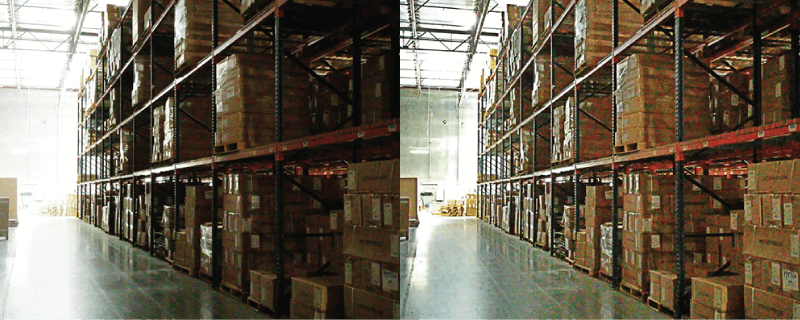

Wide Dynamic Range: WDR produces clearer images and more even lighting in views that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light. WDR improves on the ability of Back Light Compensation (BLC) and High Light Compensation (HLC) by independently adjusting the intensity of different portions of the image to produce proper lighting intensity across the entire image.
This camera features exception handling for hard drive full, hard drive error, network disconnected, IP address conflict, and illegal login conditions. It can respond to alarms in a number of ways, including sending an email, contacting the surveillance center, and uploading a recording to an ftp site.
- 1920 x 1080 (2 megapixels) maximum resolution
- Supports both wireless and PoE Ethernet connections
- Live view using browser or dedicated software (included)
- Supports Region of Interest (ROI), Back Light Compensation (BLC), High Light Compensation (HLC), 3D Dynamic Noise Reduction (3D DNR), Wide Dynamic Range (WDR), and White Balance image enhancement features
- Supports dual streaming
- Supports custom text overlays
- Includes Privacy Masking and Line Crossing Detection
- Can control other devices using an RS-232 connection
- Supports stream authentication and anonymous viewing options
- IP66 ingress protection rating
Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.
Quality at a Fair Price
Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.
Service & Support
You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!
|Image Sensor||1/2.8" Progressive Scan CMOS|
|Min. Illumination||0.028Lux @ (F2.0, AGC ON), 0 Lux with IR|
|Shutter Speeds||1/25 (1/30) ~ 1/100,000 seconds|
|Lens||4mm @ F2.0|
|Angle of View||85°|
|Day & Night||IR cut filter with auto switch|
|Digital Noise Reduction||3D DNR|
|Wide Dynamic Range||Digital WDR|
|Video Compression||H.264 / MJPEG|
|Video Bit Rates||32 kbps ~ 8 Mbps|
|Max. Resolution||1920 x 1080|
50Hz: 25fps - 1920x1080 / 1280x960 / 1280x720
60Hz: 30fps - 1920x1080 / 1280x960 / 1280x720
|Image Settings||Rotate mode, Saturation, Brightness, Contrast, sharpness adjustable through client software or web browser|
|BLC||Yes, zone configurable|
|Network Storage||NAS (supports NFS,SMB/CIFS)|
|Alarm Triggers||Intrusion detection, line crossing detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception|
|Protocols||TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour|
|General Functionalities||One key reset, flash prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access|
|System Compatibility||ONVIF, PSIA, CGI, ISAPI|
|Communications Interface||1 RJ45 10/100Mbps Ethernet interface|
|Operating Temperature||-22 ~ +140°F (-30 ~ +60°C)|
|Operating Humidity||95% or less (non-condensing)|
|Power Supply||12 VDC ±10% , PoE (802.3af)|
|Power Consumption||Max. 5W (Max. 7W with IR cut filter on)|
|IR Range||Up to 30 meters|

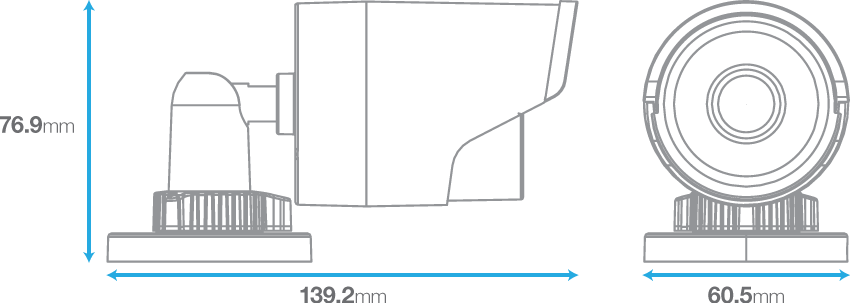

|Dimensions||2.4" x 3.0" x 5.5" (60 x 77 x 139 mm)|
|Weight||17.6 oz. (500g)|
Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.
Wi-Fi® is a registered trademark of Wi-Fi Alliance.
Questions and Answers
PROS: Awesome picture
Easy to use
CONS: Does not work with NAS
Cumbersome to setup
