    Unity Wall Mount 35-watt Stereo Power Amp with Digital Input and Subwoofer Out
    Product # 18512
    $94.41 $179.99 On Sale 47.55% OFF
    In Stock This item should ship tomorrow (1/22/2018) if ordered within 1 hour 27 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $94.41 $179.99
    Qty: 2-9 $94.41 $179.99
    Qty: 10-19 $94.41 $179.99
    Qty: 20-49 $94.41 $169.99
    Qty: 50+ $94.41 $169.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

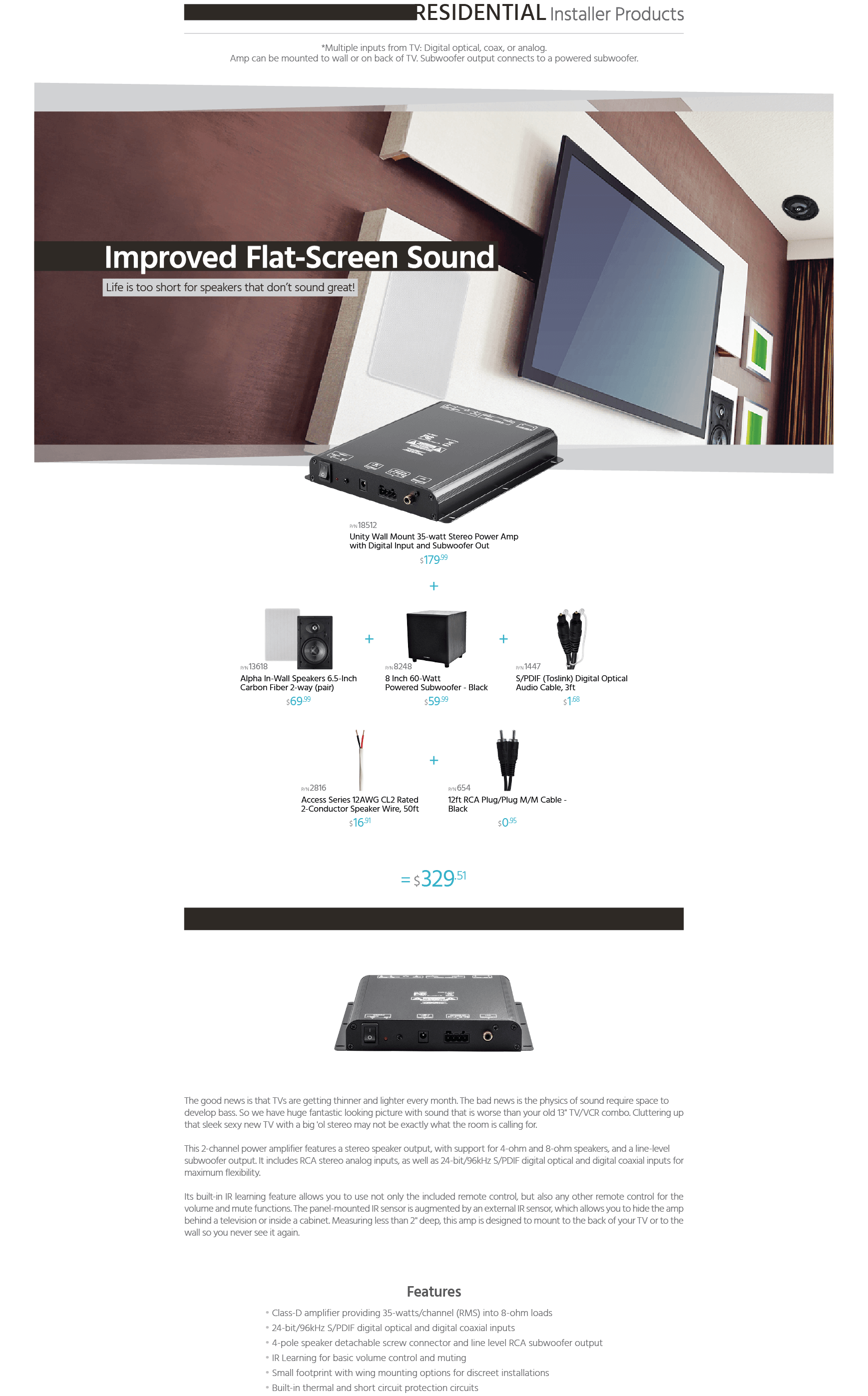

    Unity Wall Mount 35-watt Stereo Power Amp with Digital Input and Subwoofer Out

    The good news is that TVs are getting thinner and lighter every month. The bad news is the physics of sound require space to develop bass. So we have huge fantastic looking picture with sound that is worse than your old 13" TV/VCR combo. Cluttering up that sleek sexy new TV with a big 'ol stereo may not be exactly what the room is calling for.

    This 2-channel power amplifier features a stereo speaker output, with support for 4-ohm and 8-ohm speakers, and a line-level subwoofer output. It includes RCA stereo analog inputs, as well as 24-bit/96kHz S/PDIF digital optical and digital coaxial inputs for maximum flexibility.

    Its built-in IR learning feature allows you to use not only the included remote control, but also any other remote control for the volume and mute functions. The panel-mounted IR sensor is augmented by an external IR sensor, which allows you to hide the amp behind a television or inside a cabinet. Measuring less than 2" deep, this amp is designed to mount to the back of your TV or to the wall so you never see it again.


    • Class-D amplifier providing 35-watts/channel (RMS) into 8-ohm loads
    • 24-bit/96kHz S/PDIF digital optical and digital coaxial inputs
    • 4-pole speaker detachable screw connector and line level RCA subwoofer output
    • IR Learning for basic volume control and muting
    • Small footprint with wing mounting options for discreet installations
    • Built-in thermal and short circuit protection circuits

    Audio Bundle

    Model 18512
    Audio Inputs Stereo analog RCA, S/PDIF digital optical, and S/PDIF digital coaxial
    # of Output Channels 2.1 (stereo + subwoofer)
    Output Power 35 watts/channel into 8 ohms
    Minimum Output Impedance 4 ohms
    Frequency Response 20 Hz ~ 20 kHz ±3dB
    Signal-to-Noise Ratio > 90dB (1kHz)
    THD+N < 1%
    Input Impedance > 22 ohms
    Subwoofer Low-Pass Filter Frequency 120Hz
    Input Power 24 VDC, 3.75A
    AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz, 1.5A
    Dimensions 7.2" x 8..5" x 1.2" (184 x 216 x 30 mm)
    Weight 1.5 lbs. (0.7 kg)

    Support Files:

    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 9 answers
    Does this amp turn on and off automatically?
    Daniel N on Apr 15, 2017
    BEST ANSWER: No, it has an on/off rocker switch, but no automatic power option.
    How does this change inputs?
    Bryan H on Feb 15, 2017
    BEST ANSWER: The optical input has priority. If unplugged then coax then analog. There is no switching between inputs. It a discreet higher powered high quality sound option for the thin sounding speakers shipping in new displays.
    Which cable/harness do I need to plug into this amp from the speakers?
    Daniel B on Aug 22, 2017
    BEST ANSWER: Thank you for your interest in this amplifier. The Unity amp is shipped with a Euro Connector that will accept bare speaker wire up to 14AWG.
    Can the subwoofer crossover frequency be adjusted?
    Brian J on Apr 12, 2017
    BEST ANSWER: Cross over is set at 120Hz. It is not adjustable.
    How many watts into 4 Ohms?
    Geoffrey F on Jan 17, 2018
    BEST ANSWER: The user's manual that came with my amp does not give an output rating for 4 ohms.
    4.7 / 5.0
    3 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    Super handy
    The amp is super, but the instructions are incorrect. I send one back because I couldn't get it to work properly. It has a very handy IR learner function for volume+, volume -, and mute, but if you try to program it as described, it won,t work. When I noticed the second unit behaving exactly like the first, I started to experiment. Here is the deal: To program IR commands press the IR learner button until the red indicator LED starts blinking. Hold the remote in front of the learner window and press Vol+, The indicator light will blink twice, NOW YOU MUST PRESS THE IR LEARNER BUTTON ONCE OR IT WON'T WORK! This critical step is omitted in the instructions. Once I realized this, everything was fine. The amp sounds great, and runs very cool. Wrong instructions takes away from what should have been five stars.
    August 5, 2017
    5 months ago
    Great little amp for TV installs.
    Used this for a conference room TV replacement in a room with external speakers and a powered subwoofer. The old amp was a household HDMI switching amplifier. There were constant issue with the sound. With this little amp, I can take the optical out from the TV and power the speakers and subwoofer. Best part is it has a IR learning function, and a remote IR sensor, so I can use the volume control from the TV remote to control the amp volume and don't need another remote. Amp itself is mounted inside a cabinet under the TV, but is designed to wall mount too.

    The first one of these I got had an issue where the volume wouldn't change, and was stuck on very, very low. I was irritated, but Monoprice RMA'd it, I had the new one in a week and it works great.
    May 1, 2017
    9 months ago
    Good sound for the money
    I bought three of these and installation was easy and you can also program Apple TV 4th generation remote to control volume so you don't need to use additional remote. Sound quality is pretty good.
    July 18, 2017
    7 months ago
