    Blackbird 4K HDBaseT Wall Plate Scaler Transmitter, 2 Gang, Decora, HDMI, VGA, PoC, Bi-Directional RS232

    This Blackbird™ HDBaseT™ Wall Plate Transmitter mounts into a double-ganged wall box and features both HDMI® and VGA video, plus analog audio for the VGA. It can transmit video at resolutions up to 4K@30Hz, including 1080p 3D video. It can extend video, audio, and RS232 data to distances up to 196 feet (60 meters) over a single Cat6 Ethernet cable. It features a 10.2 Gbps bandwidth and supports the Power over Cable (PoC) feature, which allows it to be powered by a receiver over the Cat6 cable.

    Features:

    • Selectable between HDMI and VGA with analog audio inputs
    • Auto selection option between HDMI and VGA inputs
    • Provides up to 10.2 Gbps bandwidth
    • Supports HDMI resolutions up to 4K@30Hz, including 1080p 3D video and VGA resolutions up to 1920x1200
    • Built-in scaler allows the video to match the native resolution of a connected display
    • Fully compliant with the HDMI version 1.4 specification
    • Supports the Power over Cable (PoC) feature, allowing it to be powered by the receiver
    • HDCP compliant
    • USB port for firmware updates

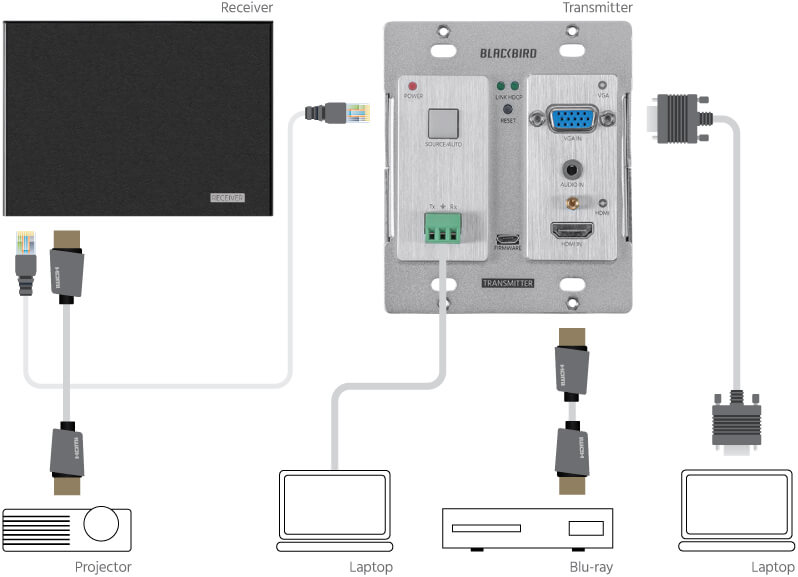

    Sample Connection Diagram

    Connection Diagram


    Model 21816
    Transmission Protocol HDBaseT™
    Video Inputs 1x HDMI®, 1x VGA
    Audio Input 3.5mm TRS stereo
    Maximum Transmission Distance 1080p: up to 196 feet (60 meters)
    4K: up to 131 feet (40 meters)
    Maximum Video Resolution VGA: up to 1920x1200
    HDMI®: up to 4K@30Hz
    Maximum Bandwidth 10.2 Gbps
    HDMI Version version 1.4 with HDCP support
    Audio Frequency Response 20 Hz ~ 20 kHz
    Audio Impedance > 10 ohms
    Signal-to-Noise Ratio > 85dB @ 20 Hz ~ 20 kHz
    Power Source 12 VDC, 2A, 9.6 watts or PoC
    Operating Temperature +14 ~ +104°F (-10 ~ +40°C)
    Operating Humidity 10 ~ 90% RH, non-condensing
    Dimensions 4.1" x 3.5" x 1.7" (105 x 89 x 44 mm)
    Weight 10.2 oz. (290g)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 3 answers
    Which Receivers can power this transmitter with PoE/PoC?
    Timothy R on Jun 16, 2017
    BEST ANSWER: Thank you for your question. You would be able to use any HDBaseT Receiver that will support PoE/PoC. We have the matching receiver, Product # 21817, that will power it just fine.

    Feel free to reach out to our technical support team should you have any questions here:

    www.monoprice.com/help?pn=contact
    Will receiver (#21609) work with item #21875 (switcher) and #21816 (wall plate transmitter)?
    James B on Sep 1, 2017
    Will this receiver (#21609) work with item #21875 (switcher) and #21816 (wall plate transmitter)?
    James B on Sep 1, 2017
