    Monoprice Entegrade Series Modular Video Wall System Bracket with Push-to-Pop-Out - For TVs 40in to 70in, Max Weight 110lbs, VESA Patterns Up to 900x600, Security Brackets, UL Certified
    Product # 16102
    $167.99
    In Stock This item should ship tomorrow (9/24/2018) if ordered within 3 hours 7 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $167.99
    Qty: 2-9 $166.31
    Qty: 10-19 $164.63
    Qty: 20-49 $162.95
    Qty: 50+ $159.59

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    ADVERTISEMENT

    Model 16102

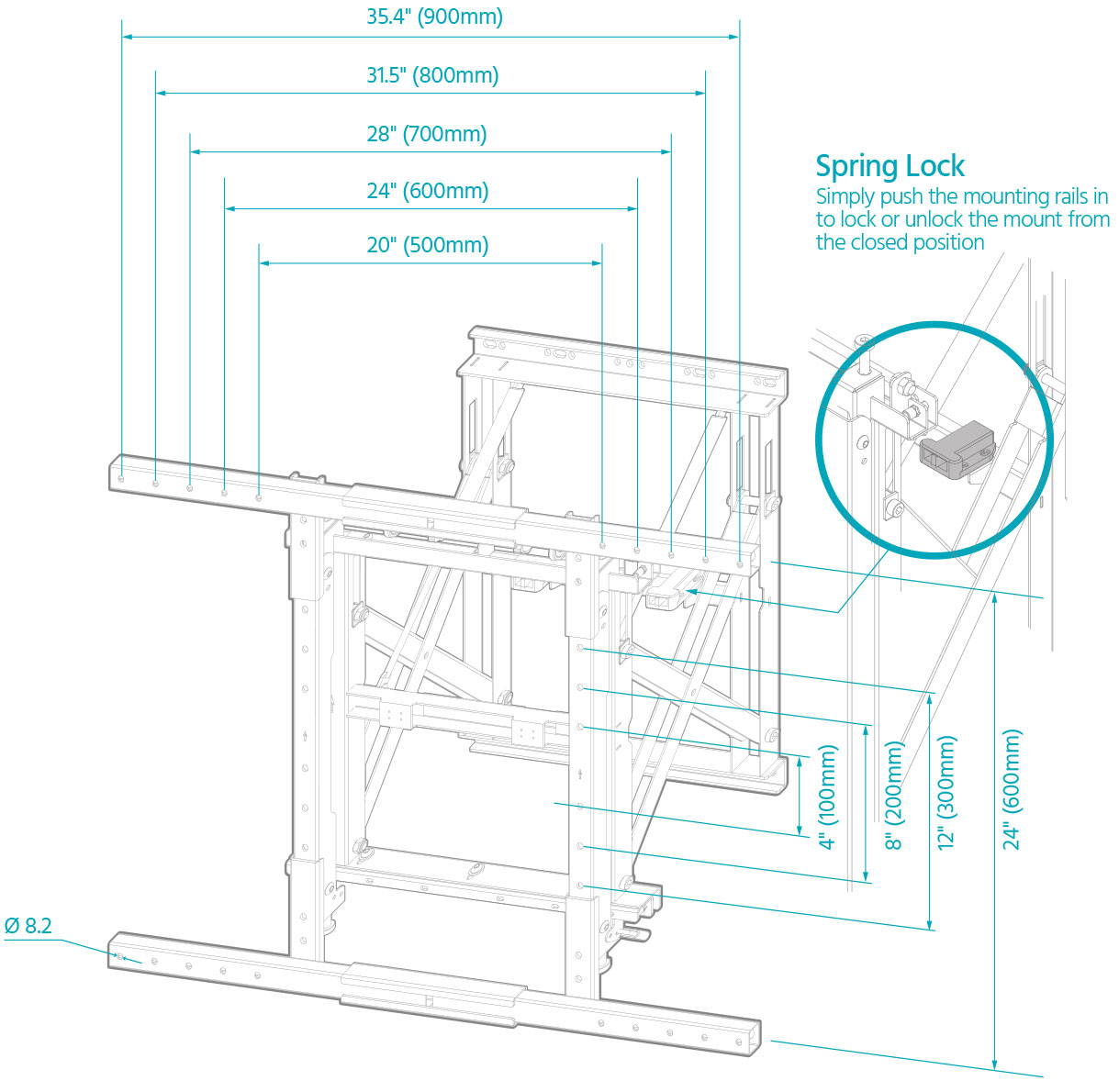

    Supported Display Sizes 40" ~ 70"
    Maximum Weight Capacity 110 lbs. (50 kg)
    Minimum VESA Size 100 x 100
    Maximum VESA Size 900 x 600
    Dimensions 20.7" x 20.1" (525 x 510 mm)
    Weight 19.8 lbs. (9 kg)



    Support Files:



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 2 answers
    How far from the wall is the mount in the fully extended position?
    A shopper on Oct 26, 2017
    Does this mount have adjustability to move the screens up/down left/right when the screen is mounted or is it just static and based on how you mount it to the wall?
    A shopper on May 31, 2017
    BEST ANSWER: Hi Shopper, Thank you for asking. This mount features a micro adjustment system that will allow for you to be able to adjust the position in eight different directions. It would be recommended to try and install the units as evenly as possible, but is there are irregularities on the wall or mounting location, you will be able to easily compensate to make sure that all of the displays line up perfectly. Thanks again for reaching out.
    Does this mount work for displays in the portrait orientation?
    A shopper on Jan 25, 2018
    What size TV will this mount support (TV weight and size please)?
    A shopper on Jul 18, 2017
    BEST ANSWER: Hi Shopper, The mount supports displays between 40" and 70" that can weigh up to 110lbs.
    Is this for a single TV? If so, why is it called a modular wall system? I'm looking for a "quick-release" TV mount for a 70" LED TV.
    Randy T on Aug 18, 2017
    1.0 / 5.0
    1 Review
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    0
    0
    0
    0
    1
    Plastic Locks, Didn't like this bracket at all... Needs a lot of improvements
    I bought 12 brackets to make 3 2X2 video walls thinking it was going to be good having a pop out bracket but not, al least not with this bracket. We installed the brackets and we had a problem with the lock, it's a plastic lock and we got about 3 brackets with broken locks, we installed only 4 TVs creating 1 video wall amd didn;t work well, the company needs to work on stronger locks, also the adjustments needs to be done with an allan wrench, hopefully the will put plastic knobs for faster adjustments, also when the TVs were installed with the minimum touch the bracket was popping out.
    DEFFENELLY NEEDS A LOT OF IMPROVEMENTS.
    Now I'm going to process a refund and buy different brackets for this job.
    April 18, 2018
    Purchased
