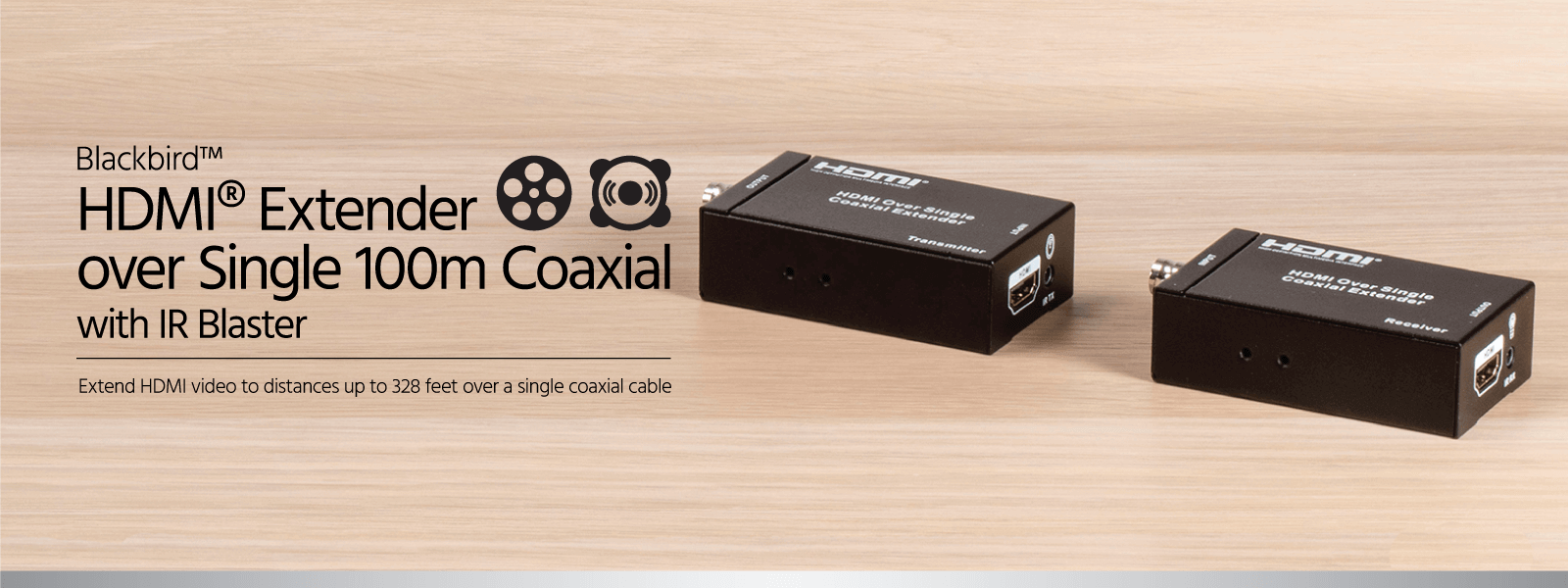

    Monoprice Blackbird HDMI Extender over Single 100m Coaxial with Bi-Directional IR Support
    Product # 16046
    $139.99
    Loop Out:
    No Yes
    In Stock This item should ship today (7/19/2018) if ordered within 7 hours 7 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $139.99
    Qty: 2-9 $138.59
    Qty: 10-19 $137.19
    Qty: 20-49 $135.79
    Qty: 50+ $132.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    ADVERTISEMENT

    Model 16046
    Maximum HDMI® Resolution 1920 x 1080p @ 60Hz
    Bandwidth 2.25Gbps (6.75Gbps total)
    Deep Color Support Up to 12-bits/channel (36 bits total)
    HDCP Version 1.1
    Maximum Transmission Distance 328 feet (100 meters)

    Operating Temperature +32 ~ +104°F (0 ~ +40°F)
    Storage Temperature -4 ~ +140°F (-20 ~ +60°C)
    Operating Humidity 20 ~ 90% RH, non-condensing
    Dimensions (each) 3.1" x 1.6" x 1.0" (80 x 41 x 25 mm)
    Weight (each) 5.3 oz. (150g)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-ray Disc Association.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 13 questions Browse 13 questions and 12 answers
    will it transmit through coax 75 ohm splitters?
    A shopper on Jan 6, 2017
    BEST ANSWER: Hello, thank you for your question. Unfortunately this unit will not function with a 75 ohm splitter. I apologize for the inconvenience.
    Will it work with RG59 for shorter runs?

    My house was built in 1989. It was pre-wired for cable with two outlets in most rooms and a distributed center at the cable service entrance, which I do not use. (We have dish.) I'm pretty sure the existing wiring is RG59 and NOT RG6.
    New User U on Jan 15, 2017
    BEST ANSWER: Hello, RG6 cabling is highly recommended to get performance up to 100m. RG59 will work at a shorter distance, but the maximum distance is not established.

    Pre-terminated BNC cables (like the Monoprice Viper Series) are highly recommend for the best performance.

    I hope this information is useful. Thanks!
    I am trying to figure out how to run our TV Cable from our house to our barn which is about 300 feet from the house. I'm not concerned with fancy features like IR, just want to be able to watch football games while I work in my shop. Is this what I need (in addition to the RG-6 coaxial cable with BNC connectors)?
    Kerre K on Sep 1, 2017
    BEST ANSWER: Yes, this model allows you to change channels as well.
    I have used it in the past and it works great.
    Standard coax cable uses F Connectors. Would there be any issue using an F connector to BNC adapter at each end? Also does this item INCLUDE the IR sender and receiver eye? I do not see it in the pictures.
    Keith S on Mar 7, 2017
    BEST ANSWER: For your second question, yes the IR eye and emitter come with the units.
    I am using two of these and would like to combine the IR outputs to drive one IR emitter. Can I use a 3.5mm stereo y-cord plugged into the two modules and plug the IR emitter into that instead of putting both IR emitters on my DTV reciever? Also would like to have IR control of a DTV box and BD player, can the output of one box drive two IR emitters?
    Bob L M on Nov 20, 2017
    BEST ANSWER: Hello Bob- No. You cannot use a 3.5mm stereo y-cord to split Ir emitter into one. If you could use a 3.5mm stereo y-cord they would cancel each other out anyway.
    you will have to place both emitters on DTV receiver. You can use a dual output emitter, 1x emitter on DTV receiver and 1x on BD player
    I purchased this unit through Amazon. Upon installation, it worked fine, both video and audio, great in fact. However, after a 5 second power outage during a recent storm, I have lost the audio on the remote TV. I've unplugged and replugged both units to no avail. The feed is from the HMDI output from the cable box, which is split, one end to the TV, one end to the adapter.
    Everything else still works fine. Any suggestions?
    Roy W on Sep 3, 2017
    BEST ANSWER: did you try removing the 1x2 hdmi splitter from output of cable box and going straight into cable box?
    Does this model support one to many? Can I buy a second receiver?
    New User U on May 17, 2018
    How do I use the bi-directional IR feature? I want to control my TV from my equipment. Swapping the IR Receiver and Transmitter didn’t seem to work. Can I use my own IR emitter?
    Peter C on Dec 17, 2017
    5.0 / 5.0
    5 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    5
    0
    0
    0
    0
    Does what is says...
    This device worked flawlessly right out of the box. The only hiccup prior to installation was I missed the BNC connector requirements. These are easily obtained online or at an electronics store but nonetheless is odd for the given use case. Most home cable connections are Type F so you will need a Type F female to male BNC plug.
    May 3, 2017
    Blackbird HDMI extender over single Coax is DYNOMITE!
    The Blackbird HDMI extender over a single coax worked like a charm. Easy to install, compact and durable. This piece of equipment is priced right and it works! recommend to anyone who needs HDMI into a display but does not have a Cat cable or HDMI cable in place. works on 1x single coaxial cable
    December 12, 2017
    Purchased
    8 months ago
