    Monoprice 300Mbps Wireless N High Power Outdoor AP Router
    Product # 16140
    In Stock This item should ship today (9/26/2018) if ordered within 5 hours 33 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $61.86
    Qty: 2-9 $60.62
    Qty: 10-19 $59.39
    Qty: 20-49 $58.15
    Qty: 50+ $55.67

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business


    Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Signal Rate Up to 300Mbps
    Frequency Range 2.4-2.4835GHz
    Transmit Power <30dBm
    Receive Sensitivity -99dBm (Maximum)
    Data Transfer Rates 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
    20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps)
    801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps)
    802.11b: (11Mbps, 5.5Mbps, 2Mbps, 1Mbps)

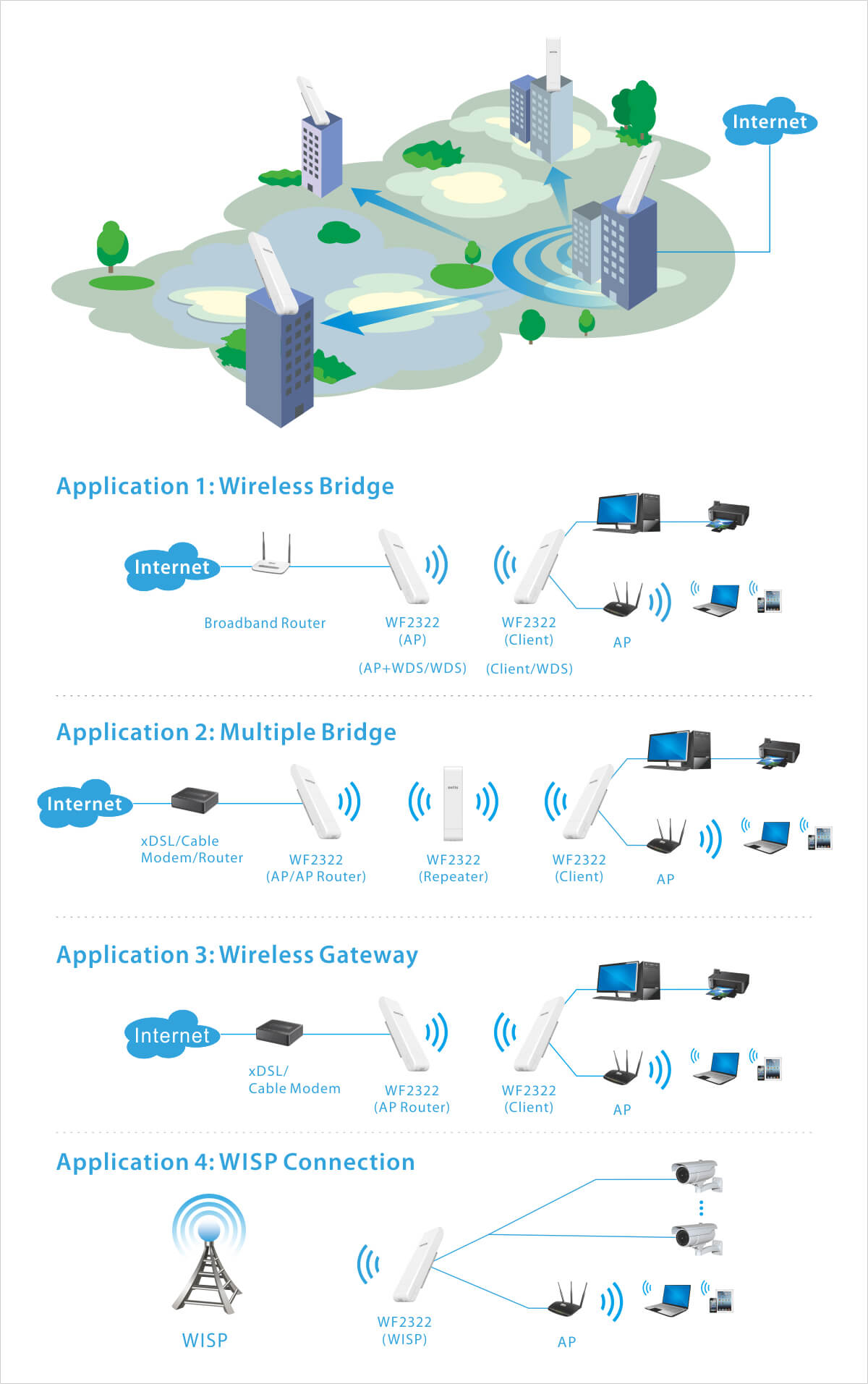

    Wireless Modes AP, Router, WISP, AP + Client, AP + Repeater, WISP + Client, WISP+ Repeater
    Wireless Security 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES)
    SSID Broadcast Enable/Disable
    Wireless MAC Filtering
    Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
    Interface 2x 10/100Mbps LAN Port
    LED Indicators Power, WLAN, LAN-Main, LAN-Secondary, Wireless Signal 1-4
    Buttons Reset
    Antenna 1x 10dBi directional Antenna, Dual-polarity
    Power Supply Proprietary PoE, DC 24V/0.5A
    WAN Type DHCP, PPPoE, Static IP, Russia PPPoE, Unifi PPPoE, L2TP/Russia L2TP, PPTP/Russia PPTP, WISP
    Port Forwarding Virtual Servers, UPnP, DMZ
    QoS Bandwidth Control
    Access Control MAC Filtering
    Others Dynamic DNS, PSE
    Certifications FCC, CE
    Operation Temperature -30 ~ +70°C (estimated)
    Storage Temperature -30 ~ +80°C (estimated)
    Humidity 0 ~ 90% non-condensing
    ESD Conductive 15kV
    ESD Air 10kV
    Package Contents 1x WF2322
    1x 24V/500mA Passive PoE Power Adapter
    1x AC Power Cord
    2x Cable Ties
    1x Quick Installation Guide

    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 4 questions Browse 4 questions and 3 answers
    Do I need to of these to extend my wifi service to a workshop approx 150 - 200 ft from my wireless, indoor router ?
    A shopper on Aug 31, 2017
    Will this set up as an access point without using POE or any cables ?
    Mark E on Mar 30, 2018
    BEST ANSWER: Mine is set up to receive the signal of my router inside the house and then boost the signal from outside my house to make a better reception both outside and to other parts of my home. No cable connection needed other than electric power. It defiantly helped to strengthen the signal to parts of my home which had a week signal before. Instructions are not to great. I am not gadget wise and finally had to get my adult son to get it working in the right configuration for me. Seems good so far.
    Would this work if I just wanted to let my phone (while outside) connect to the router inside my house?
    A shopper on Mar 3, 2017
    BEST ANSWER: Thank you for your question. Yes, you would be able to set this up as an access point to allow your phone to be able to connect to your network while outside.
    Got this a while ago to bring a wifi signal from one building to another. The source end is into the main router and it seems we get an ssid from the router. The receiving router is about 250 ft. away and is plugged into a netis wireless router. Although we can still pick up the source signal at this location, we can't get the signal from the desitination router" As others have mentioned, documentation is not adequate and still hasn't been able to figure this out. Anyone have step by step instructions for my situation?
    Terry M on Dec 10, 2016
    BEST ANSWER: Hello, thank you for your question. In order to better assist you, please feel free to contact us at tech@monoprice.com with a detailed question and our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    3.7 / 5.0
    3 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    For the price!
    Let me start by saying I was going to rate it a 4, but with the price of this device, I know overall it warrants a 5 star rating. I have a few of these set up now and they are being used in an industrial complex. They are reaching about a 4 city block range with a few trees and other buildings between. ALL 3 devices (mounted at roof top or slightly higher) are getting 100% signal strength. I will most likely be turning down the power because I have no idea how far I am broadcasting the signal.

    PROS: • Very Very flexible. Lots of configuration options
    • Powerful enough to cover within our industrial complex. Somewhere I found it has a 6 mile range. MAYBE that is true with no interference, but for sending signals inside an industrial complex it is awesome!
    • Appears to be well made.
    • Comes with POE that has a remote reset. So if something weird happens with the programming, you can factory default it and reprogram it without having to pull the device down from it's mounting point.
    • Price!!! When I had to add three more buildings to our network environment I figured I would try these over our existing devices that cost almost 4x the price. So far I'm extremely happy and the owners of the company can't believe the deal I found.

    CONS: • Documentation leave A LOT to be desired! If you are a novice and are trying to do anything beyond basic configuration you will have challenges!!! I know it can do more than I have it doing, but I have no idea how to accomplish some it's abilities because the documentation is not clear. (Don't get me wrong, there is documentation, but not sure who it was written for.
    • Only the power cord and POE were included (cable-wise). Make sure you have network cables.
    • If the POE goes out I am not sure where to find a replacement or what power ratings. I do not recall seeing that in the documentation.
    • Plan on spending some time tinkering. While these are awesome devices, I do not believe they are for novices.
    August 29, 2016
    Too complicated, documentation useless
    I simply wanted to extend the range of my wifi to get a better connection to some wifi cameras approx 300 feet from my house router. Too confusing for me. Returning, still searching.
    April 16, 2018
    What a find - WISP is what he needed!
    My dad has a vacation condo in FL that they may visit four times a year for about a total of six weeks a year. They hated having to pay for internet services when they were not in FL (they already pay back at their main home). I knew there had to be a way to utilize the nearby public Cable WiFi signal and rebroadcast it in their condo. This device was my third attempt and as the saying goes, the third time is the charm!!
    They are able to grab the Cable WiFi signal using the WISP settings and then rebroadcast the signal as a different SSID inside the condo. They had to login using their Cable login info on one device and then all the other ones started working. WOW I knew it was possible, but after two long drawn out failed different attempts, this was (relatively) so easy!
    Granted it is public WiFi, but so far the slowest signal strength they get is about 4mb but have gotten in excess of 13mb.
    So the one time price of this device (and a few network cables) was a little more than the every month price of internet service they would have had to pay for a second service.

    PROS: Low Price
    Ability to grab an open public WiFi signal and basically rebroadcast it as a new SSID with a much higher signal strength.
    It seems like there are a lot of configurable options.
    Has two network ports at the bottom. Supposed to be good (not sure because the documentation is lacking).
    My dad is ecstatic he doesn't have to go to the public library anymore.
    Price (yes, I know I said that, but this really is an awesome find and eliminated a reoccurring monthly expense that was to close to the same price as the one time cost of the device!)

    CONS: Documentation looked like it was good, but in reality, it was not very helpful.
    August 29, 2016
