    4-Port DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub
    Product # 21970
    $79.99
    In Stock This item should ship today (11/17/2017) if ordered within 2 hours 50 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $79.99
    Qty: 2-9 $78.93
    Qty: 10-19 $77.68
    Qty: 20-49 $76.43
    Qty: 50+ $74.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    4-Port DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub

    Multi-Stream Transport Hub


    This 4-Port DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub enables three different display modes on up to four monitors connected to a single DisplayPort output. You can connect a single display at resolutions up to 4K@60Hz to mirror your computer's desktop. Add a second monitor and the hub will automatically extend the image to span the two displays at resolutions up to 4K@30Hz for each display. Connect four monitors and the hub automatically adjusts to produce a 2x2 "video wall", with the single image spanning the four displays at resolutions up to 1080p@60Hz for each monitor. This hub is ideal for digital signage and large video displays in schools, churches, conference rooms, at trade shows, and in retail outlets.




    Multi-Stream Transport Hub

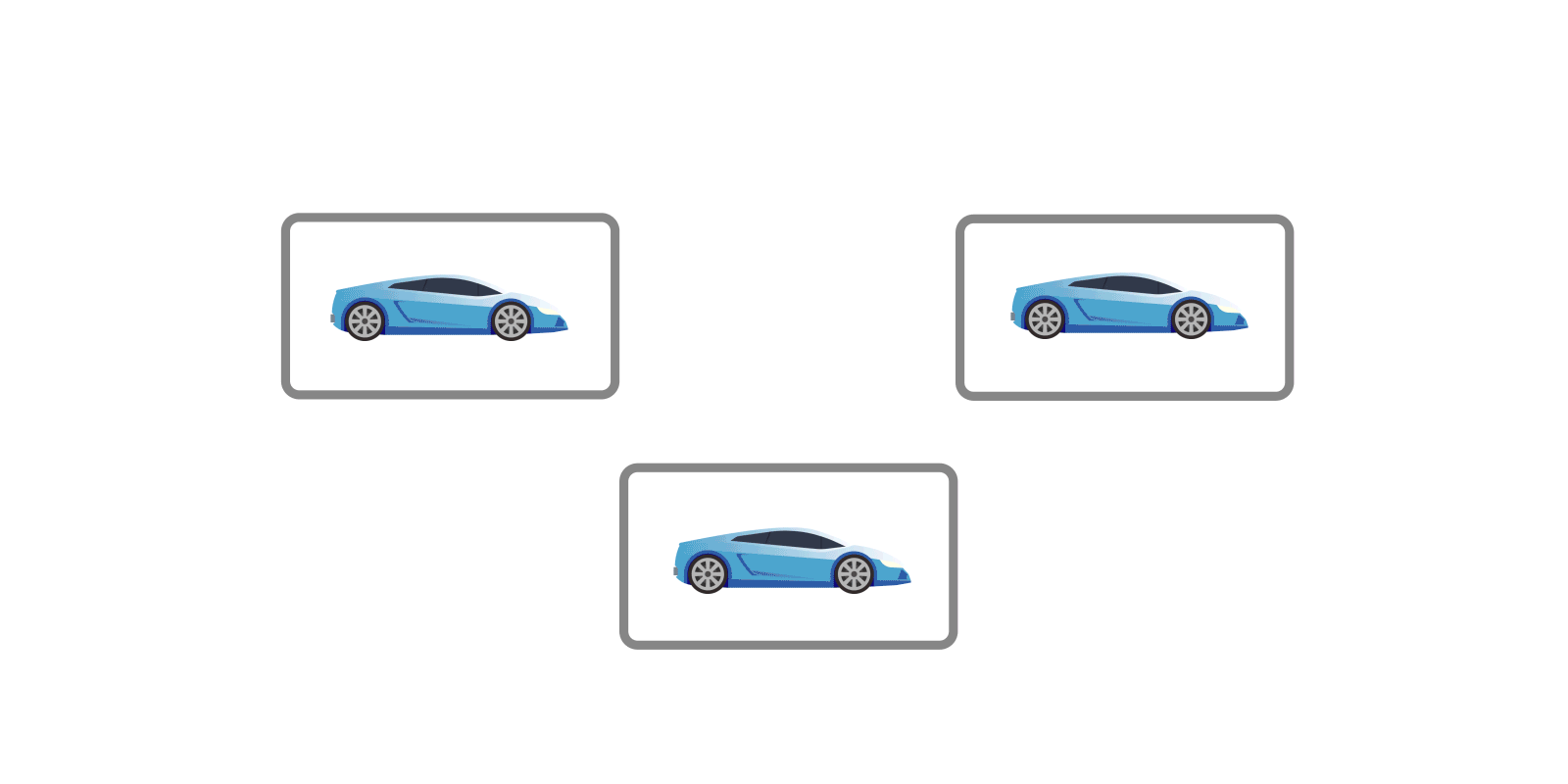

    Duplicate Mode

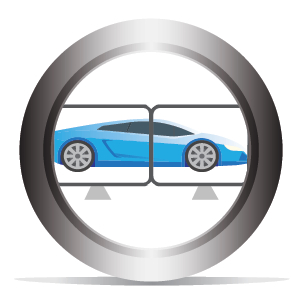

    Extended Desktop Mode
    Video Wall Mode

    Multi-Stream Transport (MST) Hub
    Duplicate Mode
    Extended Desktop Mode
    Video Wall Mode


    Multi-Stream Transport (MST) Hub: An MST Hub enables three different display modes on up to four monitors connected to a single DisplayPort output.

    Duplicate Mode: You can connect a single display at resolutions up to 4K@60Hz to mirror your computer's desktop.

    Extended Desktop Mode: Connect two monitors and the hub will automatically extend the image to span the two displays at resolutions up to 4K@30Hz for each display.

    Video Wall Mode: Connect four monitors and the hub automatically adjusts to produce a 2x2 "video wall", with the single image spanning the four displays at resolutions up to 1080p@60Hz for each monitor.






    Master the Multi-Stream

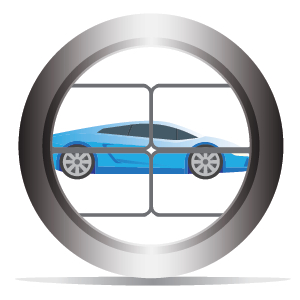

    Video Wall Mode




    Ideal for Digital Signage

    Perfect for creating a video wall for use in schools, churches, conference
    rooms, at trade shows, and in retail outlets.


    Multi-Stream Transport Hub

    Multi-Stream Transport Hub




    Connect up to 4 Displays at Full 1080p at 60Hz



    Multi-Stream Transport Hub





    1 Year Warranty

    Buy with Confidence

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!








    Support Files:



    Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.

    NVIDIA® is a registered trademark of NVIDIA corporation.

    Intel® is a trademark of Intel Corporation or it's subsidiaries in the U.S. and/or other countries.



    Model 21970
    Type Multi-Stream Transport (MST) Hub
    Inputs 1x DisplayPort 1.2
    Outputs 4x DisplayPort 1.2
    Maximum Bandwitdth 21.6 Gbps (total)
    Maximum Video Resolution 1 Display: 4K@60Hz
    2 Displays: 4K@30Hz (each)
    3 or 4 Displays: 1080p@60Hz (each)
    Cable Length 11.8" (300mm)
    Dimensions 5.6" x 2.6" x 0.9" (142 x 66 x 22 mm)
    System Requirements Computer with DisplayPort 1.2 output*
    Up to four monitors with DisplayPort input


    *Note that Mac® OS X® does not support MST on NVIDIA® or Intel® GPUs.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 2 questions Browse 2 questions
    Can I connect three 4 Port MST Hubs to three different Display Port out puts on a single GPU card to give me 12 monitors to use in the Duplicate and Extended Desktop Mode?
    New User U on Nov 12, 2017
    I would like to connect my 2016 MacBook Pro with Touchbar in wall made. I thought MacOs Sierra doesn't support MST. Will this work on my MacBook Pro? Thanks.
    A shopper on Nov 12, 2017
