Blackbird 4K HDBaseT 1x4 Splitter Extender with PoC, EDID, IR, RS232, and 4 Receivers
    Product # 21793
    $699.99
    Native Resolution: 4K
    1080P 4K
    In Stock This item will ship on 9/25/2017 if ordered within 1 days 2 hours 42 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $699.99
    Qty: 2-9 $689.99
    Qty: 10-19 $679.99
    Qty: 20-49 $669.99
    Qty: 50+ $649.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    Blackbird 4K HDBaseT 1x4 Splitter Extender with PoC, EDID, IR, RS232, and 4 Receivers

    Monoprice's Blackbird 4K HDBaseT™ 1x4 Splitter/Extender is a great tool for splitting and extending HDMI® signals to distances up to 60 meters over a single Cat6 cable. It uses the HDBaseT transmission protocol and supports the Power over Cable (PoC) feature, which means that the receivers can be installed in locations without access to AC power. It supports HDMI resolutions up to 4K and can extend IR signals to control the source device from the remote locations. It also includes support for RS232 computer control.

    Features:

    • Supports resolutions up to 4K
    • Transmits 4K video to distances up to 131 feet (40 meters)
    • Transmits 1080p video to distances up to 196 feet (60 meters)
    • Supports the Power over Cable (PoC) feature
    • Supports 5 types of EDID control
    • Can be cascaded with additional Splitter/Extenders
    • Includes a local HDMI output port
    • Supports RS232 computer control

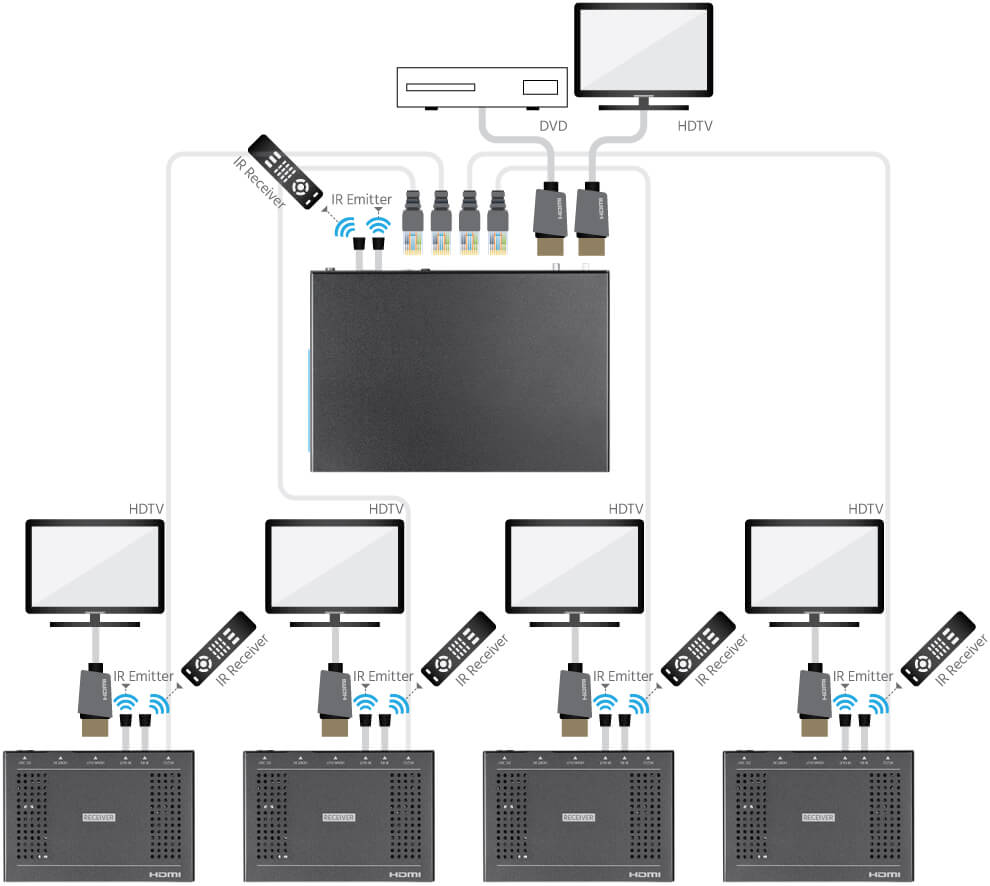

    Sample Connection Diagram

    Connection Diagram


    Transmitter
    Model 21793
    Maximum Video Resolution 4K@60Hz, including 1080p 3D@60Hz
    Maximum Transmission Distance 1080p: 196 feet (60 meters)
    4K: 131 feet (40 meters)
    Transmission Standard HDBaseT™
    HDMI® Standard 1.4
    Input Power 24 VDC, 2.71A
    AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz
    Dimensions 8.7" x 5.8" x 1.7" (220 x 148 x 44 mm)

    Receivers
    Model 21793
    Maximum Video Resolution 4K@60Hz, including 1080p 3D@60Hz
    Maximum Transmission Distance 1080p: 229 feet (70 meters)
    4K: 131 feet (40 meters)
    Transmission Standard HDBaseT™
    HDMI® Standard 2.0 with HDCP 2.2
    Bandwidth 10.2 Gbps
    Input Power 24 VDC, 1.25A or Power over Cable (PoC)
    AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz
    Power Consumption 11 watts
    Operating Temperature -4 ~ +158°F (-20 ~ +70°C)
    Operating Humidity 10 ~ 90& RH, non-condensing
    Dimensions 4.5" x 3.3" x 0.6" (115 x 84 x 16 mm)
    Weight 5.3 oz. (150g)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 1 question Browse 1 question
    How is this 4k if transmitter unit only has hdmi 1.4 standard?
    A shopper on Aug 28, 2017
