    Blackbird 4K 2x5 HDBaseT Splitter Kit with Control Panel and 4 HDBT Receivers, EDID, PoC, HDCP2.2

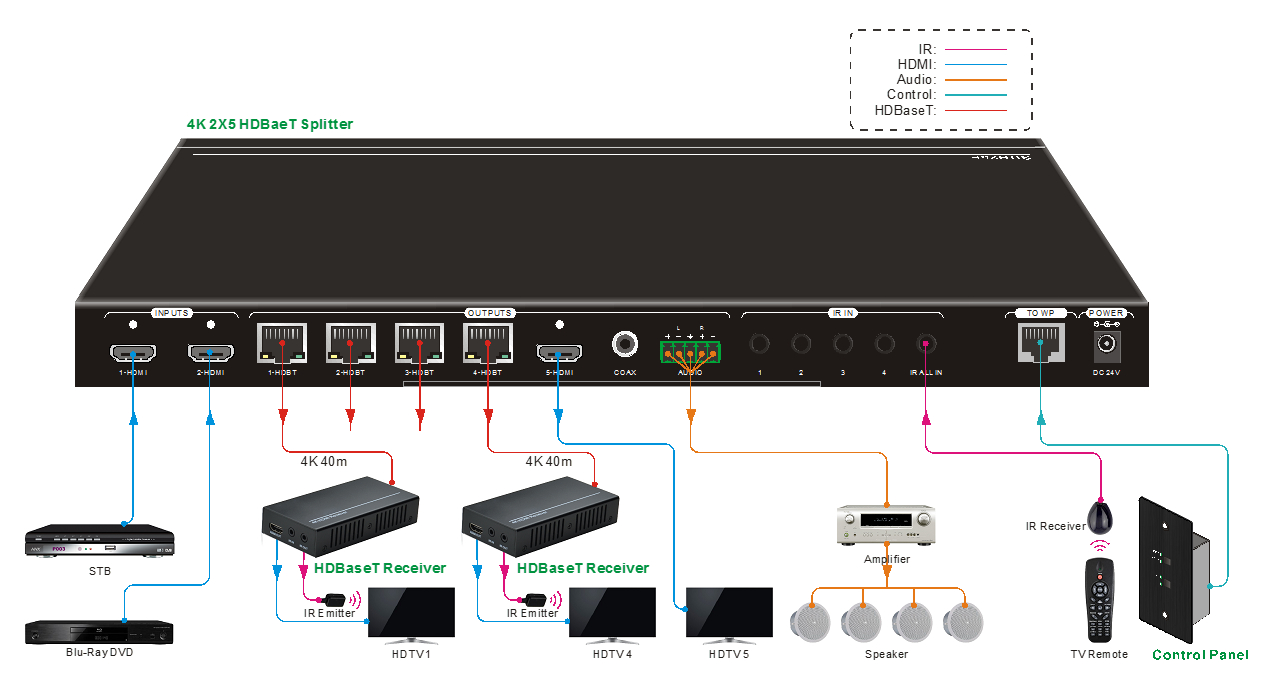

    This Blackbird™ 2x5 HDBaseT® Splitter Kit is designed to provide HDMI® video switching, video distribution and extension, system control and audio de-embedding in a convenient package. One of two HDMI sources can be selected and distributed to four HDBaseT outputs and one local HDMI pass-through output. It can transmit 4K video signals to distances up to 131 feet (40 meters) and 1080p signals to distances up to 229 feet (70 meters) over a single Cat6 Ethernet cable. It includes a digital coaxial S/PDIF and stereo analog audio outputs and a wallplate control keypad for remote switching.

    Features:

    • Distributes one of two HDMI® inputs to four HDBaseT™ outputs and one pass-through HDMI output
    • Includes digital coaxial S/PDIF and stereo analog audio outputs
    • Supports video resolutions up to 4K@60Hz 4:2:0
    • Fully compliant with the HDMI 1.4 and HDCP 2.2 specifications
    • Can transmit 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 229 feet (70 meters) over a single Cat6 Ethernet cable
    • Supports the Power over Cable (PoC) feature, which allows the HDBaseT receivers and wallplate control keypad to receive their power from the splitter via the Ethernet cables
    • Includes an external wall plate for remote control
    • Supports IR pass-through for control of remote displays from the source location
    • Supports advanced EDID management
    2x5 Matrix


    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.



    2x5 Splitter
    Video Inputs 2x HDMI®
    Video Outputs 4x HDBaseT™, 1x HDMI
    Maximum Resolution 4K@60Hz 4:2:0
    Bandwidth 10.2 Gbps
    HDMI Version 1.4
    HDCP Version 2.2
    Input Power 24 VDC, 2.5A
    AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz
    Maximum Power Consumption 35 watts
    Operating Temperature +14 ~ +131°F (-10 ~ +55°C)
    Operating Humidity 10 ~ 90% RH, non-condensing
    Dimensions 14.2" x 5.9" x 1.1" (360 x 150 x 28 mm)
    Weight 16.6 oz. (470 g)

    Receivers
    Maximum Resolution 4K@60Hz
    Bandwidth 10.2 Gbps
    HDMI® Version 1.4
    HDCP Version 1.4
    Transmission Mode HDBaseT™
    Maximum Transmission Distance 1080p@60Hz: up to 229 feet (70 meters)
    4K@60Hz: up to 131 feet (40 meters)
    Input Power Power over Cable (PoC)
    Operating Temperature +32 ~ +122°F (0 ~ +50°C)
    Operating Humidity 10 ~ 90% RH, non-condensing
    Dimensions (each) 4.7" x 2.4" x 0.9" (120 x 60 x 24 mm)
    Weight (each) 9.9 oz. (280 g)

    Wallplate
    Input Power Power over Cable (PoC)
    Operating Temperature +32 ~ +122°F (0 ~ +50°C)
    Operating Humidity 10 ~ 90% RH, non-condensing
    Dimensions 4.5" x 2.8" x 1.5" (114 x 70 x 38 mm)
    Weight 4.1 oz. (116 g)
