Blackbird 4k HDBaseT 4x4 Matrix with PoC, 4K@60Hz
    Product # 15779
    $649.99
    Product Type: HDBaseT Extenders
    HDBaseT Extenders HDBaseT Receivers
    In Stock This item should ship today (9/22/2017) if ordered within 6 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $649.99
    Qty: 2-9 $644.99
    Qty: 10-19 $639.99
    Qty: 20-49 $629.99
    Qty: 50+ $599.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    Blackbird 4k HDBaseT 4x4 Matrix with PoC, 4K@60Hz

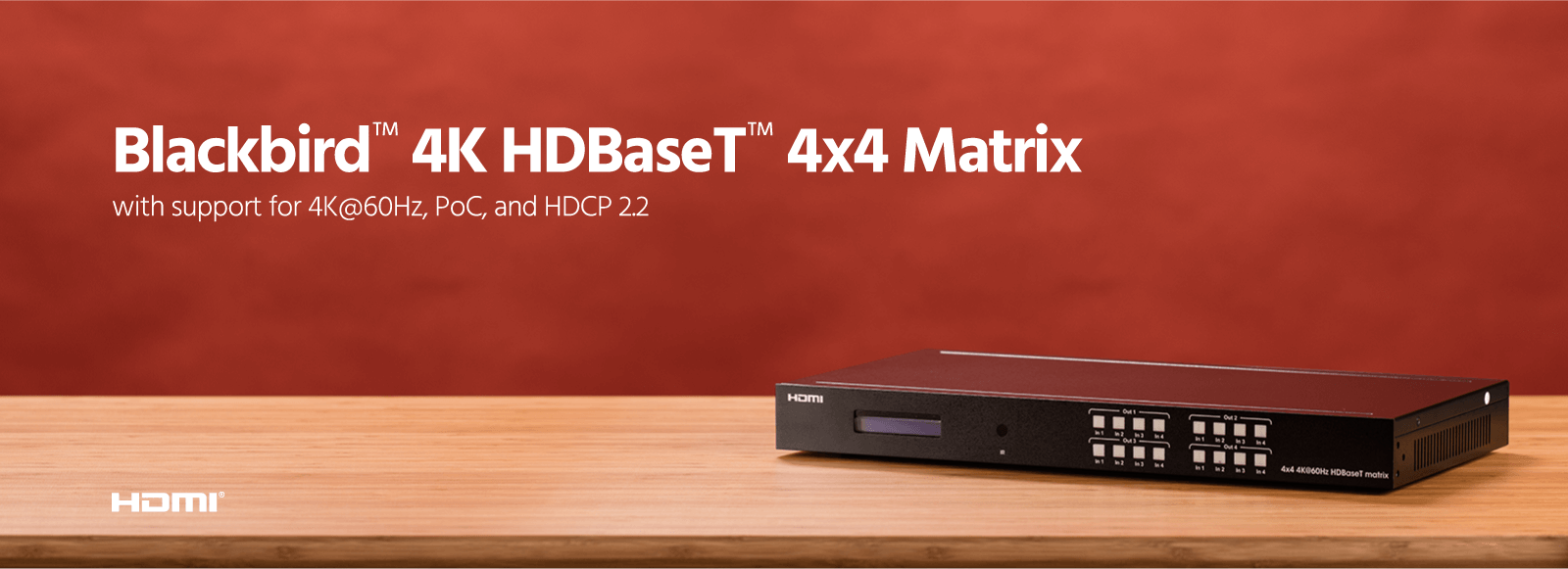

    Blackbird 4K HDBaseT 4x4 Matrix

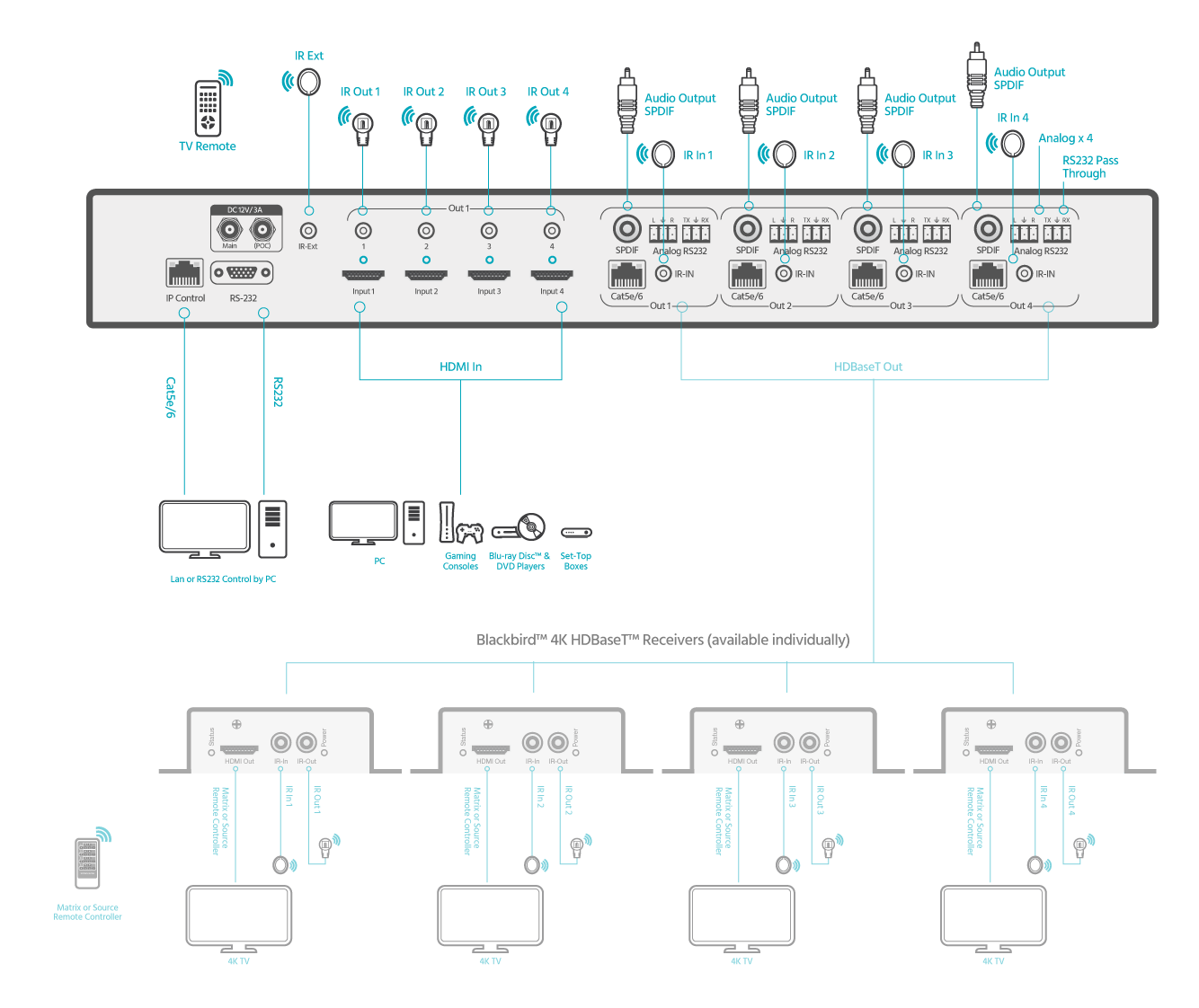

    The Monoprice Blackbird™ 4K HDBaseT™ 4x4 Matrix is an easy to use solution for switching and extending HDMI® audio/video signals to distances up to 230 feet (70 meters) over a single Ethernet cable. It supports HDMI video resolutions up to 4K@60Hz, including 1080p@60Hz and 3D video. The Power over Cable (PoC) feature allows the receivers (available separately) to be used without separate AC power adapters. It includes four IR receivers and four IR transmitters, allowing for bidirectional infrared control of connected HDMI sources and displays. Note that this matrix does not included HDBaseT receivers, which are available separately (P/N 15780).







    4K Everyday
    4x4 Matrix
    HDBaseT 2.0
    4K Everyday
    4x4 Matrix
    HDBaseT™ 2.0


    4K Everyday: Enjoy video at resolutions up to 4K@60Hz and 1080p@60Hz, including 3D video, with support for the latest HDMI® and HDCP 2.2 specifications.

    4x4 Matrix: Distribute any of four HDMI® sources to any one of four HDBaseT™ outputs, for use with HDBaseT receivers (available separately), in any combination.

    HDBaseT 2.0: This extender uses the popular HDBaseT™ 2.0 technology, allowing you to extend your HDMI® video over a single Cat5e/6 Ethernet cable.






    Blackbird™ 4K HDBaseT™ 4x4 Matrix




    Blackbird 4K HDBaseT 4x4 Matrix





    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    Blackbird 4K HDBaseT 4x4 Matrix

    Model 15779
    Video Standard HDMI® with HDCP 1.4/2.0
    Maximum Resolution 4K@60Hz, 1080p@60Hz
    Transmission Standard HDBaseT™ 2.0
    Transmitter Power Source 2x 12 VDC, 3A AC power adapter
    Maximum Power Consumption 25 watts
    Maximum Transmission Distance up to 70 meters for 1080p video
    up to 35 meters for 4K video
    Operating Temperature +23 ~ +95°F (-5 to +35°C)
    Operating Humidity 5 ~ 90% RH, non-condensing
    Dimensions 17.3" x 6.5" x 1.7" (440 x 166 x 42 mm)
    Weight (per pair) 4.4 lbs. (2.0 kg)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-ray Disc Association.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 16 questions Browse 16 questions and 16 answers
    Looks like the new HDBaseT Version 2.0 Matrix Switch, Model# 15779, does NOT support 100Mb Ethernet passthrough like the previous HDBaseT 4x4 matrix did. So does this mean you no longer have a HDBaseT solution that will pass Ethernet through except adding a second Cat 5e or 6a cable? Does this mean there is no longer upgrade path. This is not good so I hope you get a version that support Ethernet passthrough out very soon.
    New User U on Jan 2, 2017
    BEST ANSWER: Hello, thank you for your question. In order to better assist you, please feel free to contact us at tech@monoprice.com with a detailed question in regrds to your desired setup and our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Does switching work with the harmony products?
    A shopper on Nov 29, 2016
    BEST ANSWER: Hello, as long as your harmony product is capable of IR learning, you should be able to learn the IR codes from the remote and control it manually with your Harmony remote. I hope this helps, thank you!
    Is there a wall plate that supports this product(PID 15779) like PID 10228?
    A shopper on Jul 5, 2017
    Blackbird 4k HDBaseT 4x4 Matrix with PoC, 4K@60Hz
    Blackbird 4k HDBaseT 4x4 Matrix with PoC, 4K@60Hz
    HDBaseT Wall Plate Receiver with Bidirectional IR Repeater, 100m (328ft)
    HDBaseT Wall Plate Receiver with Bidirectional IR Repeater, 100m (328ft)
    Any plans to make an 8x8 version ?
    A shopper on Feb 22, 2017
    BEST ANSWER: Thank you for your question.

    When it comes to new/updated/future items, we unfortunately would not have any information which we would be able to share. If you want to stay up to date regarding the release of new or future items, it would be best to sign up for newsletter. Our newsletter will let you know when new items are released, as well as current promotions and sales.
    I can't access the matrix via IP using my Mac, does this work differently with Macs?
    New User U on Dec 10, 2016
    BEST ANSWER: I'm sorry to hear that, in order to better assist you, please feel free to contact us at tech@monoprice.com with a detailed summary of the issue you are experiencing. Thank you
    Does this support dual-band IR?
    Terry B on Dec 7, 2016
    BEST ANSWER: I originally had a similar question about the IR range that this product works with. Looking at the User's Manual (find the link above), page 2 specifies the IR is "wide-band" with an effective IR band of 38-56KHZ. A device that is *dual-band* will support up to 60KHZ. Given that Dish Networks remotes operate at 57 KHZ, beware if you are buying this and expect to operate a Dish Networks DVR as one of the devices.
    Is this a hard switch with momentary signal loss between cuts??
    A shopper on Jan 27, 2017
    BEST ANSWER: Thank you for your question. The unit will have a slight loss in switching for it will have to re-negotiate HDCP/EDID information.
    Does this come with rack ears?
    A shopper on Dec 20, 2016
    BEST ANSWER: Yes, it comes with rack mount hardware in the box.
    Will this work with the non 4L receivers? Is the HDbaseT backward compatible?
    A shopper on Jan 7, 2017
    BEST ANSWER: Hello, thank you for your question. In order to better assist you, please feel free to contact us at tech@monoprice.com with a detailed question and our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Will this matrix switch be cross-compatible with other HDbaseT 4k receivers/work with PID 21609, to provide RS232 control at the receiver end?
    A shopper on Apr 25, 2017
    Does this work with HDCP 2.2 sources?
    Ethan T on Mar 28, 2017
    BEST ANSWER: Thank you for your question. Yes, this unit will support HDCP 2.2 sources just fine.
    How can I control the input selection from the other end? I have 2 tv's in different halls and I want to let the viewer change the input without access to the matrix box.
    New User U on Apr 2, 2017
    BEST ANSWER: Thank you for your question. As the previous answer states, you would be able to control the unit using the IR remote. You would use IR receiver and transmitter cables on the main unit and the receivers.

    Alternatively, you can control it via the RS-232 or RJ45 (IP Control) ports to then control/automate it via a computer.
    Can 1 input be routed to multiple outputs simultaneously?
    A shopper on Mar 2, 2017
    BEST ANSWER: Yes. Using either the remote that is included or the unit itself, you can direct any of the inputs to as many of the outputs as needed. I have a single cable box and display it to all 4 TVs as required without any noticeable loss of signal.
    Can these be stacked to make a 16x16 matrix?
    arin g on Feb 23, 2017
    BEST ANSWER: Not in a practical way. Stacking 3 units would make a clunky 8x4. Stacking 7 units would make a clunky 16x4, etc.
    Will the Apple TV 4th gen work with this matrix? I've read about problems with the Apple TV not working with switchers and matrices that don't have EDID support.
    Marcus d on Aug 22, 2017
    It looks like there is a separate power input necessary to enable the PoC (power over cable). What is the power supply necessary for this and is it purchasable on monoprice?
    Louis H on Jul 31, 2017
