    Blackbird 4K HDBaseT Extender Kit, 70m with PoC, RS232, HDCP 2.2
    Product # 15777
    $161.49 $189.99 On Sale 15.00% OFF
    In Stock This item will ship on 11/24/2017 if ordered within 21 hours 48 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $161.49 $189.99
    Qty: 2-9 $161.49 $188.99
    Qty: 10-19 $161.49 $187.99
    Qty: 20-49 $161.49 $184.99
    Qty: 50+ $161.49 $179.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

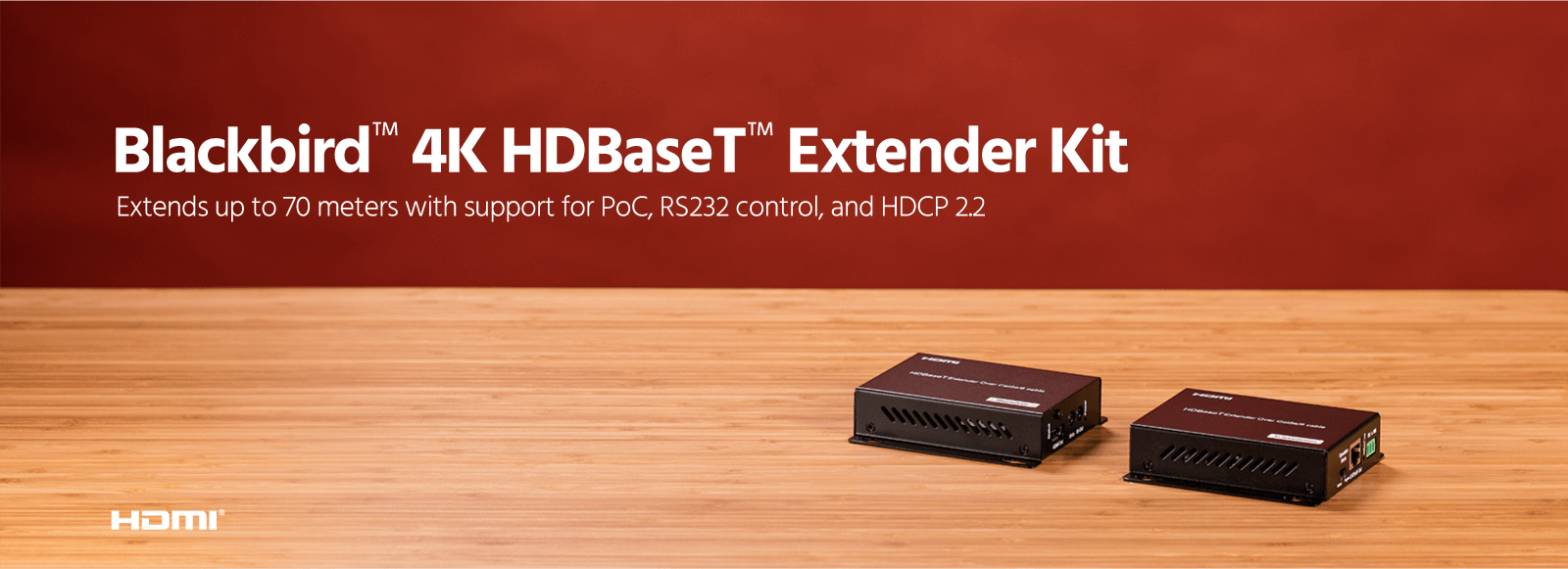

    Blackbird 4K HDBaseT Extender Kit, 70m with PoC, RS232, HDCP 2.2

    Blackbird 4K HDBaseT Extender Kit


    The Monoprice Blackbird™ 4K HDBaseT Extender Kit is an easy solution to extending an HDMI® audio/video signal to distances up to 230 feet (70 meters) over a single Ethernet cable. It supports HDMI video resolutions to 4K@30Hz and 1080p@60Hz, including 3D video. The Power over Cable (PoC) feature allows the receiver to be used without the included AC power adapter. It includes two IR receivers and two transmitters, allowing for bidirectional infrared control of a connected HDMI source and display.







    4K Everyday
    HDBaseT 2.0
    Extends 230 Feet
    4K Everyday
    HDBaseT™ 2.0
    Extends 230 Feet


    4K Everyday: Enjoy video at resolutions up to 4K@30Hz and 1080p@60Hz, including 3D video, with support for the latest HDMI® and HDCP 2.2 specifications.

    HDBaseT 2.0: This extender uses the popular HDBaseT™ 2.0 technology, allowing you to extend your HDMI® video over a single Cat5e/6 Ethernet cable.

    Extends 230 Feet: The transmitter is capable of delivering a full HDMI® signal to the receiver at distances up to 230 feet (70 meters) using a single Ethernet cable.






    Blackbird™ 4K HDBaseT™ Extender Kit




    Blackbird 4K HDBaseT Extender Kit





    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    Blackbird 4K HDBaseT Extender Kit

    Model 15777
    Video Standard HDMI® with HDCP 1.4/2.0
    Transmission Standard HDBaseT™ 2.0
    Maximum Resolution 4K@30Hz, 1080p@60Hz
    Transmitter Power Source 12 VDC, 2A AC power adapter
    Receiver Power Source PoC or 12 VDC, 2A AC power adapter
    Maximum Power Consumption 2.5 watts
    Maximum Transmission Distance up to 70 meters for 1080p video
    up to 35 meters for 4K video
    Operating Temperature +23 ~ +95°F (-5 to +35°C)
    Operating Humidity 5 ~ 90% RH, non-condensing
    Dimensions 4.1" x 2.8" x 1.0" (105 x 71 x 25 mm)
    Weight (per pair) 24.7 oz. (700 g)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-ray Disc Association.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 14 questions Browse 14 questions and 18 answers
    Does CAT7 Ethernet cable work with this unit to transmit/receive 4K Ultra-HD HDR (3840x2160 @ 60 Hz 4:2:0) signal? The key is 4K signal at 60Hz.
    A shopper on Jan 19, 2017
    BEST ANSWER: I don't think this model is rated to handle 4K @ 60Hz, but I am just going off the description. I don't think cat7 will help with that, but I have found comparably priced extenders that do support 4K @ 60Hz on other sites.
    How big is the power adapter for the receiver? I have a TV mounted with a slim profile and outlet behind the TV. Will it fit?
    Peter C on Jan 6, 2017
    BEST ANSWER: Hello, thank you for your inquiry. While we do strive to include all measurements and diagrams on the product page, if there is a specific measurement you are looking for, please email us at tech@monoprice.com so we can provide you with the appropriate specifications you are looking for. I hope this helps, thank you!
    Does this device support ARC?
    A shopper on Jan 31, 2017
    BEST ANSWER: Thank you for your question. Unfortunately this device would not support ARC.
    Does this unit support 4K Ultra-HD - 3840x2160 @ 60 Hz 4:2:0 and HDR?
    A shopper on Jan 19, 2017
    BEST ANSWER: Hello, thank you for your question. No this unit is not able to support 4K@60Hz or HDR, I apologize for the inconvenience
    One of the reviewers replaced the IR receiving dongles. Can you tell me what amazon product you replaced them with? THANKS!
    Derrick C on Jan 17, 2017
    BEST ANSWER: Hello, thank you for your question. Product # 8059 and 8060 can be purchased as replacement IR extenders for either the receiver or transmitter. I hope this helps, and of course if you have any more questions feel free to contact us!
    What is the difference between HDMI extenders and SDI converters, is one better than the other?
    A shopper on Apr 26, 2017
    BEST ANSWER: An SDI (Serial Digital Interface) output connection is usually only found on the highest quality professional equipment. SDI is the standard connection that television studios and other broadcasters use (detailed in SMPTE 259M and SMPTE 292M).
    SDI is for very high end equipment and the interface is BNC. HDMI is the consumer level standard. If you are naot a Broadcast studio or large Church you probably don't have equipment that will interface to SDI. The benefit of SDI is running over coax and having connectors that lock into place. If you are converting from HDMI to SDI and and back to match your original interface (HDMI) then you still have four places that won't lock into place(the HDMI cables). The HDMI extenders are to be able to run HDMI signals over CAT5 or preferably CAT6 cables (Ethernet cables). The added benefit is that they will extend the IR as well.
    Can the units be hid in the wall?
    A shopper on Apr 1, 2017
    BEST ANSWER: Yes, if you power it from the other unit and the power wire is not behind a finished wall. The power can be sent over your ethernet cable.
    Any issues getting this to display 4K movies?
    Jacob L on Jan 24, 2017
    BEST ANSWER: works perfectly so far (4 months?) But we use it to have the tv in the bar show the same thing as the main tv for parties. We have Direct TV and little is 4k, but in full HD. Works great so far.
    Can the IR output be connected to a connecting block to control several devices?
    Ted R on Dec 21, 2016
    BEST ANSWER: Hello, thank you for your question. While it would work in theory, unfortunately it is not something we have tested with this unit so we cannot recommend doing so. I apologize for the inconvenience
    I have two questions. !. Can the hdmi to cat6 be used for a/v signal directv box and the IR repeaters be used to control a receiver? 2. Which cable is for the tx and which is for rx? I have the unit and it works flawless for picture and sound but I can't get the IR repeater to work. TIA
    michael m on Jul 12, 2017
    BEST ANSWER: Hello, thank you for your question. In order to better assist you, please reach out to our technical support team with a detailed question via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    A different brand version of this we have been using recommends shielded cat6 cable between the send and receive units. Does this brand recommend the same? The cable runs are always with line and speaker level audio cables in the same J hooks. Have never had a problem with using shielded cable but I do not want to if it will not make a difference.
    Sean Q on Dec 1, 2016
    BEST ANSWER: Hello, while it is compatible with Cat5e,, we too recommend using Cat6 or above for most optimum performance. I hope this helps, thank you!
    Does this support 4:4:4 color space?
    A shopper on Sep 27, 2017
    Some of the blackbird units explicitly state they have EDID passthrough support in the description. Do all blackbird HDBaseT extenders have EDID passthrough?
    Shaheen G on Jul 11, 2017
    Blackbird 4K HDBaseT Extender Kit, 70m with PoC, RS232, HDCP 2.2
    Blackbird 4K HDBaseT Extender Kit, 70m with PoC, RS232, HDCP 2.2
    Blackbird 4K HDBaseT Slim Extender Kit for Residential, 4K at 100m, ARC, HDCP 2.2, Ethernet, 2 Way PoH
    Blackbird 4K HDBaseT Slim Extender Kit for Residential, 4K at 100m, ARC, HDCP 2.2, Ethernet, 2 Way PoH
    Blackbird 4K HDBaseT Extender Kit, 100m with PoC, RS232, HDCP 2.2
    Blackbird 4K HDBaseT Extender Kit, 100m with PoC, RS232, HDCP 2.2
    Blackbird 4K Pro HDBaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2
    Blackbird 4K Pro HDBaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2
    Blackbird 4K HDBaseT Extender, 4K at 100m, USB, HDCP 2.2, PoC, EDID
    Blackbird 4K HDBaseT Extender, 4K at 100m, USB, HDCP 2.2, PoC, EDID
    Blackbird 4K HDBaseT Extender, 4K at 100m, USB, HDCP 2.2, PoC, EDID (Refurbished)
    Blackbird 4K HDBaseT Extender, 4K at 100m, USB, HDCP 2.2, PoC, EDID (Refurbished)
    Blackbird 4K Pro HDBaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2 (Refurbished)
    Blackbird 4K Pro HDBaseT Extender Kit, IR, 70m with PoC, RS232, HDCP 2.2 (Refurbished)
    Does both the transmitter and receiver have to be powered? Or just the transmitter?
    New User U on Feb 20, 2017
    4.6 / 5.0
    5 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    3
    2
    0
    0
    0
    Almost Perfect
    I am using this unit to control multiple devices (Apple TV 4th Gen, Roku 3, BluRay player, cable box, ShieldTV, etc.) that rout through a DVDO 6x2 matrix in the basement. About 50' of Cat6 is connected from the transmitting box to the receiving box and the HDBaseT has worked flawlessly over the last month of use. The infrared transmitters that comes with the unit work fine but the receiving units are almost worthless. They are my only gripe with this unit. I have since bought separate IR receiving units on Amazon and plugged them into the 3.5mm jacks and they work great. Would be 5 star review if IR receiving dongles were of better function/quality.

    PROS: Actual HDBaseT part of unit works fantastically
    No stutters, pixelations, or dropped signal (at 50'/15.25m Cat6)

    CONS: The IR Receiver unit is almost worthless. Got a different receiving unit on Amazon that works like a champ for this unit.
    September 7, 2016
    Great Unit
    We replaced one of our $700 HDMI extenders that die after 2 years. This one plugged in and worked right out of the box and it cost a lot less. More expensive that the cheaper units but this unit suppose to be professional grade which is what we need since the TV is on 24/7

    PROS: Quality
    Size

    CONS: Nothing
    August 22, 2016
    Blackbird 4K HDBaseT Extender Kit, 70m with PoC, RS232, HDCP 2.2
    If you follow the installation instructions to the letter, this unit works great.
    I have been using the system for two months and so far no problems.
    Would definitely recommend to a friend
    Captain Canuck
    January 5, 2017
    Purchased
    1 year ago
    Worked as Expected
    Worked out of the box. My run is about 50 feet. Will be purchasing more for my office.
    December 27, 2016
    Purchased
    11 months ago
    Works well
    Had to buy this set of extenders after a passive pair failed to work.
    These work well but are very expensive relative to the passive extenders. The passive pair worked well with a cable box or computer through cat. 6 to about30ft, but with the addition of a Monoprice hdmi active splitter box they would not work correctly.
    Signal kept dropping out every 2 to 3 seconds, so I had to buy these active extenders.
    March 1, 2017
    Purchased
    9 months ago
