BitPath AV Wireless SDI Transmitter & Receiver Kit, 200m
    Product # 16225
    $404.99 $599.99 On Sale 32.50% OFF
    In Stock This item will ship on 9/25/2017 if ordered within 1 days 6 hours 11 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $404.99 $599.99
    Qty: 2-9 $404.99 $589.99
    Qty: 10-19 $404.99 $579.99
    Qty: 20-49 $404.99 $569.99
    Qty: 50+ $404.99 $499.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

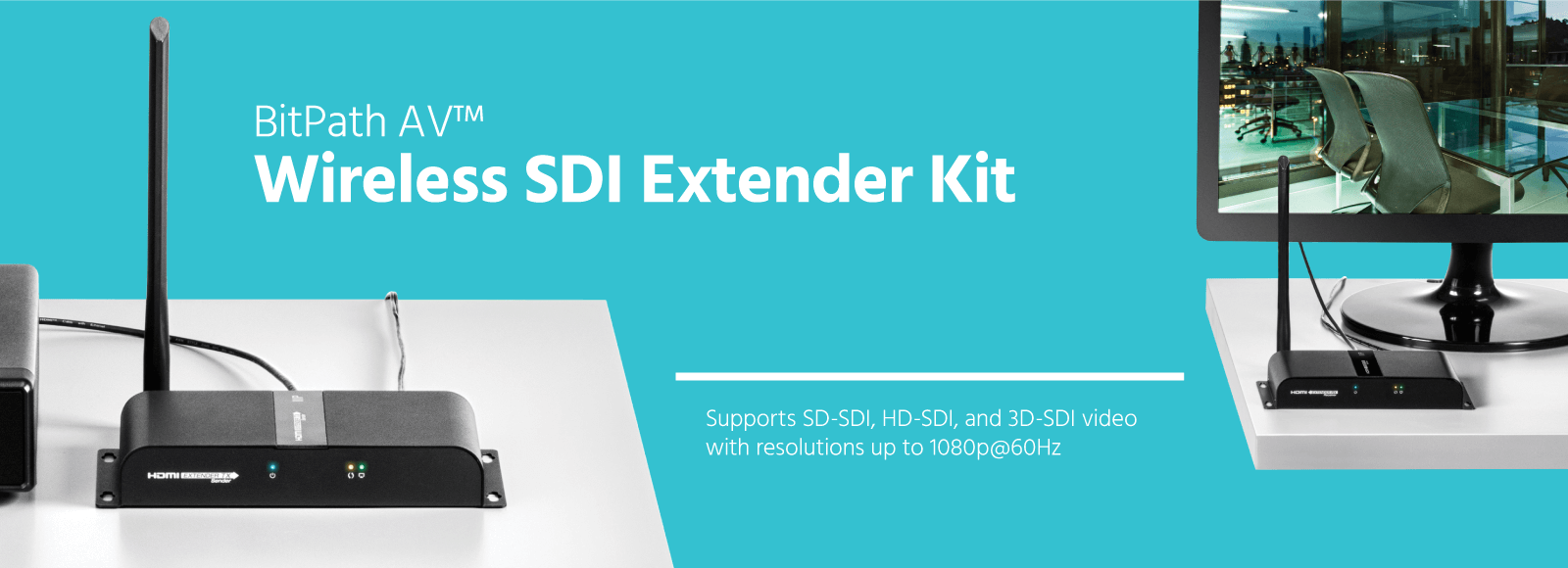

    BitPath AV Wireless SDI Transmitter & Receiver Kit, 200m

    Wireless SDI Extender Kit


    The Monoprice BitPath AV™ Wireless SDI Extender Kit allows you to wirelessly transmit SD-SDI, HD-SDI, and 3D-SDI video with resolutions up to 1080p@60Hz to distances up to 656 feet (200 meters). A true Plug & Play solution, the kit requires no complicated setup, configuration, or software. Simply connect an SDI video source the transmitter and an SDI display to the receiver, then power it on. It includes a dual band IR repeater, so you can control your video source device using its infrared remote control from the remote location.






    Wireless Extender
    Plug & Play
    Dynamic Scaling
    Wireless Extender
    Plug & Play
    Dynamic Scaling


    Wireless Extender: The BitPath AV™ Wireless Extender uses superior wireless algorithms and transmitter power to wirelessly extend an SD-SDI, HD-SDI, and 3D-SDI video with resolutions up to 1080p@60Hz to distances up to 656 feet (200 meters).

    Plug & Play: This wireless extender is a true Plug & Play device, requiring no complicated setup, configuration, or software. Simply connect an SDI video source the transmitter and an SDI display to the receiver, then power it on.

    Dynamic Scaling: The BitPath AV Wireless Extender continually monitors signal strength and available bandwidth, dynamically scaling the video to produce the best possible video resolution without signal loss or interference.

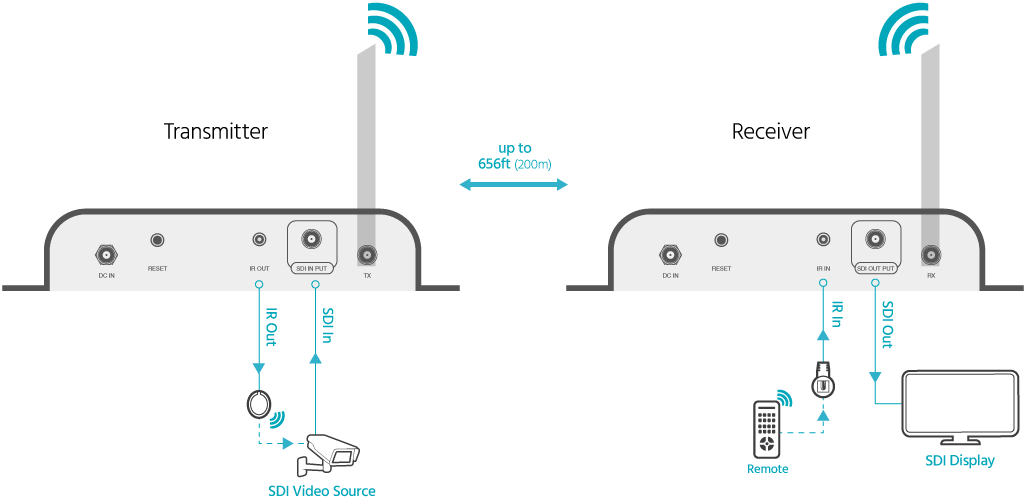

    Connection Diagram



    Wireless SDI Extender Kit




    Applications



    Wireless SDI Extender Kit





    1 Year Warranty

    Buy with Confidence

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    Wireless VGA Extender Kit
    Model 16225
    Video Standards SD-SDI, HD-SDI, 3D-SDI
    Maximum Video Resolution 1080p@60Hz
    Transmission Protocol BitPath AV™
    Maximum Transmission Distance up to 656 feet (200 meters
    IR Extender Bandwidth 20 ~ 60 kHz
    Maximum Transmitter Power Consumption 13 watts
    Maximum Receiver Power Consumption 11 watts
    Power Source 5 VDC, 3A AC power adapters
    Operating Temperature +32 ~ +140°F (0 ~ +60°C)
    Dimensions (each) 7.7" x 5.5" x 1.3" (196 x 139 x 32 mm)
    Weight (each) 20.3 oz. (575g)



    Support Files:



    Bit-Path AV™ is a trademark of Monoprice Inc.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 4 questions Browse 4 questions and 4 answers
    What is the latency?
    Mark B on Mar 2, 2017
    BEST ANSWER: My experience is about 1 second
    Can you use two pairs at the same time (sending two separate video signals)?
    A shopper on Feb 6, 2017
    BEST ANSWER: That should be no problem
    Thanks!
    Is there interference or blend with wireless microphone spectrum signal?
    Ofelia M on Apr 6, 2017
    BEST ANSWER: Should not have any interference or conflict with wireless mics. This product should perform very well in line-of-site conditions..
    What Frequency range does this produce operate in?
    Jacob K on Jan 13, 2017
    BEST ANSWER: Hi, The Bit-Path AV wireless products all operate under the IEEE802.11 a/n (3000Mbps) 5G band. I hope this information helps.
    3.0 / 5.0
    1 Review
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    0
    0
    1
    0
    0
    Works fine, but too much latency
    If latency is an issue for your wireless SDI application, this system may not be for you. Latency is about a second. Too much for my use, but image quality is as good as the SDI source.
