    Blackbird 4K 4x4 HDMI Matrix Switch with HDMI 2.0 Support, HDR, 18Gbps, 4 SPDIF Outputs, HDCP2.2, EDID, IR, RS232, TCP/IP, Web based GUI
    Product # 24179
    $439.99
    In Stock This item should ship tomorrow (5/24/2018) if ordered within 20 hours 26 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $439.99
    Qty: 2-9 $431.19
    Qty: 10-19 $422.39
    Qty: 20-49 $413.59
    Qty: 50+ $395.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    ADVERTISEMENT

    Model 24179

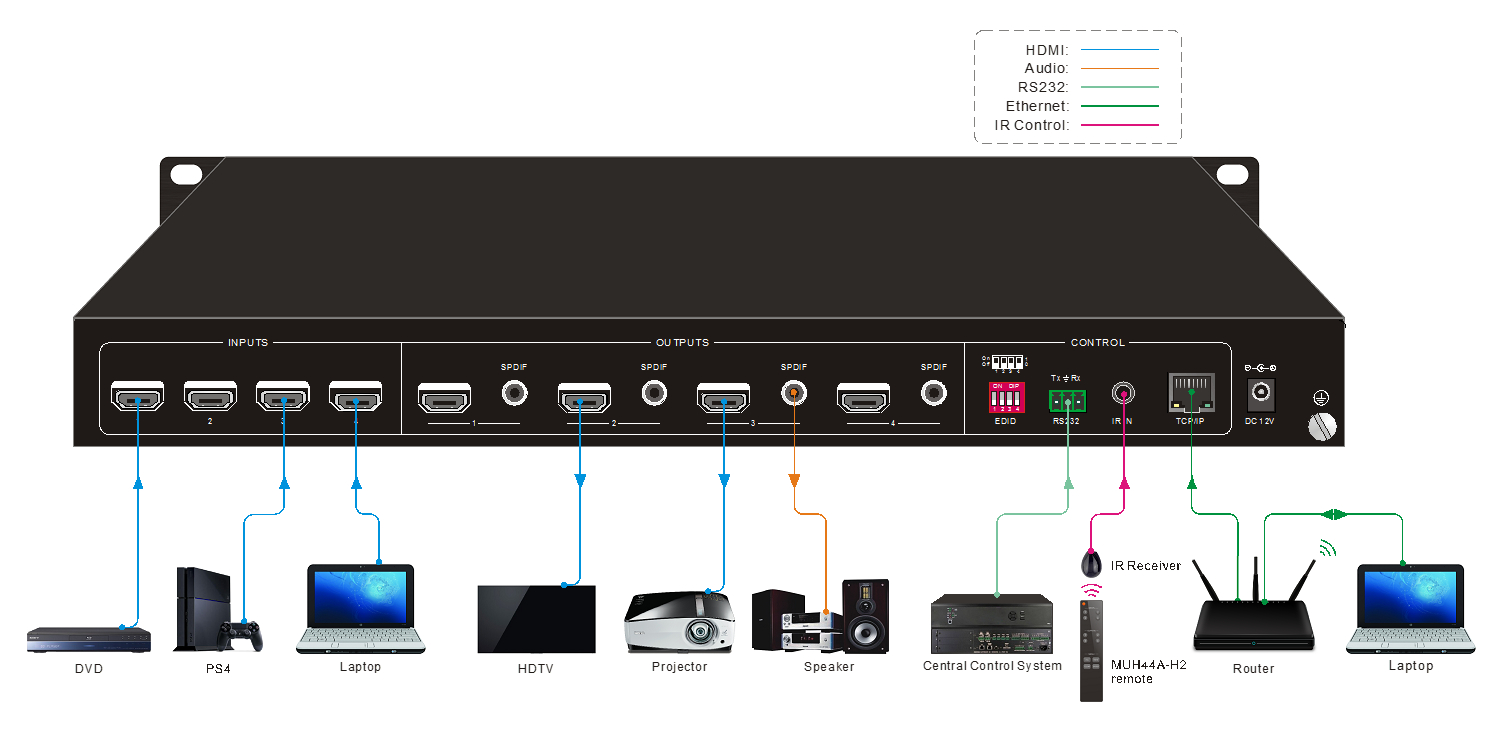

    Inputs 4x HDMI®
    Outputs 4x HDMI, 4x S/PDIF Digital Coaxial Audio
    Maximum Resolution 4K@60Hz 4:4:4
    HDMI Version 2.0
    HDCP Version 2.2
    Control Options Front panel buttons, IR remote control, RS232
    software, TCP/IP GUI, TCP/IP software
    Input Power 24 VDC, 1.25A
    AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz
    Maximum Power Consumption 14 watts
    Operating Temperature +14 ~ +131°F (-10 ~ +55°C)
    Operating Humidity 10 ~ 90% RH, non-condensing
    Dimensions 17.2" x 9.3" x 1.7" (437 x 237 x 44 mm)
    Weight 3.9 lbs. (1.75 kg)



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 14 questions Browse 14 questions and 11 answers
    Is it possible to create a scene with multiple inputs and outputs - e.g input 1 goes to output 1 and 3, and input 2 goes to output 2 at the same time?
    New User U on Sep 18, 2017
    BEST ANSWER: Scenes can be created via a third party control application or device. The built in GUI interface gives you some basic control which would allow you to set the scene up like you describe. When connected to a third party controller, the matrix can essentially do anything you want.
    Can this split a 4k HDR signal and send a signal to a HDMI 2.0 monitor while simultaneously outputting to a HDMI 1.4 audio processor? Or will it default to HDMI 1.4?
    Andy N on Nov 10, 2017
    BEST ANSWER: You should use a 2.2 to 1.4 converter like "Monoprice Blackbird 4K Pro HDCP Converter, 2.2 to 1.4" to connect to the audio processor.
    Does it support ARC ?
    New User U on Nov 27, 2017
    Blackbird 4K 4x4 HDMI Matrix Switch with HDMI 2.0 Support, HDR, 18Gbps, 4 SPDIF Outputs, HDCP2.2, EDID, IR, RS232, TCP/IP, Web based GUI
    Blackbird 4K 4x4 HDMI Matrix Switch with HDMI 2.0 Support, HDR, 18Gbps, 4 SPDIF Outputs, HDCP2.2, EDID, IR, RS232, TCP/IP, Web based GUI
    Blackbird 4K 4x4 HDMI Matrix, HDR, 18Gbps, YUV4:4:4, HDCP 2.2
    Blackbird 4K 4x4 HDMI Matrix, HDR, 18Gbps, YUV4:4:4, HDCP 2.2
    Can I use this to send a HDMI 2.0 4K HDR video signal to a HDMI 2.0 compliant TV and a simultaneous signal to a HDMI 1.4 audio processor? Or will it default to HDMI 1.4 for both?
    A shopper on Nov 10, 2017
    Does this supports Deep Color?
    A shopper on Sep 8, 2017
    BEST ANSWER: Yes it does. It's full featured HDMI 2.0 and HDCP 2.2 compatibility.
    Do you have replacement Remote Controls available for purchase?
    Dan K on Nov 18, 2017
    So if I were to buy this and I have 4 TVs, I can put them together and watch a show like watching one huge TV?
    A shopper on Mar 18, 2018
    BEST ANSWER: Nope that is a different technology. This is more like a digital patch panel, allowing you to connect any input to any output. Which includes any combination such as a single input to all outputs.
    Will this matrix downgrade all outputs if one of the outputs is lower resolution than the others?, ie a 720p TV and a 4k TV displaying the same input.
    A shopper on Feb 5, 2018
    BEST ANSWER: Are all of the 4x4 4k Matrix controllers this way? If so, that is very unfortunate. That would mean that its really only worth going 4K if you have ALL your ouputs as 4K TVs which is not exactly necessary for most. (for example, using a smaller 32" HDTV in the master bathroom...)
    Is this a seamless switch or is there a delay when changing inputs? Does it fade through black or search for signal?
    Greg Y on Dec 18, 2017
    BEST ANSWER: It does have a slight delay so I wouldn't say it is seamless. It doesn't fade through black but since its a direct switch, it doesn't search for signals because you are choosing the input from the buttons on the front panel.
    Hello - can you suggest or recommend a touchscreen controller for this unit, possibly like AMX Modern or something?
    Trevor T on Aug 2, 2017
    BEST ANSWER: Unfortunately we are not associated with any third party controller systems and are unable to support or recommend any control systems. With that said, the unit features a web based interface which allows you to make changes. The interface also has the listing of RS232 control codes that can use used with any of the major and popular control systems.
    Does it support 1920x1200 wuxga for projectors?
    A shopper on Dec 18, 2017
