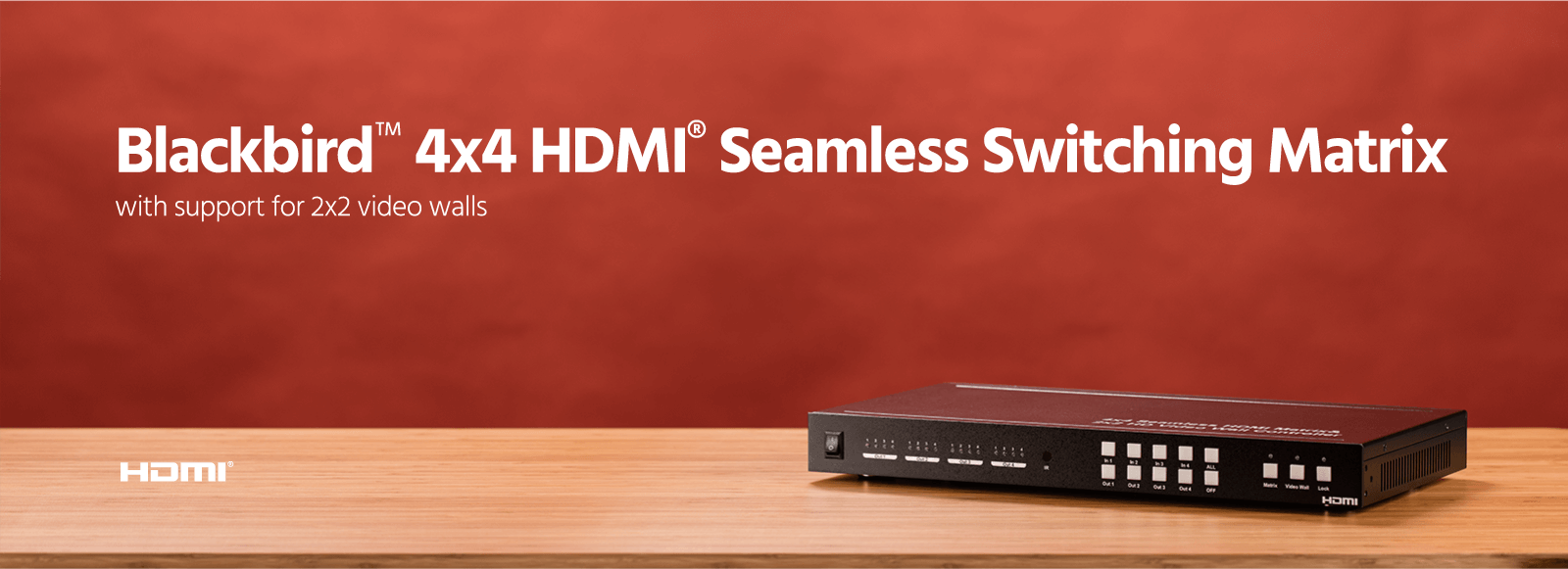

    Monoprice Blackbird 4x4 HDMI Seamless Switching Matrix, supporting 2x2 Video Walls, Rackmountable
    Product # 15783
    $714.99
    In Stock This item will ship on 9/24/2018 if ordered within 2 days 19 hours 59 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $714.99
    Qty: 2-9 $711.41
    Qty: 10-19 $707.84
    Qty: 20-49 $706.05
    Qty: 50+ $693.54

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    ADVERTISEMENT

    Blackbird 4x4 HDMI Seamless Switching Matrix

    Model 15783
    Video Standard HDMI® with HDCP 1.4/2.0
    Maximum Resolution 1080p@60Hz
    Video Inputs 4x HDMI
    Video Outputs 4x HDMI
    Video Output Modes Matrix, 2x2 Video Wall
    PC Control Options RJ-45, RS-232
    Power Source 12 VDC, 3A AC power adapter
    Maximum Power Consumption 24 watts
    Operating Temperature +23 ~ +95°F (-5 to +35°C)
    Operating Humidity 5 ~ 90% RH, non-condensing
    Dimensions 17.2" x 8.7" x 1.7" (438 x 220 x 44 mm)
    Weight (each) 6.2 lbs. (2.8 kg)


    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 16 questions Browse 16 questions and 15 answers
    Can you rotate or flip the TV image as to reduce the bezel size when putting 4 TVs together?
    Wayne J on Dec 6, 2016
    BEST ANSWER: Thank you for your question. You would be unable to rotate or flip the image. However, you would be able to adjust the border line of the picture horizontally and vertically.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Mine seems to not transmit audio over HDMI is this normal?
    John U on Jun 23, 2017
    BEST ANSWER: You probably have the wrong HDMI cable. If you purchase a low cost cable, you may not have sound. I had that same problem connecting a low quality cable to a TV from my computer. New cable, higher quality, no problem...
    Does this manage EDID? How does it switch seamlessly so that the HDMI display and the connected component doesn't "reset" (causing a few seconds of the display going black) when the input is switched?
    A shopper on Jan 31, 2017
    BEST ANSWER: Sadly I have not seen any EDID settings on the actual product itself, nor using the web interface or via RS232 software.
    What is the maximum distance the matrix is capable of sending the HDMI signal to the remote displays?
    Michael P on Oct 4, 2017
    Does this have bezel compensation for 2x2 video wall use?
    Camron L on Nov 26, 2016
    BEST ANSWER: There is a bezel and resolution adjustment tool built into the firmware. It can be reached via the IP Based firmware and a PC.
    Does it have an IR remote, is so an IR input jack or just a sensor? Where is the owners manual or install manual download?
    David H on Feb 3, 2017
    BEST ANSWER: It comes with a IR remote as well as an optional remote sensor. It also comes with an owners manual, although pretty basic. Hook-up easy.
    Can this be used with 4k tvs? I know it won't display at 4k, but could it still be used with the tvs?
    A shopper on Jul 26, 2018
    BEST ANSWER: Yes. It should work as long as the resolution is within the tv’s range. The picture quality may be reduced somewhat but the tv should still display non 4K content just fine.
    Mine doesn't work with an HDMI extender. Works great for local HDMI displays, and the extenders work great when connected directly to a source. However when I mix both this matrix switch and the extenders, I get audio and video for a few minutes, then the remote screen goes dark. Any chance this is a setting or firmware upgrade somewhere? Do I need a specific extender to make this work?
    Paul R on Jul 14, 2017
    BEST ANSWER: Try changing resolutions. I had a similar issue and that fixed it for me. I also had an issue with clone vs extended. I could not clone the display, it just went black. When I extended, the display showed up. Adjusting resolution fixed the screen blanking issue I had afterwards.
    how fast is this switcher? is it comparable to the Blackbird 4x4 Seamless ID 15783 ? i've got a mixture of HDMI/SDI so i could go either way
    A shopper on Jun 6, 2017
    Monoprice Blackbird 4x4 HDMI Seamless Switching Matrix, supporting 2x2 Video Walls, Rackmountable
    Monoprice Blackbird 4x4 HDMI Seamless Switching Matrix, supporting 2x2 Video Walls, Rackmountable
    Monoprice 3G SDI 8x8 Matrix with Reclock function
    Monoprice 3G SDI 8x8 Matrix with Reclock function
    BEST ANSWER: I am using only HDMI, and it works phenomenally
    If i have 4 directv boxes plugged into this unit, can i make any one of those boxes the source for the 4by4 tv wall setup. Can i assume this unit is easy to setup also?
    A shopper on May 27, 2017
    BEST ANSWER: Thank you for your question. Yes, you would just select the desired input then press the video wall button on the front of the unit or the W button on the remote in the top right. The set up is very easy, the user manual has a diagram showing the setup for the video wall:

    https://downloads.monoprice.com/files/manuals/15783_Manual_160526.pdf

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Firmware updates. Where do we get them and has there been one released?
    Clint S on May 4, 2017
    BEST ANSWER: I haven't needed one, but there is a LAN connection if an update would be necessary. My unit is perfect!
    Does the unit support selecting one input to be sent to two outputs at the same time? Does it also allow you to switch between the input that will be sent out as noted previously?
    A shopper on Feb 27, 2017
    BEST ANSWER: Thank you for reaching out to us. This is a full fledged matrix. By definition, it will be able to do any combination of inputs and outputs based on your needs.
    can I combine all four sources on one display? I have a 120" projector screen so would like to display up to 4 sources at the same time.
    A shopper on Feb 10, 2017
    BEST ANSWER: Hello, thank you for your question. While this unit does have 2x2 video wall capability, having a setup as you have described will depend completely on whether your projector supports picture in picture from multiple sources. I hope this helps, and of course if you have any more questions feel free to contact us!
    How can the image be adjusted, so it avoids the frame of the tvs? Text gets cutout as the image reads the frame of the tvs as screen also.
    New User U on Dec 4, 2016
    BEST ANSWER: I'm sorry to hear that, please feel free to contact us at tech@monoprice.com with a detailed summary of the issue you are experiencing and our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    Do you have a version that will support 4k?
    Jeff D on May 9, 2018
    Can this route one input to all 4 outputs without any signal lose?
    David W on Jan 9, 2018
    4.5 / 5.0
    2 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    1
    1
    0
    0
    0
    If you are looking this is probably the best cost to value out there for a matrix video wall setup.
    This device did almost exactly what I had hoped it would, just an FYI for the rest of you it will only handle passing 2-channel audio. It will not pass anything higher than that. That being said it gets the job done with little lag and great picture. Make sure you have an option on your TV to adjust the screen up/down as I had green lines on the top edge.
    July 25, 2017
    Purchased
    1 year ago
    Very good work and price is matched with small project.
    Fast signal flow anf accurated.
    April 23, 2018
    Purchased
    5 months ago
