Blackbird 4K 6x2 HDMI Matrix with Audio, HDCP 2.2
    Product # 15747
    $119.99
    In Stock This item should ship today (9/20/2017) if ordered within 38 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $119.99
    Qty: 2-9 $117.99
    Qty: 10-19 $115.99
    Qty: 20-49 $113.99
    Qty: 50+ $109.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

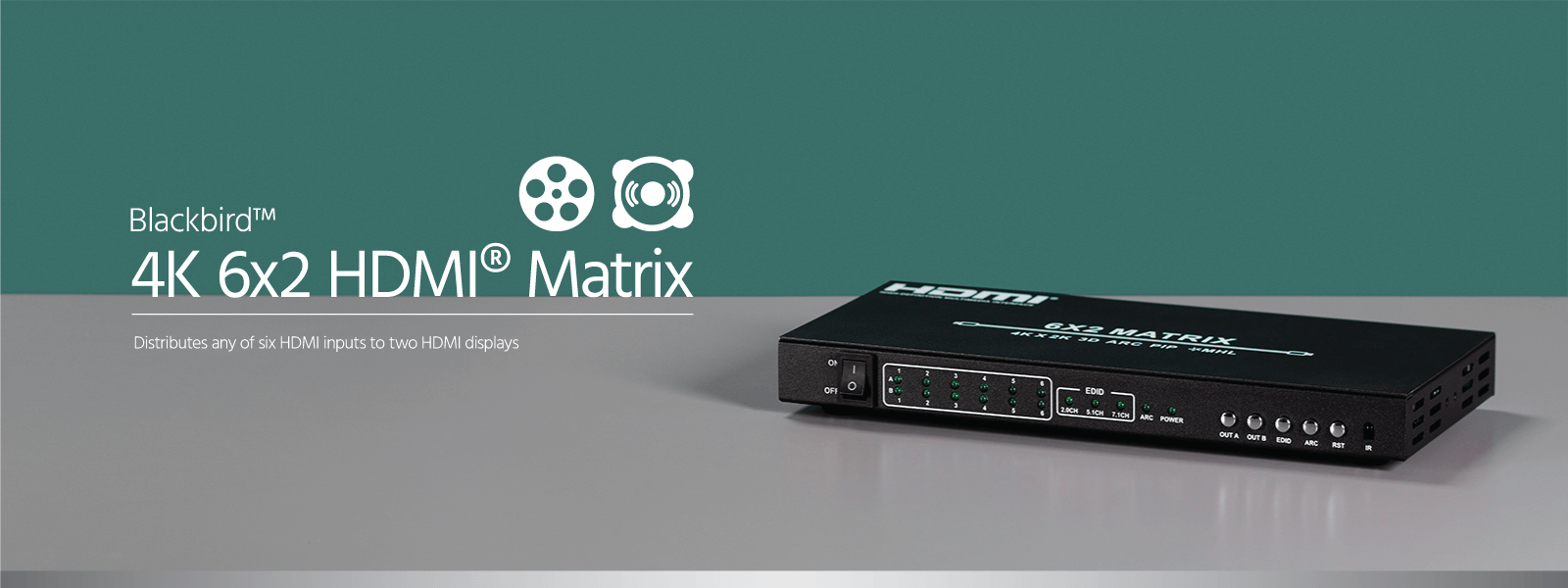

    Blackbird 4K 6x2 HDMI Matrix with Audio, HDCP 2.2

    Blackbird 4K 6x2 HDMI Matrix


    View any of six HDMI® video sources on two displays with the ability to independently determine the source for each display using this Blackbird™ 4K 6x2 HDMI Matrix. It supports video resolutions up to 4K@30Hz, 3D video, MHL® input, and high-definition lossless multichannel audio. It features both analog stereo and digital optical (Toslink) audio outputs, which allows you to use headphones, powered speakers, or an external amplifier or AV receiver for the primary video output. It includes a Picture-in-Picture (PiP) feature, allowing you to view two video sources on any connected display, regardless of its native capabilities. You can even directly connect your MHL-equipped smartphone or tablet without the need for a separate MHL adapter.

    6 HDMI Inputs
    4K Everyday
    2 HDMI Outputs
    6 HDMI® Inputs
    4K Everyday
    2 HDMI Outputs


    6 HDMI Inputs: Connect up to six HDMI® video sources with video resolutions up to 4K@30Hz, including an MHL®-equipped smartphone or tablet.

    4K Everyday: Enjoy video at resolutions up to 4K@30Hz with support for the latest HDMI and HDCP 2.2 specifications.

    2 HDMI Outputs: Distribute any of the six video inputs to either or both connected displays at the same time.





    All to HDMI Video Converter and HDBaseT Extender




    Features


    • Distributes any of six HDMI® video sources to either or both of two connected displays
    • Includes analog stereo and multichannel digital optical Toslink outputs
    • Adds the Picture-in-Picture (PiP) video feature to any HDMI display or projector
    • Supports direct input from an MHL®-equipped smartphone or table without the need for a separate MHL adapter
    • Supports video resolutions up to 4K@30Hz, including 1080P@60Hz and 3D video
    • Compatible with the latest HDMI and HDCP 2.2 specifications
    • Includes audio EDID to force 2.0, 5.1, or 7.1 channel audio
    • Supports multichannel lossless digital audio streams, including LPCM, Dolby TrueHD™, and DTS-HD Master Audio™
    • Includes infrared remote control







    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    Video Inputs 5x HDMI®, 1x HDMI with MHL® support (6 total)
    Video Outputs 2x HDMI
    Audio Outputs 1x 3.5mm analog stereo, 1x Toslink
    Bandwidth 2.97Gbps/channel (8.91Gbps total)
    Audio Support 2.0, 5.1, and 7.1 channels
    Power Source 5 VDC, 2A AC power adapter

    Maximum Power Consumption 10 watts
    Operating Temperature +32 ~ +104°F (0 ~ +40°C)
    Storage Temperature -4 ~ +140°F (-20 ~ +60°C)
    Dimensions 9.8" x 4.3" x 1.0" (250 x 110 x 26mm)
    Weight 25.4 oz. (720g)



    Support Files:



    Blackbird™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    MHL® is a trademark of MHL, LLC in the United States and/or other countries.

    Blu-ray™ and Blu-ray Disc™ are trademarks of the Blu-ray Disc Association.

    Dolby® and the double-D symbol are registered trademarks of Dolby Laboratories. Dolby TrueHD™ is a trademark of Dolby Laboratories.

    DTS® is a registered trademark and the DTS logos, Symbol, DTS-HD™, and DTS-HD Master Audio™ are trademarks of DTS, Inc.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 17 questions Browse 17 questions and 19 answers
    Can anyone confirm whether this matrix supports HDMI 2.0? I see support for HDCP 2.2 which probably means it also supports HDMI 2.0 but the bandwidth specs: 2.97Gbps/channel (8.91Gbps total) seem odd.
    Steve V on Dec 16, 2016
    BEST ANSWER: Hello, thank you for your question. This unit supports up to 10.2Gbps bandwidth, 4k@30Hz. The HDCP 2.2 support specifically allows it to play protected 4k content. I hope this helps, and of course if you have any more questions feel free to contact us at tech@monoprice.com.
    Does this support HDR? What I'm looking to do is run inputs into this device, one output for video to TV that supports HDR, and the other output to the receiver to get uncompressed audio from the same input source. Does that sound possible with this device?
    New User U on Aug 11, 2017
    Is there a trick to making the 4k work? I have two 4k tvs that work if my fire is plugged directly in but not with this inline.
    Mitchell H on Jul 26, 2017
    BEST ANSWER: I'm sorry to hear that, please feel free to contact our tech support team with a detailed summary of the issue you are experiencing via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist.

    Thank you
    I have bought 2 6x2 HDMI Matrix products from different manufacturers for my game room. I have 6 different game systems hooped up to 2 different TV outputs. Both units I have tried so far, the audio on one TV would cut out constantly if both tv's were displaying different inputs. They worked ok if the same input was running to both TV's. Does this product suffer from the same issue? Or can I run different inputs on both outputs with no audio loss?
    A shopper on Apr 3, 2017
    BEST ANSWER: Thank you for your question. It sounds like there may have been issues with the units you had used. This unit would have no issues being able to have 2 inputs being used for either or both TVs.
    Can I control this with my logitech harmony remote control or the logitech harmony hub?
    New User U on Feb 24, 2017
    BEST ANSWER: I just added mine under HDTV Supply 4K 6x2 HDMI Matrix Switcher, when you add it put "Blackbird" as the brand and "4K 6x2 HDMI Matrix Switcher" as the model number and click add. It will show you a list and you can select the one that reads "HDTV Supply 4K 6x2 HDMI Matrix Switcher", it has all the buttons mapped.
    I see this unit has a toslink audio out. Which of the input sources would be output from this port? I am hoping to output digital audio from several HDMI sources to my stereo receiver's toslink input from the switcher's toslink audio out. Input sources include blu-ray, cable box and smart TV. The TV has ARC HDMI input, so also hope to connect to TV once via the ARC HDMI and also send this source via toslink to my stereo receiver. Is this all possible?
    New User U on Aug 13, 2017
    Two questions:

    Can this be powered on/ off with the remote? I see in the photos the unit has a power toggle but the remote appears to have a power button as well, maybe it goes into standby?

    My current matrix (cheap one) has a lot of flicker when changing channels with my cable box and takes a long time to see the channel when changed, how does this one do?
    Thomas S on Dec 1, 2016
    BEST ANSWER: The power button on the remote puts the unit into standby mode. The power toggle switch on the unit turns it off. I only have had one problem with this switch. When I power on the TV and DirecTV DVR, I often don't have sound. The work around is to power off the switch and turn it back on. This only happens on my Samsung 9500 series TV. I have the same switch on my LG OLED and I don't have this problem. it makes me think this is a problem with the Samsung. There are no problem with switching between devices or switching channels.

    Enjoy.
    Will this work with a Harmony Hub Remote?
    Andrew N on Mar 2, 2017
    BEST ANSWER: Yes. I have owned multiple versions of harmony and multiple HDMI switches. If you have an IR remote your Harmony remote can learn from it, even if it is not on the list of available devices in harmony
    Is it capable of overlaying (superimposing) on source on top of the other?
    - JC
    A shopper on Feb 6, 2017
    BEST ANSWER: The device has 2 outputs so you can run a Hdmi cable to a TV and a receiver to get sound from one source and video from another. . If you had a second TV you could display a completely different source on 2 TVs. But the pip that comes with the. Device is too small to use but it superimposes 5 sources on to 1 screen. Hope this answers your question.
    I’m looking for a solution to mirror multiple HDMI inputs (at least one HDCP 2.2) to two different resolution outputs (4K on one TV, 720p on another). Will this do it? If yes, how about with HDCP 2.2 compliant video (i.e. UHD FireTV output to both TVs, even though the second is an older 720p)?
    New User U on Jul 30, 2017
    BEST ANSWER: No. The resolution you are sending from your source is what you get out.
    I bought this switcher and lost the remote. Do you sell a replacement remote for this switcher?
    A shopper on Jun 1, 2017
    BEST ANSWER: Thank you for your question. Unfortunately we would not carry the remote controller for this unit separate from the unit. I do apologize for any inconvenience.
    Can it cascade to another unit?
    A shopper on Mar 31, 2017
    BEST ANSWER: Yes, but the unit must have the same specs.
    The manual suggests only HDMI input 1 is HDCP 2.2 compliant (p.4 under 'Attention') . Is this correct or are all 6 input ports HDCP 2.2? Also would I be able to use one HDMI port for picture and HDMI output 2 for sound? (i.e. for Amazon Fire box and a projector)
    A shopper on Mar 12, 2017
    BEST ANSWER: Only Input 1 is HDCP 2.2 compliant.
    How will it work using toslink and stereo ports simultaneously? also will it switch automatically from 2.0-5.1-7.1ch using toslink?
    A shopper on Feb 19, 2017
    BEST ANSWER: It does not work that way. When the original program is code in 2.0 or 5.1, this box does not translate it into 7.1. Your receiver processes it into 7.1 format but the signal for the two or five additional speakers to make 7.1 will not contain the signal. Toslink contains 5.1 signal format and 2.0 contains only left and right channels only.
    Will this work if I connect the output to a HDbaseT extender?
    Andrew N on Feb 13, 2017
    BEST ANSWER: Yes.the question is do you need 6 hdmi inputs?
    If I plugged an HDCP enabled device, such as a Playstation 3, would it bypass/strip the HDCP for the 'Out' signal? I'm looking for a 6x2 device that can bypass HDCP and support 4K for video recording, streaming, and editing purposes. I'm looking to make this purchase by the weekend.
    New User U on Jul 16, 2017
    Does this support CEC pass-through?
    Israel B on Apr 12, 2017
    3.8 / 5.0
    14 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    9
    0
    1
    1
    3
    Blackbird 4k 6x2 HDMI Matrix with Audio, HDCP 2.2
    While it supports 4K viewing (HDCP 2.2), it does not support HDR/Deep Color so I had to return it for refund.

    Looks like a well made product
    December 28, 2016
    Purchased
    10 months ago
    The switch works well. Using with Sonos soundbar 2 play 3 speakers and LG tv to obtain 5.1 surround sound.
    January 18, 2017
    Purchased
    8 months ago
    Great feature on affordable price.
    I was looking for hdmi switcher to replace my dvdo duo that die on me (haven't use the cms since I calibrated TV by myself but I missed the color generator).
    I need a switcher that can split audio signal to feed my PRE/AVR and this unit works great.
    You need to connect the output 1 (arc) to TV (arc) and then the audio signal will go tru output 2.
    Haven't test with 4K source or HDR yet but so far it works what I need for now.

    At this price it beat others hdmi switcher by far.
    Hope it can do HDR (well maybe not cause it need hdmi 2.0a at least)

    PROS: Price

    CONS: Should have coax audio output.
    6 hdmi inputs not much .. not less .. but the more the merrier. (I was looking for 8x2 but they don't have it)
    November 3, 2016
    This unit can do 4K@60 at 4:2:0
    I just update a new GPU that support 4K. So, I just have a chance to test it with 4K.
    When changing resolution to 4K. It always goes to 4K@30 but you can change it to 4K@60 (4:2:0).

    I might look for another unit that support 4k@60 on 4:4:4 but right now I will live with it cause the one that support full 4k still expensive.
    December 5, 2016
    Purchased
    11 months ago
    6X2 MATRIX
    THIS UNIT OUT OF THE BOX DID EXACTLY WHAT I WANTED/IT IS A VERY GOOD SOLUTION TO THE PROBLEM OF OLD VERSES NEW HDMI HDCP STANDARDS.PLEASE NOTE THAT BY ITSELF THIS UNIT WILL NOT CORRECT THE ALL TO COMMON LIP SYNC PROBLEM.
    February 22, 2017
    Purchased
    7 months ago
    null
    Great little unit. Big performance in a little package.
    July 29, 2017
    Purchased
    2 months ago
    Great product! Does exactly what was needed!
    I was searching for a switch that fit my needs for sometime, and I came across this one and is a great buy. Great price and it does the job perfectly.
    March 8, 2017
    Purchased
    7 months ago
    Blackbird 4K 6x2 HDMI Matrix with Audio, HDCP 2.2
    Works great, easy to use and connect . Would recommend to anyone that has a lot of things to run , games ,apple tv or other devices . Would buy again if needed . Love the little remote that came with it!
    March 20, 2017
    Purchased
    6 months ago
    Blackbird 4k 6x2 HDMI Matrix with Audio, HDCP 2.2
    Received the item and right out of the box the audio output did not function. Phoned Technical Support and they are going to replace the unit.
    As for the units switching ability, it performs as per the description listed by Monoprice.
    Would recommend this product to a friend.
    Captain Canuck
    January 5, 2017
    Purchased
    10 months ago
    A Solid Matrix Switcher with Excellent Features
    We are very happy with this device. We picked it up for $79.99—an absolute STEAL if you can grab one at that price, but still a good value at the current price of $109.99. Multiple audio extraction options, including Toslink optical and TRS mini headphone jacks are very nice. The included remote control is reliable and easy to use.

    THANK YOU Monoprice for keeping the bar high on quality and value. I don’t know how you do it, but we are glad you do.
    March 30, 2017
    Purchased
    7 months ago
