    Blackbird 4K Multiview Video Processor with Seamless Scaling and Switching HDR/4:4:4/4K@60Hz
    Product # 18843
    In Stock This item should ship today (1/23/2018) if ordered within 6 hours 3 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $1,499.99
    Qty: 2-9 $1,499.99
    Qty: 10-19 $1,499.99
    Qty: 20-49 $1,499.99
    Qty: 50+ $1,499.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business


    Blackbird 4K Multiview Video Processor with Seamless Scaling and Switching HDR/4:4:4/4K@60Hz

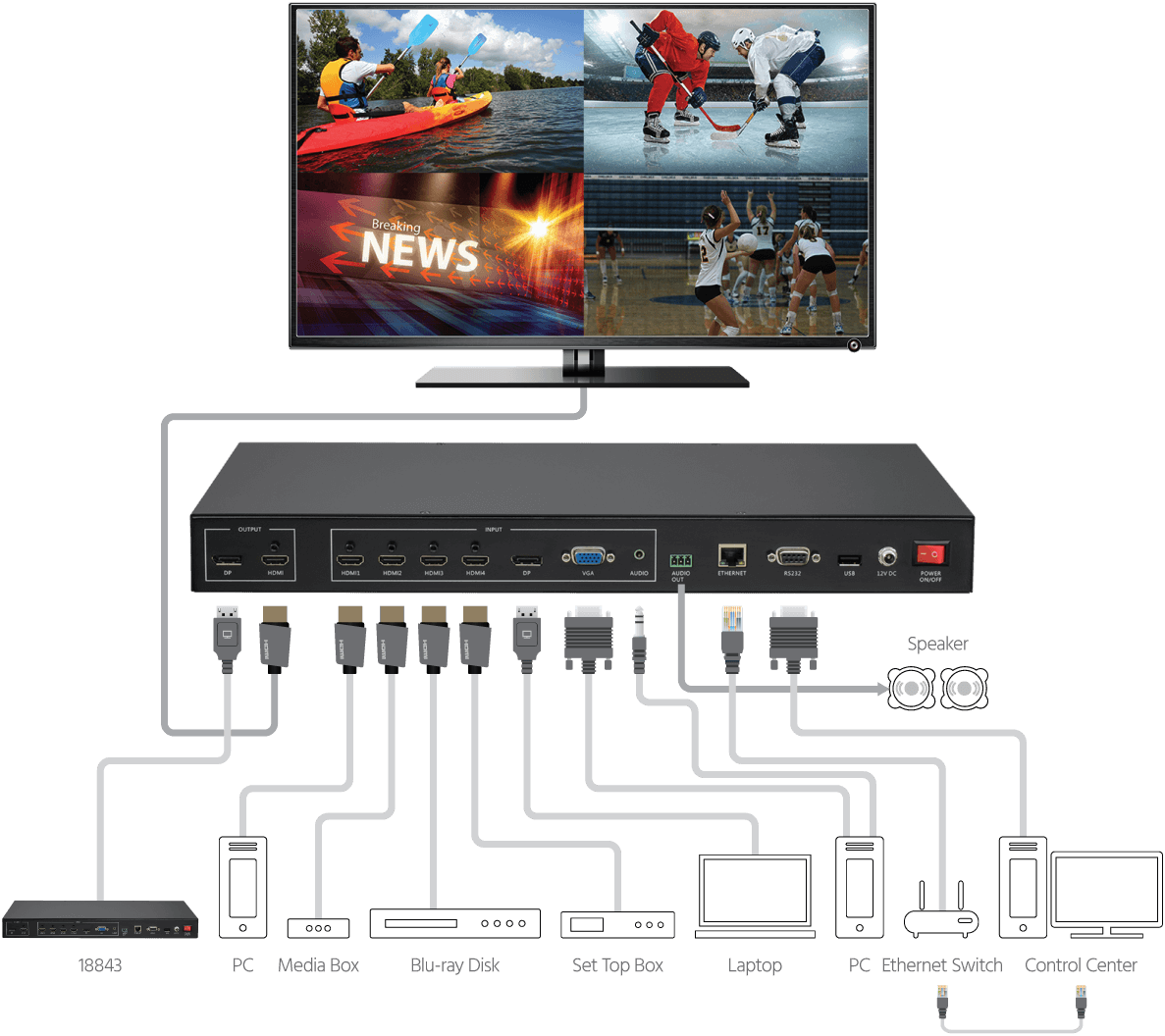

    The Blackbird™ 4K Multiview Video Processor is a simple, cost-effective video scaler designed to scale up or down SD and HD video at resolutions up to 4K@60Hz. It features four HDMI®, one VGA, one DisplayPort, and one analog audio inputs, plus one normal HDMI output and one loop-through DisplayPort output. The system allows you to easily flip and rotate content with the simple push of a button.

    The system is fully automatic, using the EDID information for the connected to display to scale up or down the video content for the optimal appearance on your video display. Whatever the video source is, this processor is capable of scaling it up or down, reducing noise artifacts, and adjusting its aspect ratio to match the native resolution of your HDTV or computer monitor. A wide selection of display resolutions up to 4096x2160 are supported, with auto-calibration ensuring a quick and easy setup and hands-off operation.


    • Full 4K@60Hz HDR support for both input and output formats
    • Features auto 4K upscaling when used with a 4K display
    • Stores the EDID handshake for each connected device allowing fast switching between input channels and combined multiple images on single display
    • Support 14 different screen layouts by 6 preset screen layouts and 8 custom screen layouts
    • Easily flip or rotate the video with the push of a button when used with a 1080p display
    • Combine four 1080p images onto a single 4K display with crystal clear picture quality

    Blackbird 4K Multiview Video Processor
    Blackbird 4K Multiview Video Processor



    Model 18843
    Inputs 4x HDMI® with locking, 1x DisplayPort, 1x VGA, 1x analog audio, 1x Ethernet
    Outputs 1x HDMI with locking, 1x DisplayPort loop-through, 1x analog audio
    HDMI Version 2.0
    DisplayPort Version 1.2
    Control Front panel buttons, IR remote control, RS232, Web UI
    Maximum Video Resolution 4096 x 2160@ 60Hz, 4:4:4 color sampling
    Input Power 12 VDC, 2A
    Power Consumption 15 watts
    Operating Temperature +32 ~ +113°F (0 ~ +45°C)
    Operating Humidity 20 ~ 90% RH, non-condensing
    Storage Temperature -4 ~ +140°F (-20 ~ +60°C)
    Dimensions 17.3" x 9.1" x 1.8" (440 x 230 x 45 mm)
    Weight 6.0 lbs. (2.72 kg)

    Support Files:

    Blackbird™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 1 answer
    The feature list is impressive but very misleading. May I ask how many of these presets and layouts are actually possible when incorporating a source resolution at or below 1080? Seemless switch between all sources? No way vga
    Joel R on Feb 26, 2017
    BEST ANSWER: Hi Joel,

    Thank you for reaching out to us, you can set up to 8 layout presets with varying input resolutions. Input resolution is not a factor as long as it's 480p or better, the limitation is that output resolution needs to be 1080p or better for the multiview features, when output is 720p or lower, the unit will only function as a scaler and seamless switcher. The seamless switcher incorporates the same technology currently in our other seamless switching devices.
    I see the layout at the bottom of this item screen, however, I would like a simple 2 input layout. One left and one right. Is this switch capable of this?
    Ryan M on Oct 30, 2017
    Does this send the Output over the HDMI output and Displayport output simultaneously or do you have to choose one or the other?
    Thomas D on Aug 15, 2017
    does this have the ability to do native screen size full screen from any format. control .?
    A shopper on Dec 26, 2017
    When using one of the quad view layouts with Blackbird 4K Multiview Video Processor, how do you select which audio feed you're listening to or how do you cycle through audio feeds? Also, with one large and three smaller window layouts, is it possible to cycle through available inputs in the large window without changing the layout?
    Chris C on Oct 18, 2017
