    BitPath AV HDMI Extender Over Single Cat6 Cable with IR and PoE-Enabled, 120m
    Product # 16228
    $99.99
    In Stock This item will ship on 11/20/2017 if ordered within 1 days 15 hours 20 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $99.99
    Qty: 2-9 $98.99
    Qty: 10-19 $97.99
    Qty: 20-49 $96.99
    Qty: 50+ $94.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    BitPath AV HDMI Extender Over Single Cat6 Cable with IR and PoE-Enabled, 120m

    HDMI Extender Over Single Cat6 Cable


    The Monoprice BitPath AV™ HDMI® Extender Over Single Cat6 Cable kit allows you to distribute HDMI video with resolutions up to 1080p@60Hz to distances up to 394 feet (120 meters). It can use either a dedicated Ethernet cable or you can plug it into a router to use your existing network infrastructure to carry the BitPath AV signal without interfering with existing network traffic. The extender is PoE (Power over Ethernet) enabled, allowing you to power the transmitter or receiver using either the included AC power adapters or over the Ethernet cable using a PoE-enabled router or PoE injector. It includes a dual band IR repeater, so you can control your video source device using its infrared remote control from the remote location.






    HDMI Extender
    Plug & Play
    Dynamic Scaling
    HDMI® Extender
    Plug & Play
    Dynamic Scaling


    HDMI® Extender: The BitPath AV™ HDMI Extender allows you to distribute HDMI video with resolutions up to 1080p@60Hz to distances up to 394 feet (120 meters).

    Plug & Play: This HDMI extender is a true Plug & Play device, requiring no complicated setup, configuration, or software. Simply connect an HDMI video source to the transmitter and an HDMI display to the receiver, then connect the receiver and transmitter using a dedicated Ethernet cable or an existing Ethernet network.

    Dynamic Scaling: The BitPath AV HDMI Extender continually monitors signal strength and available bandwidth, dynamically scaling the video to produce the best possible video resolution without signal loss or interference.





    Connection Diagram



    HDMI Extender Over Single Cat6 Cable

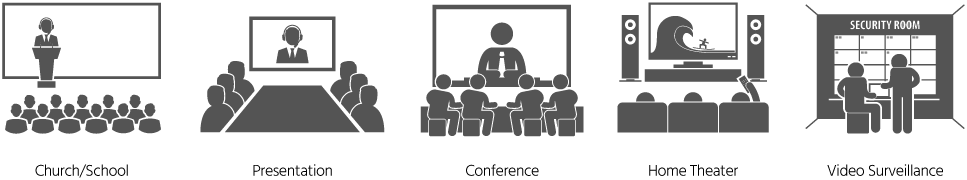

    Applications



    HDMI Extender Over Single Cat6 Cable





    1 Year Warranty

    Buy with Confidence

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Hassle Free Packaging

    Hassle Free Packaging

    Monoprice exists to bring simplicity, fairness, and confidence to technology choices. This product features recyclable packaging that is simple to open, cost effective, with minimal waste, and fully protective as it travels to you.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    HDMI Extender Over Single Cat6 Cable
    Model 16228
    Video Standard HDMI® with HDCP
    Maximum Video Resolution 1080p@60Hz
    Transmission Protocol BitPath AV™
    Maximum Transmission Distance 394 feet (120 meters) using Cat6 cable
    328 feet (100 meters) using Cat5e cable
    262 feet (80 meters) using Cat5 cable
    IR Extender Bandwidth 20 ~ 60 kHz
    Maximum Transmitter Power Consumption (each) 3.5 watts
    Maximum Receiver Power Consumption (each) 3 watts
    Power Source 5 VDC, 1A AC power adapters
    IEEE 802.3af Power over Ethernet (PoE)
    Operating Temperature +32 ~ +140°F (0 ~ +60°C)
    Dimensions (each) 4.1" x 3.7" x 0.9" (105 x 95 x 24 mm)
    Transmitter Weight 8.6 oz. (245g)
    Receiver Weight 8.6 oz. (243g)



    Support Files:



    Bit-Path AV™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 3 questions Browse 3 questions and 1 answer
    Is item #16228 interchangeable with item #14158, ie, can I use the transmitter from #16228 with the receiver from #14158?
    Dale R on Feb 9, 2017
    BEST ANSWER: Hello, thank you for your question. Unfortunately the transmitters and the receivers are not interchangeable, I apologize for the inconvenience
    What type of POE can I use to power rx and tx BitPath AV HDMI Extender Over Single Cat6 Cable with IR and PoE-Enabled ?
    YOVAN C on Aug 29, 2017
    Does this come with the IR transmitter and receiver (blaster)?
    Aaron M on Jun 26, 2017
    3.3 / 5.0
    3 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    1
    0
    1
    1
    0
    Video Delay
    I have not had a bad experience with Monoprice until this one.

    I read complaints about delay in the audio. I wasn't worried about that because I wasn't running audio through this machine. However there is actually a delay in the video signal. What a bummer! We were running closed circuit and it was obvious that the video was late. Luckily we had other devices, and this one got moved to the confidence monitor.

    I give it two stars. If the video signal is late than the device cannot be used without delaying the audio signal. And if you are in the situation we were in, it cannot be used at all. If you are going to buy a product, buy one that doesn't require extra devices.
    March 20, 2017
    Purchased
    9 months ago
    Great device for extending HDMI device.
    This extender is great for extending a HDMI device to another room within a home, office, or building. Just connect and it operates, no problems. We are extending the HDMI signal to another room about 180ft away. NOTE - You should use a dedicated cable to connect between the xmit and recv. Since the Ethernet packets are "broadcasted", DO NOT try and use this with a network that has wireless devices, it will swamp the wireless bandwidth. If you use this over a network with other devices, I would assign these 2 devices to their own VLAN to separate the traffic.
    February 25, 2017
    Purchased
    9 months ago
    Running to a tv on a wall?
    I'm sure this works fine. However, the IR repeater "eye" is about the size of a golf ball vs other ones out there that are the size of a pea. I just can't have this thing sticking out when everything else is hidden. I found one from cable matters that was the same price and has a small IR eye.
    March 26, 2017
