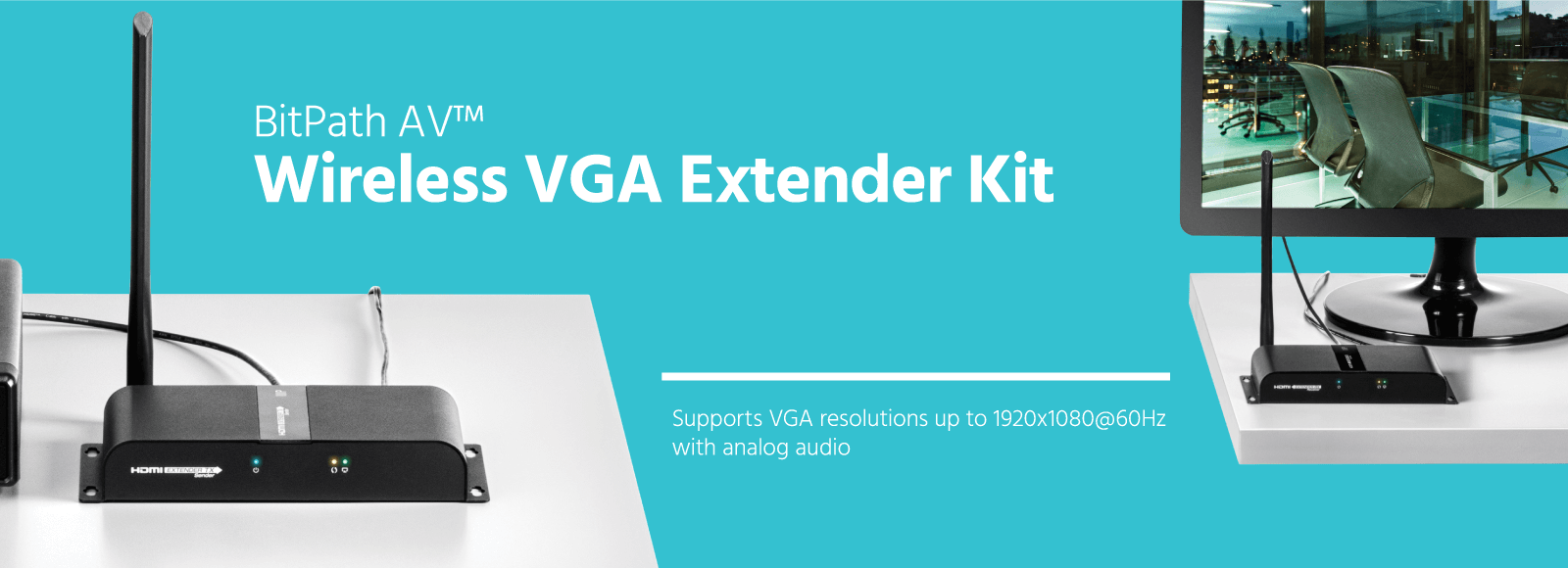

BitPath AV Wireless VGA Transmitter & Receiver Kit, 200m
Product # 16224
Volume Pricing (Log In to see Member Pricing)
|Minimum Video Resolution||800 x 600@60Hz|
|Maximum Video Resolution||1920 x 1080@60Hz|
|Transmission Protocol||BitPath AV™|
|Maximum Transmission Distance||up to 656 feet (200 meters)|
|Maximum Transmitter Power Comsumtion||9 watts|
|Maximum Receiver Power Consumption||6.5 watts|
|Power Source||5 VDC, 3A AC power adapters|
|Operating Temperature||+32 ~ +140°F (0 ~ +60°C)|
|Dimensions (each)||7.7" x 5.5" x 1.3" (196 x 139 x 32 mm)|
|Weight (each)||20.3 oz. (575g)|
- User's Manual (Sep 27, 2016)
Bit-Path AV™ is a trademark of Monoprice Inc.
Questions and Answers
Browse 3 questions Browse 3 questions and 2 answers
Can multiple pairs of these exist in the same room without interference?
BEST ANSWER: Thank you for your question. Theoretically you would be able to have multiple pairs running in the same area. However, you would have an increased chance of interference between them. It would not be recommended.
What type of wireless connection do you use? Do I need an existing network? Is the connection using 2.4 or 5.8 GHz and is it encrypted?
BEST ANSWER: Don't know if it is encrypted, but it does not need a seperate network to connect to too. The units connect point to point.
do you also provide Internation power supply, eg Germany?
