    Bit-Path AV HDMI over Ethernet Extender, Receiver Unit ONLY (for use with 14158)
    Product # 15522
    $39.99
    Out of Stock ETA: 11/24/2017

    Note:

    Due to limited supply, all products are sold on a first-come first-serve basis.  Auto Notification does not guarantee either availability or price. All prices are subject to change without notice.

    *Your information will only be used to notify you when this item becomes available.

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $39.99
    Qty: 2-9 $39.49
    Qty: 10-19 $38.88
    Qty: 20-49 $38.49
    Qty: 50+ $34.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    Bit-Path AV HDMI over Ethernet Extender, Receiver Unit ONLY (for use with 14158)

    This is a Bit-Path AV™ receiver ONLY. It cannot be used standalone and must be used as part of a complete HDMI® extender solution with the Bit-Path AV HDMI over Ethernet Extender Kit (14158).

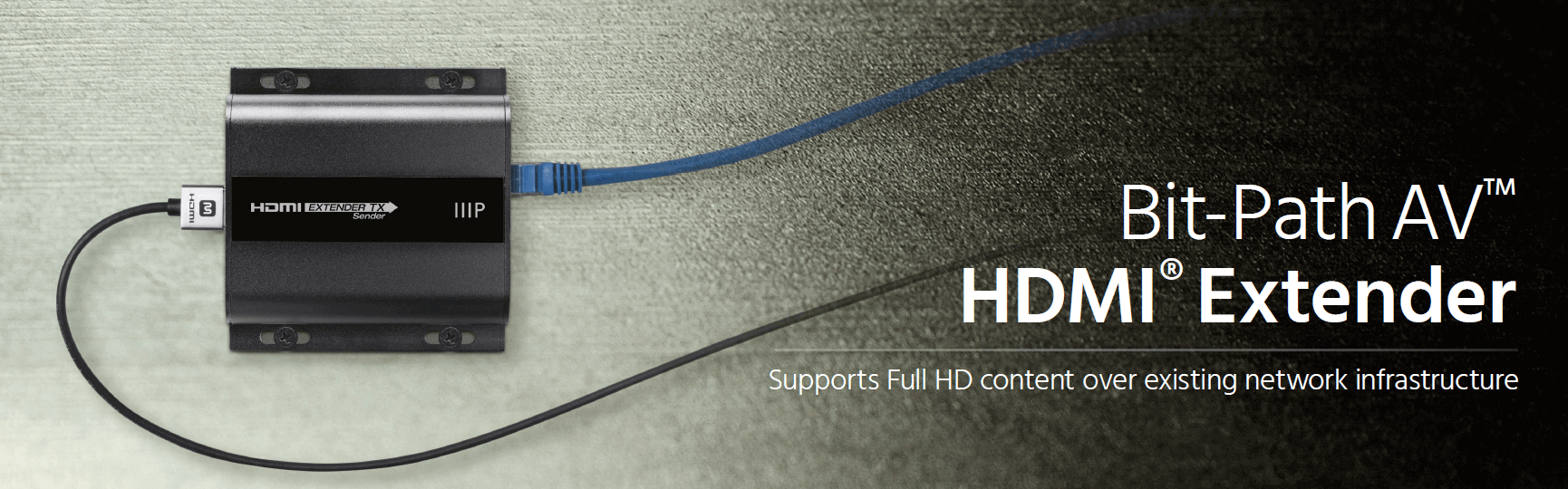

    Bit-Path AV HDMI Extender

    Monoprice Bit-Path AV™ is revolutionary new technology for transmitting HDMI® video over long distances. It features a proprietary IP-based network topology, which allows it to operate as a standalone system, transmitting the HDMI signal to distances up to 120 meters over a single Ethernet cable*. You can also plug it into your existing Ethernet local area network and use the existing network infrastructure to transmit the signal over any distance, without interfering with your LAN traffic. It supports the 1080p FHD resolution, 3D video, and multichannel, compressed and uncompressed audio. Best of all, it is a true Plug-n-Play solution, allowing installers and end-users alike to quickly and easily create an HDMI distribution system for home and business applications alike.

    Easy Installation
    Use Almost Anywhere
    Auto Scale Resolution
    Transmission Distance
    Easy Installation
    Use Almost Anywhere
    Auto Scale Resolution
    Transmission Distance


    Easy Installation: By using a proprietary IP-based network topology, the Bit-Path AV™ system can be up in running in a matter of minutes. Use it as a standalone extender, using a single Ethernet cable to distances up to 120 meters, or plug into an existing LAN and transmit the HDMI® signal over any distance.

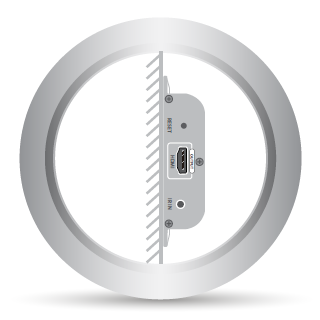

    Use Almost Anywhere: As long as you have access to a power outlet, you can use this extender. Use a single Ethernet cable for standalone operation or plug into a router or Ethernet switch to use an existing network infrastructure. The slim transmitter and receiver modules can be wall mounted for easy access.

    Auto Scale Resolution: The system automatically adjusts the output resolution based on the signal source and transmission distance to ensure the highest quality picture possible.

    Transmission Distance: Using a single Ethernet cable* in standalone mode, you can transmit 1080p HDMI® signals to distances up to 120 meters. Alternatively, you can use an existing LAN to transmit the signal to any distance.




    Connections

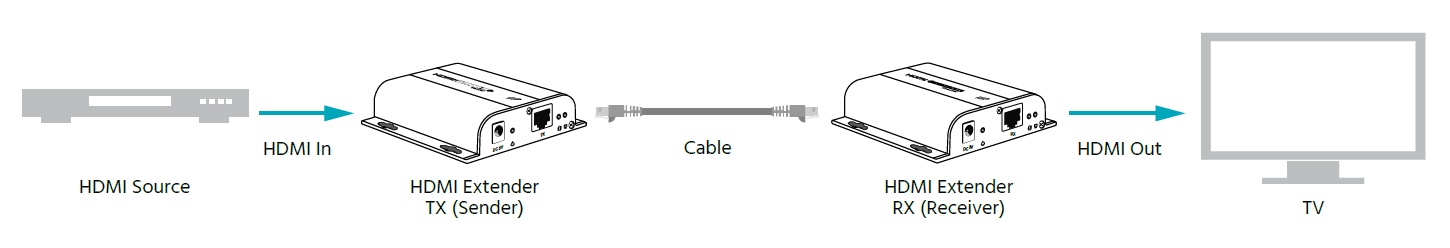

    Standalone: Use a single Ethernet cable* between the transmitter and receiver to extend the HDMI® signal to distances up to 120 meters.

    Standalone Mode

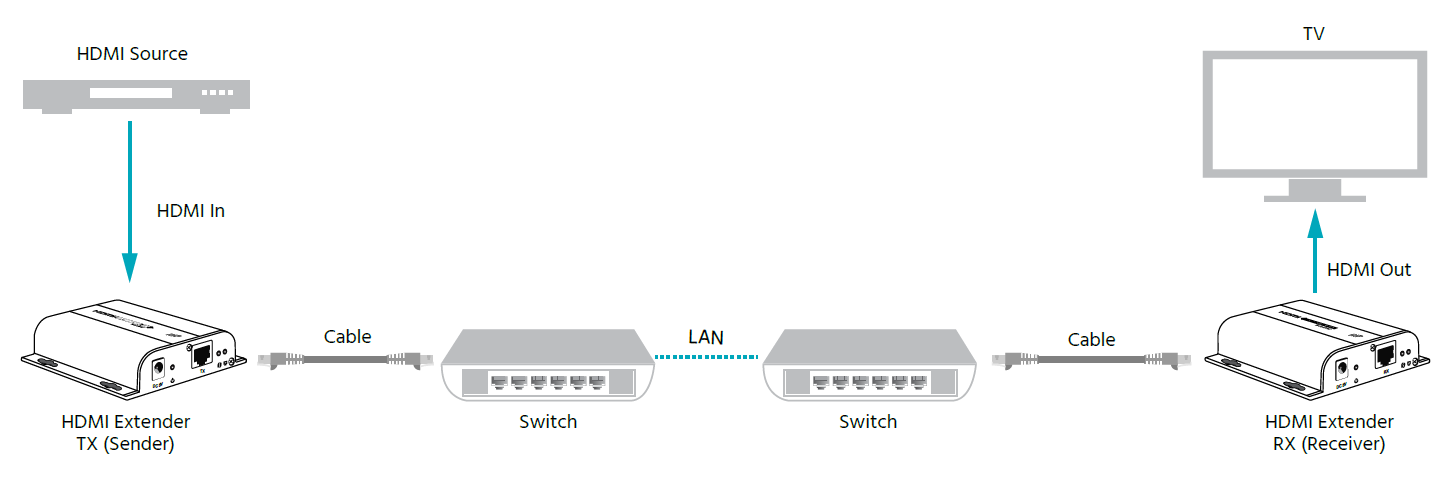

    Existing Network: Plug the system into routers or network switches on an existing local area network to extend the HDMI® signal over any distance using existing network infrastructure.

    Network Mode

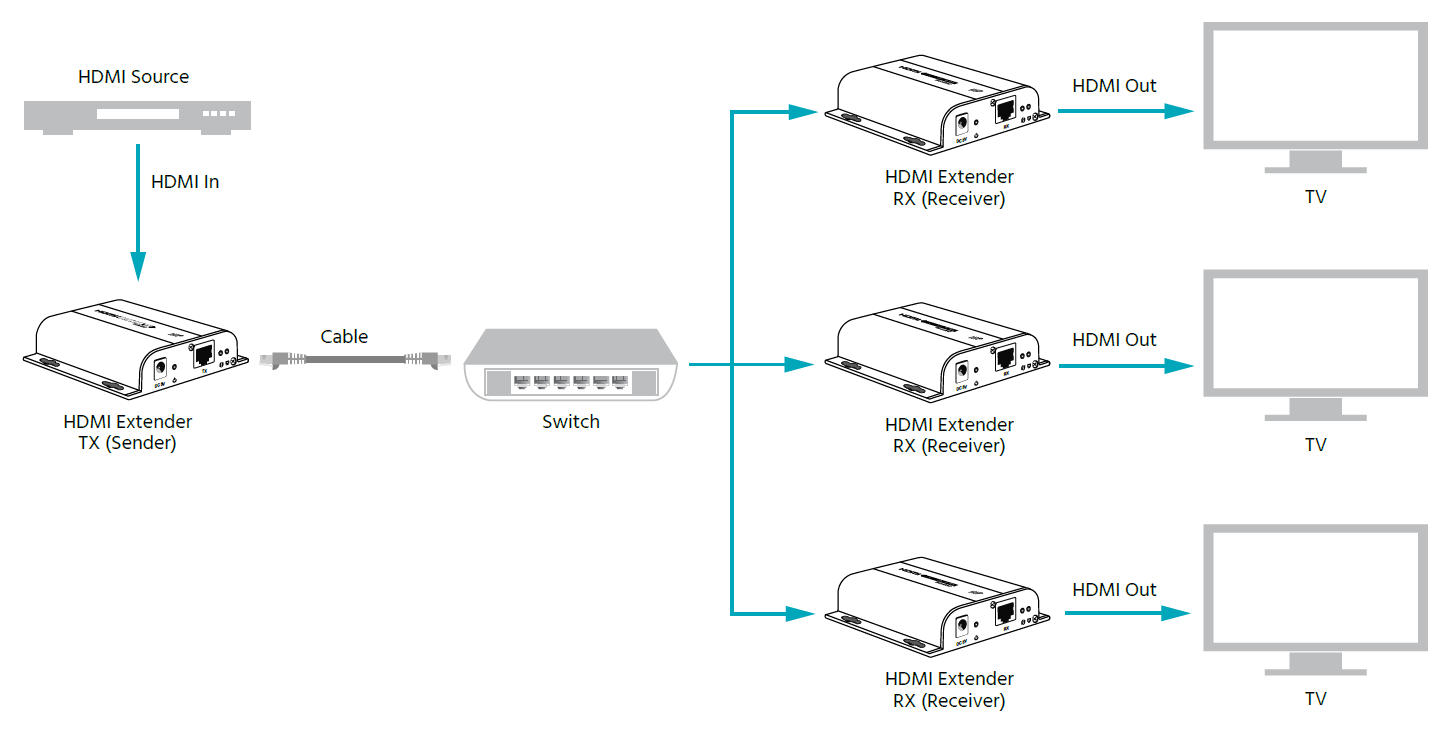

    HDMI® Splitter: By using an Ethernet switch** and multiple receivers, in either a standalone or existing network installation, you can split the HDMI signal to multiple destinations. Unlike other HDMI splitters, the system scales with your needs, from a simple 1x2 split using two receivers to an extensive, complex and unlimited split using multiple receivers. You can even use multiple receivers in conjunction with conventional splitters to further multiply the number of displays you can use.

    Splitter Mode



    Applications


    The Bit-Path AV™ HDMI® Extender is the perfect solution for extending and optionally splitting an HDMI signal to drive one or more displays at distances up to 120 meters in standalone configurations or any distance, using existing network infrastructure.

    Home Theater
    Home Theater
    TV Walls
    TV Walls
    Video Surveillance
    Video Surveillance
    Church/School
    Church/School
    Conference
    Conference
    Presentation
    Presentation


    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!



    Bit-Path AV HDMI Extender
    Bit-Path AV HDMI Extender
    Bit-Path AV HDMI Extender

    HDMI® Signal Compatible with HDCP v1.2
    Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
    Supported Network Cables Cat 5/5e/6, UTP or STP (Cat6 STP highly recommended)
    Standalone Transmission Distance Up to 120 meters with a 1080p signal over a single Cat6 STP cable
    Network Transmission Distance Unlimited using existing infrastructure**
    Maximum Signal Splits Unlimited in both standalone and existing network installations
    IR Repeater Support Supports single and dual band IR devices using 20 ~ 60 kHz frequencies
    Operating Temperature +32 ~ +140°F (0 ~ +60°C)
    Power Supply (each) 5 VDC, 1A
    Power Consumption 3.5 watts (Transmitter), 3 watts (Receiver)
    Dimensions (each) 5.1" x 3.3" x 0.9" (130 x 84 x 23 mm)



    * For best results, use Cat6 STP cabling.
    ** For best results, use Gigabit (1000Mbps) rated switches and cabling.



    Support Files:



    Bit-Path AV™ is a trademark of Monoprice Inc.

    HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.



    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 1 question Browse 1 question and 1 answer
    does this support power over ethernet like the transmitter reciever kit?
    Dillon F on May 15, 2017
    BEST ANSWER: Thank you for your question. Unfortunately this unit will not support power over ethernet. Our Blackbird HDBaseT extender would support this. Such as Product # 21609.

    Should you require additional assistance, please reach out to our technical support team with a detailed question via any of the methods available here:

    https://www.monoprice.com/help?pn=contact

    Our knowledgeable Technical Support staff would be more than happy to assist. Thank you
    4.5 / 5.0
    2 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    1
    1
    0
    0
    0
    these work great!
    Just plug it into your managed switch with vlan ports so you don't have to have a dedicated switch. I didn't see a managed switch on this site so you'll have to get one somewhere else. You will have to use a dedicated switch just for these extenders or set up vlan ports on a managed switch. I used a d-link DGS-1100-24 Gigabit Ethernet Switch, super easy gui.
    December 6, 2016
    Purchased
    1 year ago
    Works as described... no issues when I installed them.
    February 16, 2017
    Purchased
    9 months ago
