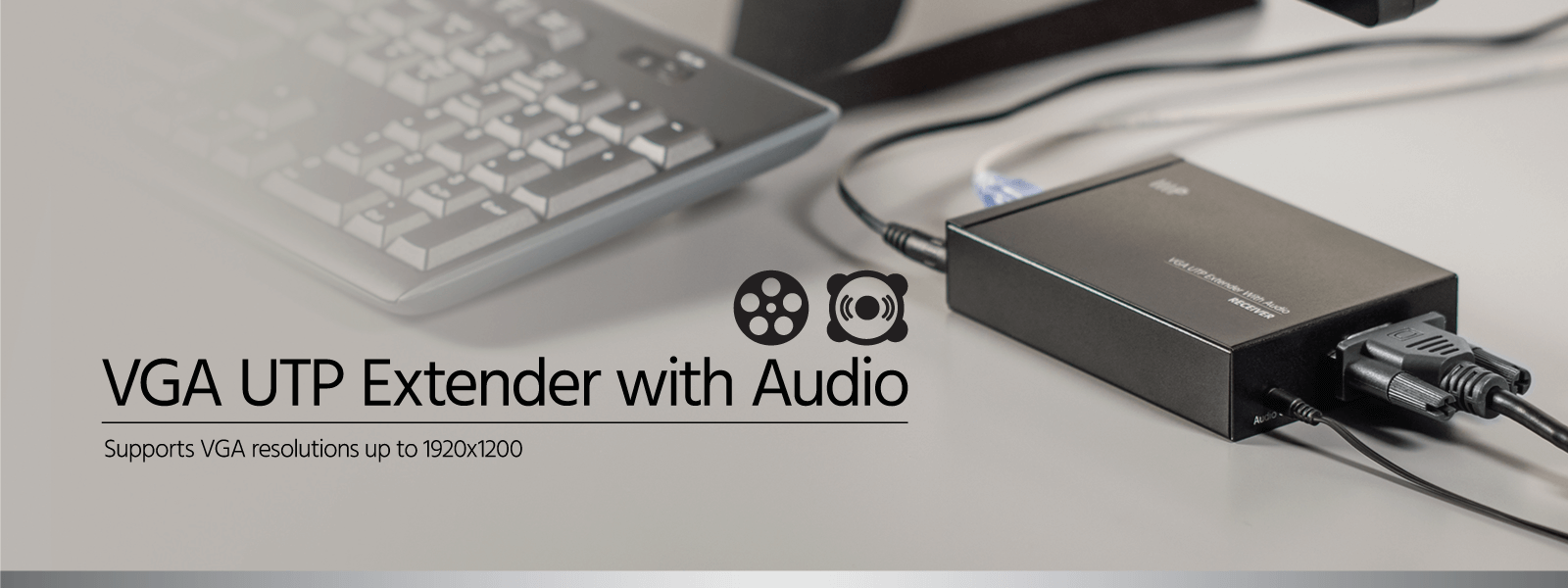

VGA UTP Extender With Audio
The Monoprice VGA Extender system allows you to easily extend and distribute analog VGA video to distances up to 950 feet using a single Cat5e or Cat6 cable. Supporting video resolutions up to 1920x1200, it also extends stereo audio signals. This 1x1 kit includes both a transmitter and receiver for extending to a single display.
Extend up to 950ft: Extend VGA video to distances up to 950 feet (290 meters) using a single Cat5e or Cat6 Ethernet cable.
FHD Video: This extender supports video resolutions up to 1920x1200, including the popular 1080p FHD resolution.
Compact Design: The small, compact design and light weight makes it easy to hide the extender out of sight.
- Extends VGA video and stereo audio signals to distances up to 950 feet (290 meters) using a single Cat5e or Cat6 UTP Ethernet cable
- Adjustable Gain and Peak settings for fine tuning the brightness and skew when using longer cable runs
- Supports VGA video resolutions up to 1920x1200
- Includes VGA and 3.5mm audio loop outputs for use with a local monitor
- Includes both a transmitter and receiver
Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.
Quality at a Fair Price
Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.
Service & Support
You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!
|Maximum Video Resolution||1920x1200|
|Vertical Frequencies||60, 75, and 85 Hz|
|Maximum Extension Distance||950 feet (290 meters)|
|Input Power||5 VDC, 1A|
|Transmitter Inputs||1x VGA, 1x 3.5mm stereo audio|
|Transmitter Outputs||1x RJ45, 1x VGA, 1x 3.5mm stereo audio|
|Transmitter Dimensions||4.3" x 3.0" x 1.0" (110 x 75 x 25 mm)|
|Transmitter Weight||7.5 oz. (213g)|
|Operating Temperature||+32 ~ +158°F (0 ~ +70°C)|
|Operating Humidity||10 ~ 85% RH, non-condensing|
|Storage Temperature||+14 ~ +176°F (-10 ~ +80°C)|
|Storage Humidity||5 ~ 90% RH, non-condensing|
|AC Adapter Input Power||100 ~ 240 VAC, 50/60 Hz|
|Receiver Inputs||1x RJ45|
|Receiver Outputs||1x VGA, 1x 3.5mm stereo audio|
|Receiver Dimensions||4.3" x 3.0" x 1.0" (110 x 75 x 25 mm)|
|Receiver Weight||7.3 oz. (208g)|
