IP PoE 1080P HD IP66 Waterproof Infrared Bullet Camera with 4mm Fixed Lens
    Product # 12473
    IP PoE 1080P HD IP66 Waterproof Infrared Bullet Camera with 4mm Fixed Lens
    Product # 12473
    $119.99
    Quantity:
    In Stock This item should ship tomorrow (12/6/2016) if ordered within 19 hours 6 minutes

    Volume Pricing (Log In to see Member Pricing)

    Volume Pricing

    Qty: 1 $119.99
    Qty: 2-9 $118.99
    Qty: 10-19 $117.99
    Qty: 20-49 $116.99
    Qty: 50+ $99.99

    To see and take advantage of our member pricing sign up for a business account or contact our sales team.

    Learn more about Monoprice Business

    IP PoE 1080P HD IP66 Waterproof Infrared Bullet Camera with 4mm Fixed Lens

    IP POE 1080P Infrared Bullet Camera


    This outdoor bullet camera is designed to connect to your Network Video Recorder or IP Based CCTV System. Monoprice's full featured video monitoring system is compatible with PCs running Microsoft Windows® XP or later (32- or 64-bit) and Apple Mac® computers running OS X®. The camera connects to the network using either Cat5e/Cat6 cabling or wirelessly over a Wi-Fi® connection. It supports Power over Ethernet (PoE), so there is no need for a separate power adapter when using a wired PoE connection.




    IP66 Waterproof
    Power Over Ethernet
    4mm F2.0 Fixed Lens
    CMOS Sensor
    IP66 Waterproof
    Power Over Ethernet
    4mm F2.0 Fixed Lens
    CMOS Sensor



    IP POE 1080P Infrared Bullet Camera




    Features


    This camera features a 4mm F2.0 Fixed Lens, which provides a viewing angle of 85°. It utilizes a 1/2.8" progressive scan CMOS sensor with a maximum resolution of 1920 x 1080 (2 megapixels) and bit rates from 32kbps ~ 8Mbps. It can capture color images in light conditions as low as 0.028 lux (with AGC on) and black and white images in 0 lux conditions to distances up to 98 feet (30 meters) using the built in infrared (IR) LEDs.




    CMOS


    CMOS

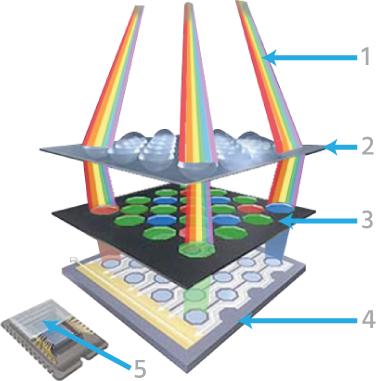

    1. Incoming visible light

    2. Visible light passes through the IR-blocking filter

    3. Color filters control the color of light reaching the sensors

    4. Color blind sensors convert the light into electronic signals

    5. Millions of individual light sensors



    Complementary Metal-oxide Semiconductor: The CMOS image sensor utilizes newer technologies to better record HD resolutions and fast-moving activities.




    ROI


    ROI


    Region of Interest: ROI allows you to configure one or more areas of a given camera's field of view for additional scrutiny. For each defined ROI, the camera will create a seperate video substream, which can be viewed or captured seperately from the main Field of View. The effect is to provide multiple views and capture feeds using only a single camera.




    BLC


    BLC

    Back Light Compensation: BLC reduces silhouetting, so you can see foreground subjects clearly when positioned in front of a bright background. The BLC circuitry adjusts the exposure so that the subject is properly illuminated and clearly visible.




    DNR


    DNR

    Digital Noise Reduction: Image noise can come from a variety of sources, but is most often associated with low-light conditions, resulting in a "grainy" image. This noise not only interferes with the ability to clearly distinguish individual image elements, but also increases the storage space required for any given image. The DNR circuitry uses a digital comb filter to remove this noise.




    WDR


    WDR

    Wide Dynamic Range: WDR produces clearer images and more even lighting in views that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light. WDR improves on the ability of Back Light Compensation (BLC) and High Light Compensation (HLC) by independently adjusting the intensity of different portions of the image to produce proper lighting intensity across the entire image.



    Advanced Alarms

    Motion Detection
    Tampering Detection
    Intrusion Detection

    Motion Detection
    Tampering Detection
    Intrusion Detection



    This camera features exception handling for hard drive full, hard drive error, network disconnected, IP address conflict, and illegal login conditions. It can respond to alarms in a number of ways, including sending an email, contacting the surveillance center, and uploading a recording to an ftp site.



    • 1920 x 1080 (2 megapixels) maximum resolution
    • Supports both wireless and PoE Ethernet connections
    • Live view using browser or dedicated software (included)
    • Supports Region of Interest (ROI), Back Light Compensation (BLC), High Light Compensation (HLC), 3D Dynamic Noise Reduction (3D DNR), Wide Dynamic Range (WDR), and White Balance image enhancement features
    • Supports dual streaming
    • Supports custom text overlays
    • Includes Privacy Masking and Line Crossing Detection
    • Can control other devices using an RS-232 connection
    • Supports stream authentication and anonymous viewing options
    • IP66 ingress protection rating





    Applications


    Applications






    1 Year Warranty

    Warranty

    Monoprice not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30-day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.



    Quality at a Fair Price

    Quality at a Fair Price

    Monoprice's rugged design and rigid quality control standards deliver high quality products at fair prices.



    Service & Support

    Service & Support

    You're never on your own with Monoprice products! We have a full team of friendly and knowledgeable technicians available to answer your questions, both before and after the sale. Contact our technical support team for questions about our products, troubleshooting, or even suggestions for products to fit your particular needs. Not to be outdone, our friendly and helpful customer service team is here to make your ordering, delivery, and any possible returns a quick and painless operation, from start to finish!






    CAMERA
    Image Sensor 1/2.8" Progressive Scan CMOS
    Min. Illumination 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
    Shutter Speeds 1/25 (1/30) ~ 1/100,000 seconds
    Lens 4mm @ F2.0

    Angle of View 85°
    Lens Mount M12
    Day & Night IR cut filter with auto switch
    Digital Noise Reduction 3D DNR
    Wide Dynamic Range Digital WDR



    COMPRESSION STANDARD
    Video Compression H.264 / MJPEG

    Video Bit Rates 32 kbps ~ 8 Mbps
    Dual Stream Yes



    Max. Resolution 1920 x 1080
    Frame Rates 50Hz: 25fps - 1920x1080 / 1280x960 / 1280x720
    60Hz: 30fps - 1920x1080 / 1280x960 / 1280x720

    Image Settings Rotate mode, Saturation, Brightness, Contrast, sharpness adjustable through client software or web browser
    BLC Yes, zone configurable
    ROI Support Yes



    NETWORK
    Network Storage NAS (supports NFS,SMB/CIFS)
    Alarm Triggers Intrusion detection, line crossing detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    General Functionalities One key reset, flash prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
    System Compatibility ONVIF, PSIA, CGI, ISAPI



    INTERFACE
    Communications Interface 1 RJ45 10/100Mbps Ethernet interface


    Reset Button Yes



    GENERAL
    Operating Temperature -22 ~ +140°F (-30 ~ +60°C)
    Operating Humidity 95% or less (non-condensing)
    Power Supply 12 VDC ±10% , PoE (802.3af)
    Power Consumption Max. 5W (Max. 7W with IR cut filter on)


    Ingress Protection IP66
    IR Range Up to 30 meters

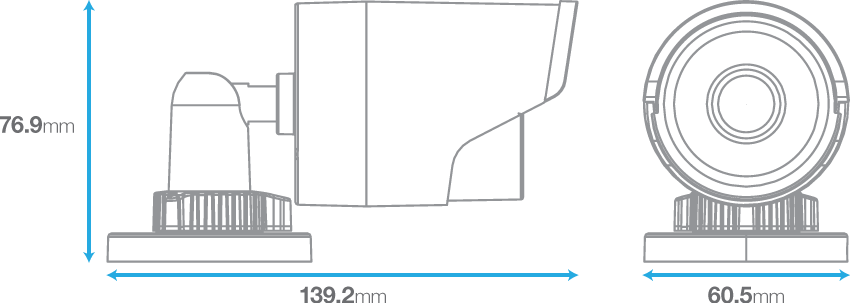

    Dimensions 2.4" x 3.0" x 5.5" (60 x 77 x 139 mm)
    Weight 17.6 oz. (500g)



    Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.

    Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.

    Wi-Fi® is a registered trademark of Wi-Fi Alliance.



    3.0 / 5.0
    1 Review
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    0
    0
    1
    0
    0
    Great picture, doesn't record to NAS
    I picked up a couple of these for the price and functionality. I've never setup a security camera before, but it seemed a little annoying. You need to install their software because it doesn't use DHCP by default. The video stream also requires you to install some plugin, that doesn't seem to play well with Chrome. The interface is fairly straight forward and easy enough to navigate. The video stream is clean rich in color, I know not something you'd expect from a security camera! The issue I have is that its advertised to work with a NAS, but I cannot for the life of me get that to work. Without it recording and motion detection is completely useless. Also works well with the Gaurding Expert android app.

    PROS: Awesome picture
    Easy to use
    Android app

    CONS: Does not work with NAS
    Cumbersome to setup
    December 22, 2015
