3x1 HDMI Converter Switch - HDMI, Component, DVI, Stereo Audio


	HOME > Video/Audio Switches > Audio & Video Converters / Switches > Auto & Powered HDMI Converter Switches

3x1 Digital and Analog Audio/Video to HDMI® Converter Switch

Product Number: 8145

13 reviews

Share this product:

QTY:

$59.87

Volume Pricing

To see and take advantage of our member pricing sign up for a business account or contact our sales team. Learn more about Monoprice Business

In Stock

This item should ship today (4/13/2016) if ordered within 2 hours 8 minutes

Add to Wish List

div#abc { display: block; } div#writeInfo { display: block; } div#reviewInfo { display: block; } div#descriptionInfo { display: block; } div#knowInfo { display: block; } div#specificationInfo { display: block; } #mono4carousel li { display: inline; } #mono4carousel { margin-top: 10px; }

Description

Specifications

Customer Reviews

Write a Review

Related Categories

return to top

Audio Cables - Optical Toslink

HDMI Cables

Surge Protector and Power Strip

Go to Video Cables - <b>RCA Component</b> category

Video Cables - RCA Component

Go to Video Cables - <b>DVI</b> category

Video Cables - DVI

Customers who bought this item also bought

return to top

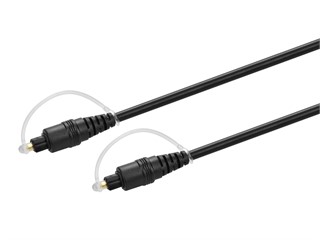

S/PDIF (Toslink) Digital Optical Audio Cable, 6ft

$2.00

(799)

S/PDIF (Toslink) Digital Optical Audio Cable, 3ft

$1.68

(318)

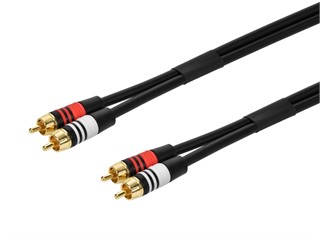

12ft Premium 2 RCA Plug/2 RCA Plug M/M 22AWG Cable - Black

$5.21

(65)

Commercial Series Premium High Speed HDMI® Cable, 12ft Black

$11.49

(212)

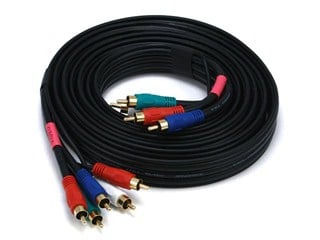

10ft 22AWG 5-RCA Component Video/Audio Coaxial Cable (RG-59/U) - Black

$6.07

(41)

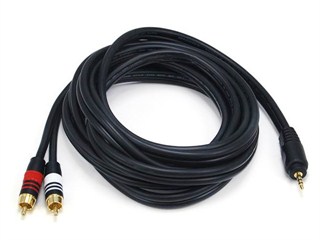

10ft Premium 3.5mm Stereo Male to 2RCA Male 22AWG Cable (Gold Plated) - Black

$3.78

(213)

Specifications

return to top

Specifications
Maximum Video Resolution	1920x1080 (1080p)
Video Output	HDMI with HDCP support
DVI Input	DVI 1.1v
Component (YPbPr) Input	up to 1080p maximum
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	165 MHz / 1.65 Gbps per channel
Supported Video Resolutions	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Color Depth	8-bits per channel (24-bit total)
Supported Analog Audio Input	2-channel stereo
Supported Digital Audio Input	LPCM, DTS-HD Master Audio, Dolby TrueHD
Supported Digital Audio Output	LPCM, DTS-HD Master Audio, Dolby TrueHD
Input Power Requirement	5V DC, 2A
Power Consumption	5 Watts
AC Adapter Input Requirement	100-240V AC, 50/60Hz, 0.5A Max
Operating Temperature	+32 ~ +158°F (0 ~ +70°C)
Operating Humidity	10 ~ 85% RH (no condensation)
Storage Temperature	+14 ~ +176°F (-10 ~ +80°C)
Storage Humidity	5% to 90% RH (no condensation)
Dimensions	10.2" x 4.9" x 1.3"
Weight	1.8 lbs. (832g)
Regulatory Compliance	FCC, CE, UL (Canadian and US), RoHS

Package Contents:

1x 3X1 HDMI converter/switch
1x Remote control with installed battery
1x AC adapter with 44" cord

Customer Reviews

return to top

All Customer Reviews - Click here to review for 3x1 Digital and Analog Audio/Video to HDMI® Converter Switch.

Average User Satisfaction Rate

(58.46%)

rated by 13 user(s)
Click here to review!

Rating: (10 out of 10)

Reviewer: Anonymous from Kenosha, WI

9/2/2014 7:25:23 AM

Good solution for limited-input TVs.

Pros: Switches have a nice solid feel. Video processing is accurate. Very compact size.

Cons: The downside to it's compact size is that it is not rack-mountable. And the LED's are indeed very bright however, electrical tape or some "Dim-it" (available thru Amazon) easily fixes the problem.

My current TV has only two HDMI inputs and only one Component input. I am using this item with a Toshiba HD player and an old Sony DVD player. I do not use the DVI. I also have not yet used the remote.
The unit functions perfectly. Switching is quick. Colors and positioning seem accurate. A nice solution to bring my components together on my limited-input tv. Highly recommended.

Was this review helpful to you?

Rating: (1 out of 10)

Reviewer: Lee from Kaukauna, WI

7/12/2014 6:06:50 AM

Poor Quality - 2nd Unit- We will see.

Pros: Has all the connections I need in a decently sized form factor.

Cons: Led's are blinding, recommend covering them with black tape to hide after done (at least if you have a harmony remote).

First unit came only partially functional (didn't switch properly/had to switch to same port multiple times to get picture to come in correctly), and the remote control that came with unit and my harmony didn't control correctly (press 3 sometimes get 1 or 3, same with pressing 1), sent this unit back.

Second, replacement unit, came with a damaged dvi port that I had to bend open to get pins to fit (not confident in correction since port is already damaged/plastic meant to separate the pins is damaged). I did get this one working however, and am currently testing even with damaged port.

Overall, I have enjoyed monoprice's quality and prices, but this appears to be an exception. I will update my rating later/re-rate after playing with for a few days/weeks.

by Lee
Update from original review. The converter took a crap on the component side. It still works for the hdmi and dvi imputs, but the component side took a dive...it still allows audio for component, but video is unviewable, pops-up a white and green screen where I can only make out a few words. I used a separate component to hdmi adapter that I have to confirm it was the adapter, it is/it plays well through older adapter with no problems. Lasted barely a year, I RECOMMEND YOU DO NOT PURCHASE THIS PRODUCT.

Was this review helpful to you?

Rating: (9 out of 10)

Reviewer: Anonymous from Washington, DC

10/25/2013 6:41:36 AM

Does what it needs to

Pros: Does what it needs to. Solid, good construction.

Cons: Only one of each kind of input. Most of us have more than one source of a type.

It's ok, it does what it needs to, but the thing could really stand a second component or HDMI in. I mean really, how often do people use DVI on a home theatre? Most of this is for video games and media players with HDMI or Component, I suspect, and this only allows in of one each.

Was this review helpful to you?

Rating: (1 out of 10)

Reviewer: Bruce Satow from Concord, CA

10/16/2013 3:27:46 PM

Component with audio to HDMI is it defective?

Pros: Inexpensive. Easy to install. Sturdy exterior build.

Cons: Quality control of electronics and picture quality. Over saturation and too bright. Picture flashes on and off to blank screen when you use menu guide on the TV or remote control of cable/satellite box.

I use a Dish VIP 211 satellite receiver. The HDMI is disabled so I only have the component output. I wanted to use an HDMI cable to go to the television instead of having five wires (3 component, 2 audio) so I purchased this converter. My television is a Samsung UN39FH5000F 1080p LED HDTV. When I used the converter, the picture kept flashing from the video to a black screen. Eventually that stopped, but when I use the Dish program guide or the TV volume control it would start that flashing again. Like it loses the signal and tries to sync and locks in again. If you just watch one channel, never change it or adjust the volume the picture is stable. Also, no matter what you do to try and adjust the brightness or color saturation, the converter box fights your settings and goes back to what ever it seems to be defaulted to. I am not sure if this is a defective unit or if it is incompatible with my set, but whatever it is, I'm disappointed.

Was this review helpful to you?

Rating: (3 out of 10)

Reviewer: Fred from Thousand Oaks, CA

4/12/2013 12:45:37 AM

HDMI converter does not do what iot is supposed to do.

Pros: It does convert component to HDMI ONLY if the component signal is "progressive" or higher.

Cons: If you have an older DVD or super VHS unit with standard component output, don't expect this unit to work. The unit also defaults to the HDMI to HDMI switch when power is shut off and turned on again when both the HDMI and component inputs are used. This causes confusion when outputing a signal from more than one source. Finally the instruction booklet is absolutely worthless as very little of the functions are covered. The remote is very weak. I have tested two units with the same result in every action mentioned above.

I will continue to look for a switching unit that will actually do what this unit claims it will do. In other words convert all component signals to HDMI.

Was this review helpful to you?
