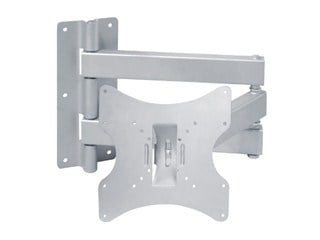

Full-Motion Wall Mount Bracket (Max 33 lbs, 13 -27 inch) - No Logo
Don't leave your flat panel TV on a table or stand where it can be knocked over and damaged, or even worse injure a child or pet. Instead, mount it securely and safely to the wall using this Adjustable Tilting/Swiveling Wall Mount Bracket from Monoprice!
This mount bracket supports adjustments in five dimensions; it can be swiveled ±90°, can be tilted ±60°, and can be rotated a full 360°, so you can easily switch between landscape and portrait orientation. Additionally, the mount can be raised or lowered vertically along the length of the wall plate and can be extended from a minimum distance to the wall of 5.0" to a maximum of 19.2". It also features cable management clips to help keep your installation clean and professional looking.
This bracket is designed to mount an LCD, LED, or Plasma display with a VESA mounting pattern of 75x75 or 100x100, which includes most 13" to 27" displays*. It can be mounted to any type wall (brick, concrete, wood stud, etc.) and can safely hold up to 33 lbs (including the weight of the mount itself). Mounting hardware is included.
* Note that the display screen size is only an approximation. Your display is compatible with this mount as long as it has a VESA mounting pattern and weight that fit within the size and weight limits listed above.
Support Files:
|
|
Related Categories
|
|
Customers who bought this item also bought
|
|
Specifications |
|
Model # |
6277 |
|
Type |
Tilting/Swiveling |
|
Minimum VESA |
75 x 75 |
|
Maximum VESA |
100 x 100 |
|
Maximum Weight |
33 lbs |
|
Minimum Display Size |
13" |
|
Maximum Display Size |
27" |
|
Minimum Extension |
5.0" |
|
Maximum Extension |
19.2" |
|
Tilt Range |
±60 degrees |
|
Swivel Range |
±90 degrees |
|
Rotation Range |
360 degrees |
|
Construction |
Aluminum and Plastic |
|
Color |
Black |
|
Wall Plate Dimensions |
2.9" x 7.9" |
|
Front Plate Dimensions |
4.5" x 4.5" |
|
Built In Level |
No |
|
Cable Management |
Yes |
|
UL Certified |
No |
|
RoHS Compliant |
Yes |
|
Notes: |
No logo on mount,
packaging, or manual |
|
|
|
|
|
| All Customer Reviews - Click here to review for Full-Motion Wall Mount Bracket (Max 33 lbs, 13 -27 inch) - No Logo. |
Average User Satisfaction Rate
|
 | | Rating:  (4 out of 10) | Reviewer: Anonymous from Glen Allen, VA | 1/7/2016 8:02:58 AM |
| | Get a better unit |  Pros: The backplate / wall bracket seems to be very sturdy when mounted correctly into a wall stud.
The wood screw phillips heads didn't strip away like some cheaper screws would do when turning them.
It has not killed anyone (yet).
It was ~$20.
Cons: There are plastic clips holding the arm into the slot for the wall bracket that don't appear to be very good quality.
The arm's elbow bolts may shear off before you even use it.
The plastic cap on top of the wall bracket doesn't fit if you run the cables up through the framework.
The arm bows slightly once the TV is mounted with a small tv.
I received this TV mount yesterday. The bolt in the elbow sheared right off in my hand just as I was getting ready to slide it onto the wall mounted bracket. Luckily the TV was not attached at that point. Since this TV mount is located in my daughter's playroom, we are really lucky it didn't break apart later on. I went to the hardware store and bought a $1 3" steel bolt to replace the hinge with and after fixing the issue myself and finally mounting the TV correctly with a nice tight, the TV sags downward a bit. This is not a heavy tv. In fact it is just a 20" Sony. I would not recommend using this mount for anything over this size and be sure to test the bolts thoroughly before hand. I feel a bit better about the mount now that I have a good bolt in place, but I will be shopping around for a better product later on today.
 by Monoprice Administrator
Hello,
Thank you for your review and I am truly sorry for the inconvenience you have with this wallmount. Please keep in mind that prepare installing of the mount is necessary as if you install it wrong, parts my be more fragile than normal. Nonetheless, thank you for your feedback and I will forward it accordingly to our product development team. Thank you!
John Lingo
Tech Support
Was this review helpful to you?   |  |
|
| | Rating:  (8 out of 10) | Reviewer: ncline from Harrison, AR | 10/16/2013 6:51:28 AM |
| | great little unit for the price | Pros: Solid easy to install, about what I expected.
Cons: adjustment can be tricky.
Got two of these units for a dual 24" monitor setup on a small desk with no room. easy mounting on the wall, good articulation and movement. adjusting is a little tricky especially moving up or down. the arm is held solid in the wall mounted base based on weight and lever action in a channel. Without the weight the arm will slide up and down freely and the bottom is open except for a plastic push on cover. If you don't support the arm when you lift the weight to adjust the height then it can and probably will just drop to the desk or the length of your cords. Just be forewarned. Other than that I am pleased with the value and quality of the purchase.
| Was this review helpful to you? | |
|
| | | Rating: (8 out of 10) | Reviewer: Joseph Kyle-DiPietropaolo from Carol Stream, IL | 9/19/2013 6:56:43 PM |
| | Generally satisfied, needed a bit of adjustment | Pros: Generally well designed, a fairly solid bracket assembly once it is adjusted
Cons: Not ready to go out of the box, needed to be disassembled and tightened before installation
Some internal parts easily lost
Overall I am satisfied with this mount, but it did need a bit of work before I could complete the installation. Namely, I had to pretty much completely disassemble the mount and tighten all the internal concealed fasteners to remove a lot of the slop in the various joints. This includes the 360 degree rotational joint post and both of the 180 degree hinges, all needed to be adjusted. Fortunately, removing the various plastic end caps, nylock nuts, phillips screws and snap rings needed to make the adjustments is not difficult. Note that this is in addition to the documented adjustment of the ball retention ring.
One thing to be careful of, there are some tiny clear 'rubber band like' pieces that are part of the arm assembly that goes inside the wall bracket, make sure not to knock these off as they are not easy to find after you've dropped them - especially if you didn't even realize they were there, or could come off...
| Was this review helpful to you? | |
|
| | Rating:  (9 out of 10) | Reviewer: Smores from Champlain, NY | 9/10/2013 5:55:22 AM |
| | So far so good. | Pros: Rather sturdy construction
Looks nice
Cleans up your installation
Makes your desk more flexible in terms of layout.
Cons: Up/down not lockable
These mounts hold monitors in desk with credence (no access to screw the mount to the tabletop) very nicely. Finally my desk looks clean.
My only gripe is that the silicon bands preventing the monitor up/down movement tend to slip when a big truck drives in the street (or when the kids push the top of the screen back). I had to insert some sticks cut to the length between the bottom retainer and the sliding piece to make sure they wouldn't move anymore.
| Was this review helpful to you? | |
|
| | Rating:  (10 out of 10) | Reviewer: BitterBeard from Gilbert, AZ | 8/8/2013 10:02:16 PM |
| | Spectacular Wall Mount | Pros: Works as intended
Cons: Everybody keeps trying to move my flipping monitor!
I have 4 monitors in my office and my personal computer has a 30" and a 24" monitors. I started feeling like my wall of monitors was being counter productive. I bought this wall mount to put the 24" monitor above my 30" display. The description/schematics to me seemed like the mount was adjustable height wise and it is not, after drilling some holes and adding in locations to custom fit the swing arm stop "L" bracket, it is now adjustable to where I want the monitor to sit exactly. For such a low price I was amazed at how high quality build the monitor arm is. I have installed multiple wall mounts of this build as other family members have them shipped to their house. Once they adjust their monitor to where they want it, I move it.......
| Was this review helpful to you? | |
|
| |
|
