PCI-Express 2x Dual RS-232 Serial Port and 1x Parallel Port Card, Moschip Chipset
Add one parallel and two serial ports to your Windows® or Linux desktop PC using this PCI-Express Dual Serial and Parallel Port Card from Monoprice!
This single-lane (x1) PCI-Express card uses the MOSCHIP MCS9901 chipset to provide two RS-232 serial ports and one IEEE-1294 parallel port. It features a female DB-25 connector on the main support bracket and two male DE-9 (aka DB-9) serial ports on a second bracket, which connect to the card via a ribbon cables. It also includes half-height support brackets for use in low-profile computer cases.
Features:
- Fully compliant with the PCI-Express Base Specification Revision 1.1
- Single Lane (x1) PCI-Express with throughput up to 2.5Gbps
- 2x RS-232 serial ports
- 1x IEEE-1284 compatible parallel port
- Supports RS-232, RS-422, and RS-485 modes
- Supports Re-map function for legacy ports
- Compatible with industrial standard 16C450/16C550 UART
- 230.4 kbps maximum data rate on each serial port
- Supports hardware and software flow control
- Supports 5-, 6-, 7-, and 8-bit serial formats
- Supports Even, Odd, Non, Space, and Mark parity
- Supports 1 or 2 Stop bit operation
- Supports remote wakeup and power management features
- Optional jumper setting for RI, +5V, or +12V on pin 9 of each serial port connector
- Parallel port data rates up to 1.5 Mbps
- Parallel port supports SPP, PS2, EPP, and ECP modes
- Fully Plug and Play compatible
- FCC Certified and RoHS Compliant
Note that this card now uses the MCS-9901CV chip. The manual specifies using the drivers in the MCS9900 directory. Please use the drivers in the MCS9901 directory instead or download the latest drivers linked below.
Support Files:
- User's Manual (Aug 18, 2011)
- Drivers for Windows XP, Vista®, 7, 8, 8.1 (64-bit) ver 3.0.0.0 (Jun 25, 2014)
- Drivers for Windows XP, Vista, 7, 8, 8.1 (32-bit) ver 3.0.0.0 (Jun 25, 2014)
- Drivers for Windows CE 6.0 ver 1.0.0.1 (Jun 5, 2009)
- Drivers for Windows CE 5.0, Mobile 5, Mobile 6 ver 1.0.0.1 (Jun 25, 2014)
- Drivers for Linux Kernel 2.6.x and 3.x ver 3.0.0 (Jul 28, 2014)
- DOS configuration tool for MS-DOS legacy I/O port configuration ver 1.0.0.3 (Feb 24, 2011)
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
|
|
Related Categories
|
|
Customers who bought this item also bought
|
|
|
|
|
|
|
| All Customer Reviews - Click here to review for PCI-Express 2x Dual RS-232 Serial Port and 1x Parallel Port Card, Moschip Chipset. |
Average User Satisfaction Rate
|
 | | Rating:  (10 out of 10) | Reviewer: frost3199 from Greeley, CO | 3/24/2015 1:02:47 PM |
| | Nice unit, nice price! |  Pros: Easy setup, drivers available both online and on disc. Unit works well. Easy setup.
I was hoping I could use the parallel port on this for an old software license dongle, but it wouldn't see it when I had it mounted. That is not the fault of this unit, but the old software just couldn't see the dongle on my newer computer. The unit installed easily, and drivers were loaded without problems. I had a little confusion when I tried to distinguish which ports were which in Device manager, but finally sorted that out. Unit works well, and the price was great!
Was this review helpful to you?   |  |
|
| | | Rating: (10 out of 10) | Reviewer: honeydpr from Dripping Springs, TX | 7/22/2013 12:48:50 PM |
| | Excellent add-on card. | Pros: This replaced, one of another manufacture, that I had purchased about a year earlier. This one worked, no trouble! The earlier one did unpleasant things to my computer: most notably, when turned off, you waited about 30 min before the machine would boot.
Cons: None
| Was this review helpful to you? | |
|
| | | Rating: (10 out of 10) | Reviewer: KellyatPMSI from Irvine, CA | 5/31/2012 4:36:37 PM |
| Pros: works great for our compact Dell PC's
Great price,
Very reliable, we bought some others that have all been returned, these just work
Cons: non yet
Very reliable, we bought some others that have all been returned, these just work
| Was this review helpful to you? | |
|
| | | Rating: (10 out of 10) | Reviewer: Anonymous from Virgil, ON | 3/27/2011 9:12:00 AM |
| Best place on the net to buy cables
| Was this review helpful to you? | |
|
| | | Rating: (10 out of 10) | Reviewer: Anonymous from Hastings, MI | 9/1/2010 7:37:38 AM |
| | Works Great Low Cost PCI-E 2 RS-232, 1LPT1 | Pros: Low cost as usual from monoprice, PCI-E card, and WORKS! New PCs no longer have serial or parallel ports and if you need to interface with older equipment that requires serial, parallel port and you only have PCI-E slots open in your PC like I did this is the way to go.
Cons: None
The base address of your parallel port is changed so do not expect 0x378. You will need to configure any software that uses parallel port to use the assigned address by the Multi I/O Card but this is expected.
| Was this review helpful to you? | |
|
| |
|
Monoprice welcomes your feedback. The review you submit will be displayed on the product's review page after it has been verified. It should take about 2-3 business days for this process. Monoprice verifies customer reviews and will publish them after making sure they comply with our review guidelines. You may be contacted by Monoprice regarding your submission.
We will remove reviews that: - Contain profanity or other objectionable content. Should you find any profanity or objectionable content, please contact us at tech@monoprice.com
- Fail to focus on the product. Complaints about shipping or customer service issues will be forwarded to Customer Service to be addressed. Reviews that discuss other products, catalog copy, pricing, or other ancillary issues will be removed.
- Contain advertisements or promotional materials or contain links to external content. Monoprice will also remove reviews submitted by or on behalf of a company with an interest in a competing product.
- Any other content we deem to be inappropriate.
If you believe you may have received a defective unit, remember that Monoprice backs everything we sell with a warranty. Please use our automated return service to request a replacement. Any other issues with your order not directly related to the product itself should be directed to our online customer support chat.
Note: All or part of any product review including the Review Title, "Your Nickname", Rating, Pros/Cons, images and all other parts of the review itself may be used by Monoprice in future marketing campaigns or promotions in any media. Submission of a product review signifies consent that the information you submit may be used at Monoprice's discretion without any further notice or expectation of compensation. You are further representing that any submission is wholly an original creation by you and/or that any portion taken from third party sources have fully cleared for use.
|
|
If you want to write a review, please login first by clicking here.
|
|
|

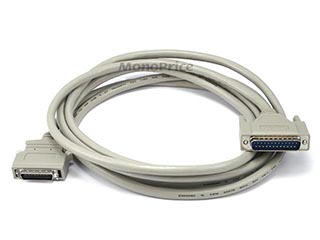

![Product Image for 10FT DB-25(IEEE-1284) Male to Mini/Micro Centronic 36(HPCN36) Male Cable [IE]](http://images.monoprice.com/productmediumimages320/2581.jpg)
