2-Conductor DMX Lighting & AES/EBU Bulk Cable (For 3-Pin DMX) - 500FT


	HOME > Pro Audio Series > Cables > XLR Cables (Audio & DMX)

Product Number: 601660

3 reviews

Share this product:

QTY:

$89.00

Volume Pricing

To see and take advantage of our member pricing sign up for a business account or contact our sales team. Learn more about Monoprice Business

In Stock

This item should ship today (4/13/2016) if ordered within 2 hours 6 minutes

Add to Wish List

div#abc { display: block; } div#writeInfo { display: block; } div#reviewInfo { display: block; } div#descriptionInfo { display: block; } div#knowInfo { display: block; } div#specificationInfo { display: block; } #mono4carousel li { display: inline; } #mono4carousel { margin-top: 10px; }

Description

Specifications

Customer Reviews

Write a Review

Related Categories

return to top

Cables

Live Sound & Stage Systems

Customers who bought this item also bought

return to top

3-Pin DMX Terminator

$2.50

(12)

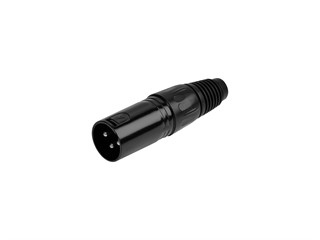

3-Pin Male DMX Connector

$1.95

(3)

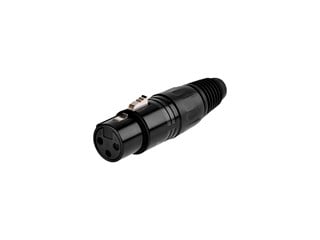

3-Pin Female DMX Connector

$1.95

(3)

Specifications

return to top

Specifications
Jacket Material	PVC
Jacket Diameter	6.5mm
Conductors	2x 22 AWG copper
Shielding	Aluminum foil + Copper spiral
Shielding Coverage	100%
Temperature Range	-4 ~ +158°F (-20 ~ +70°C)
Conductor-Conductor Capacitance	< 65pF / meter
Conductor-Shield Capacitance	115pF / meter
Conductor Resistance	53Ω / kilometer
Shield Resistance	17Ω / kilometer
Insulation Resistance	> 10GΩ / kilometer
Surge Impedance	110Ω

Customer Reviews

return to top

All Customer Reviews - Click here to review for 2-Conductor DMX Lighting & AES/EBU Bulk Cable (For 3-Pin DMX) - 500FT.

Average User Satisfaction Rate

(63.33%)

rated by 3 user(s)
Click here to review!

Rating: (8 out of 10)

Reviewer: Anonymous from Broomfield, CO

1/6/2016 3:23:18 PM

Good Value

Pros: Good Value
Consistent, good quality
Easy to strip & solder

Cons: Not the most rugged cables
Internal plastic shielding melts very easily when soldering (but did not cause issues)

I just used this wire along with Monoprice DMX connectors to make several DMX cables of various lengths. The quality seems consistent and sufficient for most DMX applications. I was worried that the wire would be difficult to strip due to the foil shield layer, but there is no adhesive used, so it was no issue at all. I would recommend this cable for any applications that do not require really rugged cables, as the rubber jacket is a little more flexible than I am used to. Not an issue for low-impact or permanent installations. No issues with packaging - cable was spooled onto a plastic spool and wrapped in plastic wrap.

Was this review helpful to you?

Rating: (1 out of 10)

Reviewer: Anonymous from Mpls, MN

10/18/2015 4:10:23 PM

Poor Packaging!!

Pros: Haven't tried the cable yet - but it looks fine

Shipment packaging was grossly inadequate. Flimsy cardboard box. The end of the spool and much of the cable had come off in shipment. It was a huge tangled mess. Multiple labor hours wasted dealing with the mess. If I had time I would have sent it back for Mono to deal with. You can't package a flimsy plastic spool in a weak box with no support!!

by Monoprice Administrator
Hello,

My apologies for the delayed response. Sorry to hear of the issues with the spool. I will let our product team know of the packaging issues. I also wanted to ask if the cable is working fine.

Regards,
Mark P.
Tech Support Associate

Was this review helpful to you?

Rating: (10 out of 10)

Reviewer: Adrian Camacho from ,

7/31/2014 12:06:43 AM

Great for the price!

Pros: Price!

Was looking at other similar items on the net but after talking to friends who have ordered from this site I bought the cable from Monoprice. Its definitely what I was looking for and the price was also good. I will be buying from this site in the future. Thanks for a quick transaction!

Was this review helpful to you?
