HDBaseT™ Wall Plate Receiver w/ Bidirectional IR Repeater - 100m (328ft)


	HOME > Home Theater > HDBaseT > HDBaseT Receivers

Product Number: 10228

7 reviews

Share this product:

QTY:

$120.39

Volume Pricing

To see and take advantage of our member pricing sign up for a business account or contact our sales team. Learn more about Monoprice Business

In Stock

This item should ship today (4/13/2016) if ordered within 2 hours 24 minutes

Add to Wish List

div#abc { display: block; } div#writeInfo { display: block; } div#reviewInfo { display: block; } div#descriptionInfo { display: block; } div#knowInfo { display: block; } div#specificationInfo { display: block; } #mono4carousel li { display: inline; } #mono4carousel { margin-top: 10px; }

Description

Specifications

Customer Reviews

Write a Review

Customers who bought this item also bought

return to top

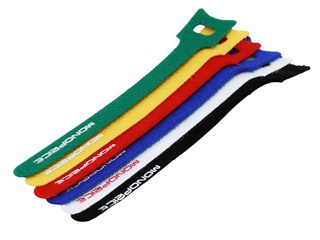

Hook & Loop Fastening Cable Ties, 6-inch, 6pcs/pack, 6 colors

$0.61

(195)

SALE

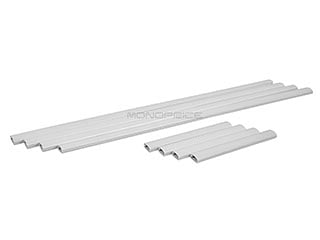

Cable Management Kit - White

$7.72

(199)

Select Metallic Series High Speed HDMI® Cable with Ethernet, 3ft

$3.99

(65)

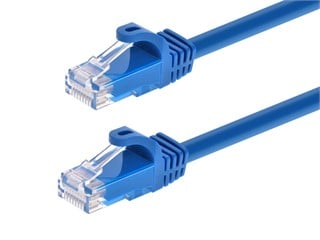

FLEXboot Series Cat6 24AWG UTP Ethernet Network Patch Cable, 100ft Blue

$13.50

(3)

Specifications

return to top

Specifications
Supported Video	High Speed HDMI with HDCP 1.2
Supported Resolutions	1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Color Support	up to 12-bit/channel Deep Color (36-bit total)
Audio Support	LPCM, Dolby AC3, DTS 7.1, DSD
Bandwidth/Data Throughput	up to 10.2Gbps
Operating Temperature Range	+5 ~ +131°F (-15 ~ +55°C)
Operating Humidity Range	5 ~ 90% RH (no condensation)

Customer Reviews

return to top

All Customer Reviews - Click here to review for HDBaseT™ Wall Plate Receiver w/ Bidirectional IR Repeater - 100m (328ft).

Average User Satisfaction Rate

(58.57%)

rated by 7 user(s)
Click here to review!

Rating: (6 out of 10)

Reviewer: Skyler Call from Orem, UT

3/15/2016 8:49:35 PM

Great While It Lasted

Pros: - Inexpensive
- Easy to use

Cons: - The Ethernet port on the back is near the edge and makes it very difficult to get a shielded CAT-6A cable connected when installing in a standard electrical box
- Only lasted thirteen months

This product performed very well for about thirteen months. Now I cannot get it to connect with the transmitter.

Was this review helpful to you?

Rating: (2 out of 10)

Reviewer: djearl81 from St. LOUIS, MO

3/3/2016 6:52:09 PM

Doesn't last...

First order - 4/10/2015 lasted till about 10/1/2015
Second order (RMA) - 10/5/2015 lasted till 3/3/2016

I've had two sets of HDbaseT product from monoprice. They perform excellent. However, This is my second unit to go out in under 1 year. Each product lasted just over 5 months. I'm very hopeful it's just a bad power supply. Have ordered a replacement from amazon. Very hopeful replacing the power supply will fix the issue. As a long time customer I expect a higher quality from monoprice.

Was this review helpful to you?

Rating: (2 out of 10)

Reviewer: Anonymous from London, ON

1/8/2016 12:49:10 PM

Handshake issues, unreliable

Pros: Potential to work over long cable runs

Cons: Poor reliability. Need for separate power source. Complicated troubleshooting, especially for a cable that may by hidden and poorly accessible.

I bought the wall plate receiver and regular extender for an 80 foot run. The system was going to be hidden and poorly accessible when fully installed. During my initial testing everything worked fine, but after I ran the cable, I couldn't get the signal to work. Shorter cables didn't work. Direct connection without using a receiver didn't work. Different combinations of the order of connection hook up and power-on didn't consistently work. Monoprice eventually suggested a very specific order of hooking up the Cat6/power cords and powering on each system. I had already given up as I subsequently had read many reviews (not on the monoprice website) that complained of major issues when using these HDBaseT with receivers, Even if I could have gotten it to work, I would have been worried about the system crashing and requiring a complicated 'reboot'. I don't feel anyone should have to worry about cables crashing... In the end I bought an 80 foot one-way HDMI cable which works well for 1080p. Might need to upgrade for 4K but won't be using this system.. Would consider an optical cable in the future, but given the outrageous, non-refundable duties and brokerage fees of shipping from monoprice to Canada, won't be using monoprice.

Was this review helpful to you?

Rating: (5 out of 10)

Reviewer: djearl81 from St. LOUIS, MO

4/17/2015 6:37:49 AM

Flawed, but still works

Pros: Passes a 1080i signal consistently where 75' HDMI cable (PID 6062 with booster) would not.
Not dropouts from Yamaha RX-V675 with BluRay, Xbox360, Wii (upconverted by receiver), and Uverse (Motorola).

Cons: Cat 6a output on side doesn't fit into a standard 2 gang low voltage box. You'll need to buy a 3 gang box and add a blank or notch out the side of the box.

Purchased this receiver to go with free standing extender (PID 10680). Connected via 100' STP cat6A (PID 5907). Watched the entire hockey game last night on the projector with no dropouts or signal loss issues at 1080i. (Used to get frequent dropouts with the 75' HDMI cable at 1080i.) The port for the catx cable on the side really is a pain. It causes the whole unit to shift to one side and then the screw holes don't line up in the box even if you can get it to fit. So, your only real option is to notch the side of the box or go with a different solution. Since The functionality is important to me, I'm going to make another hole in the wall a few inches over so we don't have to modify the floor joist....which means a drywall patch. Your install may be different, but you shoudl plan ahead if at all possible if you're going to use this unit.

Other reviewers have said that the power supply goes bad after a few months. I can't comment on that since I received the unit yesterday. However, I will say that the USB chargers and other power supply items I've purchased from monoprice have been sub par. (TV mounts, cables, and even guitar have been great.) Apparently you can buy a replacement power supply from amazon that is better quality.

This receiver works in my setup, long term results pending.
Yamaha RX-V675 with BluRay, Xbox360, Wii (upconverted by receiver), and Uverse (Motorola)
Receiver HDMI out to a powered HDMI splitter (over High Speed HDMI cable)
standard speed HDMI cable from splitter output to TV
HDMI High speed cable from powered splitter to HdbaseT extender (PID 10680)
100' 24AWG cat 6A STP to this HDBaseT receiver
4' high speed HDMI cable to BenQ 1070.

There is a slight blackout if I turn the TV or projector on/off while watching the other unit. Assuming this has to do with renegotiating the handshake. Signal did return in a few seconds with each test as expected.

Good luck, we are all in this together.

Was this review helpful to you?

Rating: (7 out of 10)

Reviewer: hr from San Mateo, CA

10/19/2014 8:18:31 PM

Pros: * Reasonable price
* Ethernet ports for other devices
* Status LEDs

Cons: * External power required
* Silver color
* Size
* Only 100 Mbits

My biggest complaint about this BaseT receiver is the fact that you need to supply 5V through a 5V power supply (included). I bought this for having the cleanest possible installation and having to supply power from the front does not help with that goal. I also wish that it provides 1Gbit (for other connected devices), comes in white rather than silver and occupied only 1 gang instead of 2 (though I see that this might be hard to do without overheating). Having said all that, I am still happy with the device so far.

Was this review helpful to you?
